Toyota CAMRY radiator grille — Figure 5301

Toyota CAMRY EPC diagram 5301, radiator grille, with 4 images and 5 PNC and OE references.

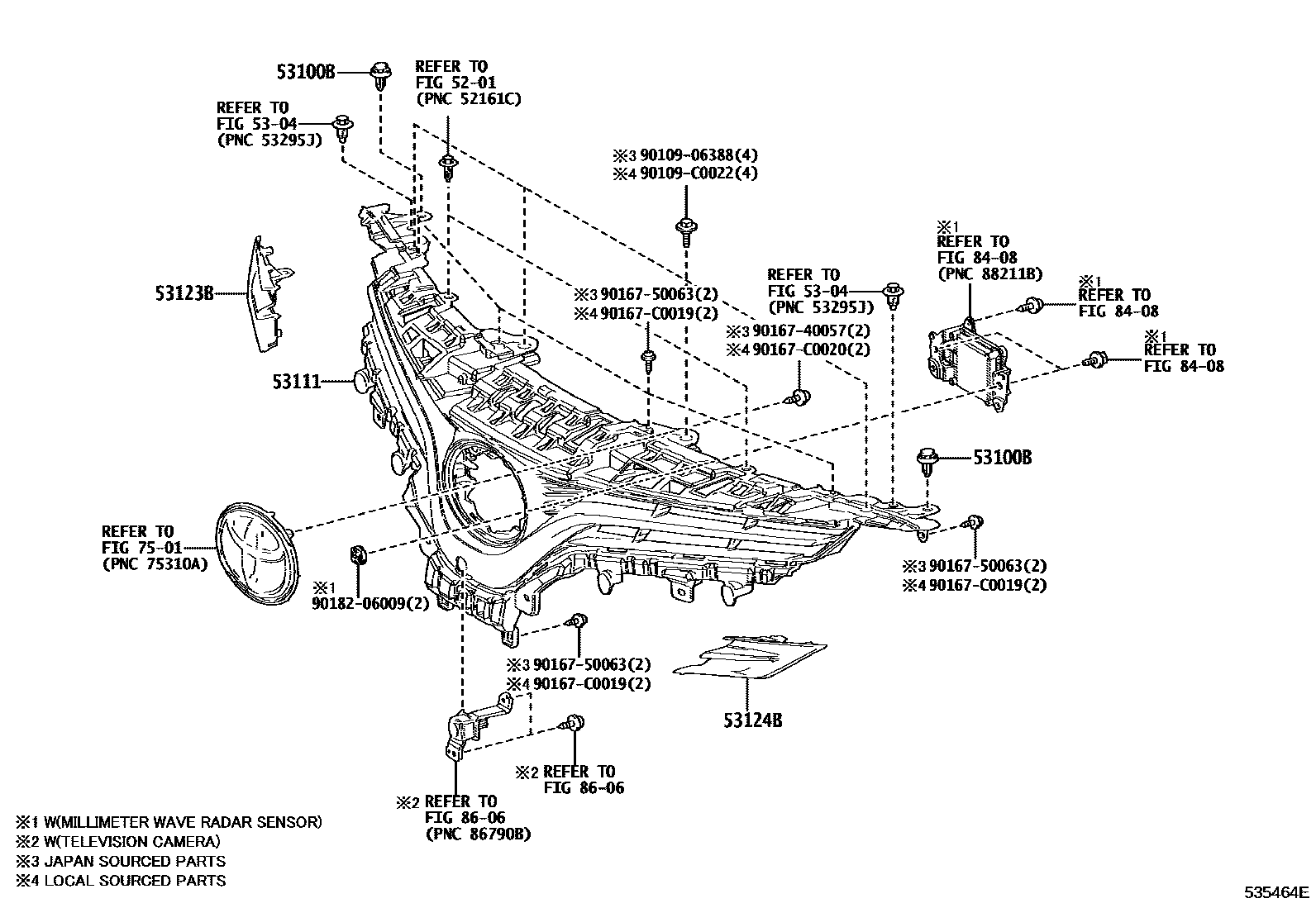

Toyota CAMRY radiator grille EPC diagram — 535464E
radiator grille — 535464E (201712 – 202103)

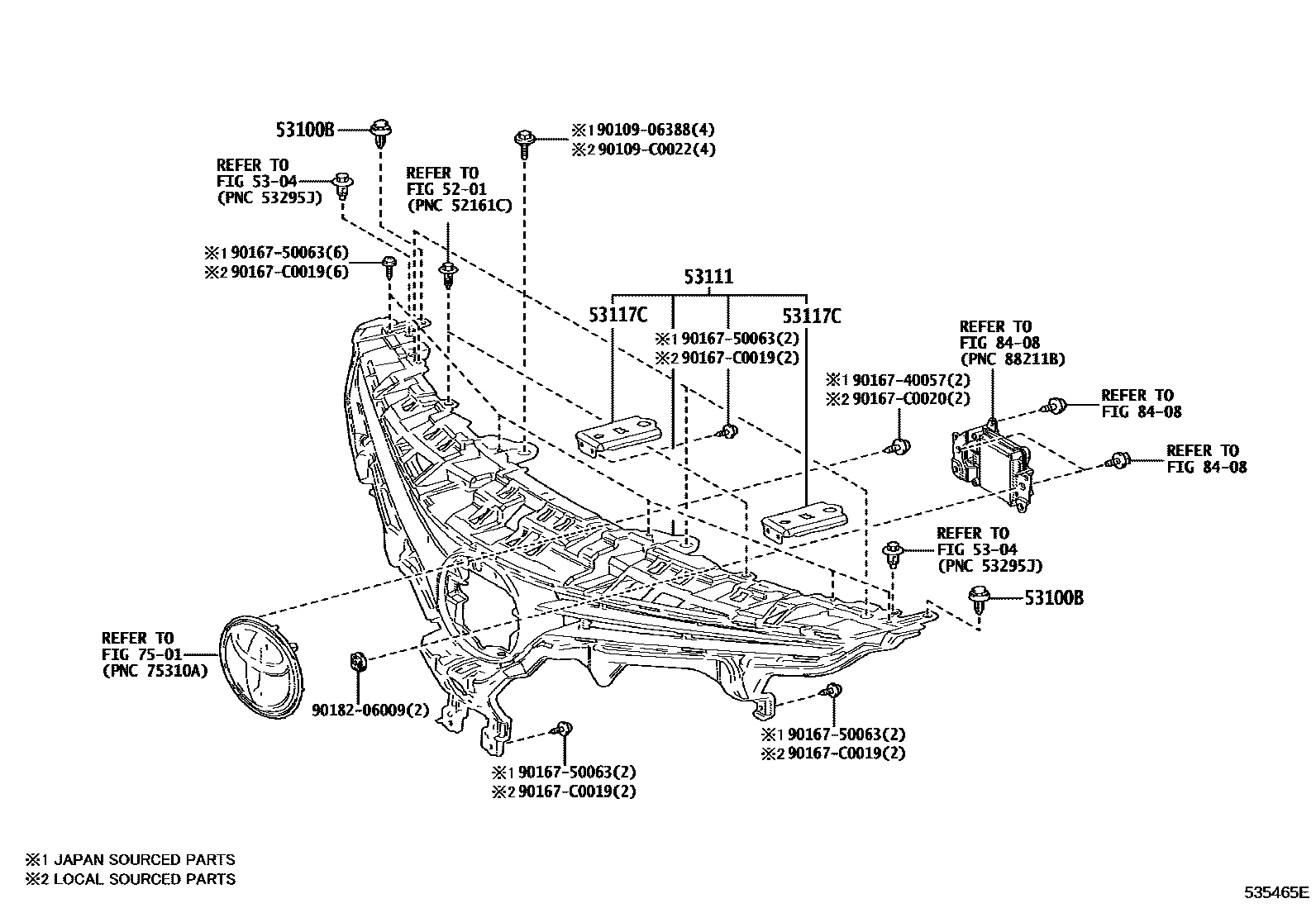

Toyota CAMRY radiator grille EPC diagram — 535465E
radiator grille — 535465E (201712 – 202103)

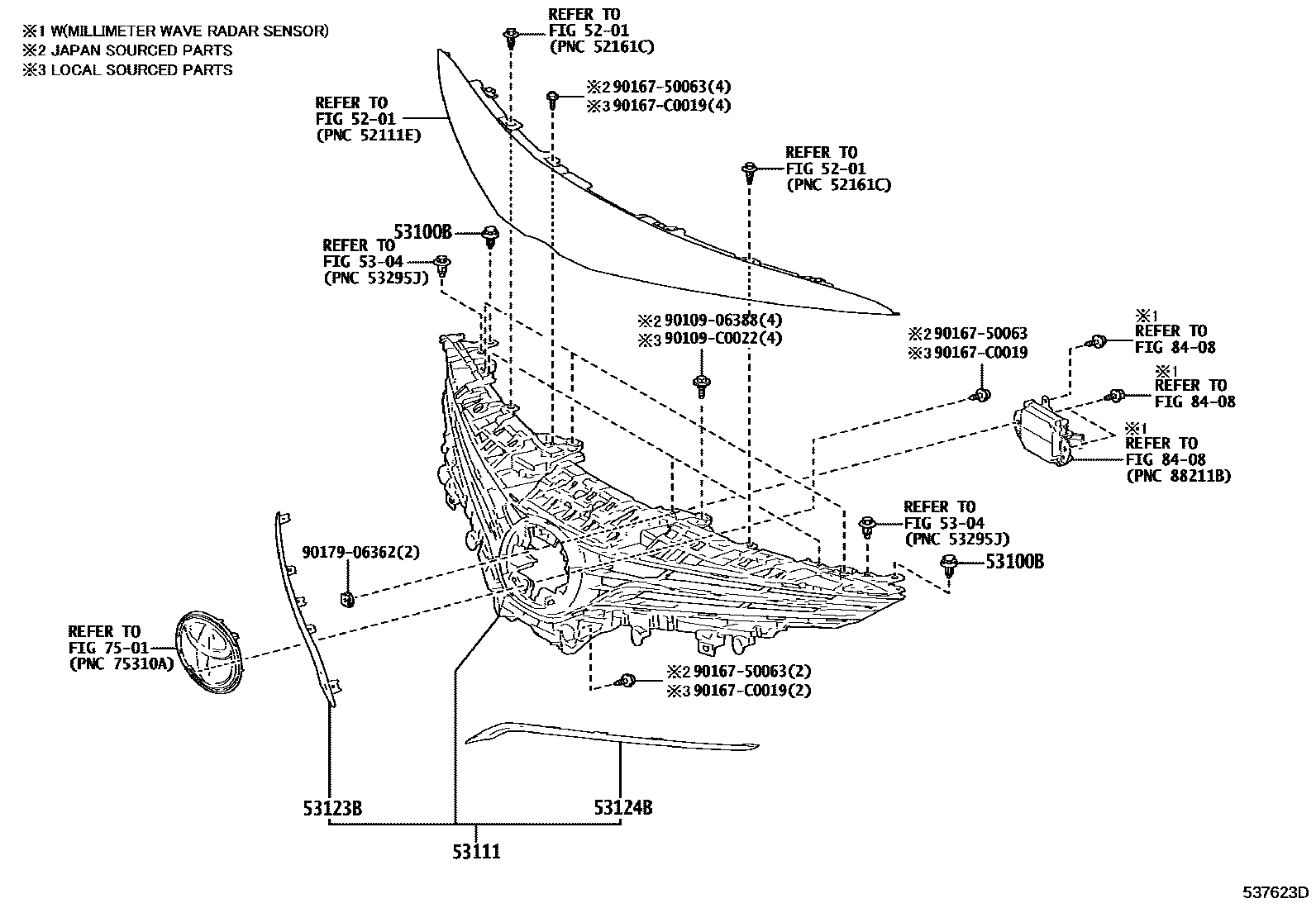

Toyota CAMRY radiator grille EPC diagram — 537623D
radiator grille — 537623D (202103 – 999999)

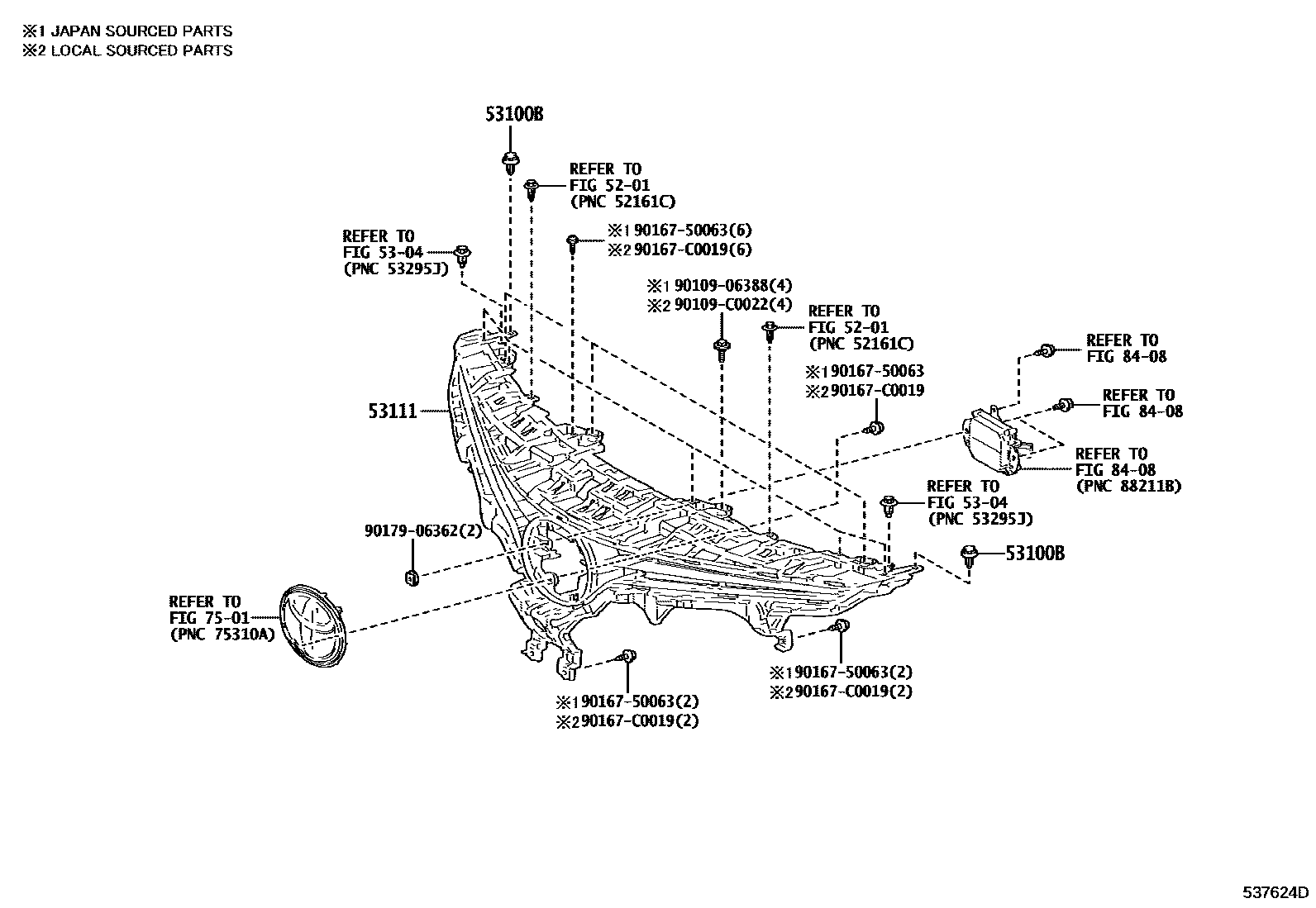

Toyota CAMRY radiator grille EPC diagram — 537624D
radiator grille — 537624D (202103 – 999999)

PNC and OE references

PNCPart nameOE numbers
53100BRadiator grille clip90467-07220 · 90467-C0043
53111radiator grille53101-06B50 · 53101-06B70 · 53101-06B80 · 53101-06B90 · 53101-06F70 · 53101-06F80
53117CRadiator grille fixing No. 152521-06100
53123BProtective strip on the right side of the radiator grille53123-06120 · 53123-06200 · 53123-06240
53124BRadiator grille left protective strip53124-06200 · 53124-06210 · 53124-06220
