Toyota CAMRY 后保险杠及附件 — Figure 5202

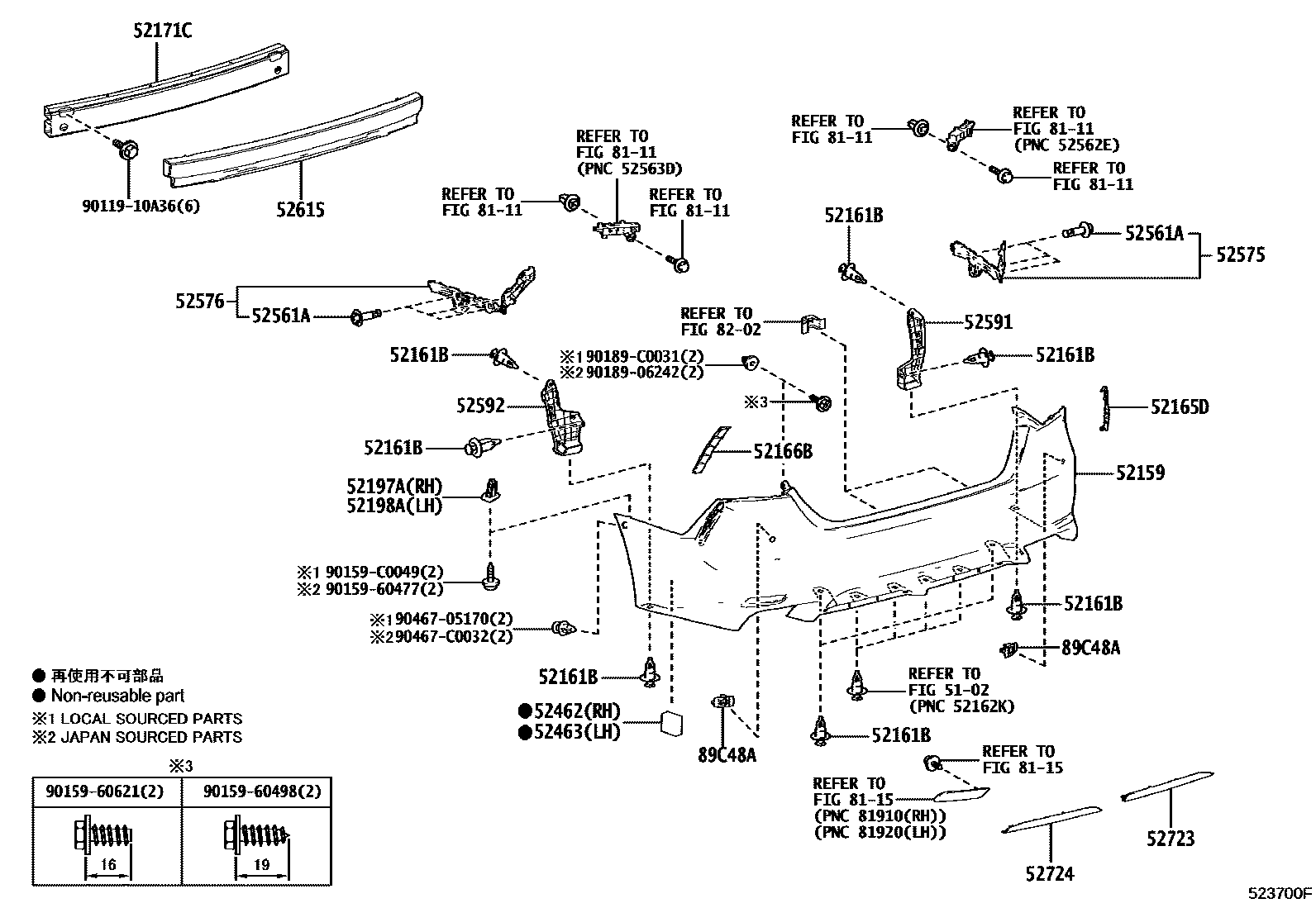

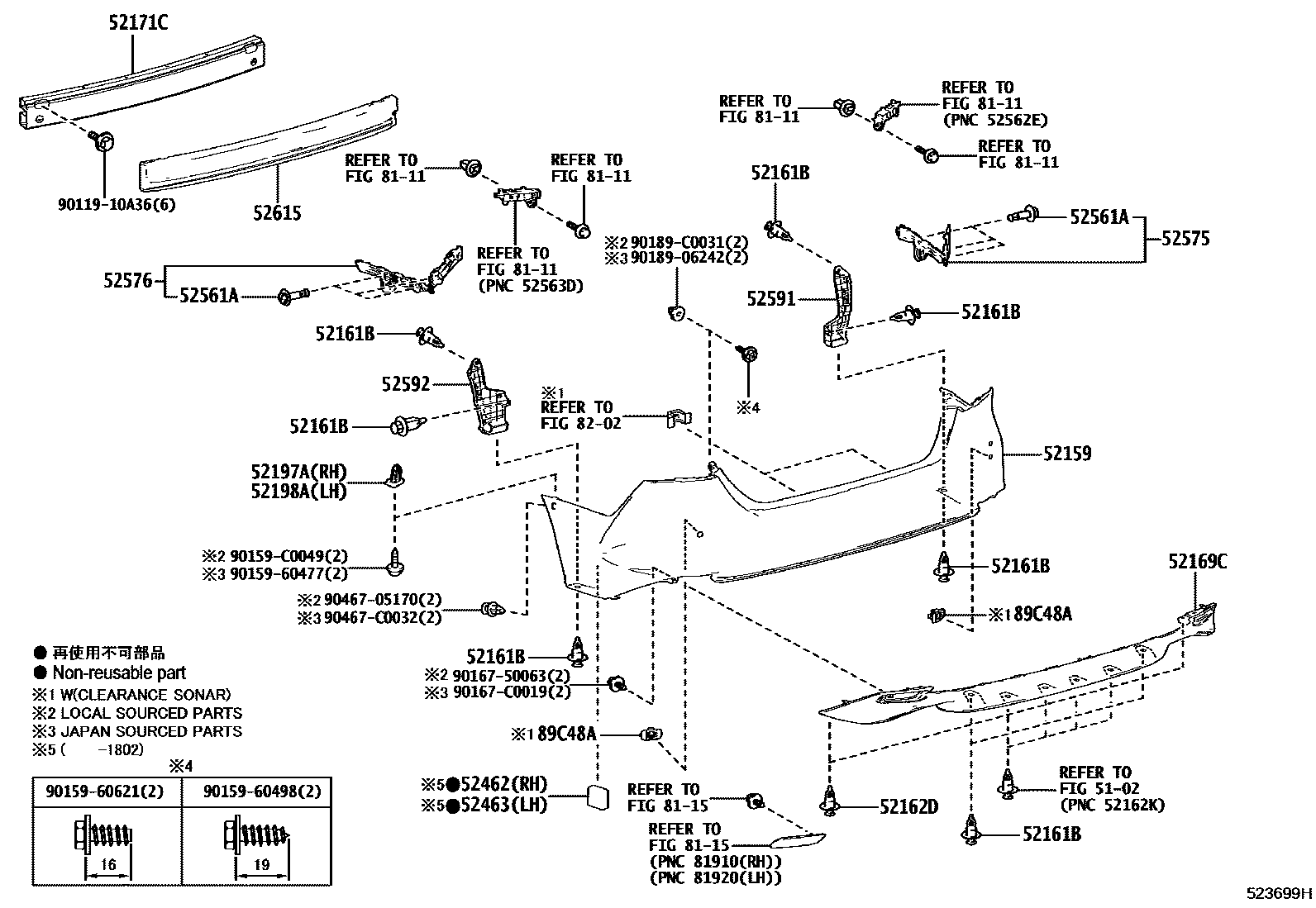

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-0X917 · 52159-0X918 · 52159-0X919 |
| 52161B | Rear bumper insert | 52161-02040 |
| 52162D | Rear bumper insert | 52161-02040 |
| 52165D | Rear bumper right corner extension | 52165-06040 |
| 52166B | Rear bumper left corner extension | 52166-06040 |
| 52169C | Rear bumper lower cover | 52169-06210 |
| 52171C | Rear bumper reinforcement | 52171-06180 |
| 52197A | Rear bumper right seal support | 52197-53040 |
| 52198A | Rear bumper left seal support | 52198-53020 |
| 52462 | Rear bumper right side lining | 52462-06210 · 52462-06230 |
| 52463 | Rear bumper left lining | 52462-06210 · 52463-06150 |
| 52561A | Clip (for rear bumper mount) | 90467-09237 · 90467-C0058 |
| 52575 | Rear bumper right side fixing bracket | 52575-06200 |
| 52576 | Rear bumper left side fixing bracket | 52576-06200 |
| 52591 | Rear bumper right seal | 52591-06070 |
| 52592 | Rear bumper left seal | 52592-06070 |
| 52615 | Rear bumper energy absorber | 52615-06140 · 52615-06150 |
| 52723 | Rear bumper right extension protection strip | 52723-06030 |
| 52724 | Rear bumper left extension protection strip | 52724-06030 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-06270 |
