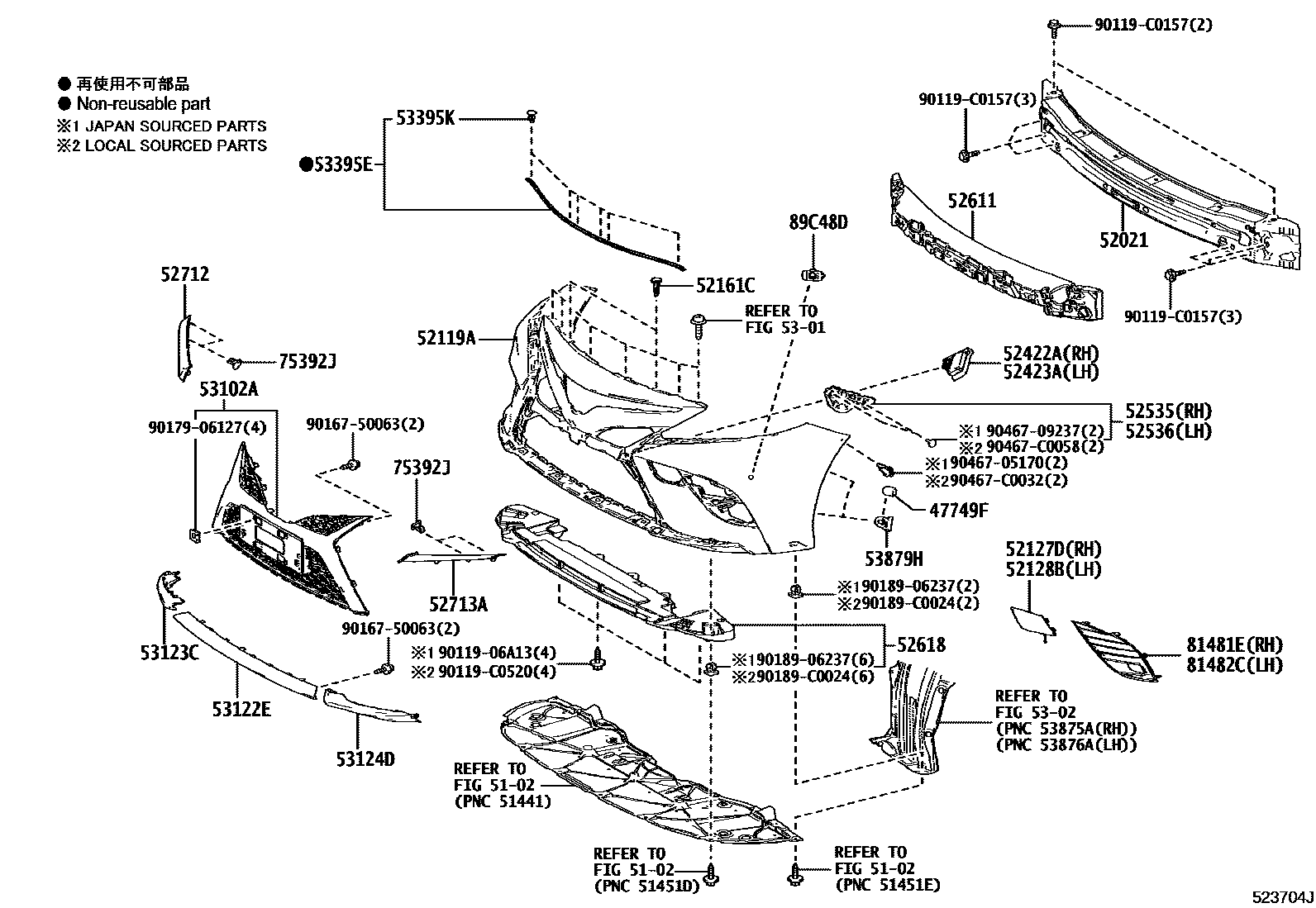

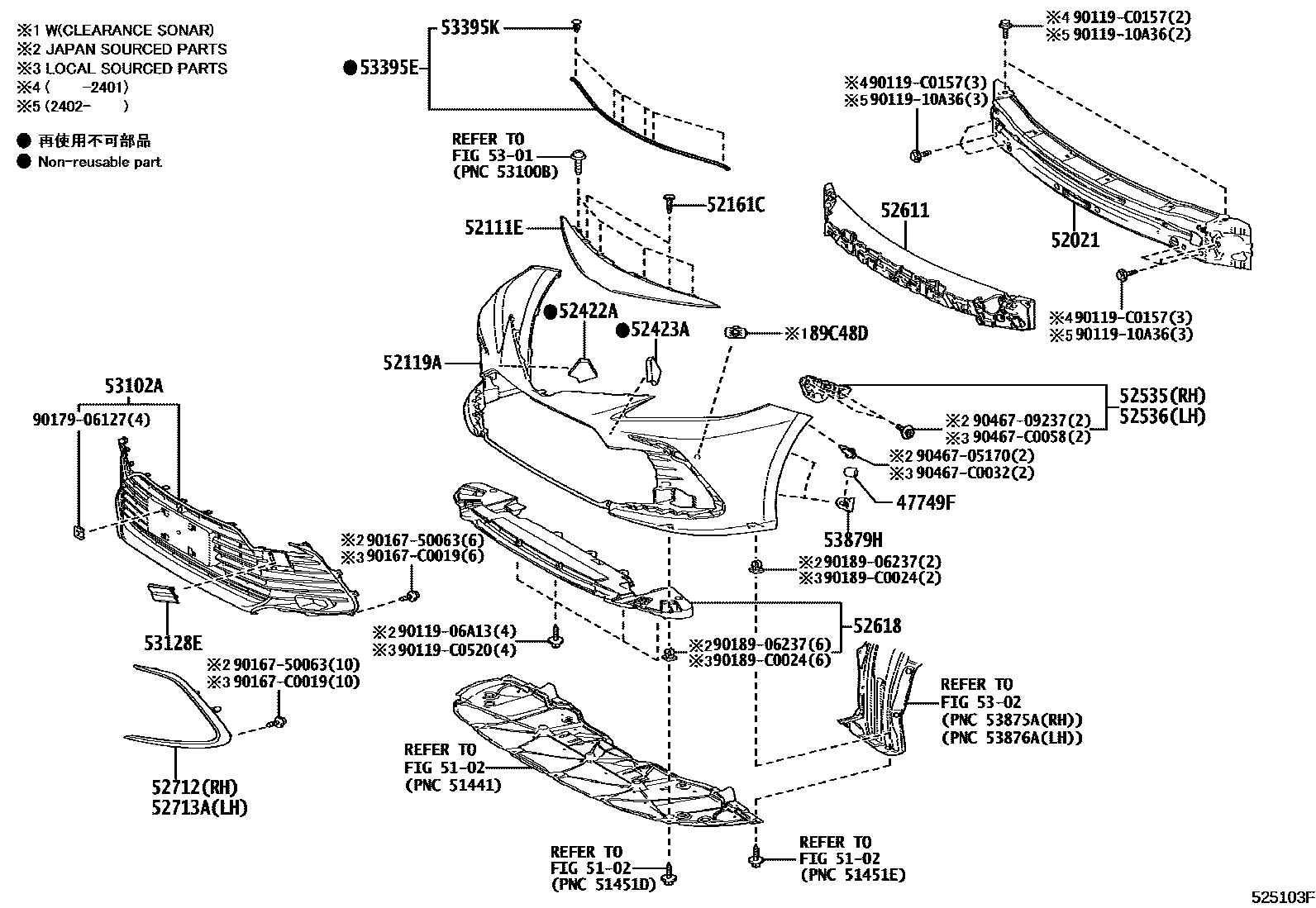

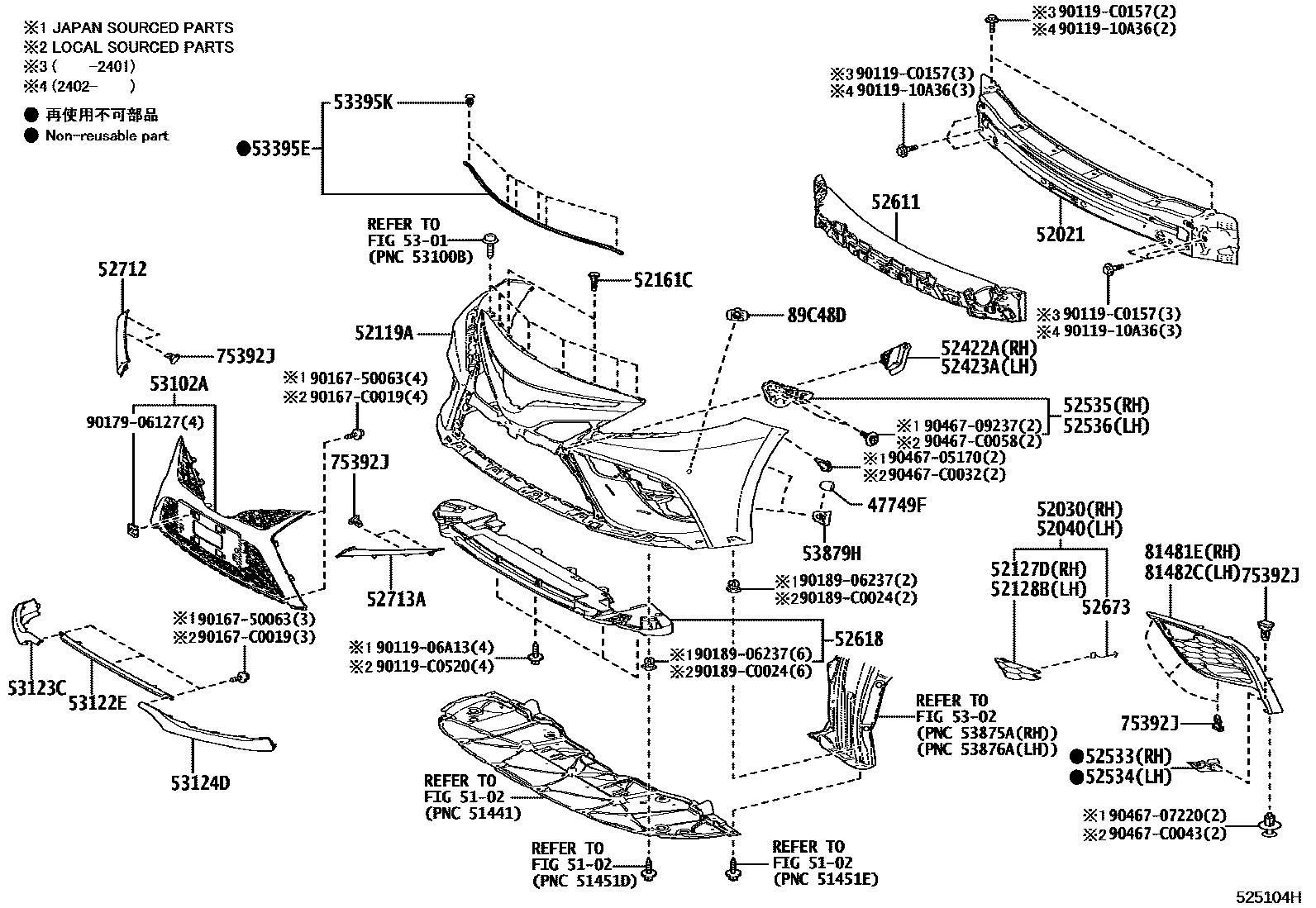

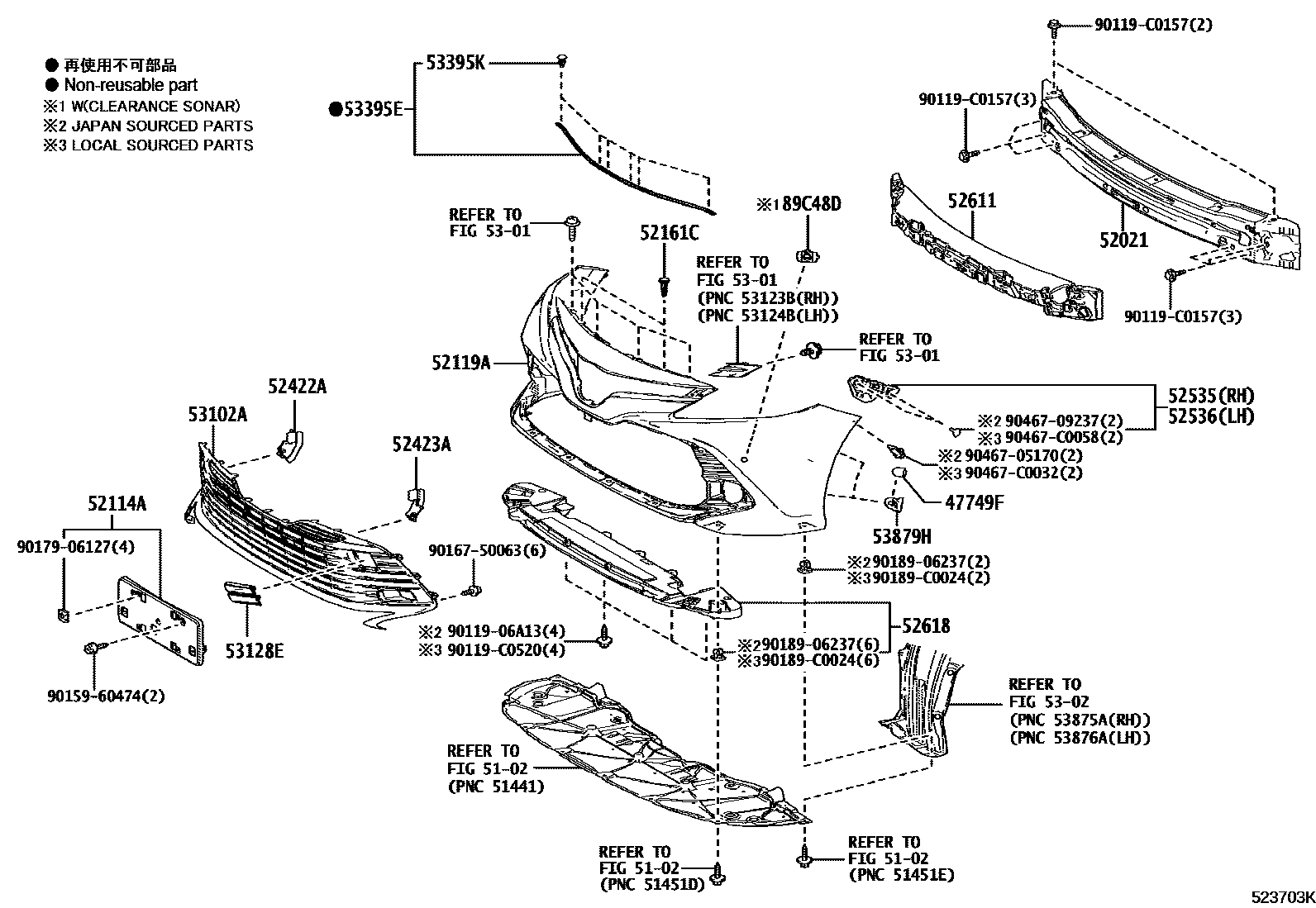

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-02080 · 47749-30090 · 47749-33030 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-06180 · 52021-06210 |
| 52030 | Front bumper right hole cover assembly | 52030-06090 |
| 52040 | Front bumper left hole cover assembly | 52040-06070 |
| 52111E | front bumper stay | 52111-06902 |
| 52114A | Front bumper extension mounting bracket | 52114-06510 |
| 52119A | front bumper cover | 52119-0X941 · 52119-0X942 · 52119-0X943 · 52119-0X957 · 52119-0X958 · 52119-0X959 |
| 52127D | Front bumper right hole cover | 52127-06550 · 52127-06908 |
| 52128B | Front bumper left hole cover | 52128-06560 · 52128-06908 |
| 52161C | front bumper insert | 52161-02040 |
| 52422A | Front bumper right side lining | 52421-06020 · 52422-06030 · 52422-06040 |
| 52423A | Front bumper left lining | 52421-06020 · 52423-06030 · 52423-06040 |
| 52533 | Front bumper No. 1 fixed frame bracket | 52533-06020 |
| 52534 | Front bumper No. 2 fixed frame bracket | 52534-06020 |
| 52535 | Front bumper right side fixing bracket | 52535-06220 |
| 52536 | Front bumper left fixed bracket | 52536-06220 |
| 52611 | front bumper energy absorber | 52611-06470 · 52611-06590 |
| 52618 | Front bumper lower shock absorber | 52618-06050 |
| 52673 | Front bumper No. 1 arm | 52673-24010 |
| 52712 | Front bumper right side protective strip | 52712-06140 · 52712-06190 · 52712-06210 |
| 52713A | Front bumper left protective strip | 52713-06140 · 52713-06190 · 52713-06210 |
| 53102A | Radiator lower grille sub-assembly | 53102-06160 · 53102-06170 · 53102-06460 · 53102-06530 · 53102-06540 · 53102-06670 · 53102-06680 · 53102-06690 · 53102-06700 · 53102-06710 |
| 53122E | Radiator grille lower protective strip | 53122-06070 · 53122-06140 · 53122-06150 |
| 53123C | Radiator grille lower right protective strip | 53123-06050 · 53123-06210 · 53123-06270 |
| 53124D | Radiator grille lower left protective strip | 53124-06100 · 53124-06140 · 53124-06270 |
| 53128E | Lower left radiator grille | 53128-06030 · 53128-06040 · 53128-06240 |
| 53395E | Engine cover to front end plate seal | 53395-06090 · 53395-06130 |
| 53395K | Clip (for hood to front end plate seal) | 90467-04032 |
| 53879H | Front fender lining fixing parts | 53879-02080 · 53879-30090 · 53879-33030 |
| 75392J | External protective strip fixings | 75392-0R030 · 75392-35220 |
| 81481E | Right fog light cover | 81481-06210 · 81481-06250 |
| 81482C | Left fog light cover | 81482-06210 · 81482-06220 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-06270 |
