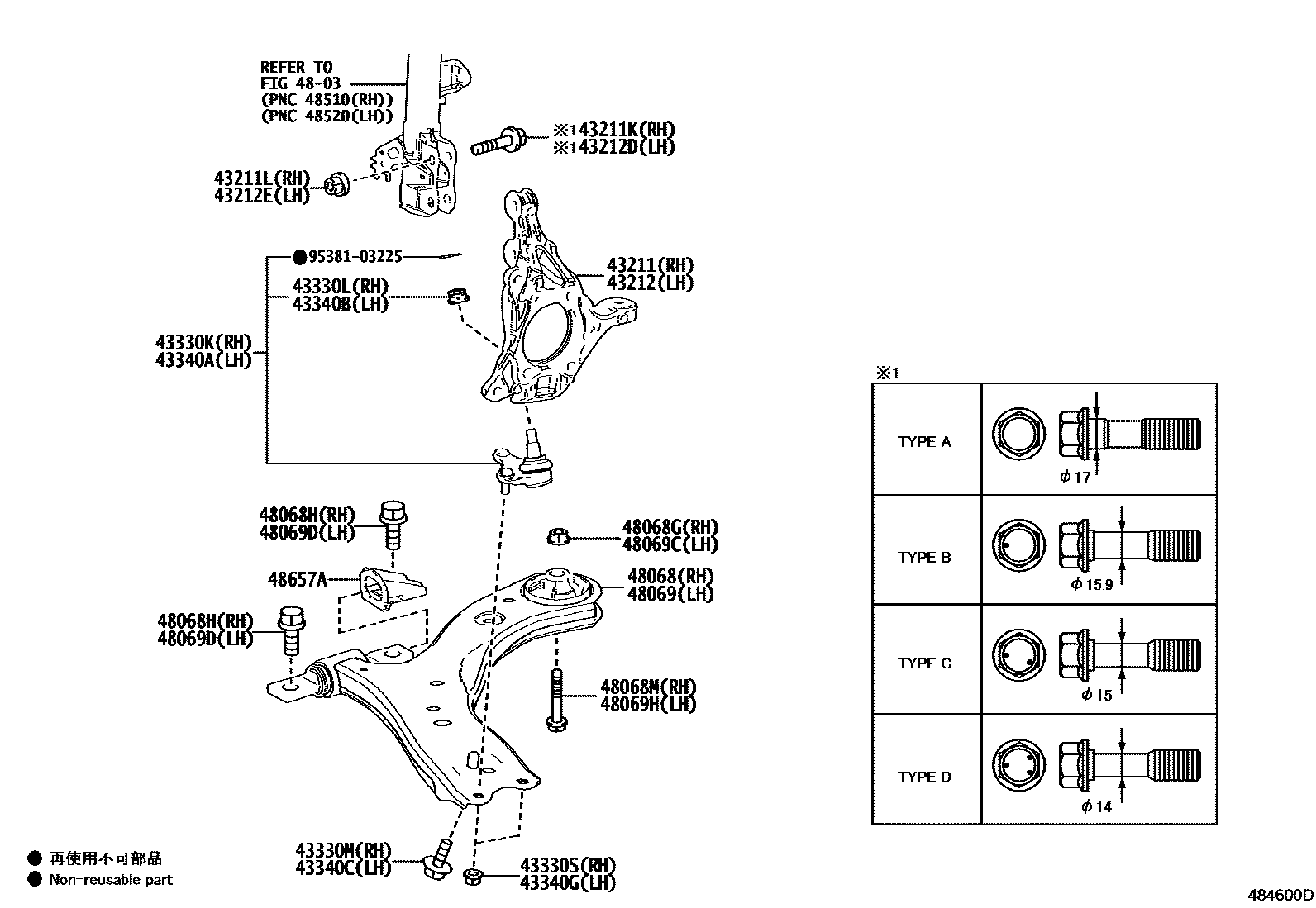

Toyota CAMRY 前桥控制臂和转向节 — Figure 4802
Toyota CAMRY EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-06290 |
| 43211K | Bolt (for right steering knuckle) | 90105-17013 · 90105-17014 · 90105-17015 · 90105-17020 · 90105-C0322 |
| 43211L | Nut (for right steering knuckle) | 90178-17002 · 90178-C0084 |
| 43212 | left steering knuckle | 43212-06290 |
| 43212D | Bolt (for left steering knuckle) | 90105-17013 · 90105-17014 · 90105-17015 · 90105-17020 · 90105-C0322 |
| 43212E | Nut (for left steering knuckle) | 90178-17002 · 90178-C0084 |
| 43330K | Right front lower ball joint assembly | 43330-09891 · 43330-09A70 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-14003 |
| 43330M | Bolt (for right front lower ball joint) | 90105-12407 · 90105-C0329 |
| 43330S | Nut (for right front lower ball joint) | 90178-12019 · 90178-C0062 |
| 43340A | Left front lower ball joint assembly | 43330-09891 · 43330-09A70 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-14003 |
| 43340C | Bolt (for left front lower ball joint) | 90105-12407 · 90105-C0329 |
| 43340G | Nut (for left front lower ball joint) | 90178-12019 · 90178-C0062 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-06230 |
| 48068G | Nut (for right front suspension No. 1 lower arm) | 90178-C0030 |
| 48068H | Bolt (for right front suspension No. 1 lower arm) | 90105-16092 · 90105-C0323 |
| 48068M | Bolt (for right front suspension No. 2 lower arm) | 90119-14180 · 90119-C0501 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-06230 |
| 48069C | Nut (for left front suspension No. 1 lower arm) | 90178-C0030 |
| 48069D | Bolt (for left front suspension No. 1 lower arm) | 90105-16092 · 90105-C0323 |
| 48069H | Bolt (for left front suspension No. 2 lower arm) | 90119-14180 · 90119-C0501 |
| 48657A | Front lower arm bushing stop | 48657-06060 · 48657-28010 |
