Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 5 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

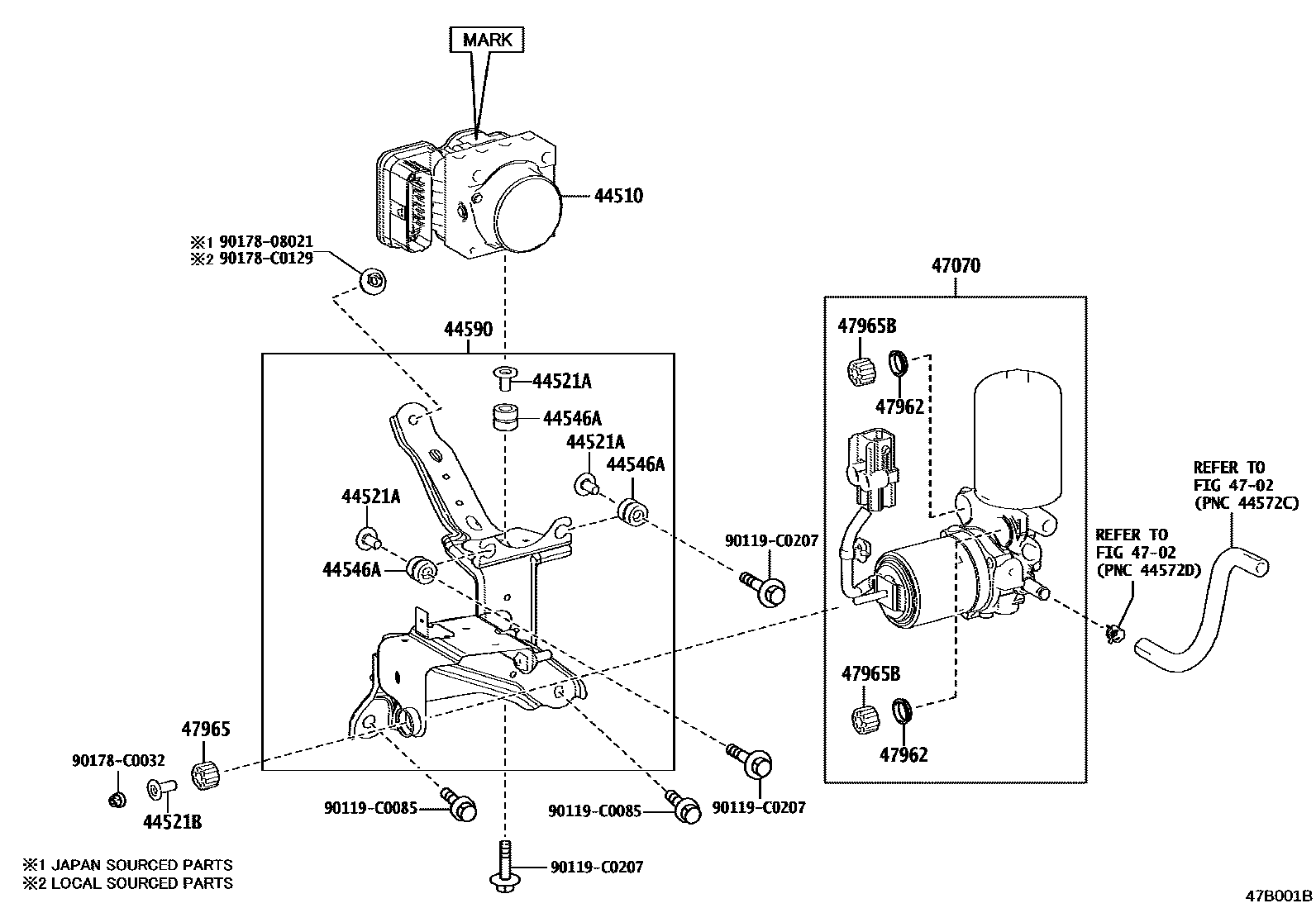

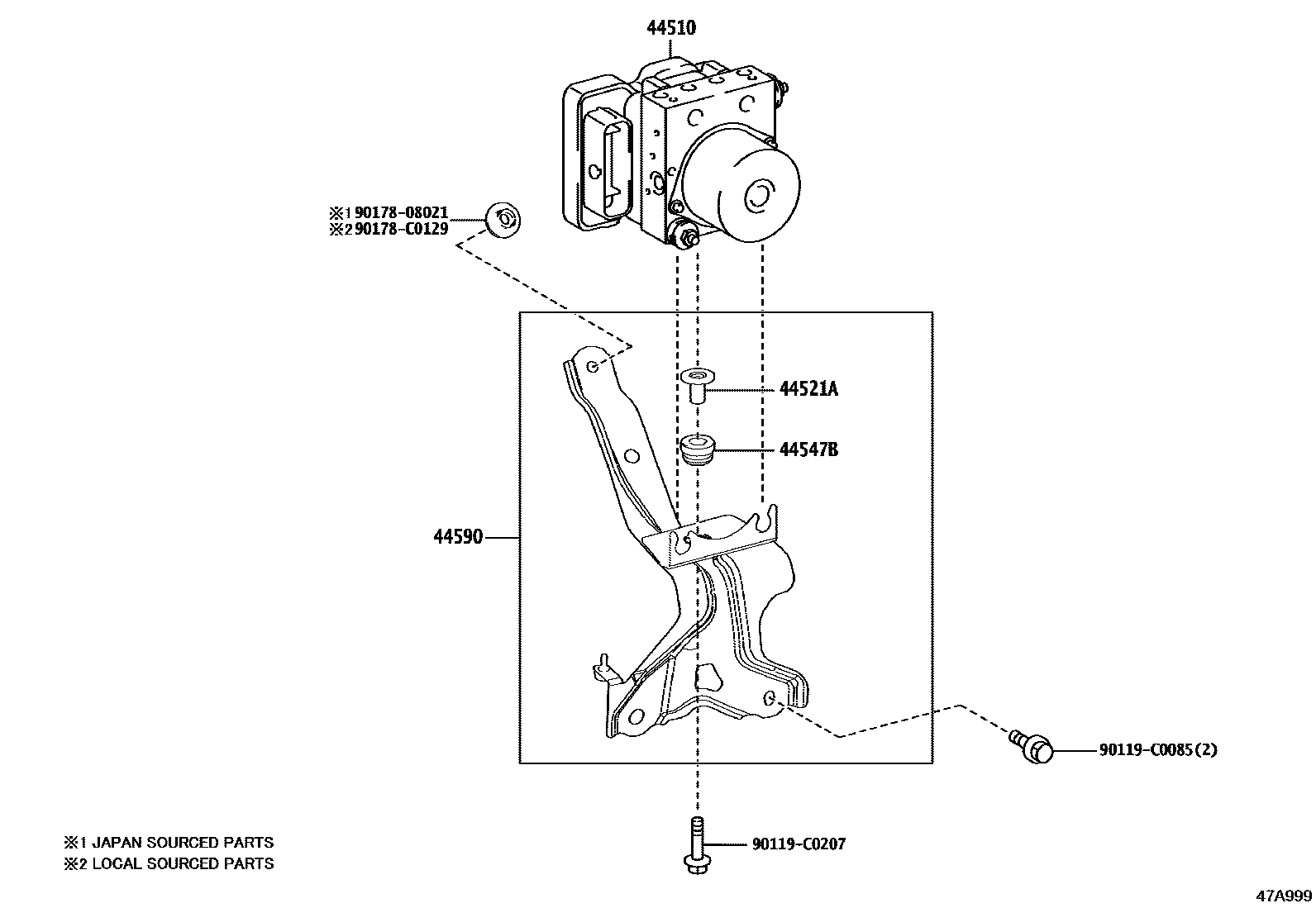

| 44510 | brake actuator assembly | 44050-06460 · 44050-06461 · 44050-06470 · 44050-06471 · 44050-06620 · 44050-06621 · 44050-06622 · 44050-06630 · 44050-06631 · 44050-06632 · 44050-07320 · 44050-33650 · 44050-33A80 · 44050-33D80 |
| 44521A | No. 1 brake actuator housing collar | 44521-12050 · 44521-12060 · 44521-33020 |
| 44521B | No. 2 brake actuator housing collar | 44521-02030 · 44521-47010 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |

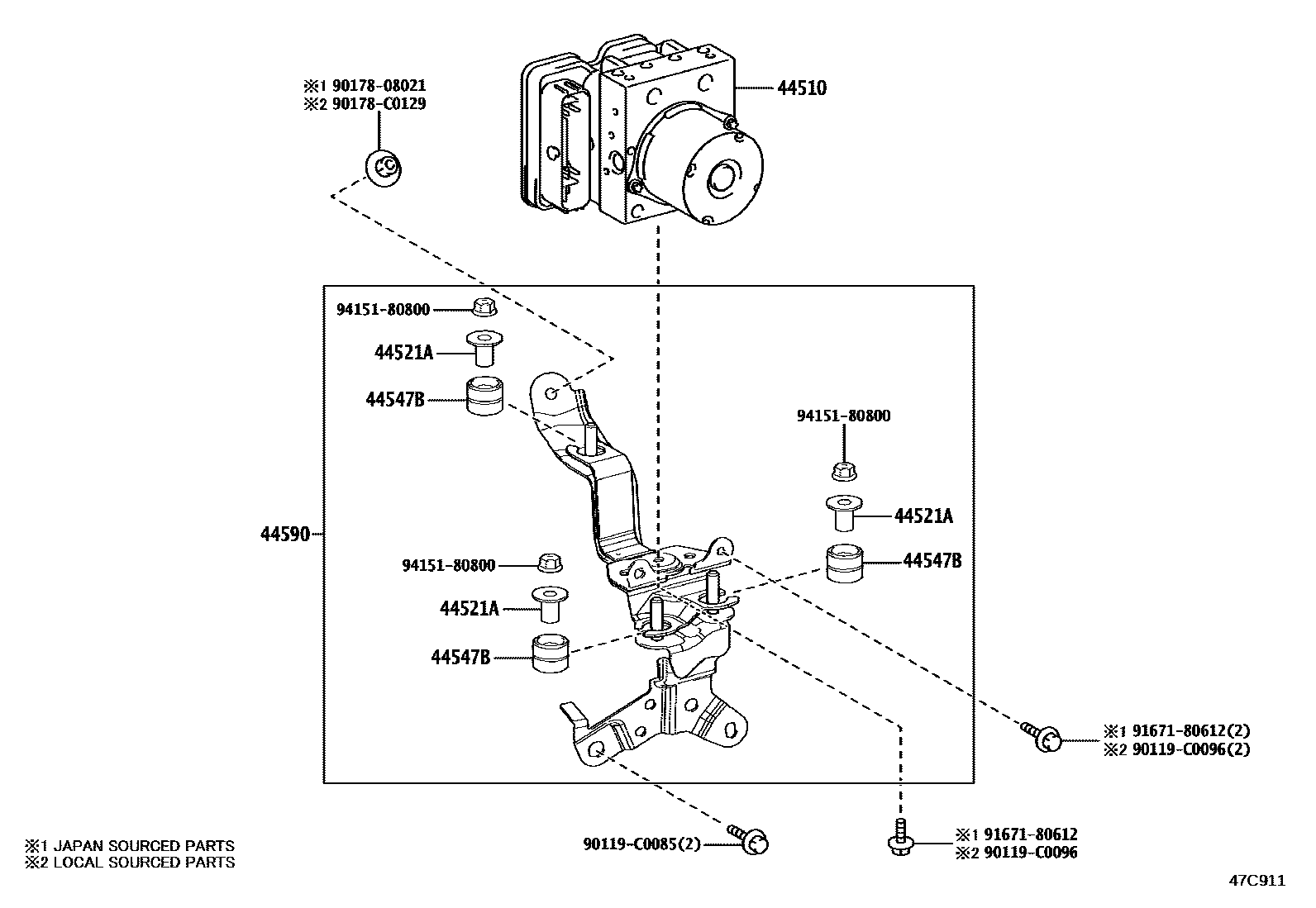

| 44547B | brake actuator bracket cushion | 44547-02070 · 44547-10080 · 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-06350 · 44590-06370 · 47940-06070 |
| 47070 | Brake booster pump assembly | 47070-33070 |

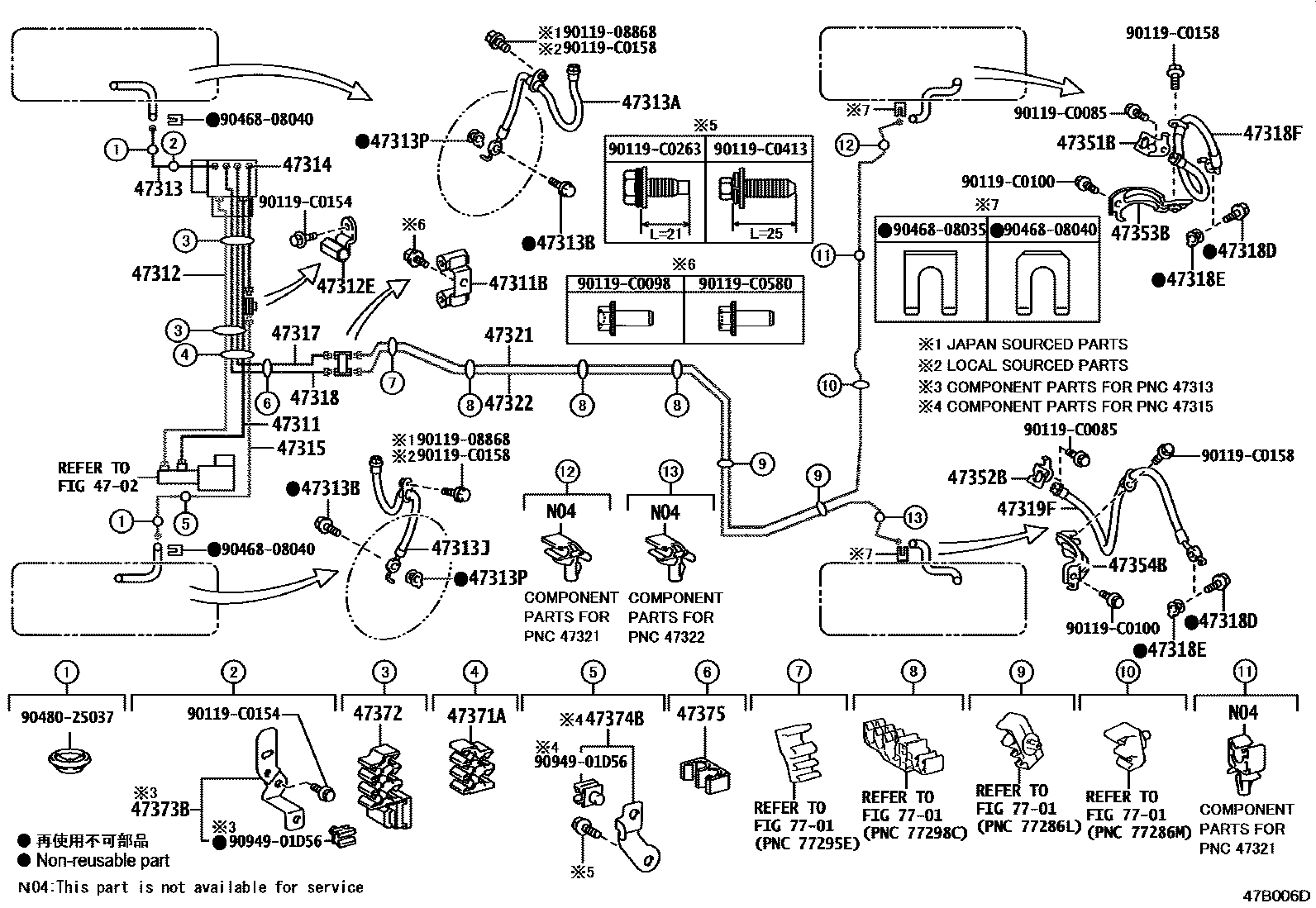

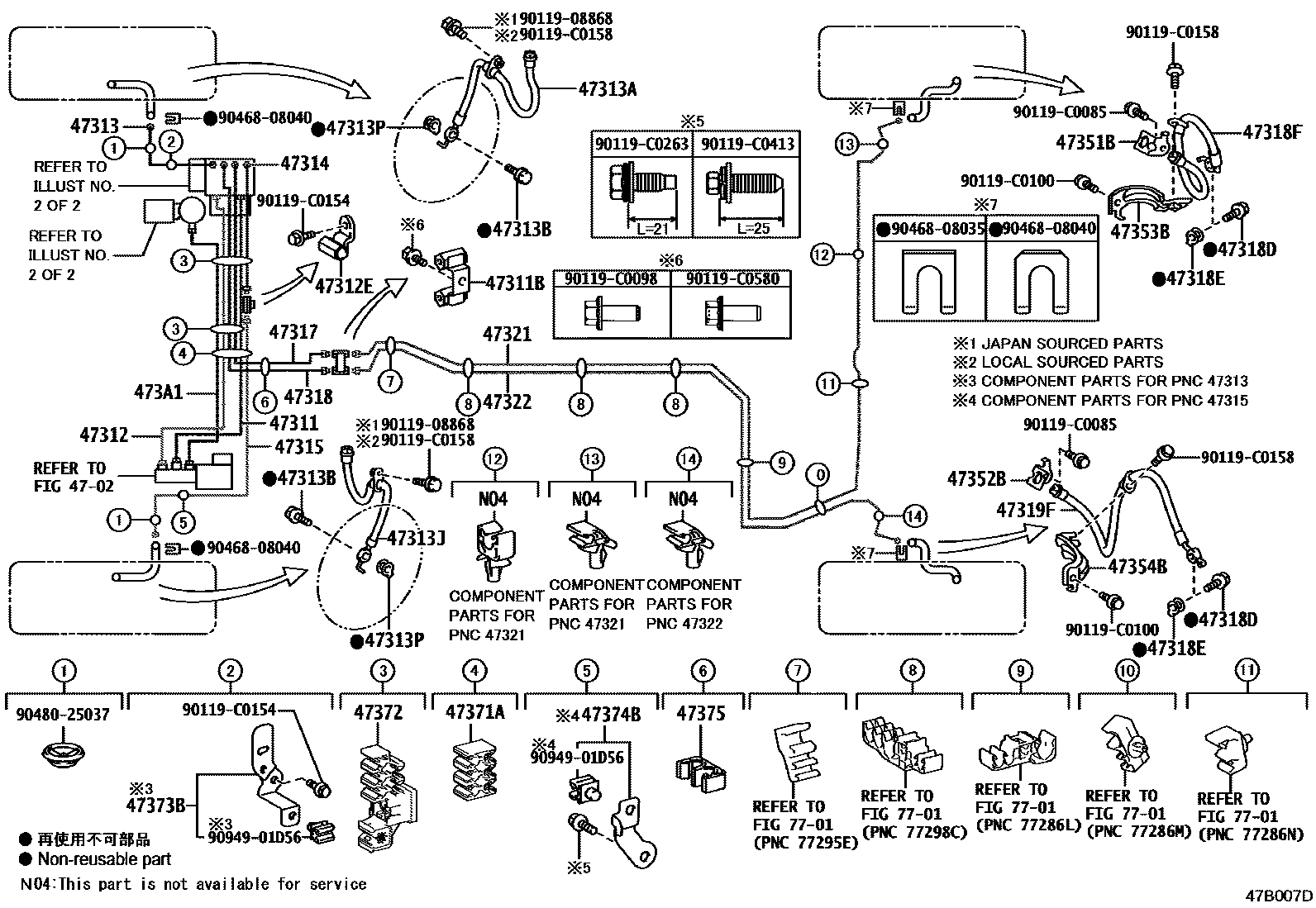

| 47311 | No. 1 front brake pipe | 47311-06680 · 47311-06690 · 47311-06691 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 · 90412-C0004 |
| 47312 | No. 2 front brake pipe | 47312-06520 · 47312-06530 · 47312-06531 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10272 · 90412-C0002 |
| 47313 | No. 3 front brake pipe | 47313-06510 · 47313-06511 |
| 47313A | No. 1 front flexible hose | 90947-C2076 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-C0001 |
| 47313J | No. 2 front flexible hose | 90947-C2077 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06460 · 47314-06461 |
| 47315 | No. 5 front brake pipe | 47315-06480 · 47315-06481 |
| 47317 | No. 7 front brake pipe | 47317-06580 · 47317-06581 |
| 47318 | No. 8 front brake pipe | 47318-06140 · 47318-06141 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-C0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-C2079 |
| 47319F | Left rear flexible hose | 90947-C2080 |
| 47321 | No. 1 rear brake pipe | 47321-06300 · 47321-06301 · 47321-06310 · 47321-06311 |
| 47322 | No. 2 rear brake pipe | 47322-06300 · 47322-06301 · 47322-06310 · 47322-06311 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-06070 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-06070 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-06060 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-06060 |
| 47371A | No. 1 brake pipe clamp | 90949-01D99 · 90949-01E40 |
| 47372 | No. 2 brake pipe clamp | 90949-01E31 · 90949-01E39 |
| 47373B | No. 3 brake pipe clamp | 47371-33340 |
| 47374B | No. 4 brake pipe clamp | 47371-33350 |
| 47375 | No. 5 brake pipe clamp | 90464-00904 |
| 473A1 | Pipe from accumulator to brake master cylinder | 473A1-06020 · 473A1-06021 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47965B | No. 2 brake booster pump bushing | 47965-30010 |
