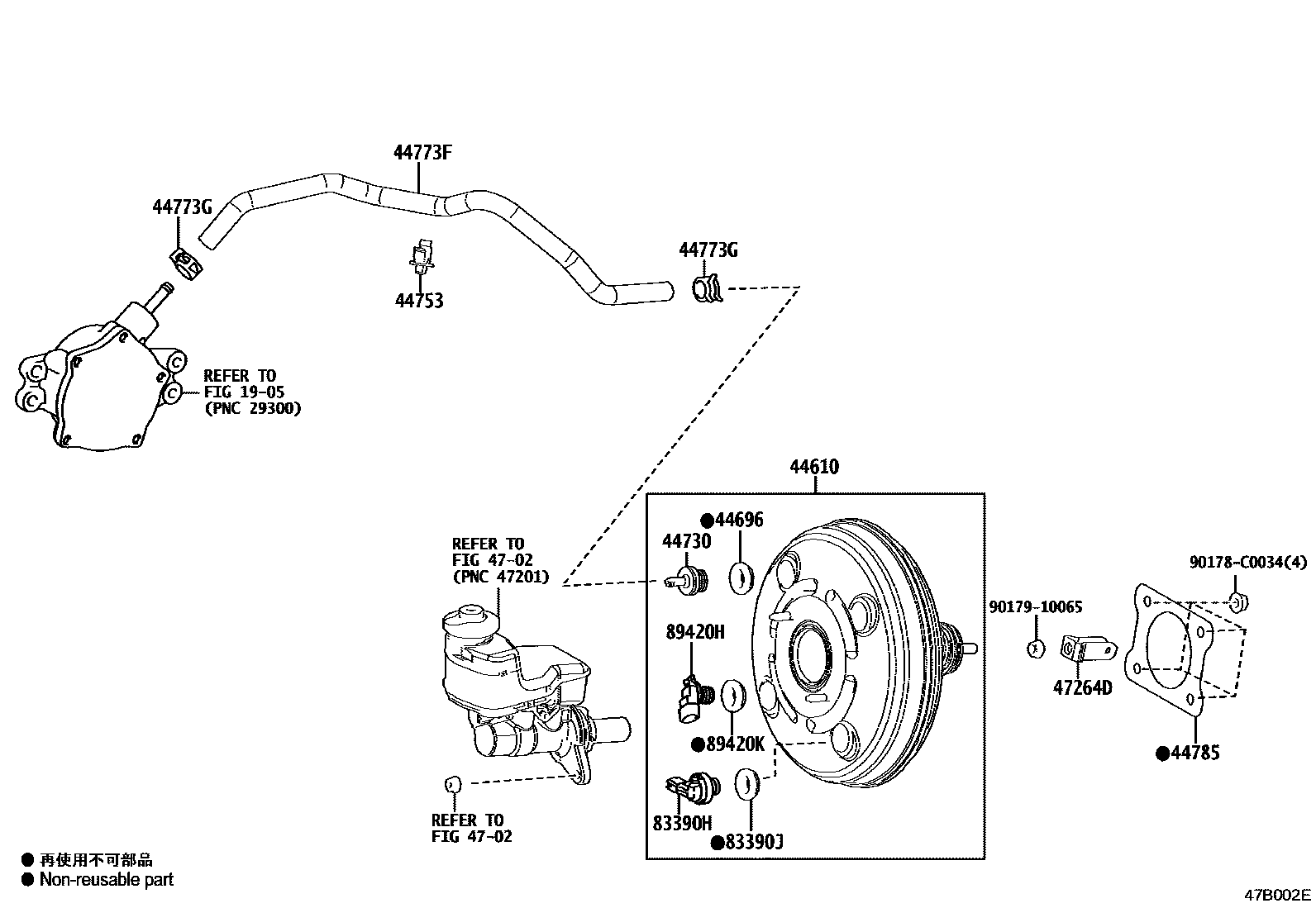

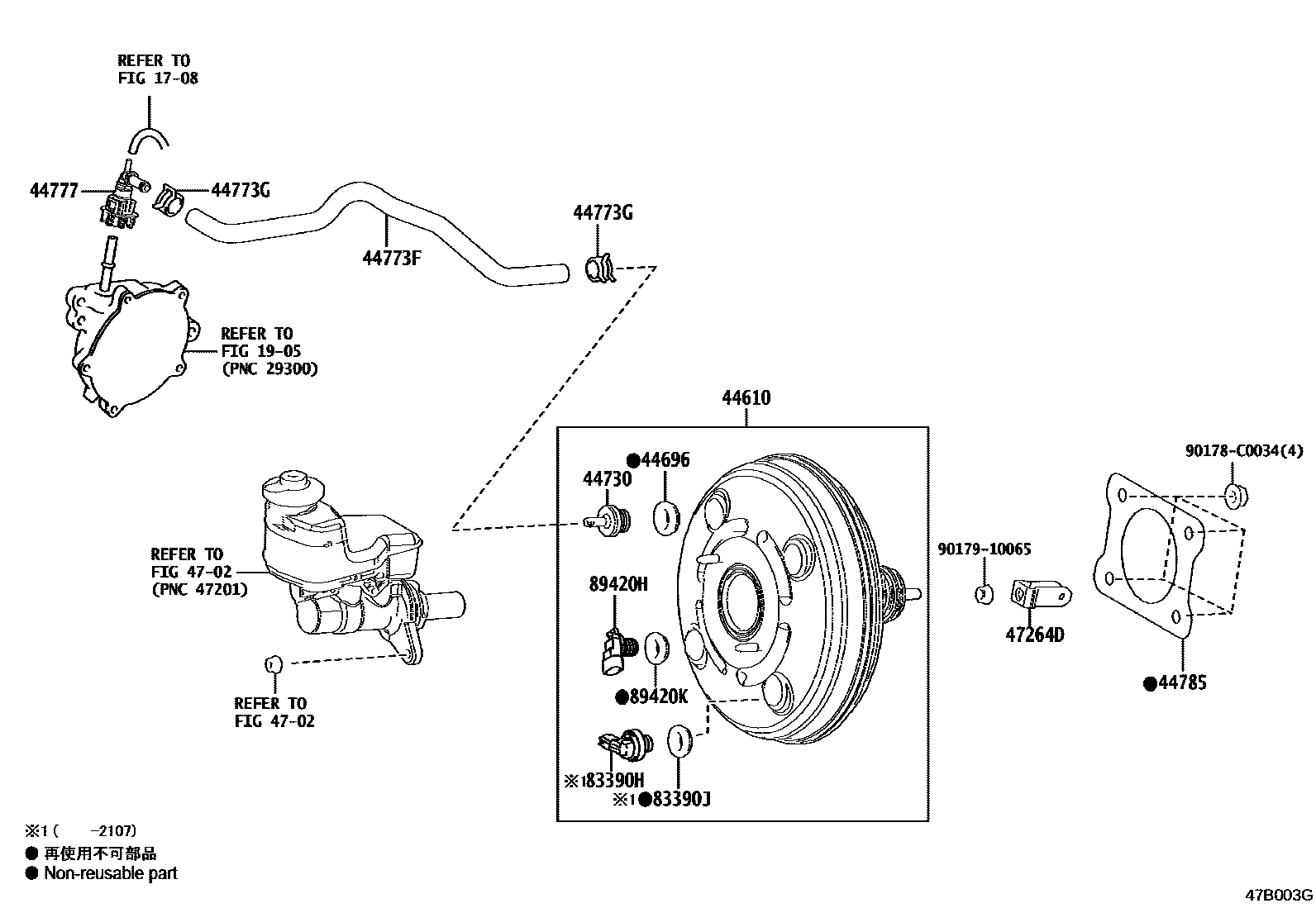

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06740 · 44610-06741 · 44610-06820 · 44610-06821 · 44610-06822 |
| 44696 | One-way valve seal | 90016-AT003 · 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20080 · 44730-22150 |
| 44753 | No. 2 vacuum reservoir clip | 44753-30320 |
| 44773F | Hoses (connector to check valve) | 44773-06240 · 44773-06260 |
| 44773G | Clamp (for connector to one-way valve hose) | 90466-C0034 · 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-06020 · 44777-33010 |
| 44785 | brake booster pad | 44785-02050 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-06030 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 83390J | Vacuum warning switch seal | 90080-48071 |
| 89420H | Vacuum sensor assembly | 89421-52020 · 89421-71040 |
| 89420K | Vacuum sensor seal | 90016-AT003 · 90080-48071 |
