Toyota CAMRY 制动总泵 — Figure 4702

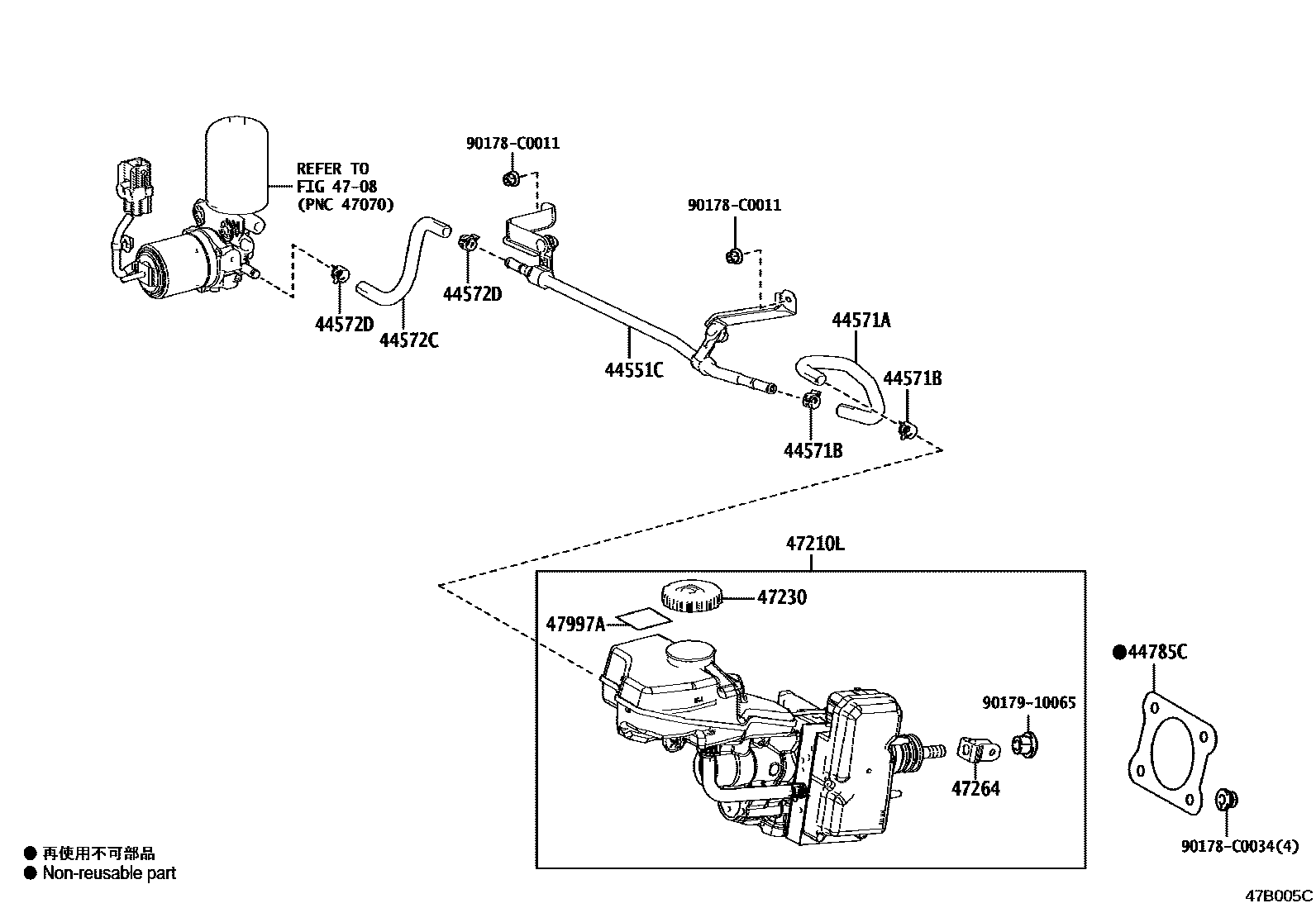

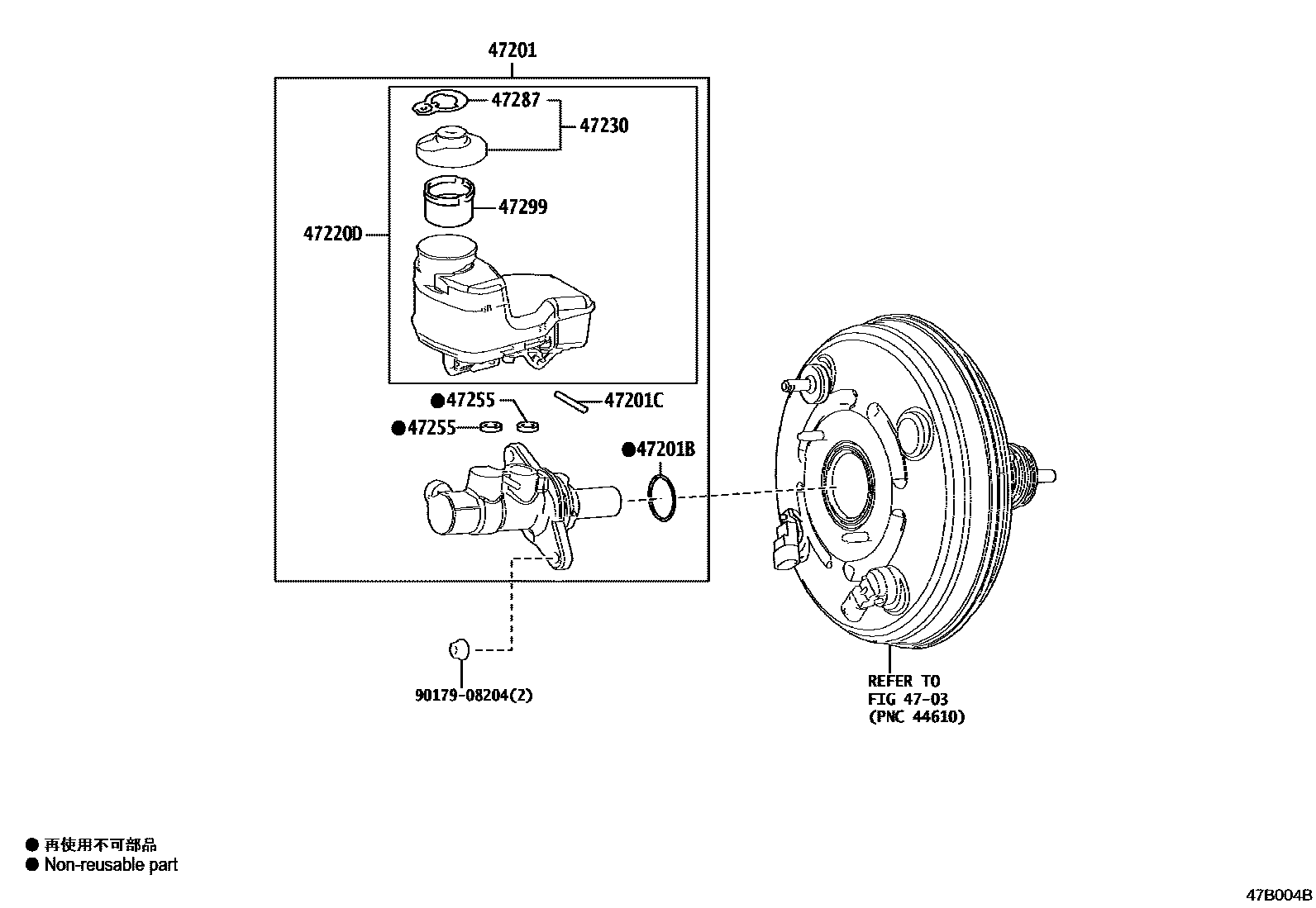

Toyota CAMRY EPC diagram 4702, 制动总泵, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-06100 |
| 44571A | No. 1 brake actuator hose | 44571-06090 |
| 44571B | Hose clip (for brake actuator hose No. 1) | 90466-C0026 |
| 44572C | No. 2 brake actuator hose | 44572-06060 |
| 44572D | Hose clip (for brake actuator hose No. 2) | 90466-C0026 |
| 44785C | brake booster pad | 44785-02050 |
| 47201 | Brake master cylinder sub-assembly | 47201-06550 · 47201-06570 |
| 47201B | O-ring (for brake master cylinder) | 90016-AH902 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47210L | Brake booster assembly with master cylinder | 47050-06010 · 47050-06011 · 47050-06030 · 47050-33370 · 47050-33540 · 47050-33550 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-06350 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0R030 · 47230-33330 · 47230-47090 |
| 47255 | Master pump reservoir seal | 90016-AT002 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47287 | brake fluid information label | 47287-02360 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
