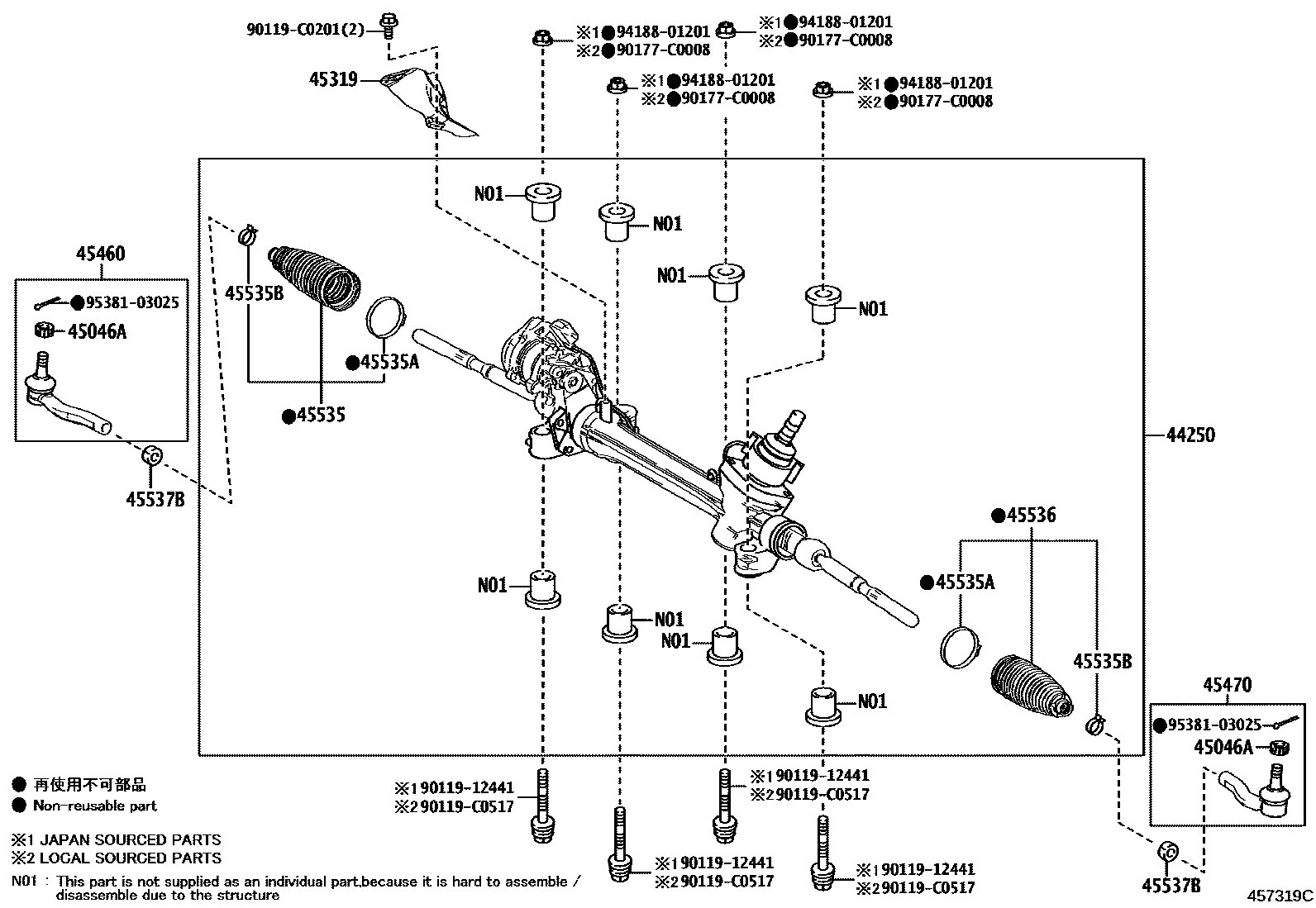

Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-06470 · 44250-06480 · 44250-06530 · 44250-06531 · 44250-06540 · 44250-06541 · 44250-33610 · 44250-33620 |
| 45046A | Castle nuts (for tie rod ends) | 90171-C0001 |
| 45319 | Steering gear heat insulation pad | 45319-07020 · 45319-33010 |
| 45460 | Right tie rod assembly | 45460-09290 |
| 45470 | Left tie rod assembly | 45470-09190 |
| 45535 | No. 1 steering rack dust cover | 45535-09580 · 45535-09680 · 45535-29025 |
| 45535A | Clamp (for steering rack dust boot) | 45538-06030 · 45538-0D070 |
| 45535B | Clamp (for steering rack dust boot) | 45537-0D030 · 90467-19021 |
| 45536 | No. 2 steering rack dust cover | 45535-09580 · 45535-09680 · 45535-29025 |
| 45537B | Rack end lock nut | 90178-16001 · 90178-C0015 |
