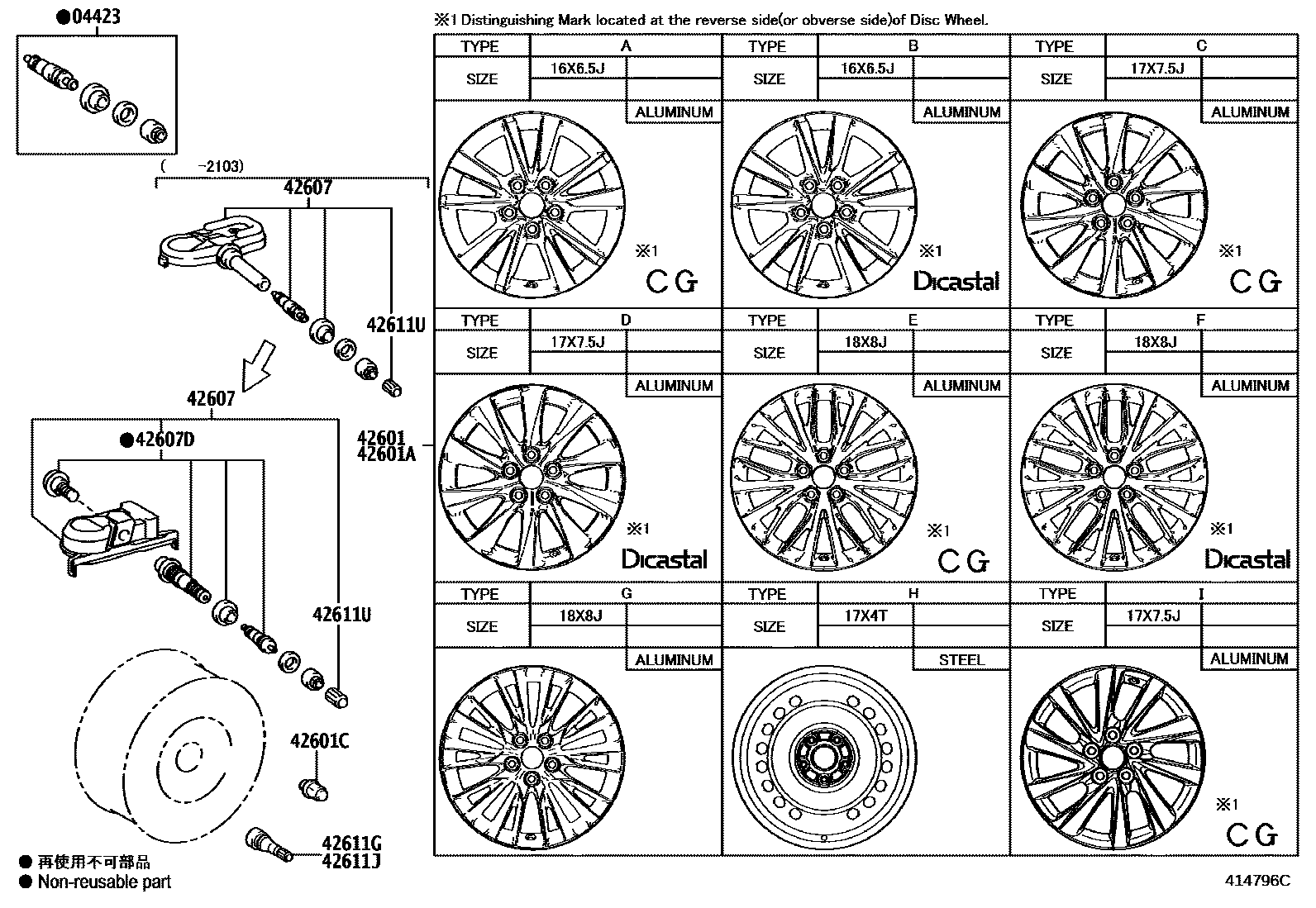

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0N010 |
| 42601 | spoke wheel | 42611-06F30 · 42611-06F40 · 42611-06F50 · 42611-06F60 · 42611-06G00 · 42611-06G10 · 42611-06G20 · 42611-06J80 · 42611-06J90 · 42611-06K00 · 42611-06K10 · 42611-06K20 · 42611-06L80 · 4261A-06090 |
| 42601A | Spoke wheel (for spare tire) | 42611-06G50 · 42611-06G51 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-C1001 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-02320 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02090 · 42607-06070 |
| 42607D | tire pressure monitoring valve | 90942-C5003 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 · 90942-C5005 |
| 42611U | tire valve cover | 90942-C5001 |
