Toyota CAMRY 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901

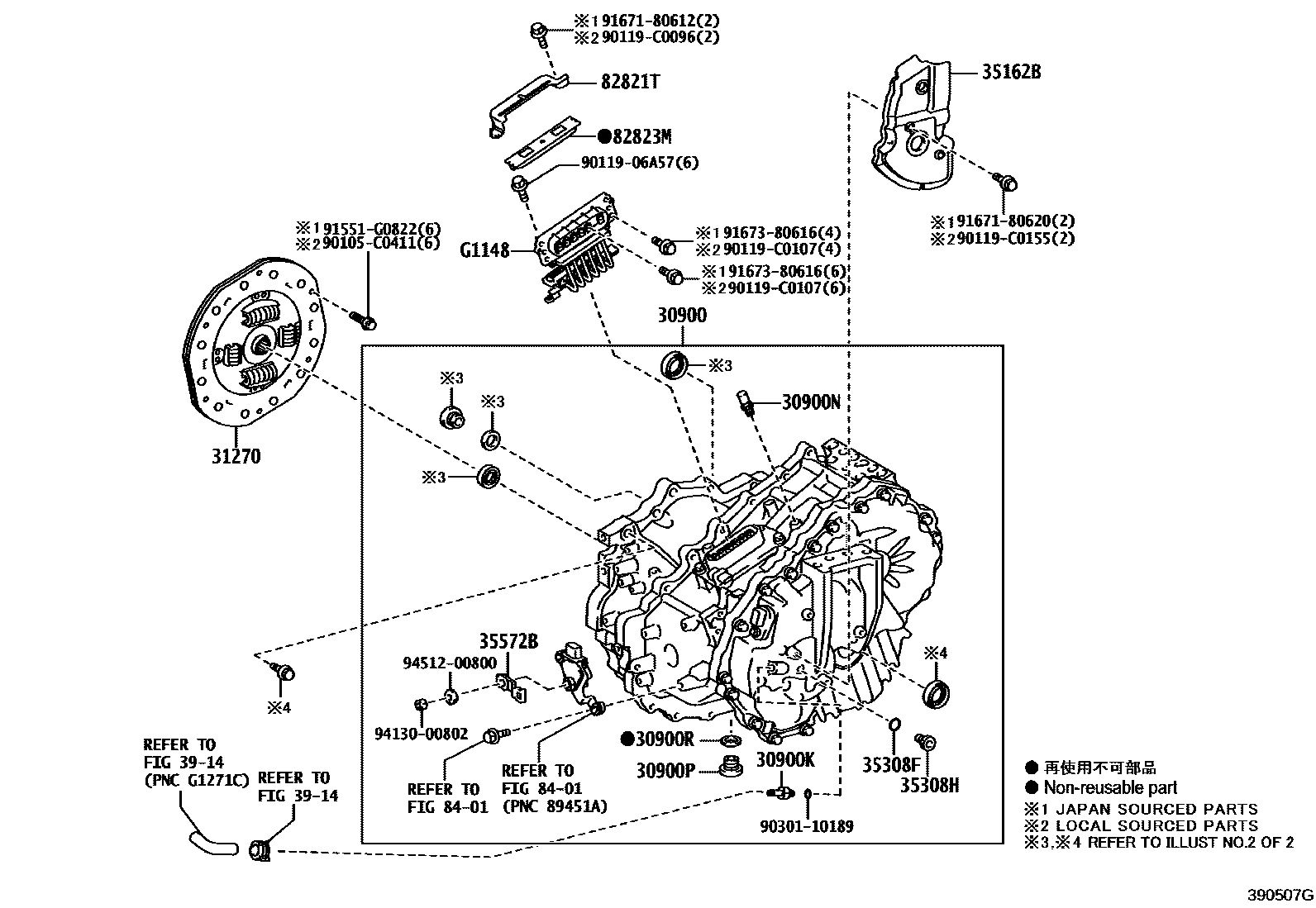

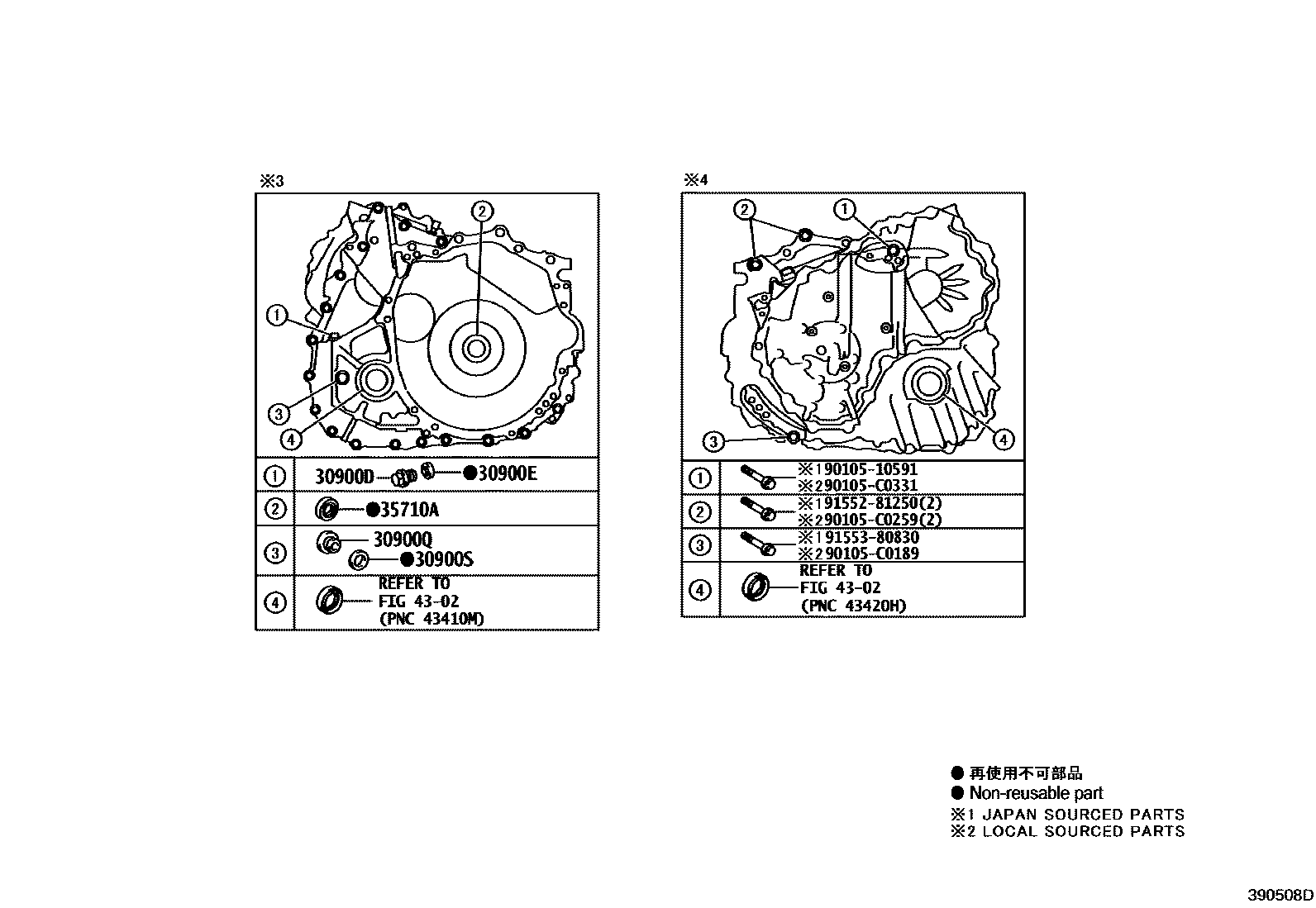

Toyota CAMRY EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-06010 · 30900-06011 · 30900-33120 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 · 90341-C0022 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900K | Pipe connector (for transaxle housing) | 90404-13010 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Drain plug (HEV) | 90341-18016 |
| 30900Q | Oil filling plug (HEV) | 90341-18016 |
| 30900R | Drain plug gasket (HEV) | 90430-18008 · 90430-C0007 |
| 30900S | Oil filling plug gasket (HEV) | 90430-18008 · 90430-C0007 |
| 31270 | Transmission input damper assembly | 31270-0R030 · 31270-33030 |
| 35162B | Transmission axle housing protective cover | 35162-0E010 · 35162-33020 |
| 35308F | No. 1 O-ring (for transmission oil pump cover) | 90301-06196 · 90301-C0061 |
| 35308H | Screw plug (for transmission oil pump cover) | 90341-08001 |
| 35572B | Transmission outer lever | 35572-33070 |
| 35710A | T-type oil seal (for input shaft) | 90311-27011 · 90311-C0056 |
| 82821T | Connector cover | 82821-47240 |
| 82823M | Terminal cover | 82823-47040 |
| G1148 | Motor cable | G1148-33050 |
