Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514

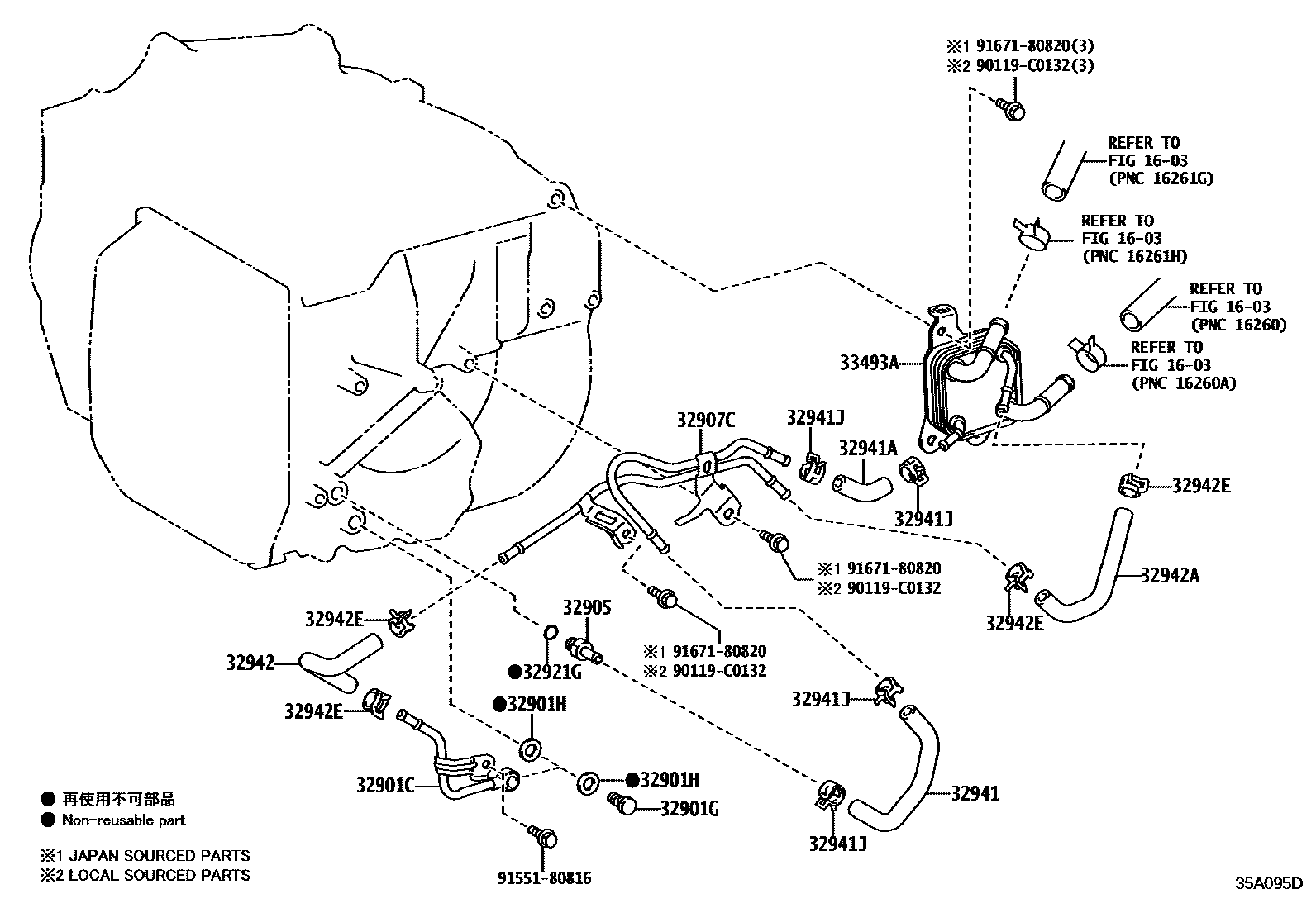

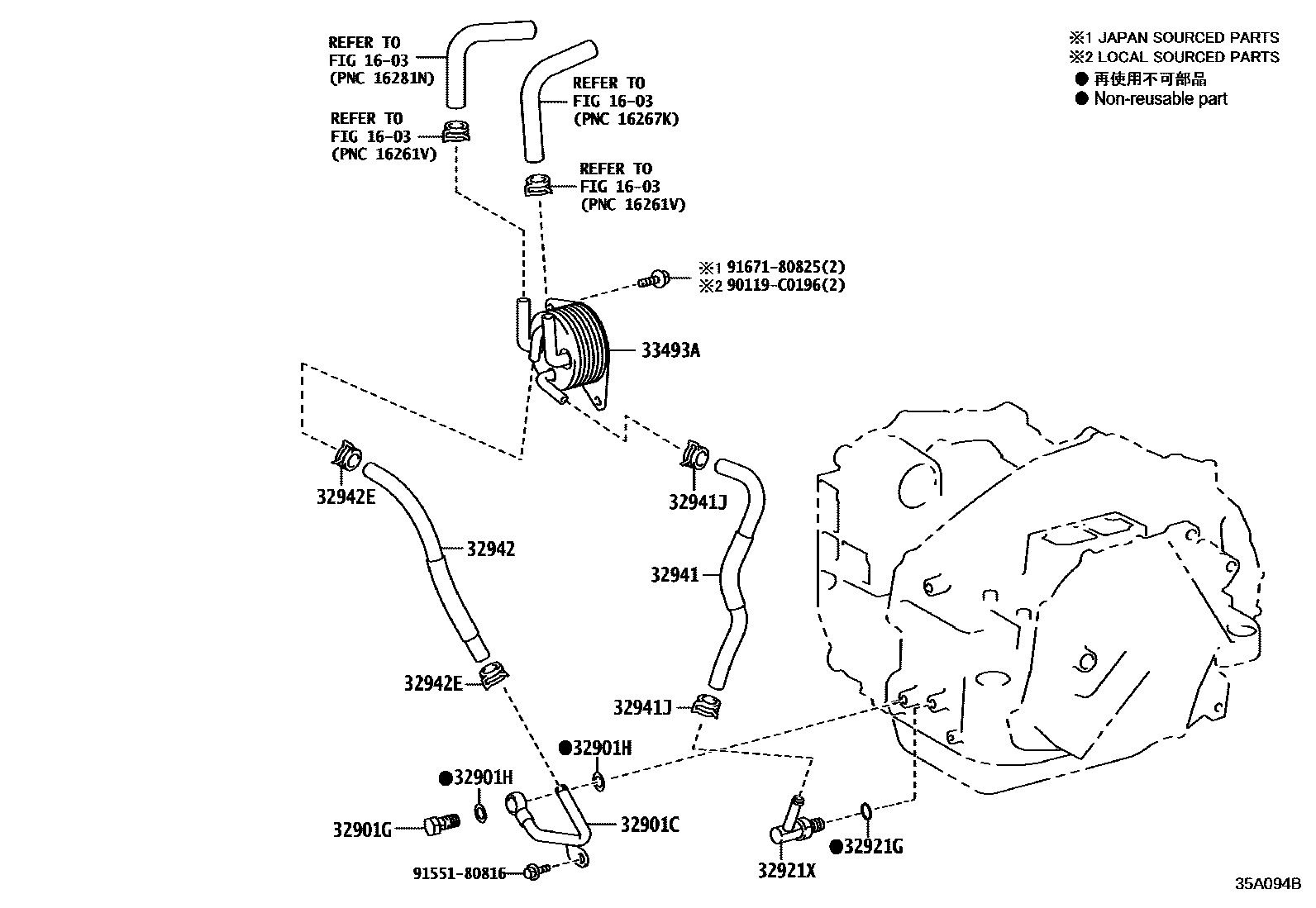

Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32901C | Transmission oil cooler joint sub-assembly | 32901-48010 · 32901-48020 |
| 32901G | Connector bolt (for oil cooler) | 90401-14003 |
| 32901H | Gasket (for transmission oil cooler connector) | 90430-14013 · 90430-14016 |
| 32905 | No. 1 transmission oil cooler oil outlet pipe sub-assembly | 90404-14030 |
| 32907C | No. 1 transmission oil cooler pipe sub-assembly without hose | 32907-06080 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-11031 |
| 32921X | Transmission oil cooler oil inlet joint or elbow | 90407-14032 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-06230 · 32941-06250 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 32941-06240 |
| 32941J | Clamp No. 1 (for transmission oil cooler hose) | 90466-16004 · 90466-C0024 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32942-06230 · 32942-06240 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 32942-06220 |
| 32942E | Clamp No. 2 (for transmission oil cooler hose) | 90466-16004 · 90466-C0024 |
| 33493A | Transmission oil cooler | 33493-06030 · 33493-06031 · 33493-06040 |
