Toyota CAMRY 阀体和滤油网(ATM) — Figure 3512

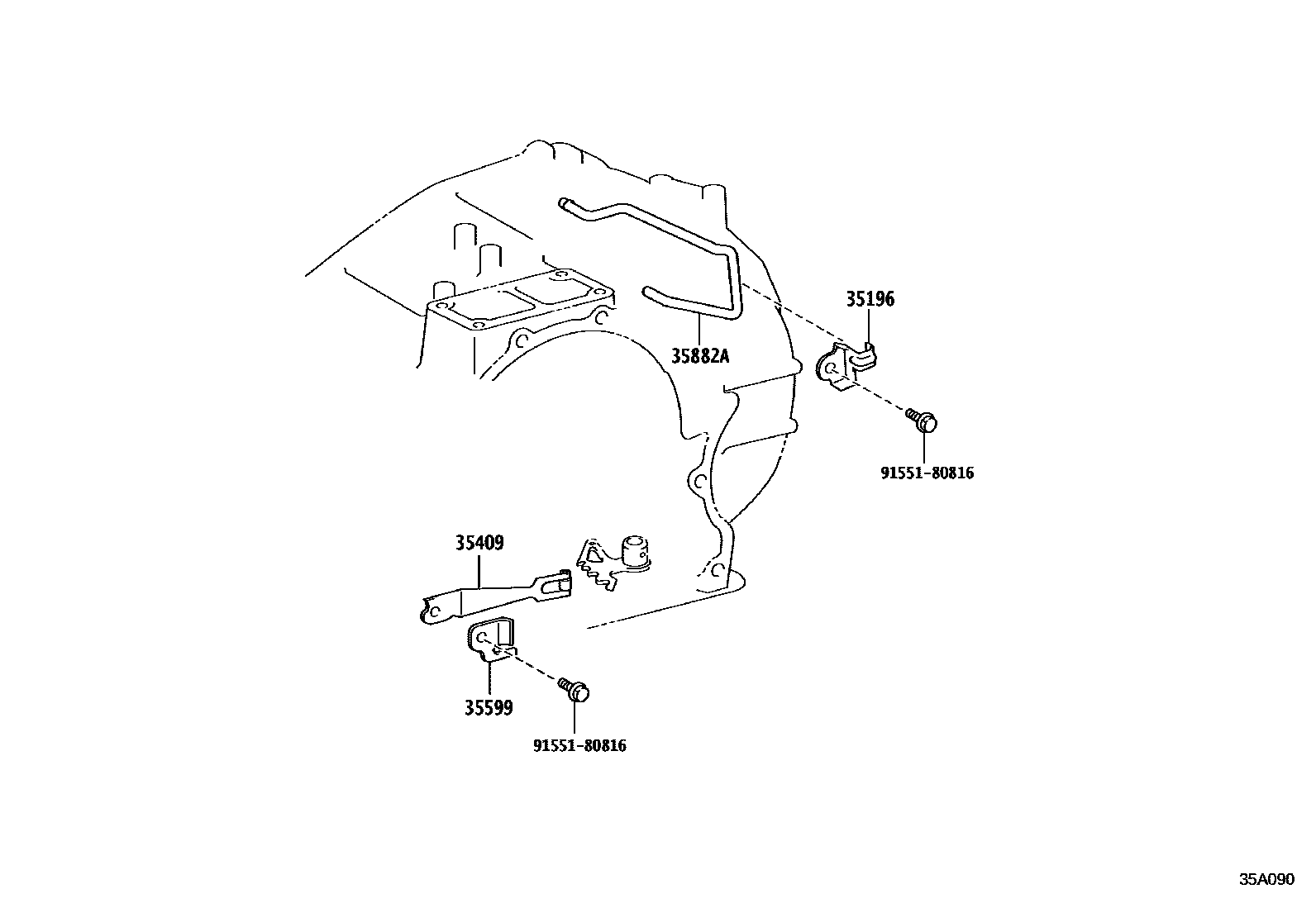

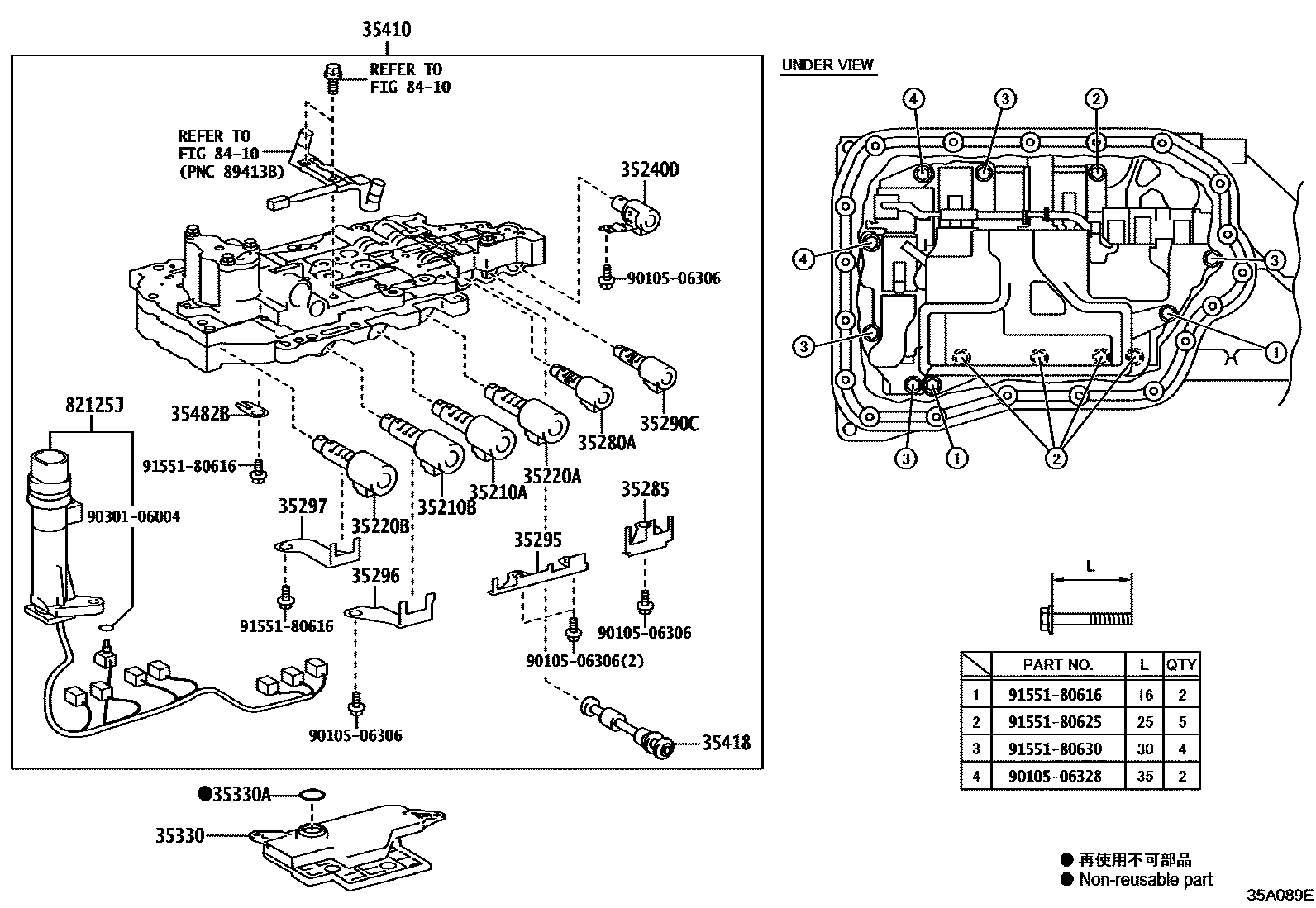

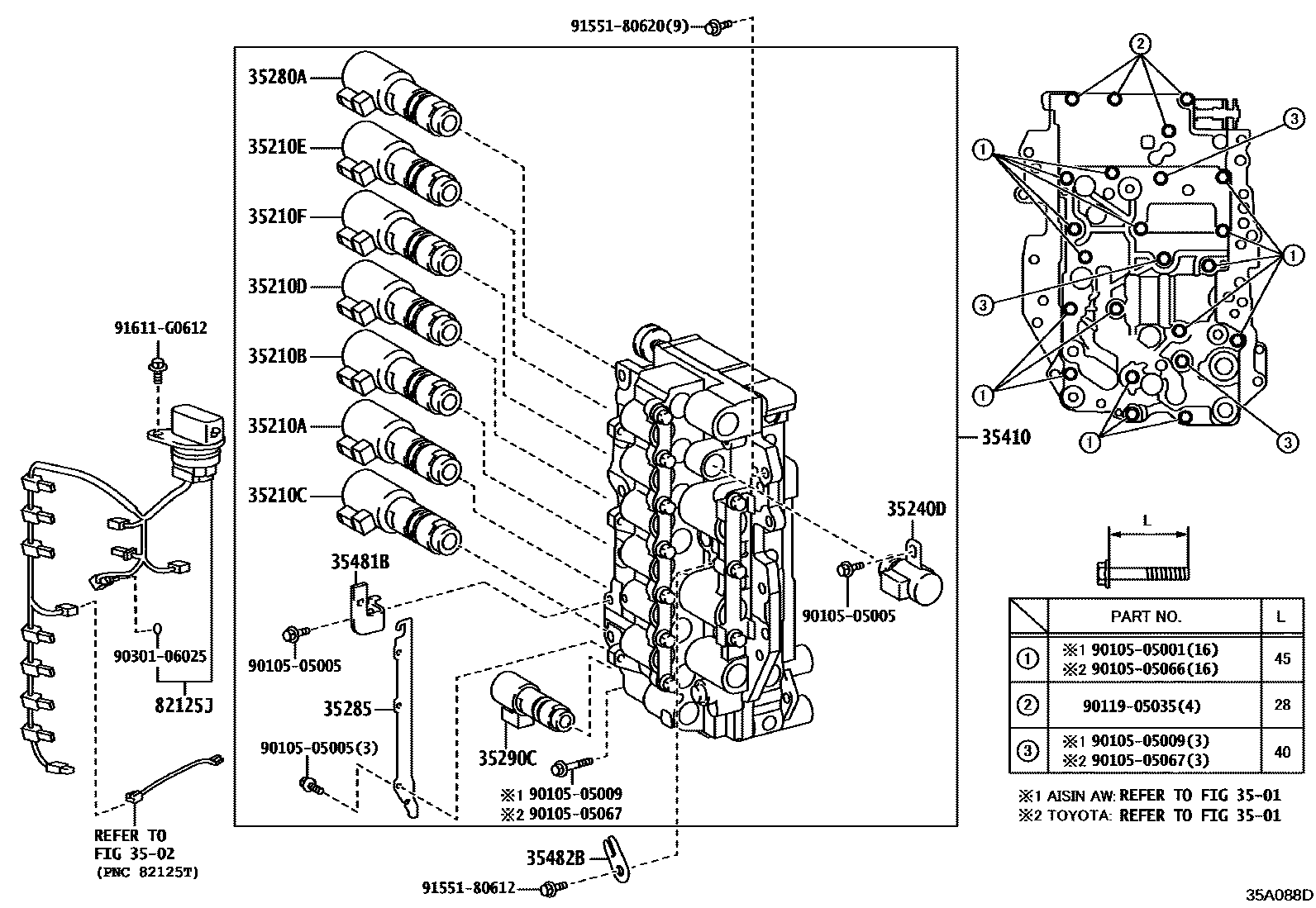

Toyota CAMRY EPC diagram 3512, 阀体和滤油网(ATM), with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35196 | No. 2 transmission axle fuel supply pipe clamp | 35196-33010 |
| 35210A | Solenoid valve (SL1) | 35210-48020 · 35210-48030 |
| 35210B | Solenoid valve (SL3) | 35210-48020 · 35210-48030 |
| 35210C | Solenoid valve (SL2) | 35210-48020 |
| 35210D | Solenoid valve (SL4) | 35210-48020 |
| 35210E | Solenoid valve (SL5) | 35210-48020 |
| 35210F | Solenoid valve (SL6) | 35210-48020 |
| 35220A | Solenoid valve (SL2) | 35220-33100 |
| 35220B | Solenoid valve (SL4) | 35220-33050 |
| 35240D | Solenoid valve (SL) | 35240-48020 · 35240-73010 |
| 35280A | Solenoid valve (SLU) | 35280-33040 · 35280-48030 |
| 35285 | Solenoid valve lock plate | 35285-33070 · 35285-48030 |
| 35290C | Solenoid valve (SLT) | 35290-48020 · 35290-48030 |
| 35295 | No. 2 solenoid valve locking plate | 35295-33050 |
| 35296 | No. 3 solenoid valve locking plate | 35296-33050 |
| 35297 | No. 4 solenoid valve locking plate | 35297-33030 |
| 35330 | Valve body oil filter assembly | 35330-73021 |
| 35330A | O-ring (for oil filter) | 90301-27015 |
| 35409 | Manual lock spring sub-assembly | 35409-33010 |
| 35410 | Transmission valve body assembly | 35410-33270 · 35410-48080 · 35410-48100 |
| 35418 | Manual valve | 35418-33030 |
| 35481B | Valve body wiring harness clip | 35481-48020 · 35481-48040 |
| 35482B | temperature sensor clip | 35482-73010 |
| 35599 | Manual locking spring cover | 35599-33010 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-73010 |
| 82125J | Transmission wiring harness | 82125-33210 · 82125-33211 · 82125-73010 · 82125-73011 |
