Toyota CAMRY 中央支架和行星太阳齿轮(ATM) — Figure 3508

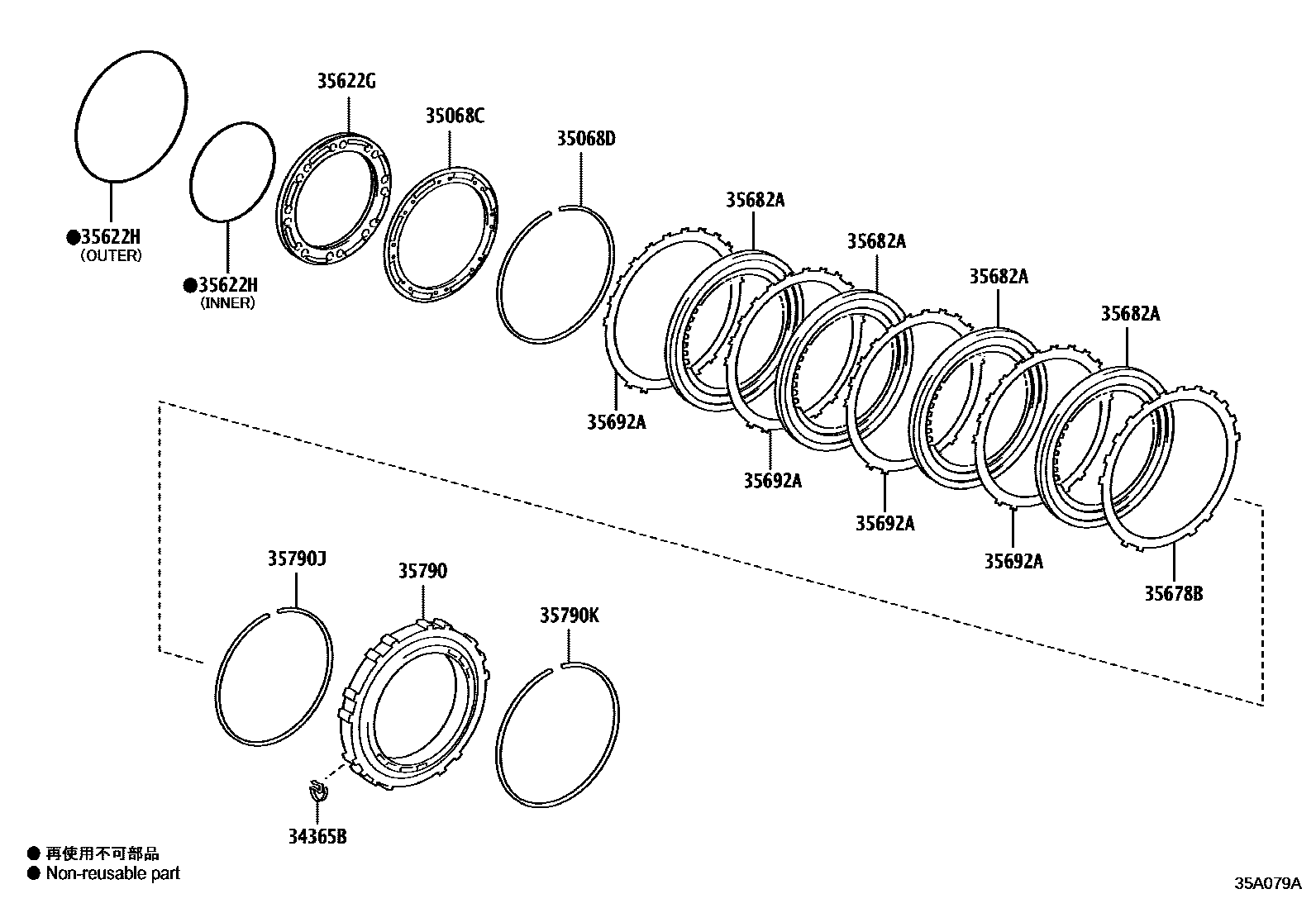

Toyota CAMRY EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34365B | Outer race retainer | 34365-33021 |
| 35068C | First and reverse brake return spring sub-assembly | 35068-33030 |
| 35068D | Shaft snap ring (for first and reverse brake return spring) | 90520-99109 |
| 35622G | Brake piston No. 2 | 35622-33050 |
| 35622H | O-ring (for brake piston No. 2) | 90301-99190 · 90301-99191 |
| 35678B | No. 2 brake flange | 35678-33140 · 35678-33150 · 35678-33160 · 35678-33170 · 35678-33180 |
| 35682A | Brake disc No. 2 | 35682-33030 |
| 35692A | No. 2 brake pad | 35692-73020 |
| 35790 | One-way clutch assembly | 35791-48010 |
| 35790J | No. 1 snap ring (for one-way clutch) | 90520-99105 |
| 35790K | No. 2 snap ring (for one-way clutch) | 90520-99106 |
