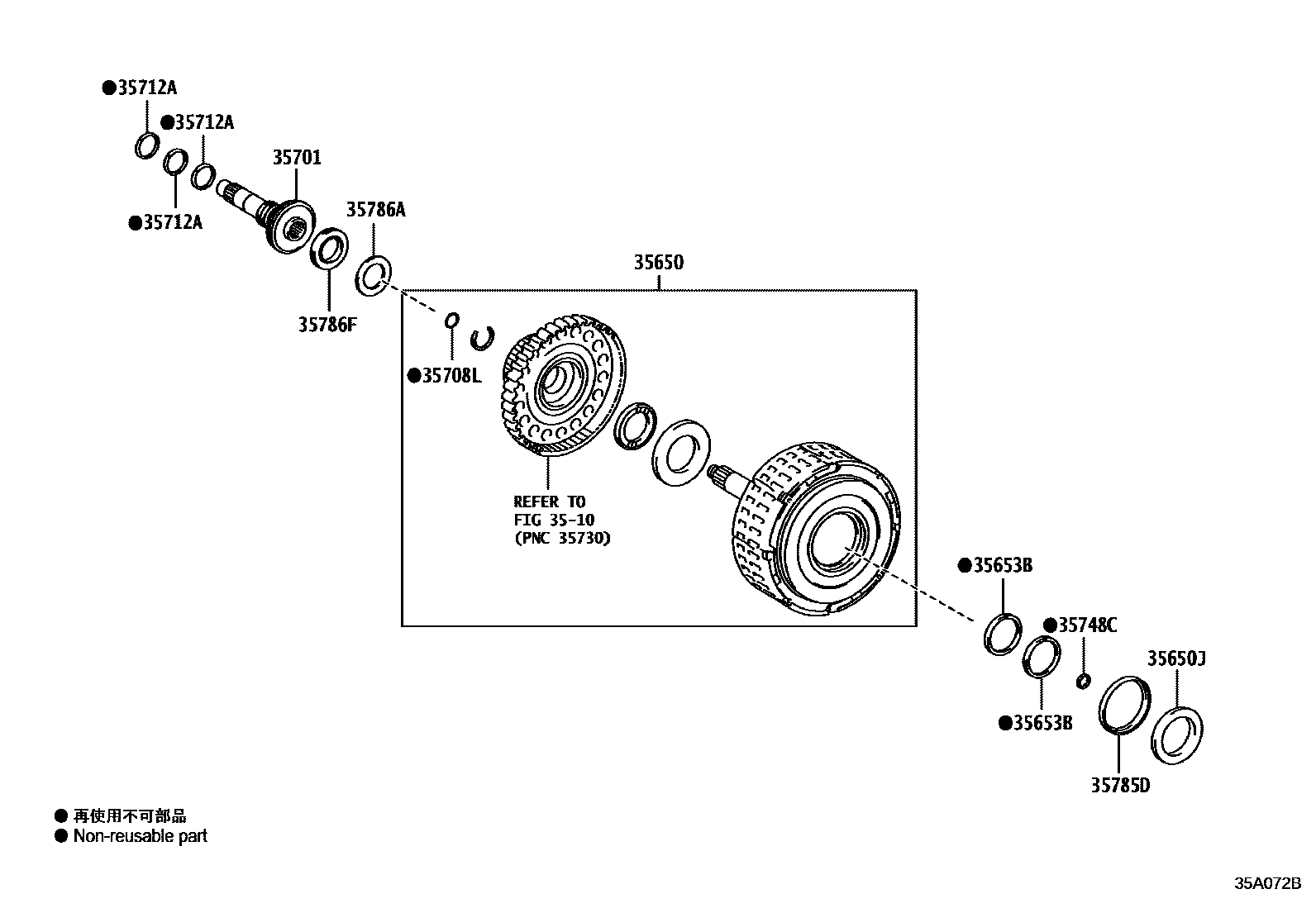

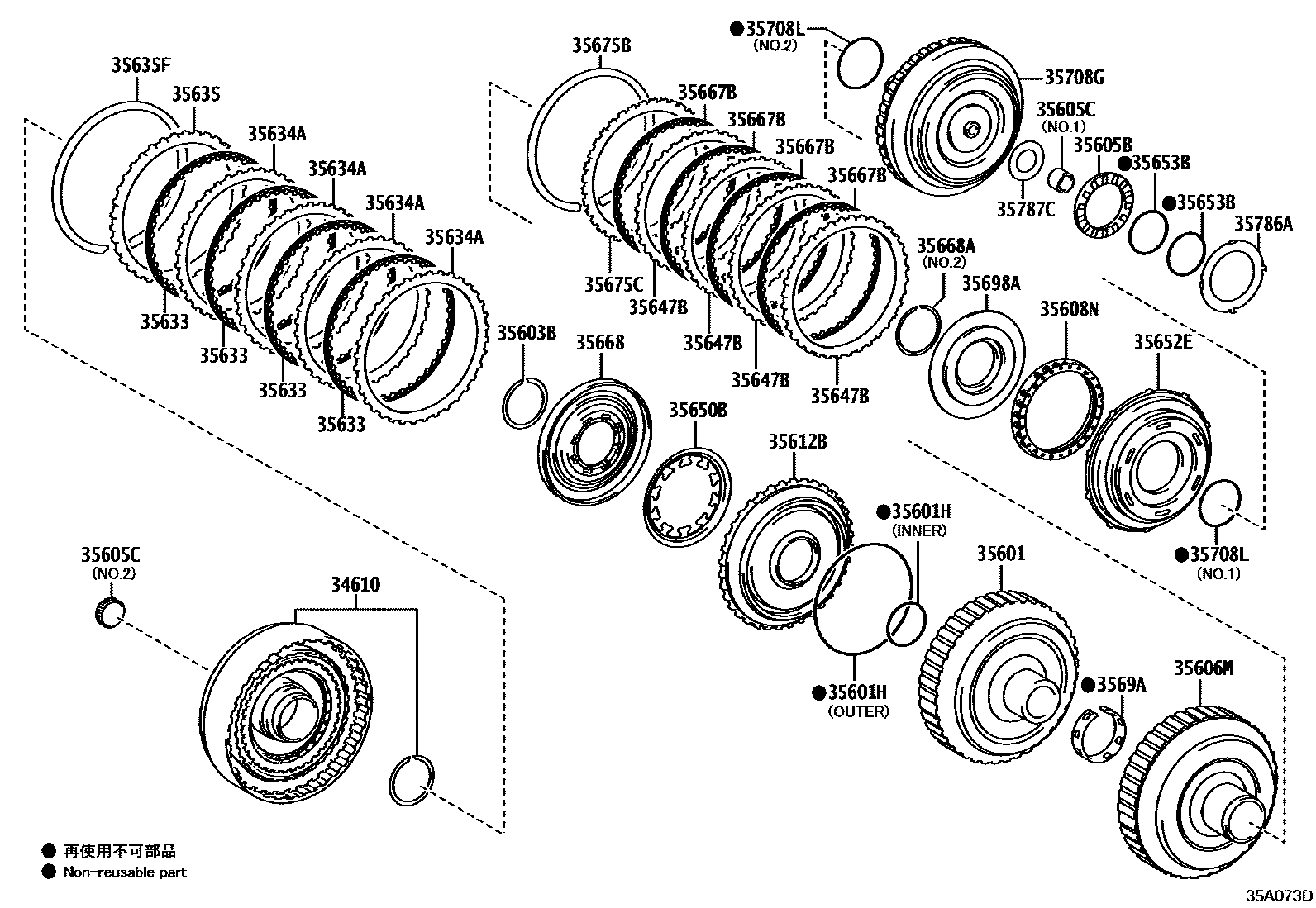

Toyota CAMRY 制动带和多片式离合器(ATM) — Figure 3507
Toyota CAMRY EPC diagram 3507, 制动带和多片式离合器(ATM), with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34610 | Clutch Assembly, C-3 & C-4 | 34610-33060 |
| 35601 | Clutch drum sub-assembly | 35601-33010 |
| 35601H | O-ring (for C-1 drum) | 90301-99219 · 90302-40001 |
| 35603B | Shaft snap ring (for forward clutch piston) | 90520-44043 |
| 35605B | Thrust needle roller bearing | 90374-47005 |
| 35605C | Needle roller bearings | 90364-13010 · 90364-23006 · 90364-23007 |
| 35606M | Sun gear input hub sub-assembly | 35606-33030 · 35606-33040 |
| 35608N | Clutch return spring sub-assembly with fixed parts | 3560A-33010 |
| 35612B | forward clutch piston | 35612-33070 |
| 35633 | Clutch disc (for front clutch) | 35633-33140 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-33090 |
| 35635 | forward clutch flange | 35635-33200 · 35635-33210 · 35635-33220 · 35635-33230 · 35635-33240 · 35635-33250 · 35635-33260 |
| 35635F | Snap ring (for forward clutch flange) | 90521-99194 |
| 35647B | Clutch plate No. 2 | 35647-33050 |
| 35650 | Rear multi-plate clutch assembly | 35650-33110 |
| 35650B | Compression spring (for rear clutch piston return) | 35628-33050 |
| 35650J | Thrust needle roller bearing (for direct gear disc clutch) | 90374-48009 |
| 35652E | C-2 clutch piston | 35652-33020 |
| 35653B | Direct clutch drum oil guard ring | 35653-33010 · 35653-33020 |
| 35667B | No. 2 clutch disc | 35667-33040 |
| 35668 | No. 1 clutch balancer | 35668-33030 |
| 35668A | Snap ring (for clutch balancer) | 90520-45038 |
| 35675B | Hole snap ring (for forward clutch flange) | 90521-99195 |
| 35675C | Direct clutch flange | 35675-33070 · 35675-33080 · 35675-33090 · 35675-33100 · 35675-33110 · 35675-33120 · 35675-33130 · 35675-33140 · 35675-33150 · 35675-33160 · 35675-33170 · 35675-33180 · 35675-33190 · 35675-33200 |
| 35698A | C-2 clutch balancer | 35698-33010 |
| 3569A | Clutch drum positioning ring | 3569A-33010 |
| 35701 | Input shaft sub-assembly | 35711-33080 |
| 35708G | Intermediate shaft sub-assembly | 35708-33060 · 35708-33070 |
| 35708L | O-ring (for intermediate shaft) | 90301-11032 · 90301-45007 · 90301-45008 |
| 35712A | Input shaft oil ring | 35712-33020 |
| 35748C | Intermediate shaft oil ring | 35748-33010 |
| 35785D | No. 4 thrust bearing race | 35785-48020 |
| 35786A | No. 1 thrust bearing race | 35786-33010 · 35786-33020 |
| 35786F | Thrust needle roller bearing | 90374-29007 |
| 35787C | No. 2 thrust bearing race | 35787-33030 |
