Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501

Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 3 images and 2 PNC and OE references.

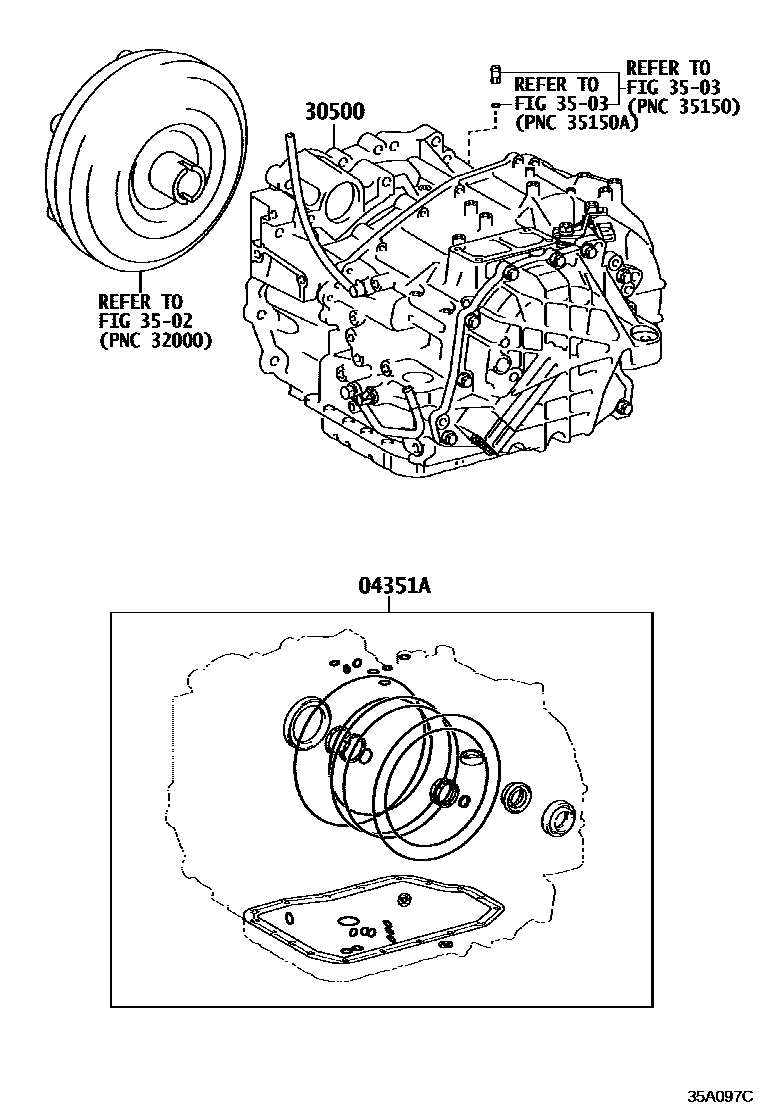

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 35A097C
传动桥或变速器总成和衬垫组件(ATM) — 35A097C (201712 – 999999)

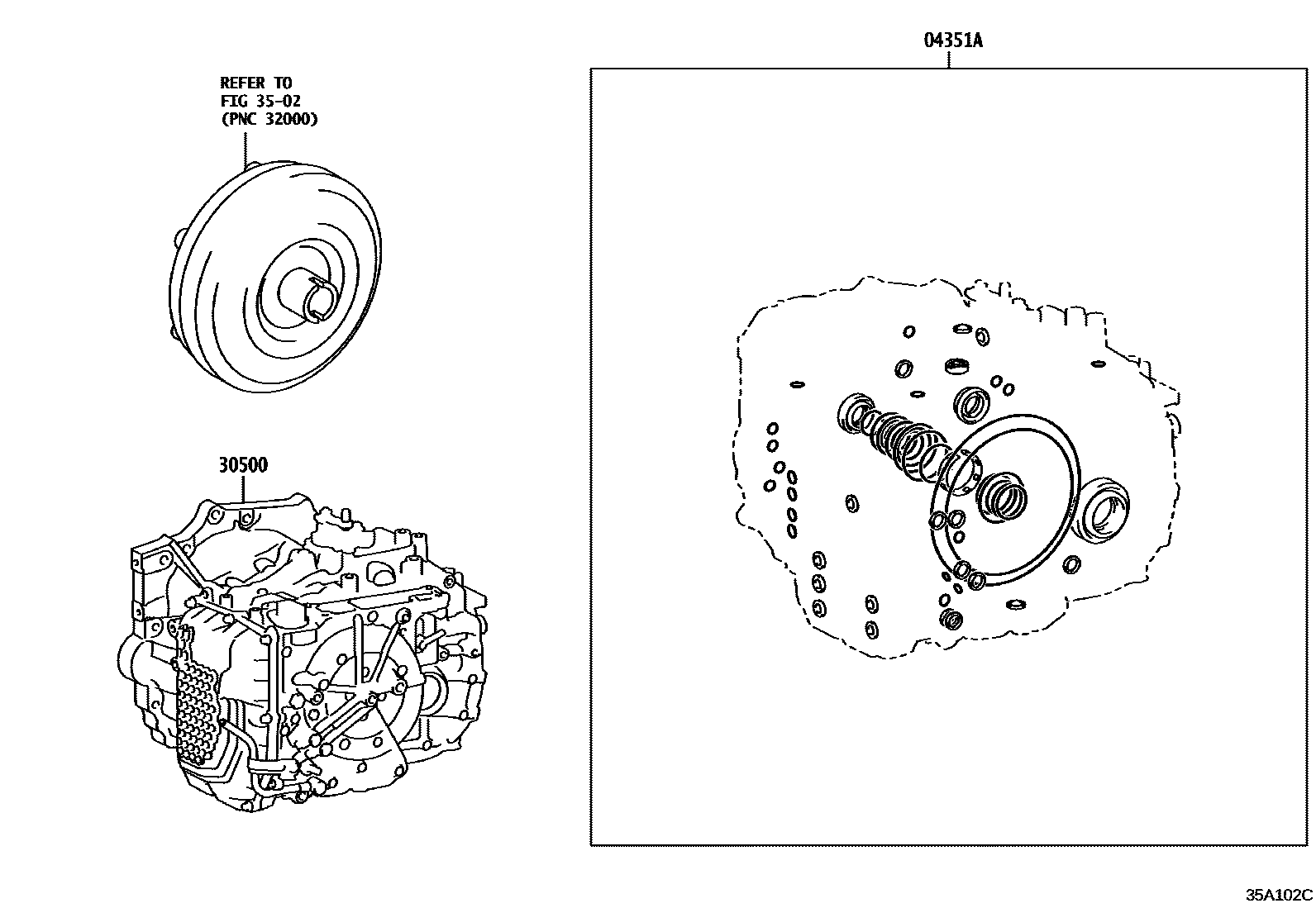

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 35A102C
传动桥或变速器总成和衬垫组件(ATM) — 35A102C (201712 – 999999)

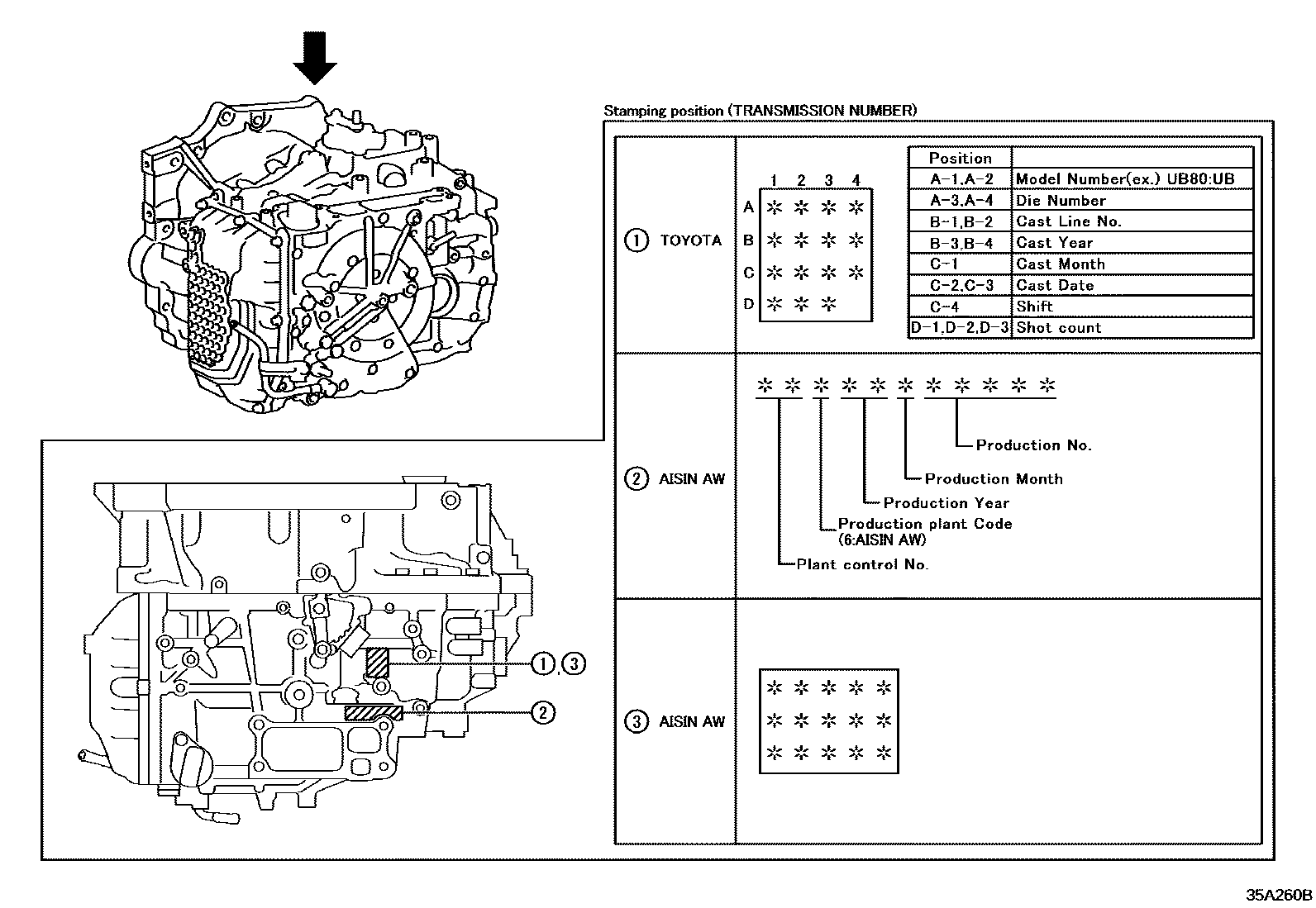

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 35A260B
传动桥或变速器总成和衬垫组件(ATM) — 35A260B (201712 – 999999)

PNC and OE references

PNCPart nameOE numbers
04351ATransaxle overhaul gasket assembly (ATM)04351-33581 · 04351-33600 · 04351-33610 · 04351-33611
30500Automatic transmission axle assembly30500-33840 · 30500-33881 · 30500-33891
