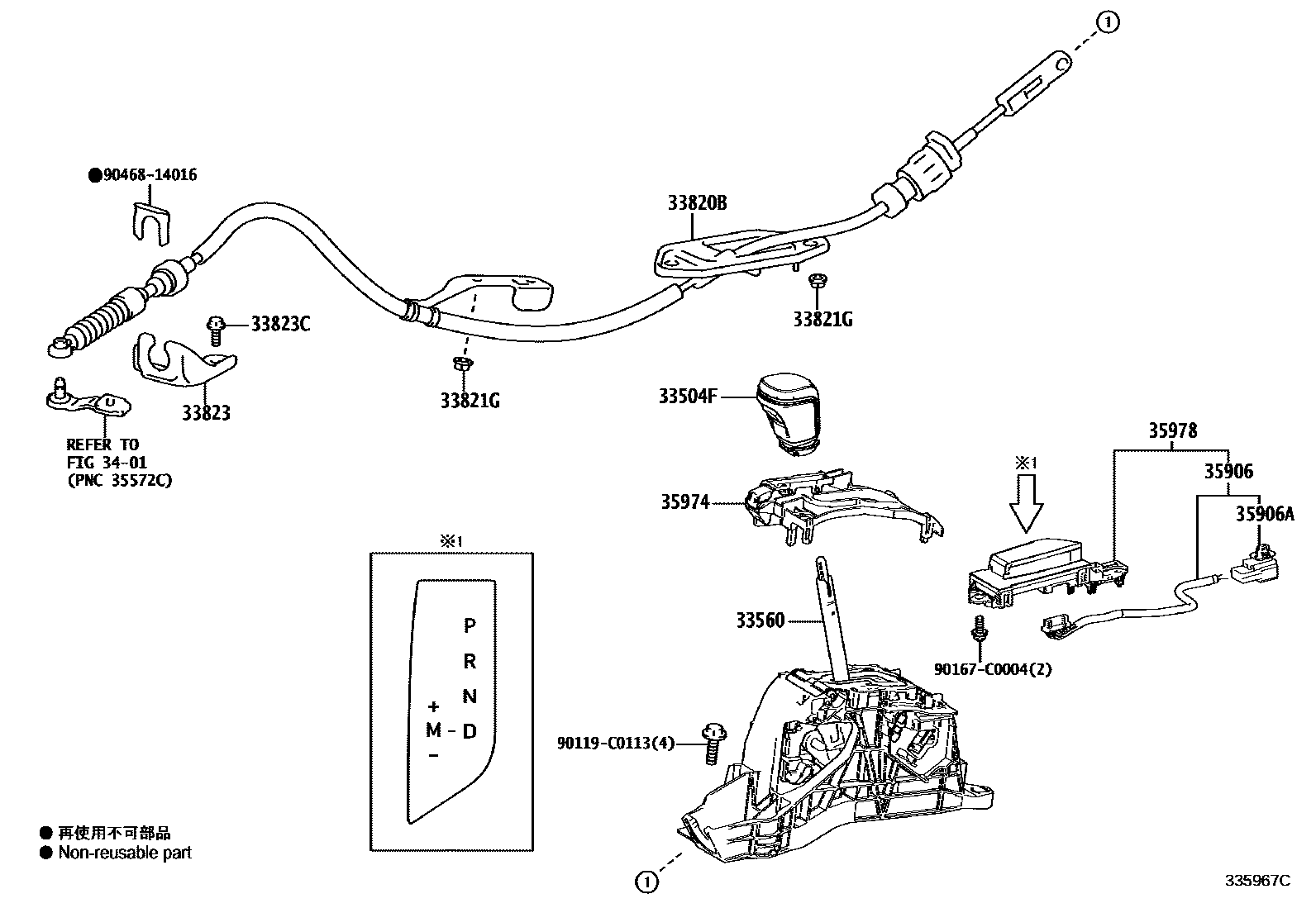

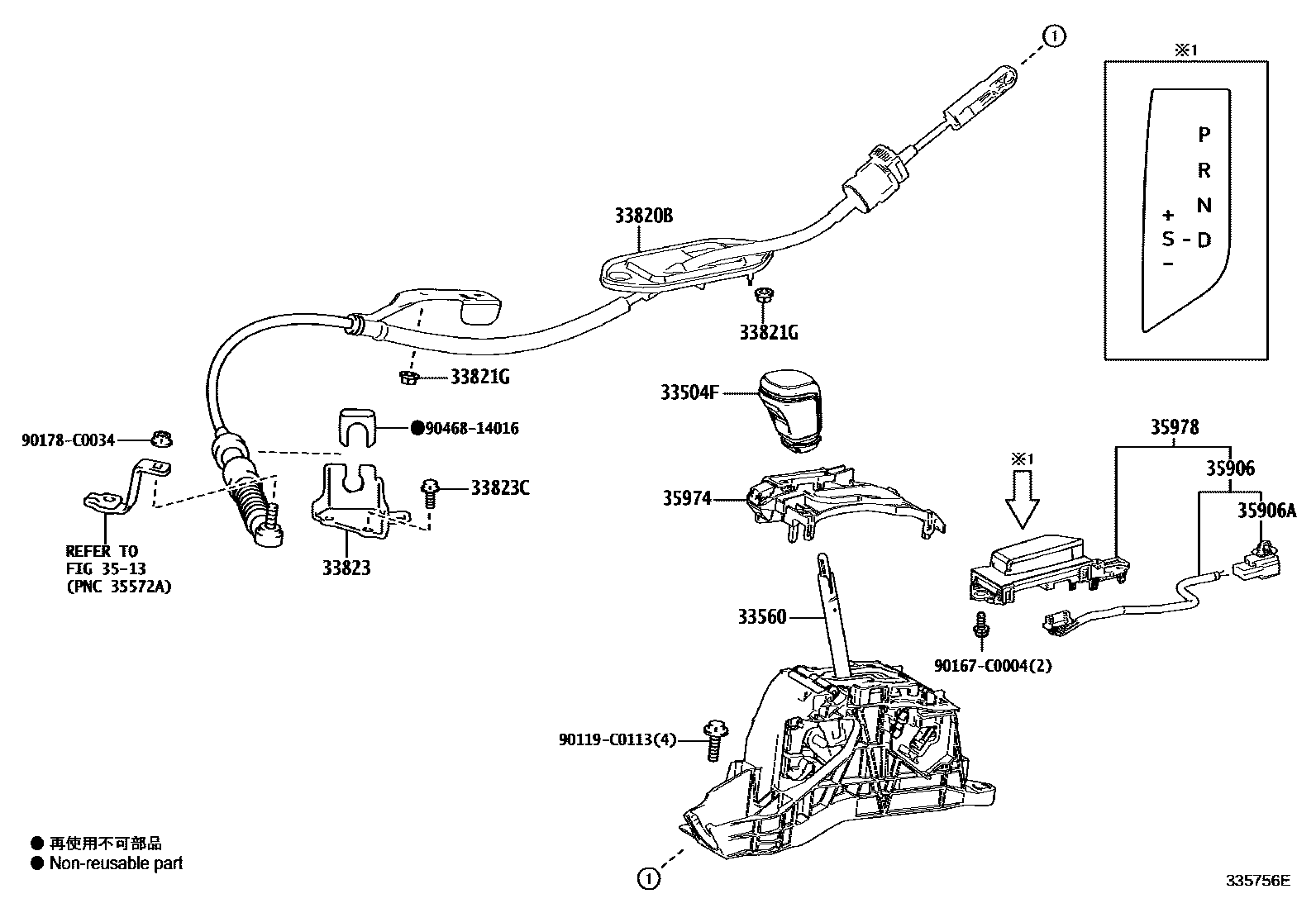

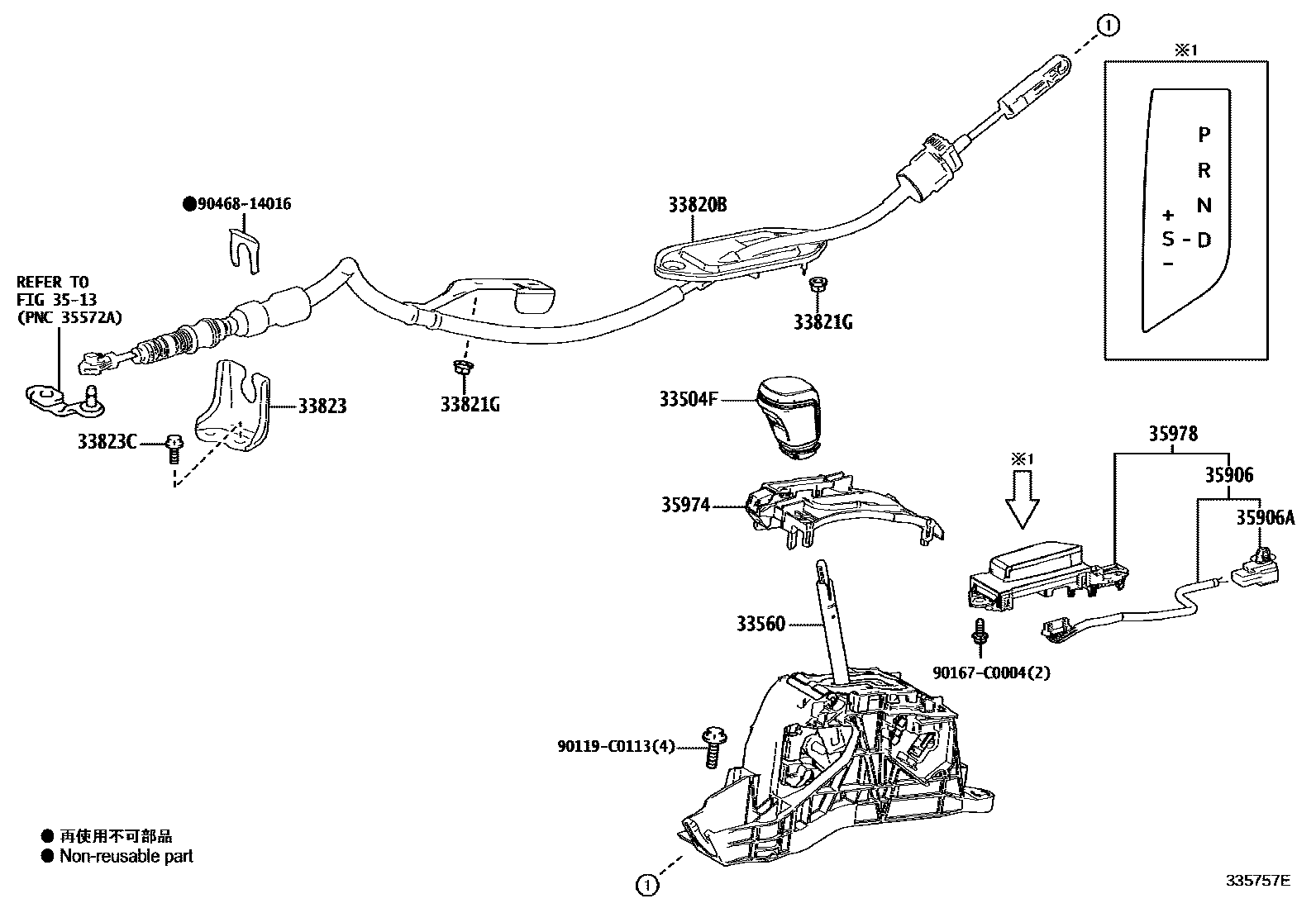

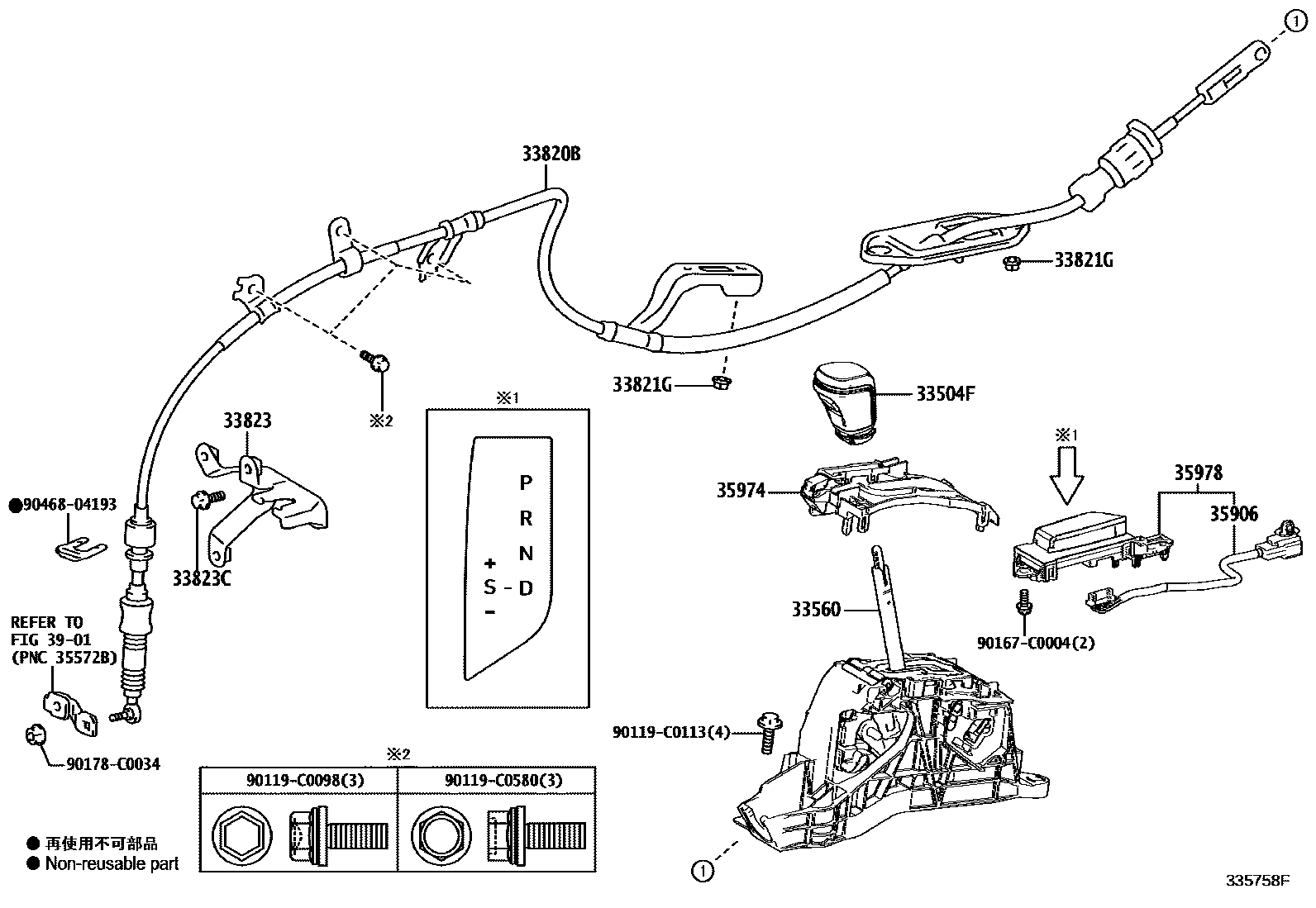

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33560 | Shift lock control unit assembly | 33560-06410 · 33560-06420 · 33560-0E140 |
| 33820B | Transmission control cable assembly | 33820-06540 · 33820-06550 · 33820-06610 · 33820-06640 |
| 33821G | Nut (for transmission control cable) | 90178-C0011 |
| 33823 | No. 1 transmission control cable bracket | 33823-06080 · 33823-06090 · 33823-06100 · 33823-F4050 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 90119-C0132 · 90119-C0212 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06280 · 35906-06290 · 35906-06340 · 35906-06341 |
| 35906A | Male connector housing (for indicator light harness) | 90980-12367 |
| 35974 | Position indicator light lower shell | 35974-06200 |
| 35978 | Shift lever position indicator light | 35978-06220 · 35978-06221 · 35978-06250 · 35978-06260 |
