Toyota CAMRY 起动机 — Figure 1904

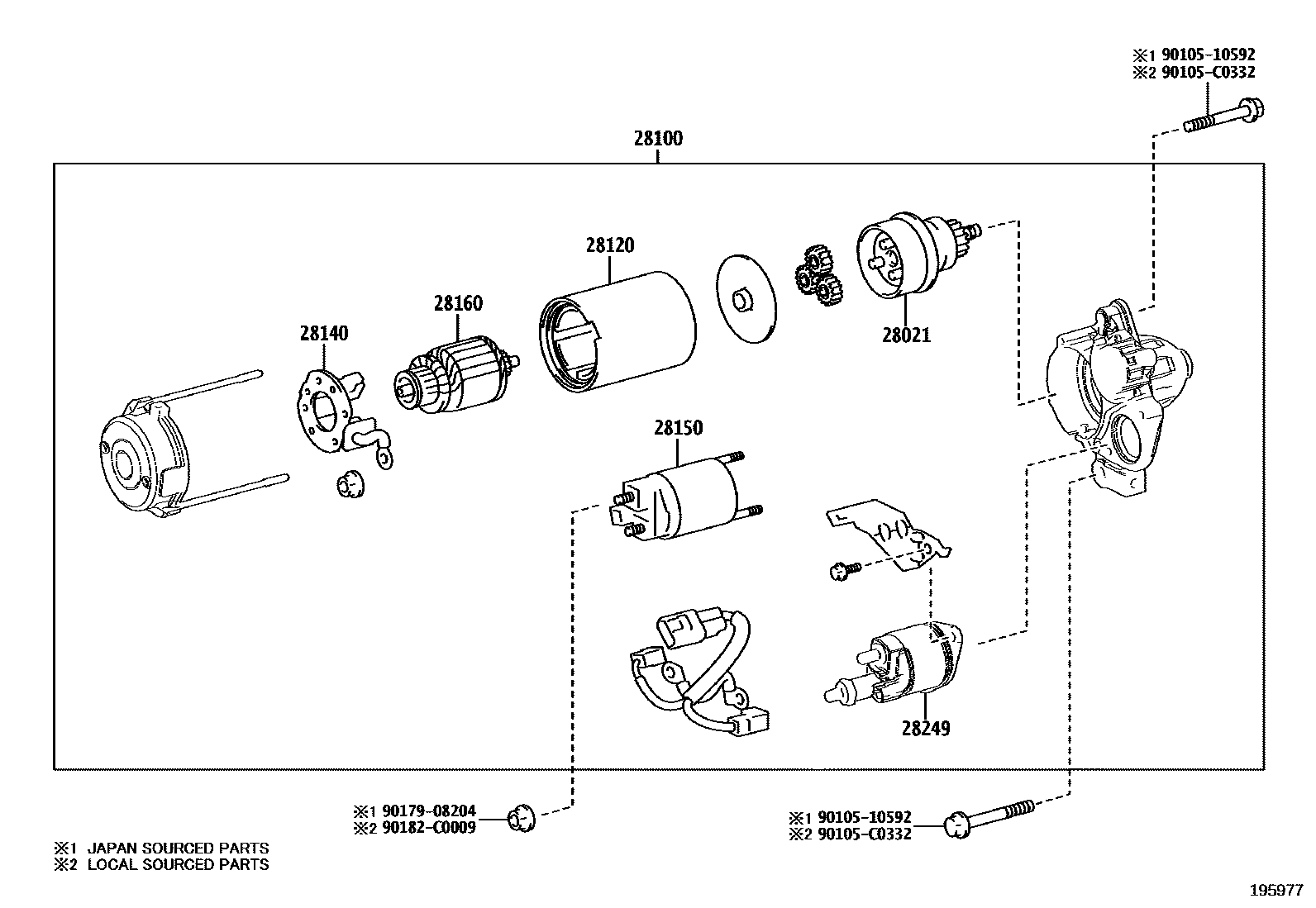

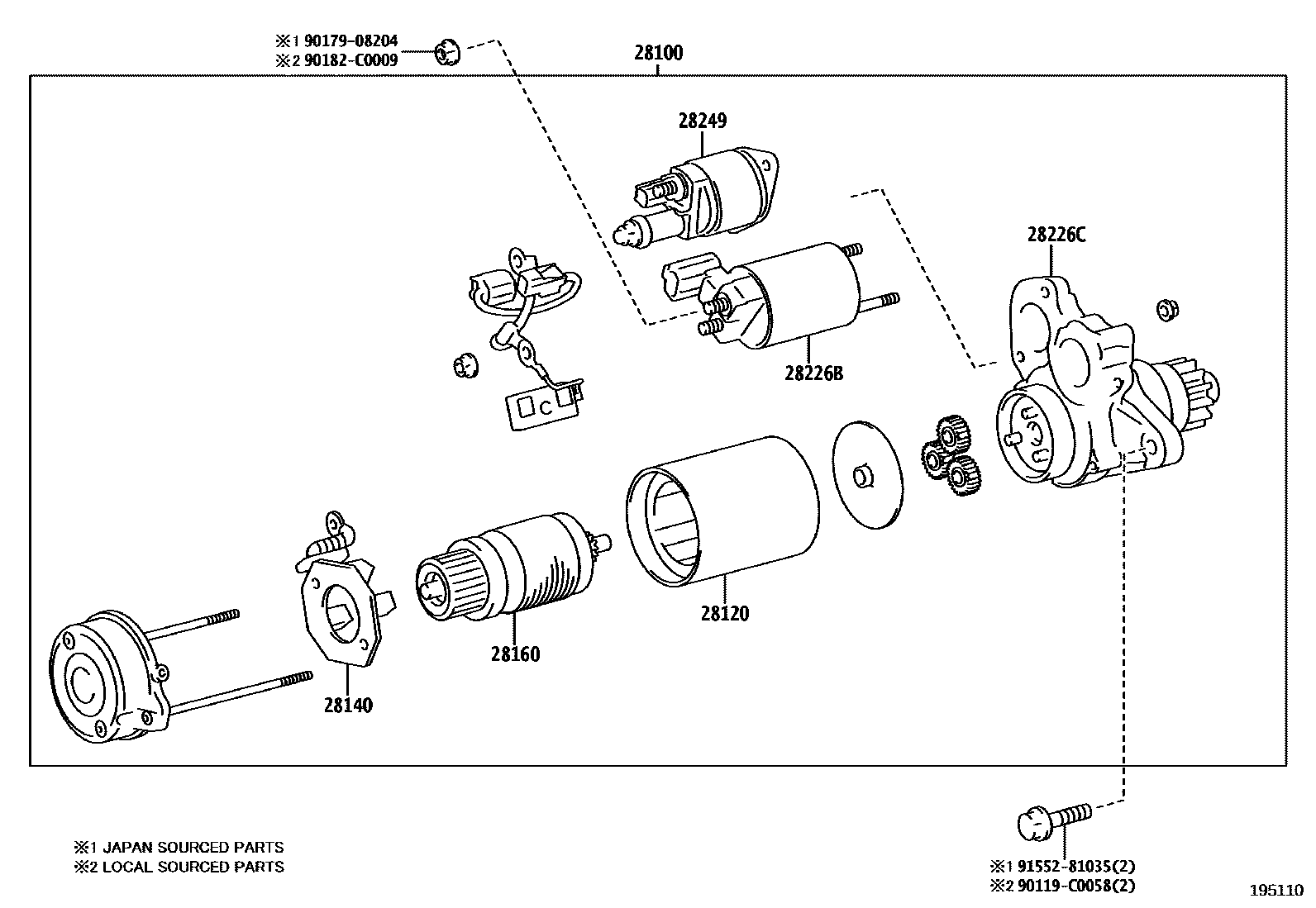

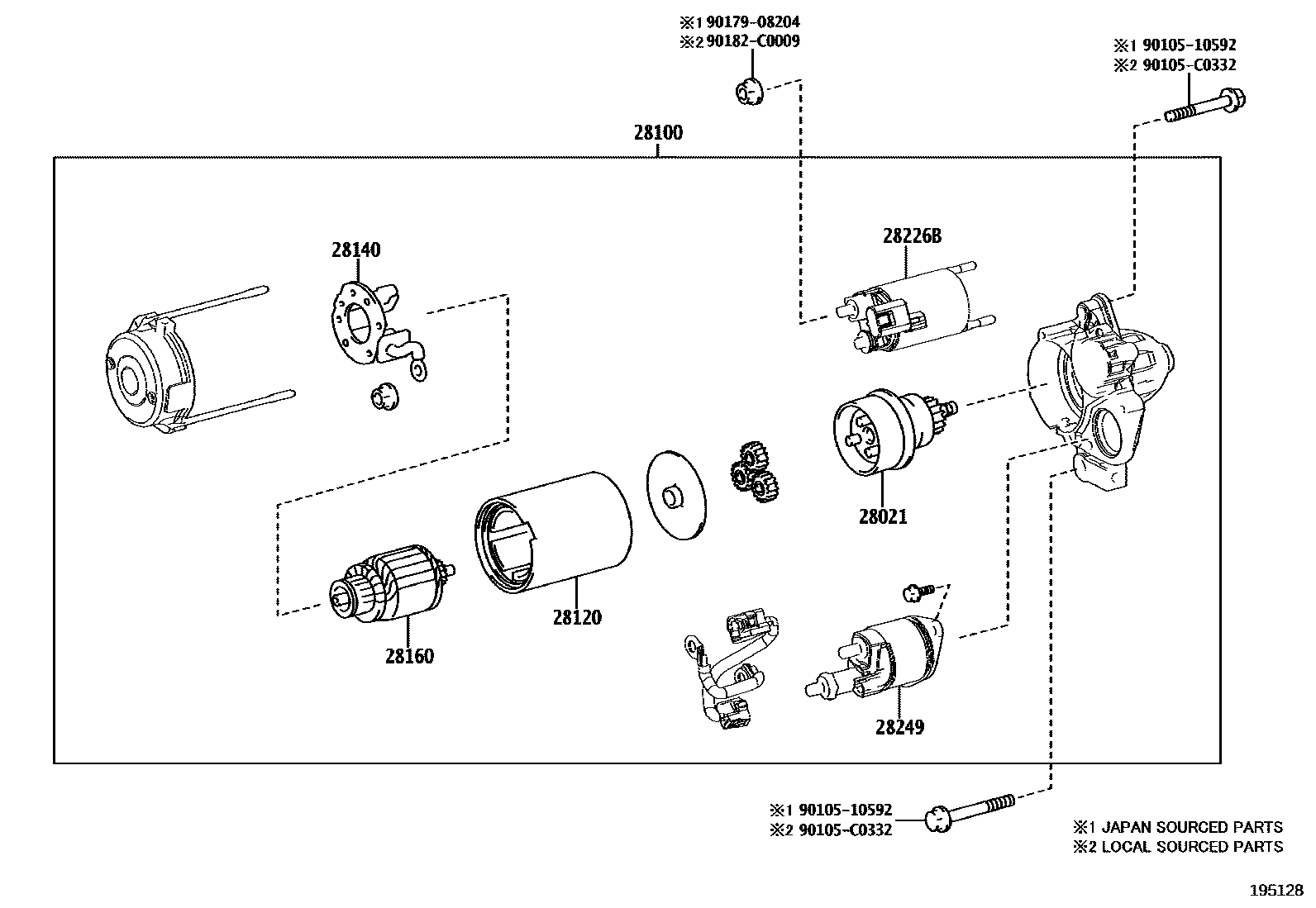

Toyota CAMRY EPC diagram 1904, 起动机, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-F0020 |
| 28100 | Starter assembly | 28100-0V120 · 28100-F0020 · 28100-F0090 · 28100-F2080 |
| 28120 | Starter yoke assembly | 28120-0V020 · 28120-F0020 |
| 28140 | Starter brush holder assembly | 28140-0V020 · 28140-0V040 |
| 28150 | Starter electromagnetic switch assembly | 28150-0Y331 |
| 28160 | Starter armature assembly | 28160-0S050 |
| 28226B | starter magnetic switch | 28226-25070 · 28226-36140 |
| 28226C | No. 2 starter magnetic switch | 28226-0V060 |
| 28249 | Starter starting current deceleration relay | 28249-36110 · 28249-37100 · 28249-F0020 |
