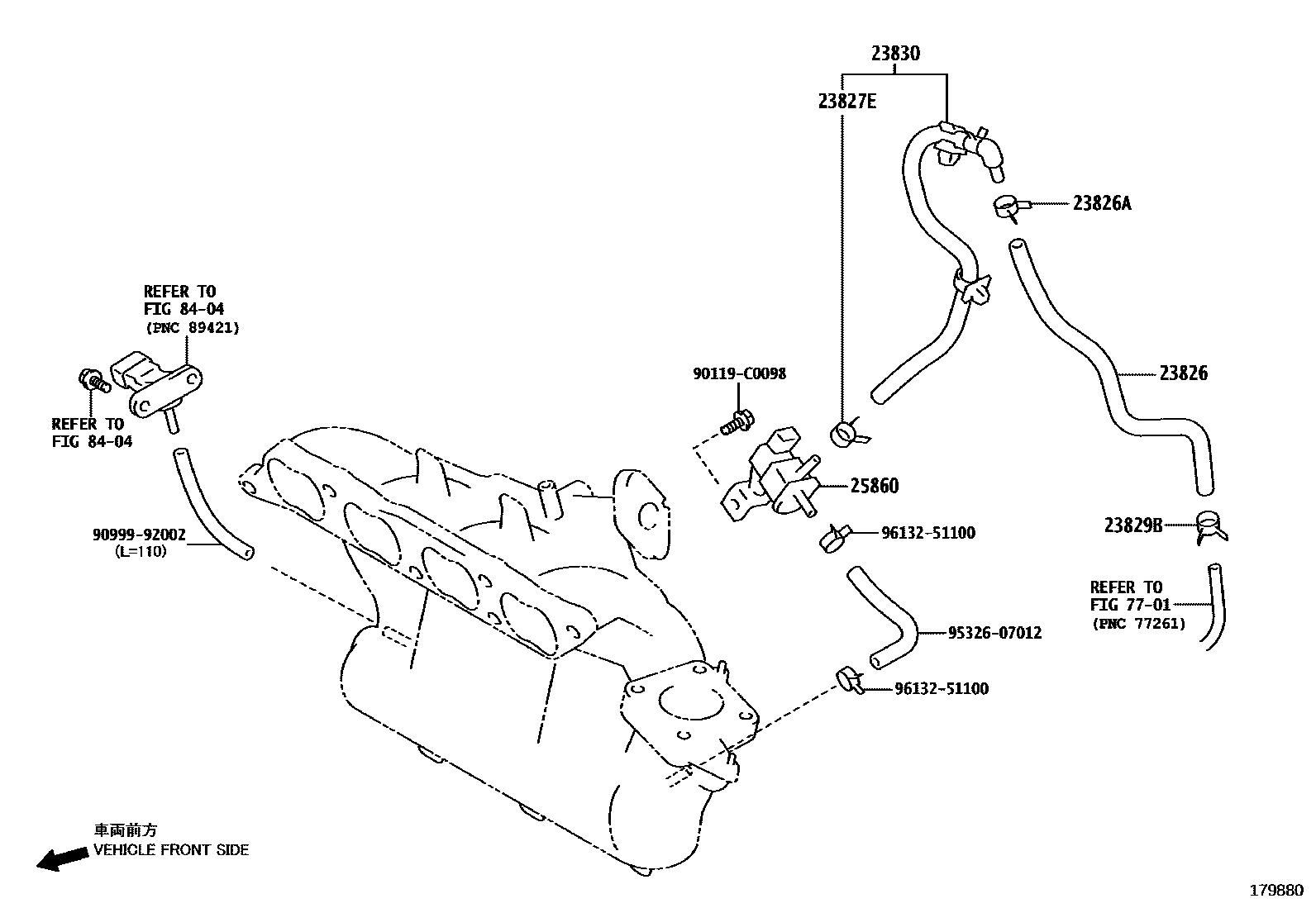

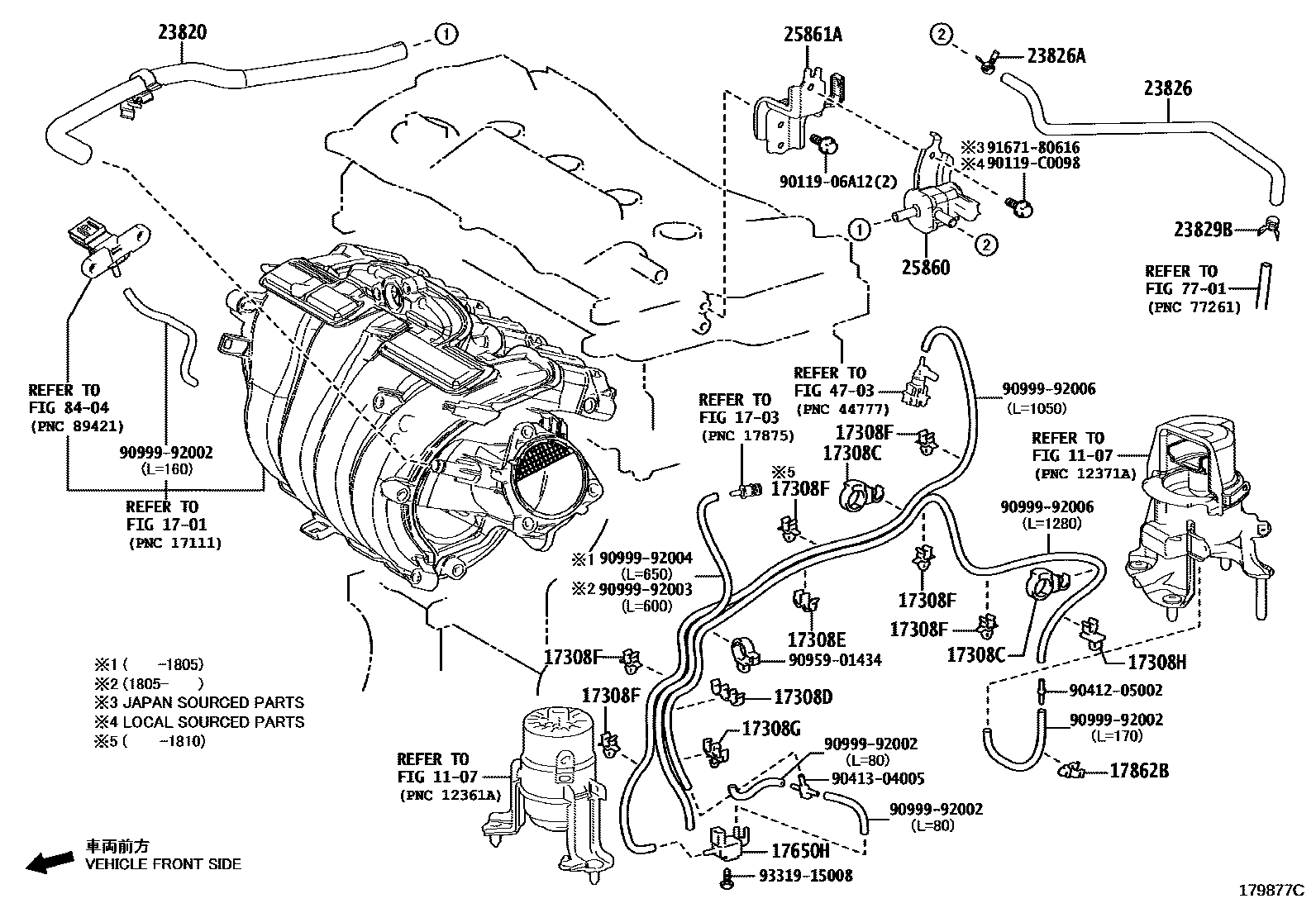

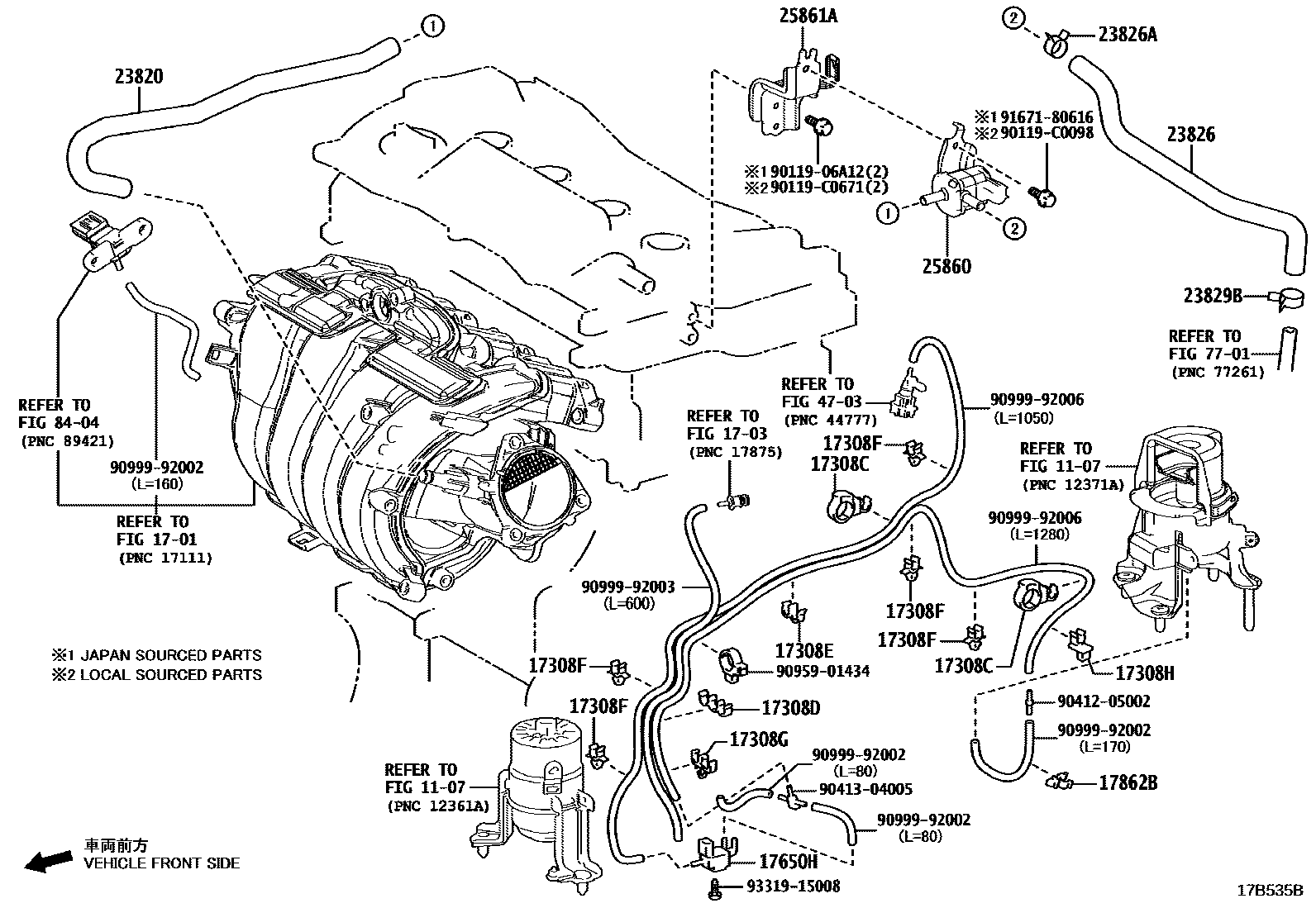

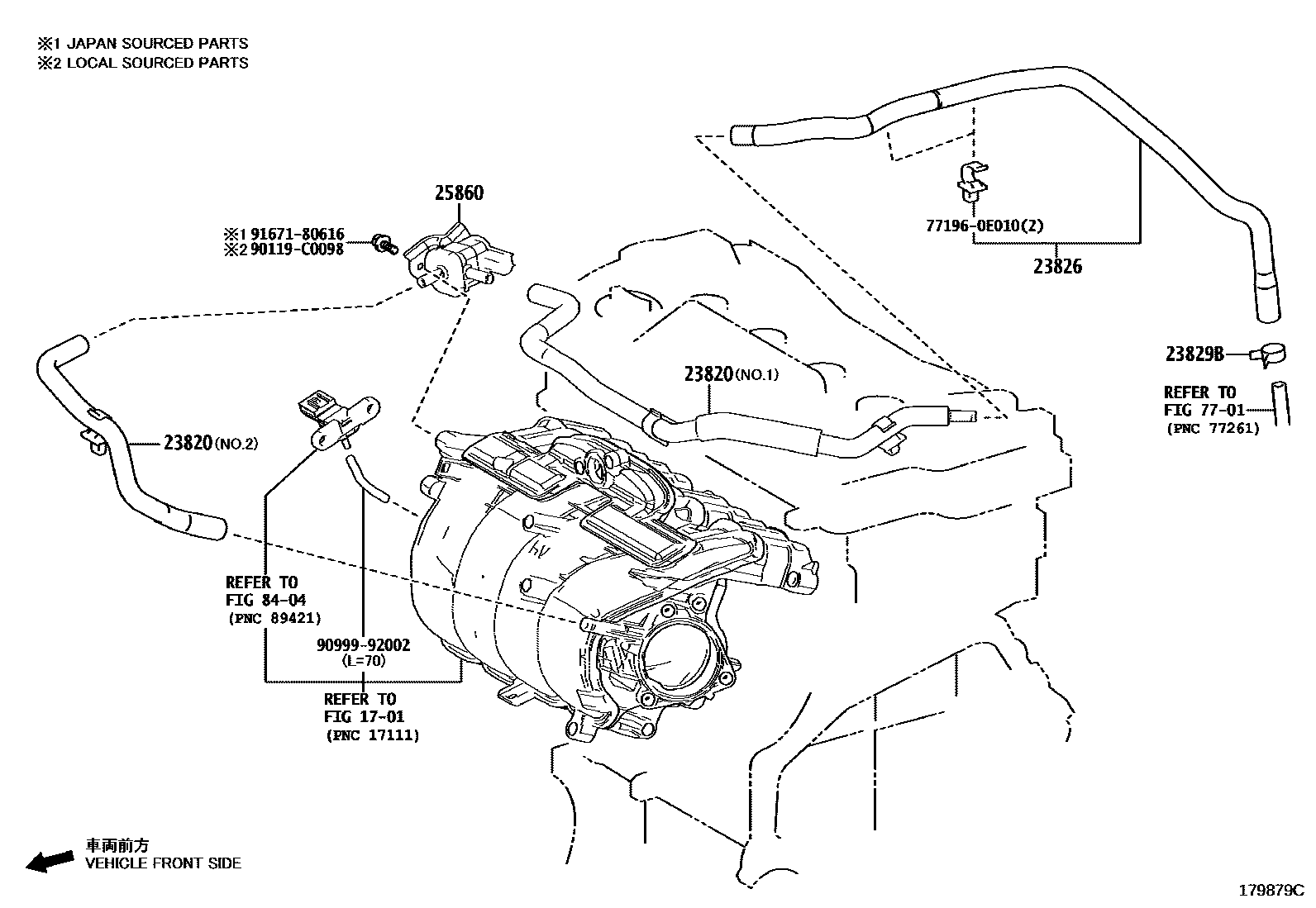

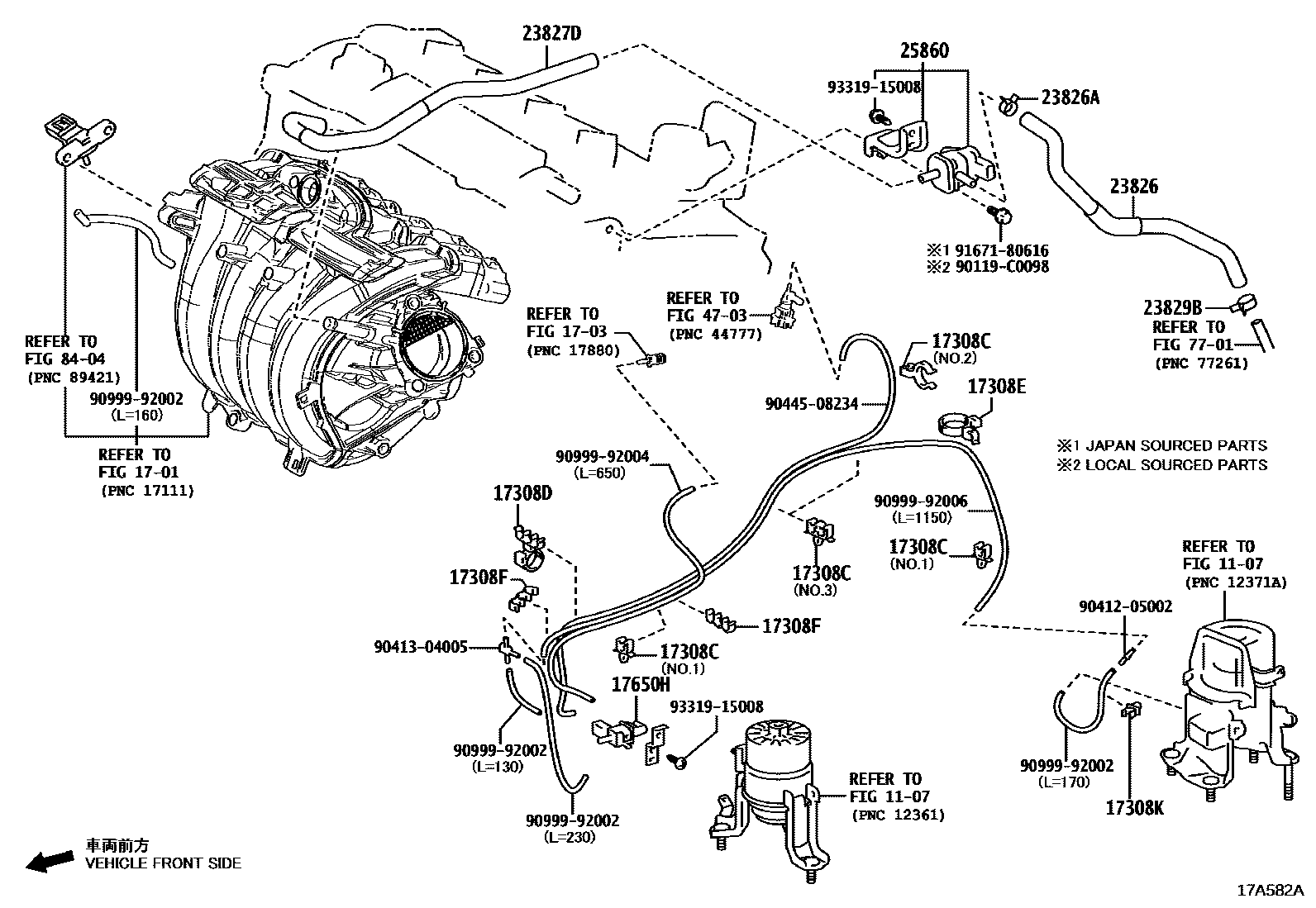

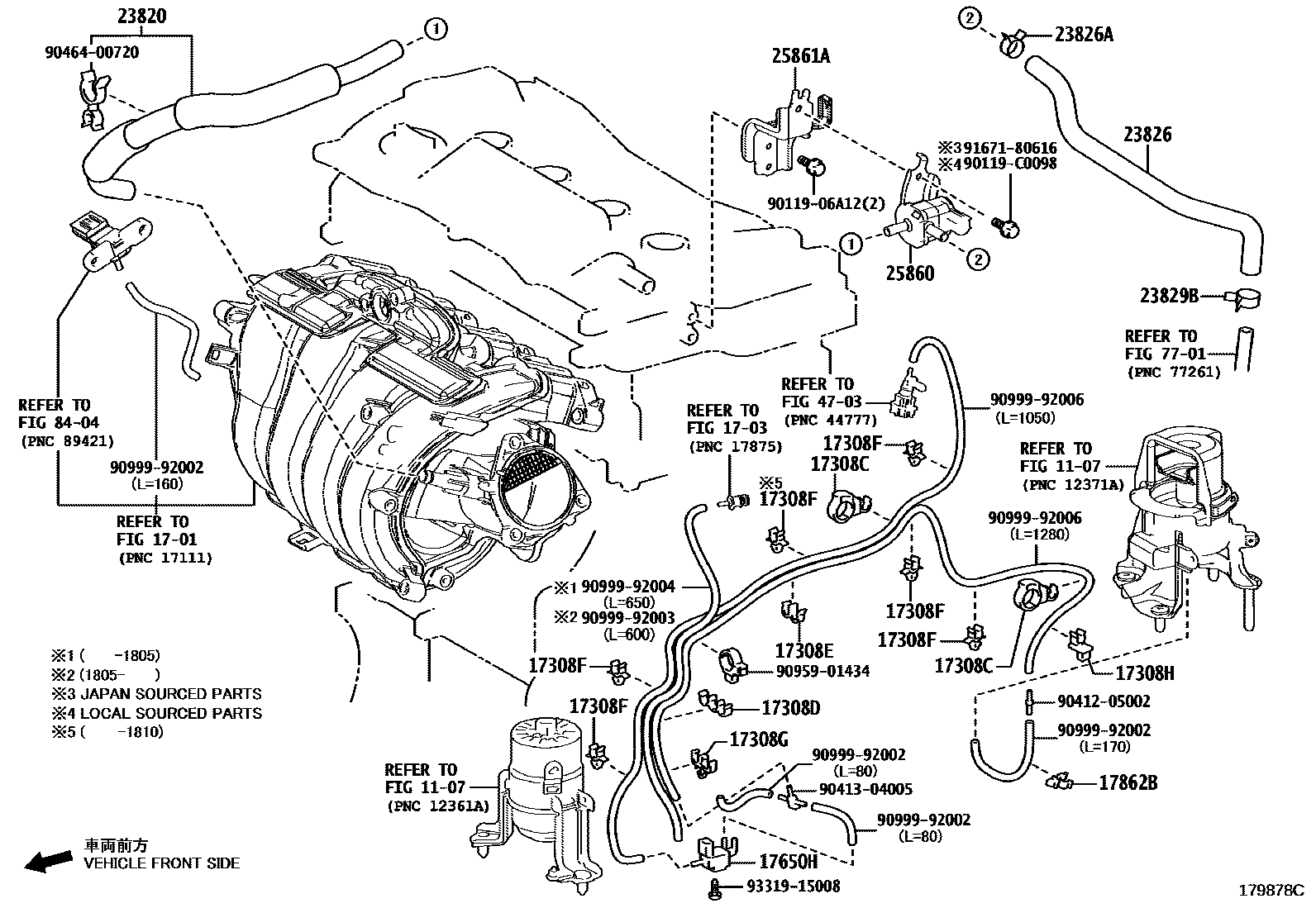

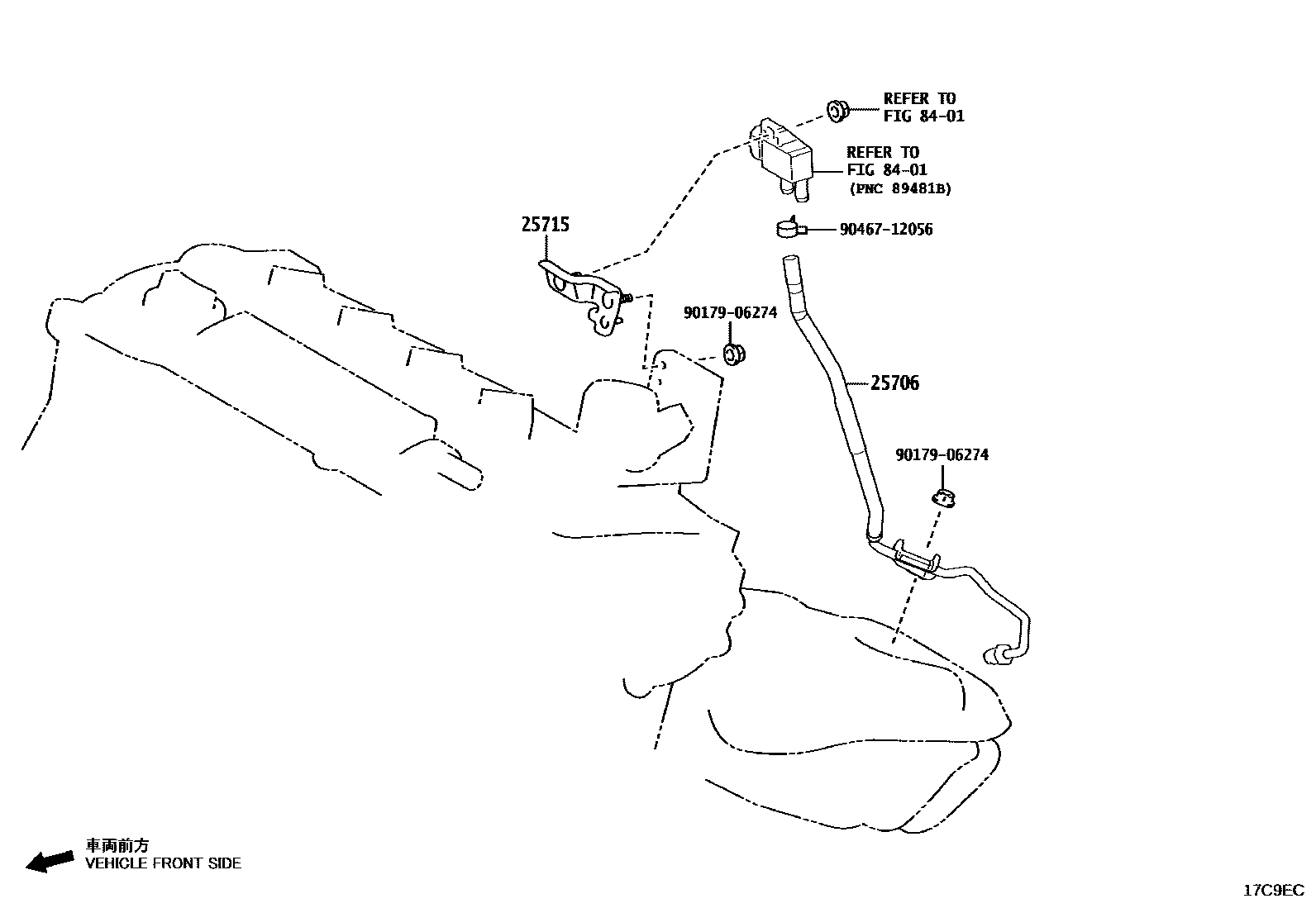

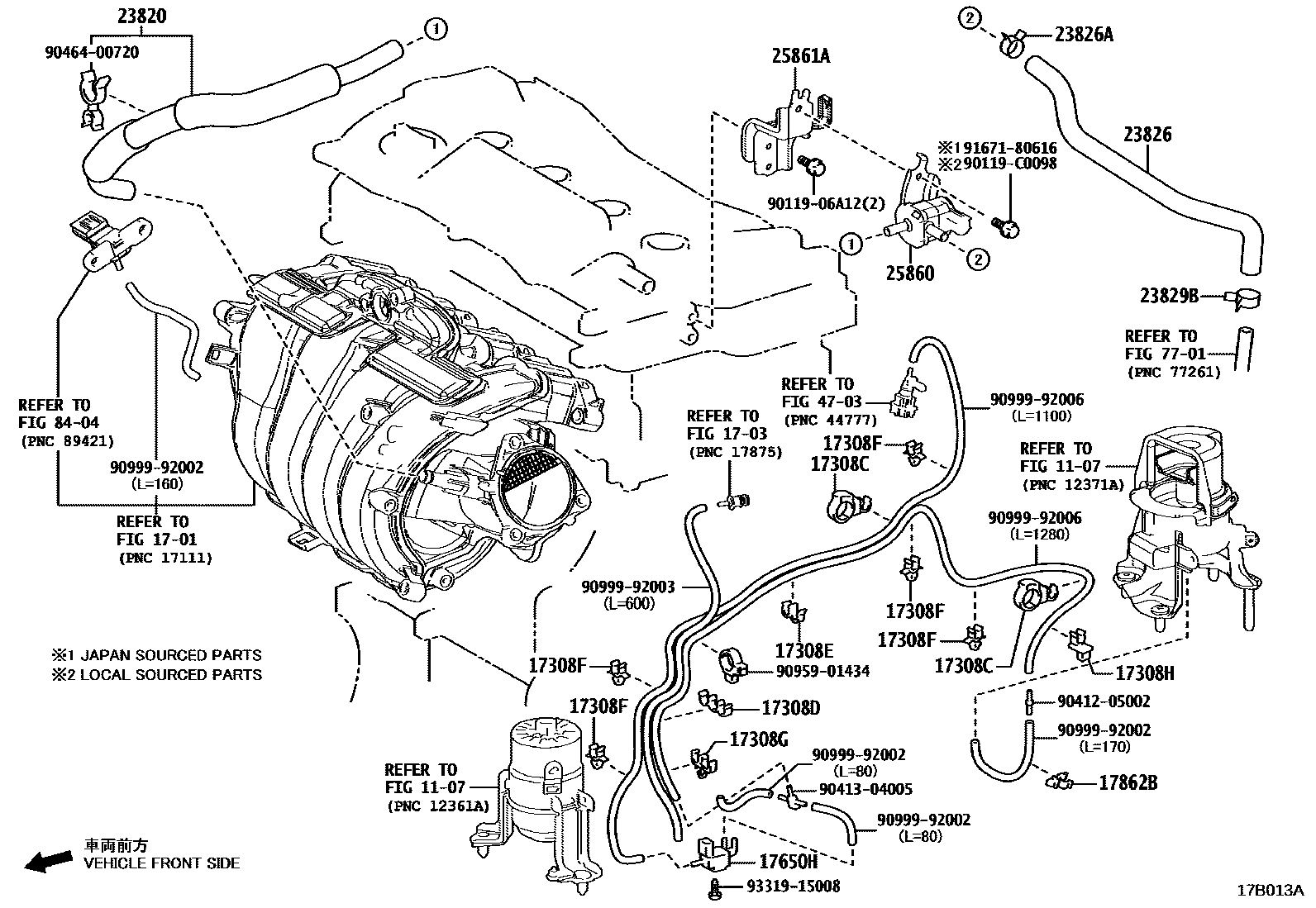

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 8 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308C | Clamp (for vacuum hose) | 44783-33060 · 44783-42040 · 44783-42070 · 44783-42080 |
| 17308D | Clamp No. 2 (for vacuum hose) | 44783-42100 · 90464-00074 |
| 17308E | Clamp No. 3 (for vacuum hose) | 44783-42080 · 44783-42090 · 90464-00082 |
| 17308F | No. 4 clamp (for vacuum hose) | 44783-42040 · 90464-00074 · 90469-07011 |
| 17308G | No. 5 clamp (for vacuum hose) | 90469-07012 |
| 17308H | Clamp No. 6 (for vacuum hose) | 44783-42060 · 90949-01C91 |
| 17308K | No. 7 clamp (for vacuum hose) | 44783-42040 |
| 17650H | Vacuum switch valve | 90910-12059 |
| 17862B | hose clamp | 44783-42040 · 90469-07011 |
| 23820 | Fuel vapor supply hose assembly | 23820-25051 · 23820-25060 · 23820-25070 · 23820-25130 · 23820-25260 · 23820-F0440 · 23820-F0450 · 23820-F0600 |
| 23826 | No. 1 fuel vapor supply hose | 23820-F0040 · 23826-0V290 · 23826-F0090 · 23826-F0100 · 23826-F0310 · 23826-F0320 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-13005 · 90466-C0037 · 96133-41501 |
| 23827D | No. 2 fuel vapor supply hose | 23820-F2040 · 23826-24020 · 23826-F2290 |
| 23827E | Clamp (for No. 2 fuel vapor supply hose) | 90466-11004 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-13005 · 90466-15004 · 90466-C0039 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23830-0V210 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-F0030 |
| 25715 | Emission control valve bracket | 25715-F0030 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0V150 · 25860-24010 · 25860-24020 · 25860-25010 · 25860-25020 · 25860-25040 · 25860-F0070 · 25860-F0100 · 25860-F2050 |
| 25861A | No. 2 vacuum switch valve bracket | 25862-25011 |
