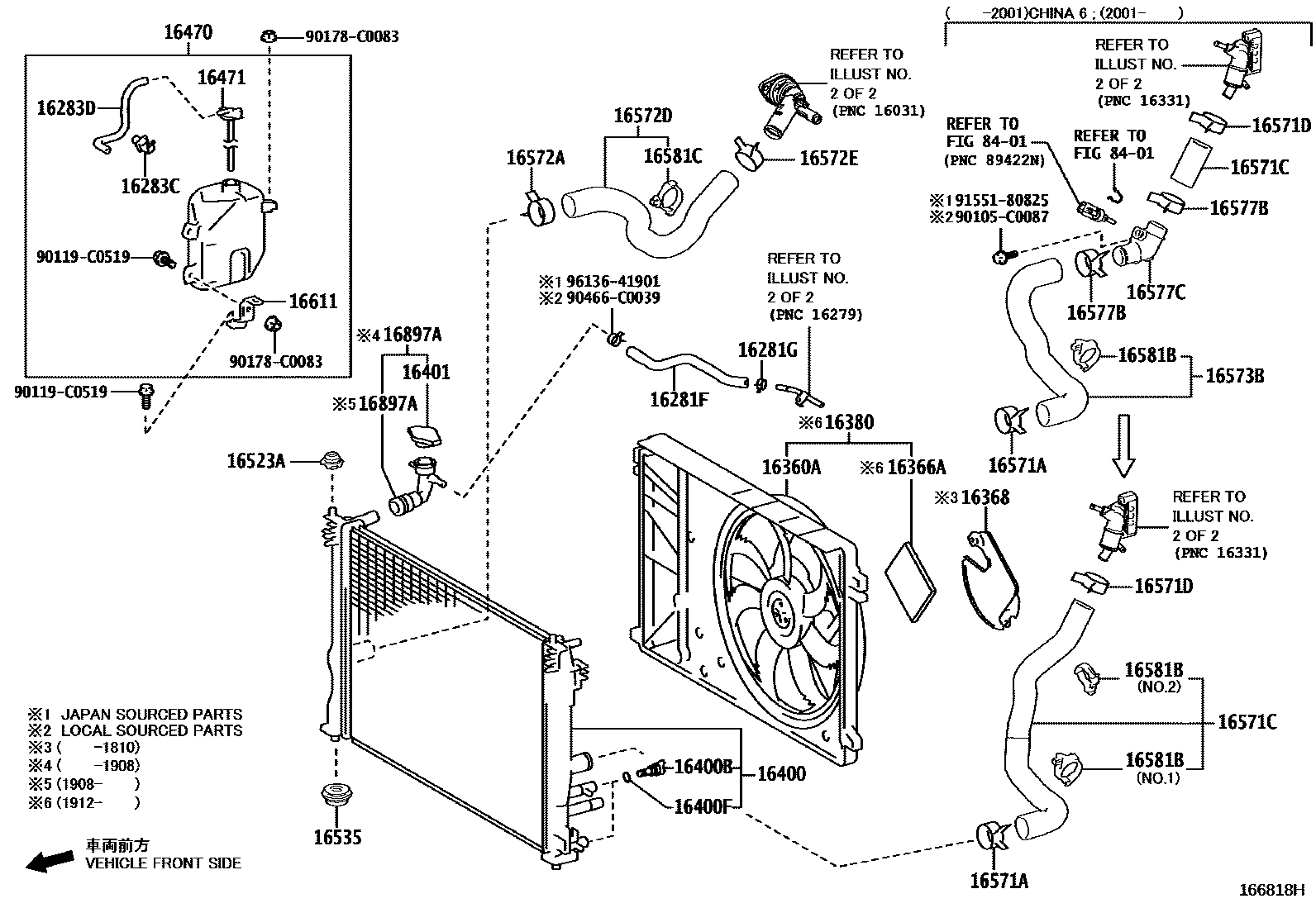

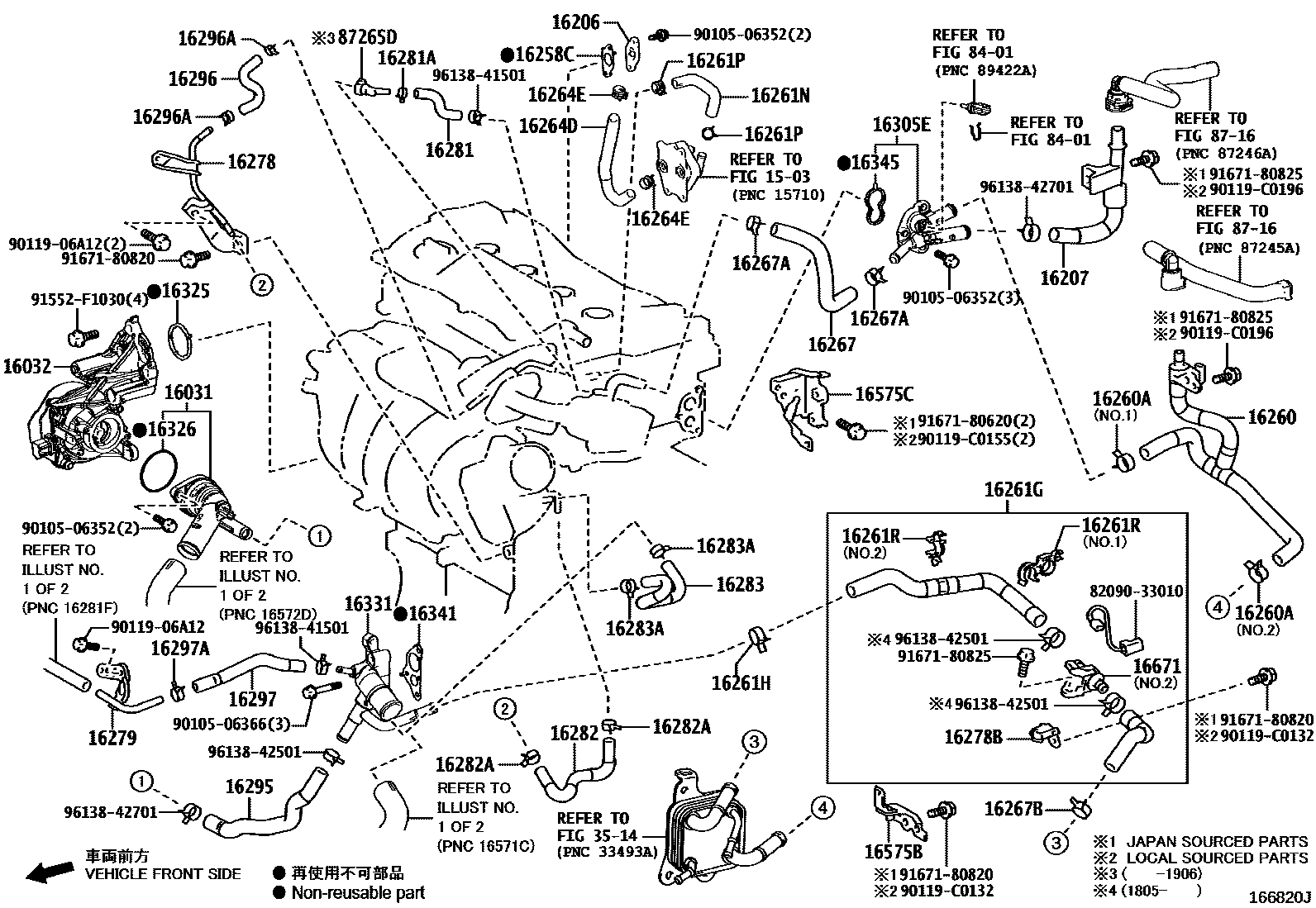

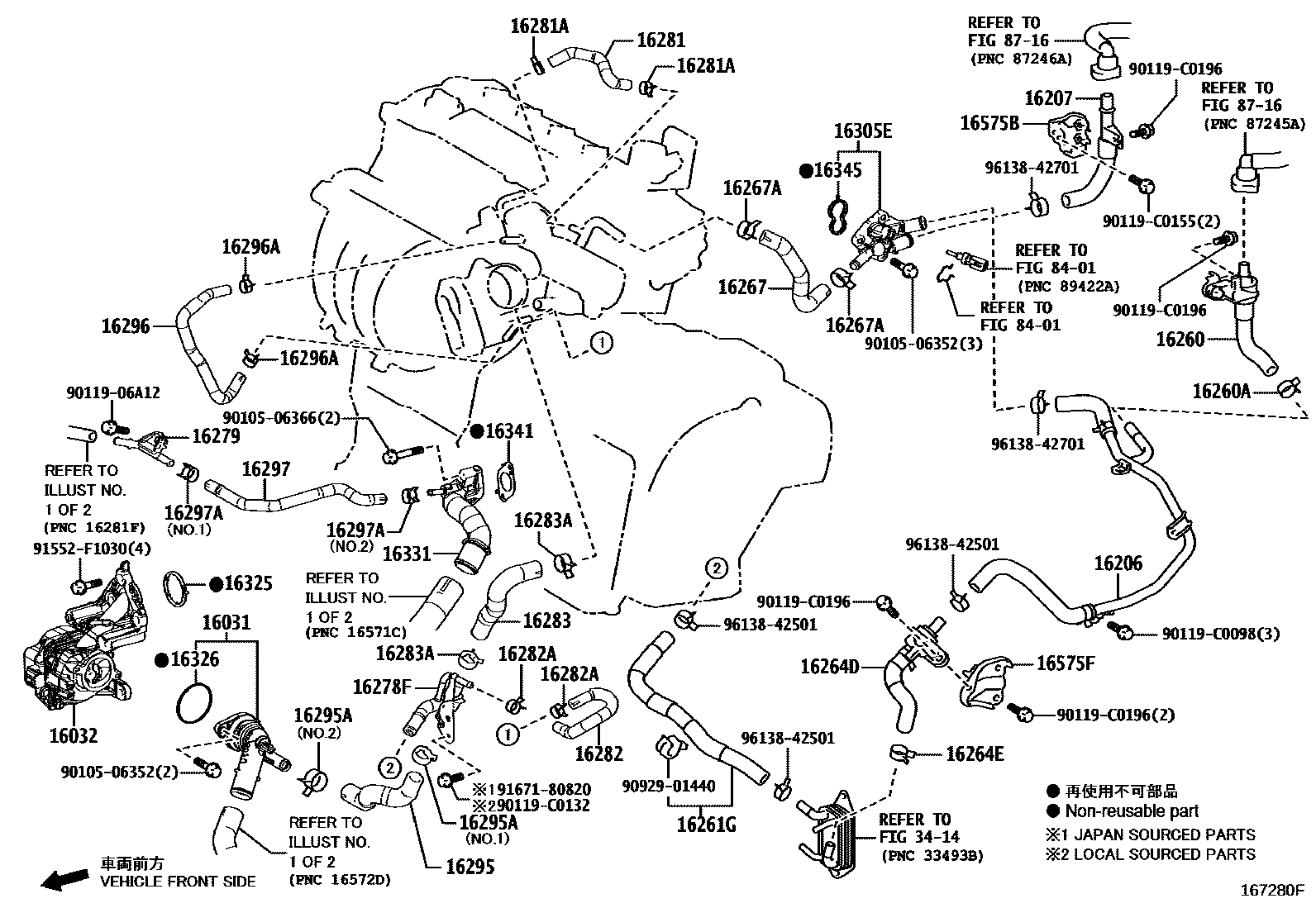

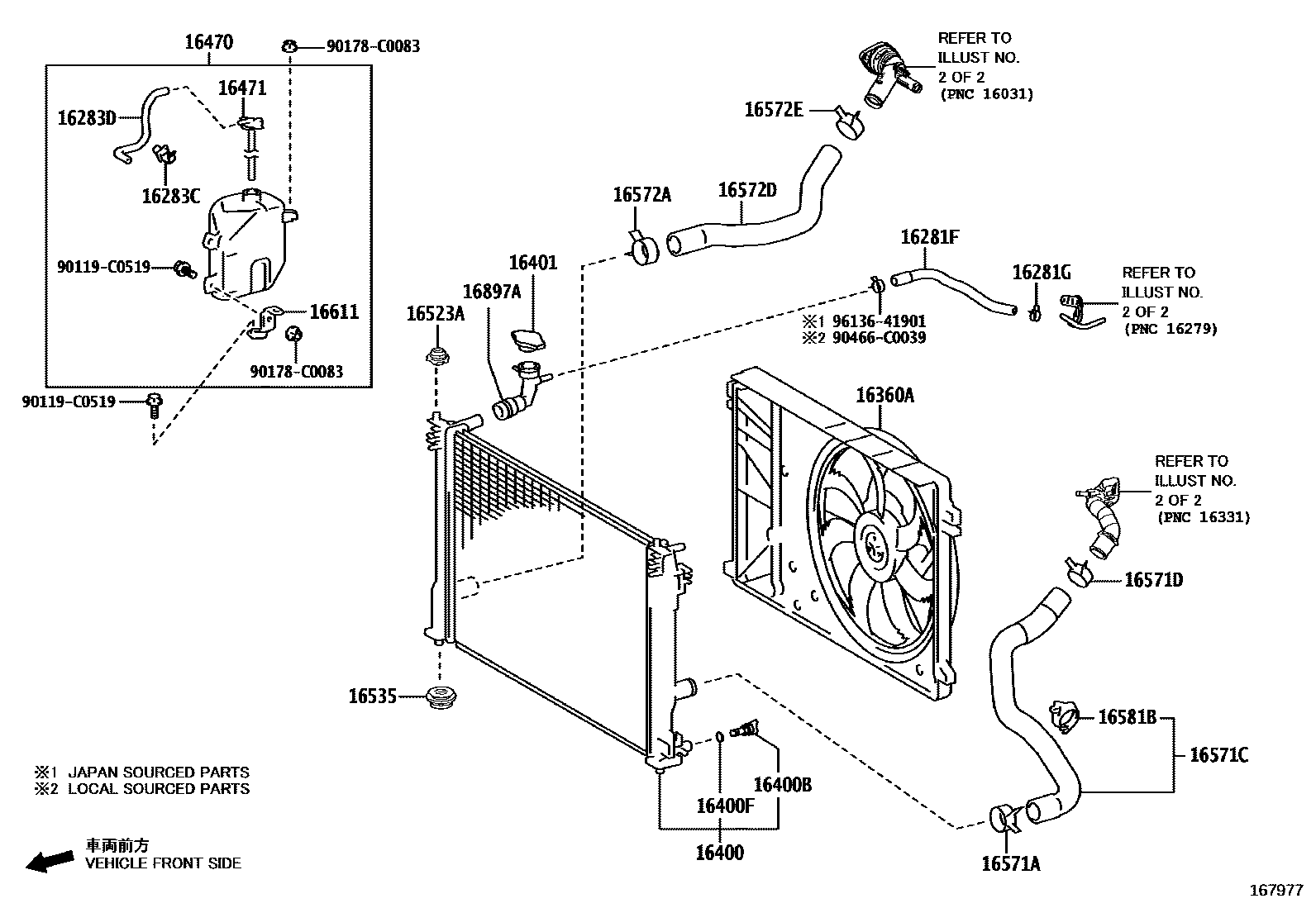

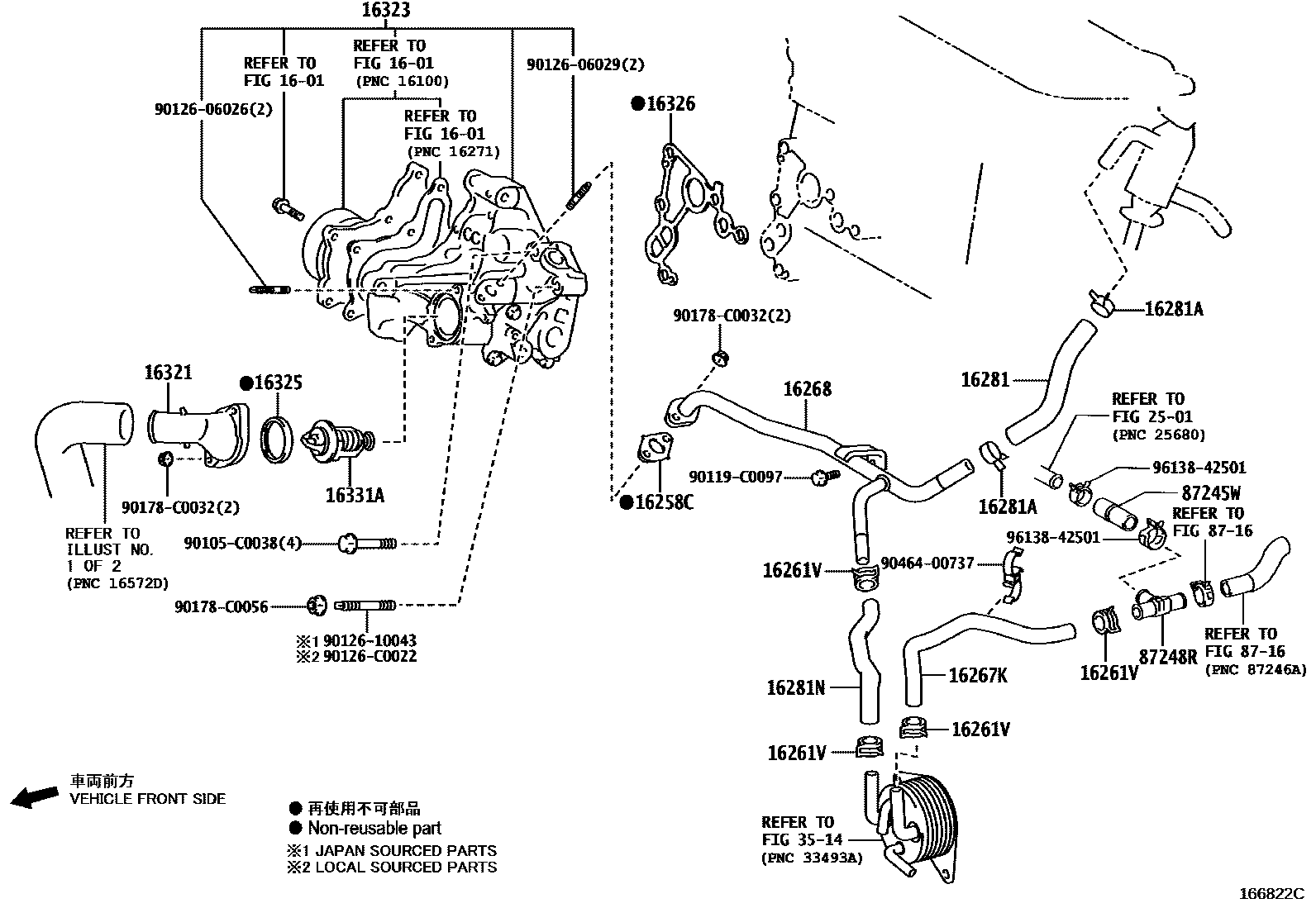

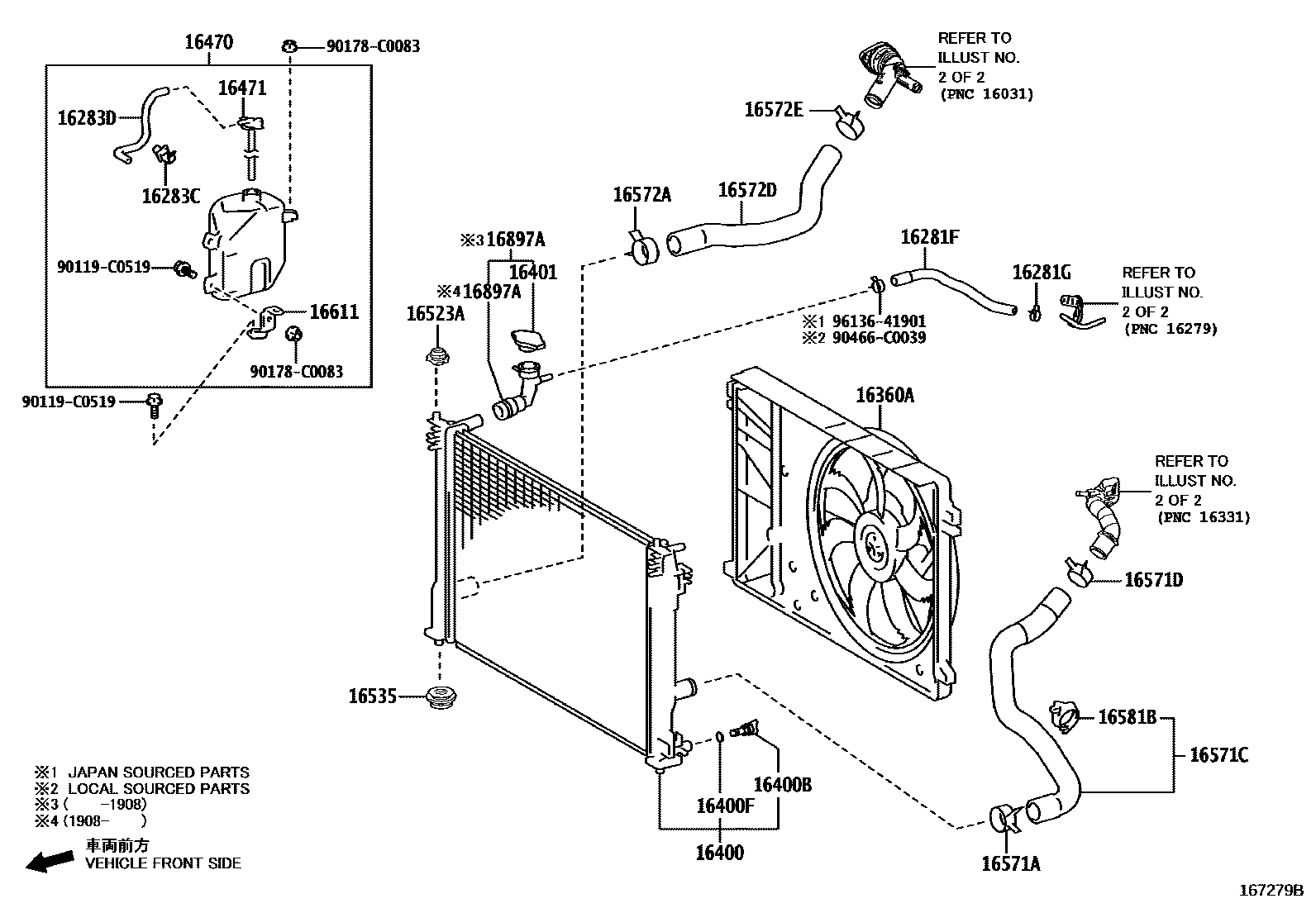

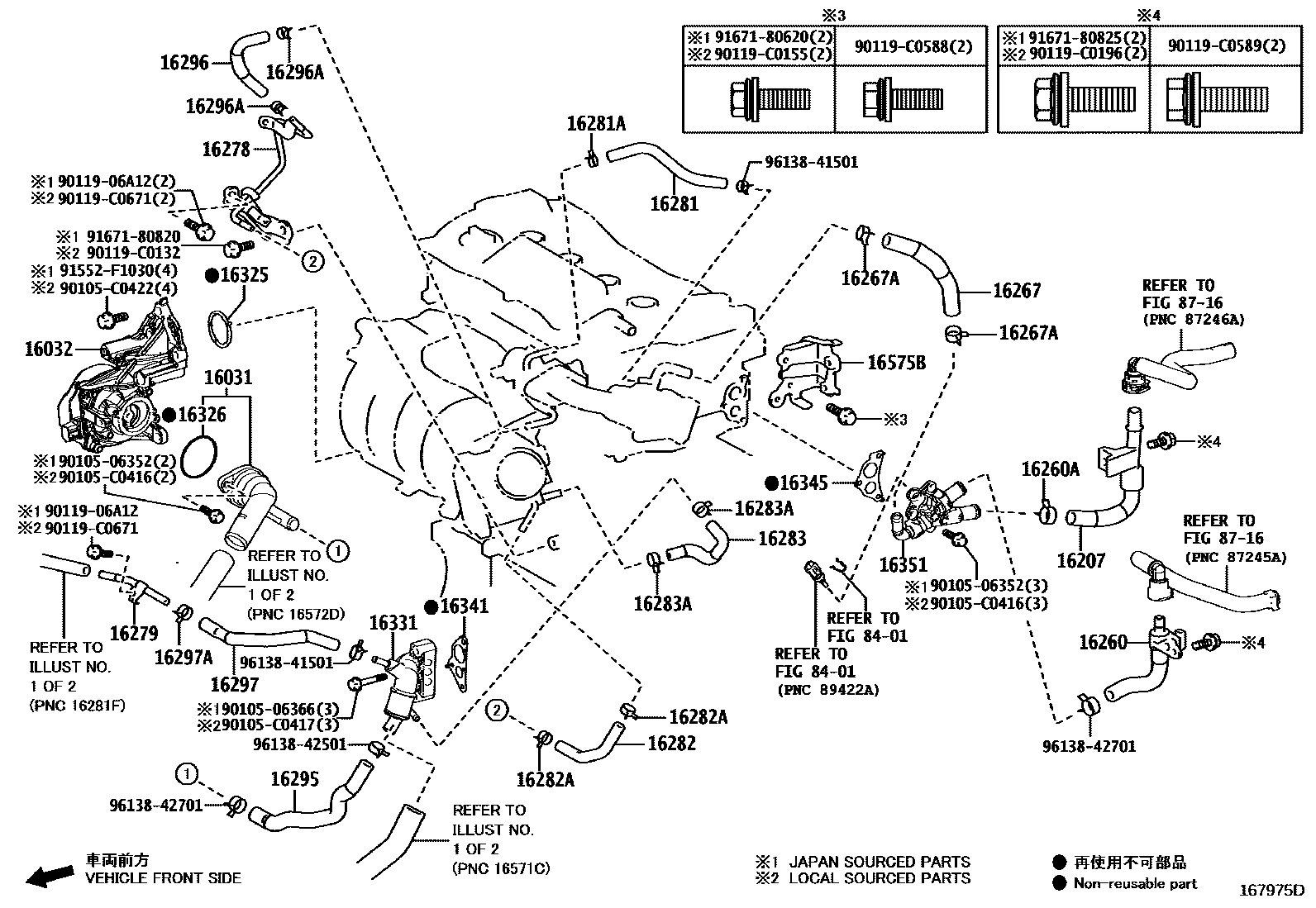

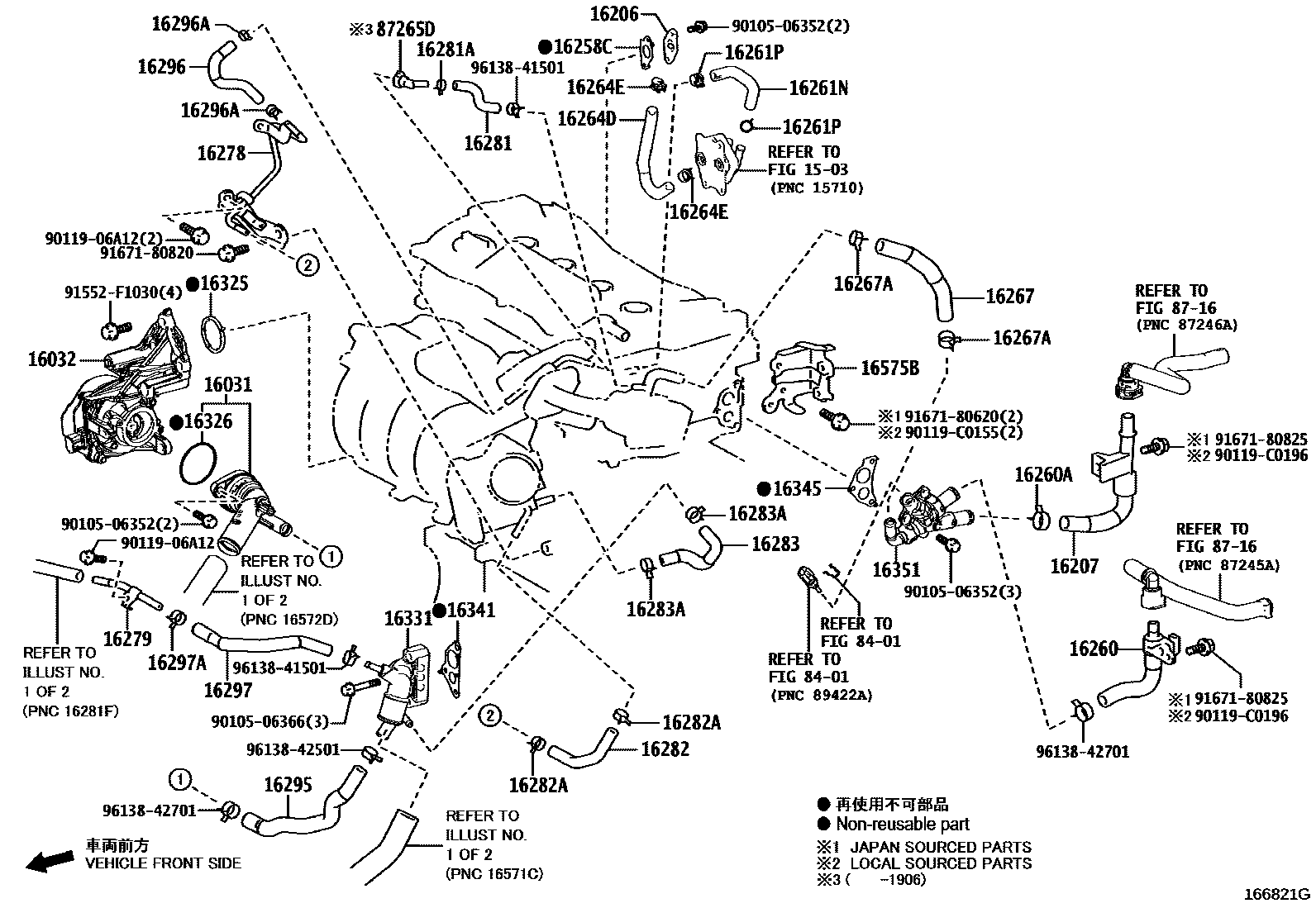

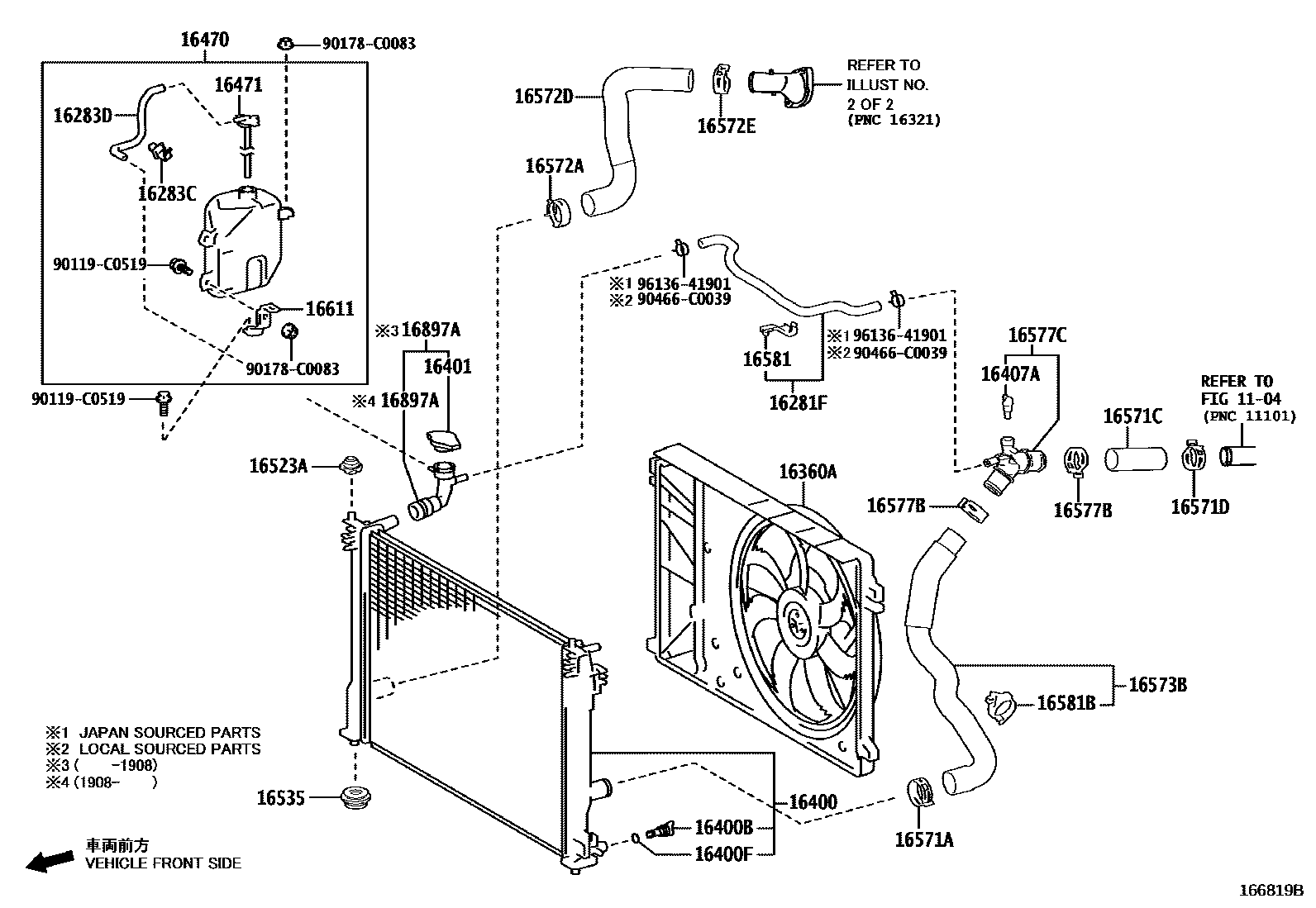

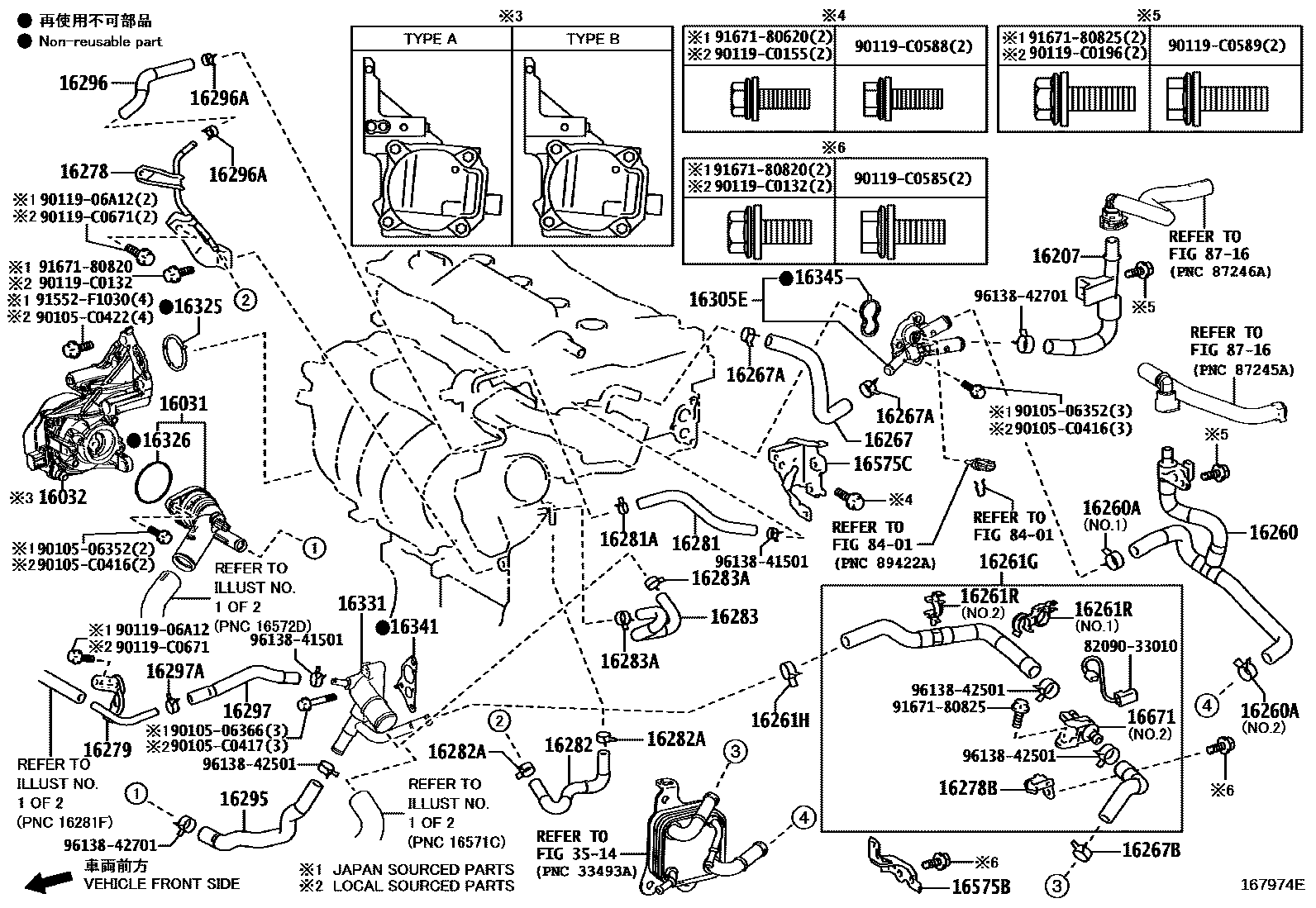

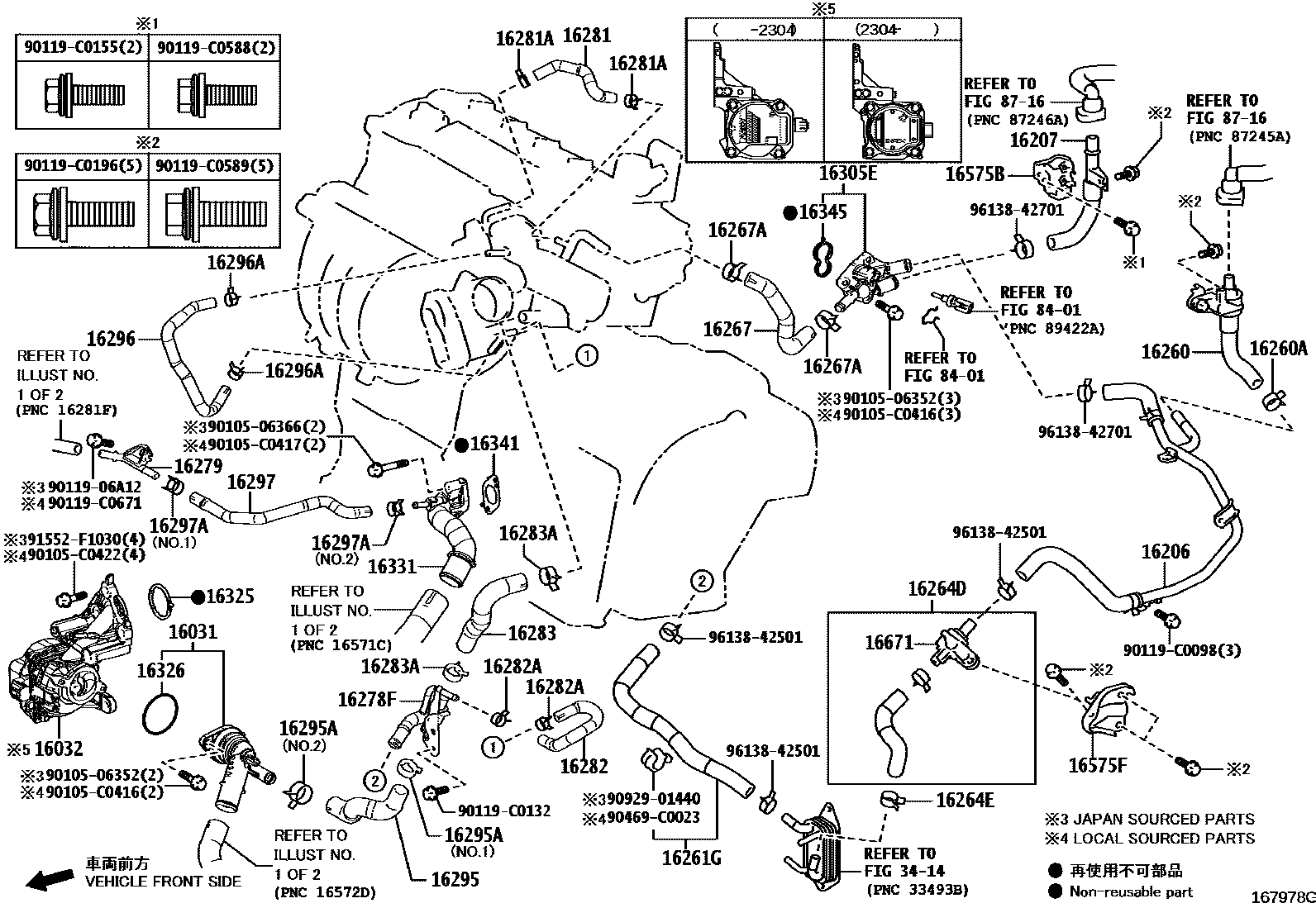

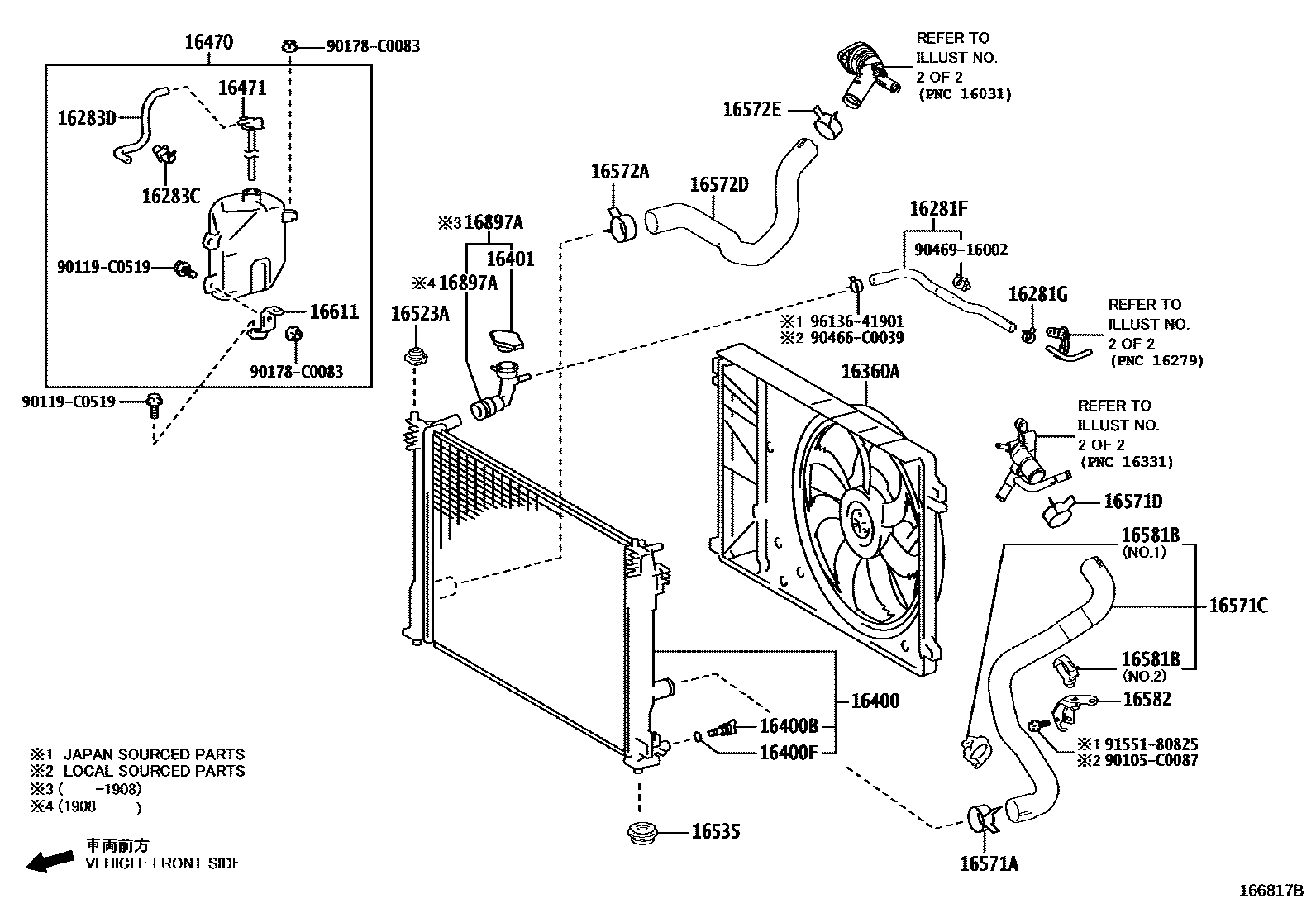

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 12 images and 86 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-24010 · 16031-24011 · 16031-24040 · 16031-25010 · 16031-25011 · 16031-25040 · 16031-F0020 · 16031-F2020 · 16031-F2050 |
| 16032 | Water inlet housing sub-assembly with water pump | 16032-24010 · 16032-24020 · 16032-25010 · 16032-F0020 · 16032-F2030 · 16032-F2050 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-25030 · 16206-F2020 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-F0060 · 16207-F2140 |
| 16258C | Gasket (for water bypass pipe) | 16258-0V010 · 16258-25010 |
| 16260 | Water bypass hose assembly | 16260-F0050 · 16260-F0060 · 16260-F0070 · 16260-F0071 |
| 16260A | Clamp (for water bypass hose assembly) | 96138-42501 · 96138-42701 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-F0080 · 16261-F2170 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-C0031 · 96136-42201 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-25050 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 96138-42101 |
| 16261R | Clip or clip (for water bypass hose) | 16581-25070 · 16581-25080 · 16581-25081 |
| 16261V | CLAMP OR CLIP, WATER BY-PASS HOSE | 16581-36040 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-25030 · 16264-F0080 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96138-42101 · 96138-42501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-24040 · 16267-25010 · 16267-25020 · 16267-F0020 · 16267-F2190 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96138-42101 |
| 16267B | Clip (for water bypass hose) | 96138-42501 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-0V150 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0V040 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-25020 · 16278-25030 · 16278-F0050 |
| 16278B | Water bypass pipe bracket | 16575-25070 |
| 16278F | HOSE, WATER BY-PASS, NO.2 | 16278-24010 · 16278-F2050 |
| 16279 | No. 3 water bypass pipe | 16279-24010 · 16279-25010 · 16279-25020 · 16279-F0030 · 16279-F2050 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-24030 · 16281-25020 · 16281-25021 · 16281-36140 · 16281-F0130 · 16281-F2130 · 99555-10200 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-C0014 · 96136-41501 · 96138-41501 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16282-0V050 · 16282-F0051 · 16282-F0110 · 16282-F0220 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90466-C0003 · 90467-15022 |
| 16281N | HOSE, WATER BY-PASS, NO.4 | 16281-0V150 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-24020 · 16282-25030 · 16282-25040 · 16282-F0240 · 16282-F2070 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96138-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-24010 · 16283-25010 · 16283-25020 · 16283-F0140 · 16283-F2050 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96138-41501 · 96138-42501 |
| 16283C | Clip or clip (for water bypass hose) | 16581-F0060 |
| 16283D | HOSE, WATER BY-PASS, NO.6 | 16283-F0050 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-24010 · 16295-25010 · 16295-F0010 · 16295-F2050 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96138-42501 · 96138-42701 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-24020 · 16296-25010 · 16296-25020 · 16296-25050 · 16296-25060 · 16296-F0010 · 16296-F2110 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-24010 · 16297-25010 · 16297-25020 · 16297-F0010 · 16297-F2050 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90466-C0003 · 90467-15022 · 96138-41501 |
| 16305E | Water bypass outlet sub-assembly | 16305-24010 · 16305-25030 · 16305-F2020 |
| 16321 | water inlet | 16321-0V020 |
| 16323 | HOUSING, WATER INLET | 16032-0V020 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H030 · 16325-25010 · 16325-28010 · 16325-F2040 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-0Y020 · 16326-25010 · 16326-36010 · 16326-47020 · 16326-F0010 · 16326-F2020 |
| 16331 | Water outlet | 16331-24030 · 16331-25021 · 16331-25030 · 16331-25050 · 16331-F0030 · 16331-F2030 |
| 16331A | thermostat | 90916-C3001 |
| 16341 | GASKET, WATER OUTLET | 16341-24010 · 16341-25010 · 16341-F0030 · 16341-F2020 |
| 16345 | Outlet pipe gasket | 16345-24010 · 16345-25020 · 16345-25030 · 16345-F0030 · 16345-F2030 |
| 16351 | water bypass outlet | 16351-25040 · 16351-F0030 |
| 16360A | Fan assembly with motor | 16360-0V340 · 16360-31510 · 16360-F0050 |
| 16366A | Cooling fan motor vibration isolation pad | 16366-31510 |
| 16368 | Cooling fan motor bracket | 16368-25020 |
| 16380 | Fan bracket assembly | 16380-31020 |
| 16400 | Radiator assembly | 16400-0V300 · 16400-25141 · 16400-F0130 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 · 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-0T270 · 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-36030 · 16401-F0010 |
| 16407A | Radiator drain switch sub-assembly | 16407-36160 |
| 16470 | Radiator reservoir assembly | 16470-0V090 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0V040 |
| 16523A | Radiator bracket cushion | 16523-F0010 |
| 16535 | Radiator lower support | 16535-20010 · 16535-20030 · 16535-F0020 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-39002 |
| 16571C | Radiator hose No. 1 | 16571-0V280 · 16571-F0060 · 16571-F0100 · 16571-F0111 · 16571-F0130 |
| 16571D | No. 1 radiator hose clip | 90466-43002 · 90466-C0053 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-39002 |
| 16572D | Radiator hose No. 2 | 16572-0V280 · 16572-F0050 · 16572-F0060 · 16572-F0110 |
| 16572E | No. 2 radiator hose clip | 90466-43002 · 90466-C0053 |
| 16573B | Radiator hose No. 3 | 16573-0V040 · 16573-F0080 |
| 16575B | No. 2 water hose clamp bracket | 16575-F0110 · 16575-F0120 · 16575-F2270 |
| 16575C | No. 1 water hose clamp bracket | 16575-F0070 |
| 16575F | No. 3 water hose clamp bracket | 16575-F2280 |
| 16577B | Hose clamps or clips (for radiator pipes) | 90466-43002 · 90466-C0053 |
| 16577C | radiator pipe | 16577-0V010 · 16577-F0020 |
| 16581 | Hose clamp (for water hose) | 16581-0V050 |
| 16581B | Hose clamp (for radiator hose) | 16581-F0030 · 16581-F0040 · 16581-F0180 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-F0040 |
| 16582 | Radiator bracket No. 1 | 16582-F0060 |
| 16611 | Radiator reservoir bracket | 16611-0V030 |
| 16671 | water valve | 16671-24020 · 16671-25030 |
| 16897A | Filling port neck | 16897-25030 · 16897-25031 · 16897-F0030 · 16897-F0031 · 16897-F0170 |
| 87245W | water hose | 87245-06D70 |
| 87248R | water pipe | 87248-33030 |
| 87265D | Heater water hose connector | 87265-33020 |
