Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 3 images and 8 PNC and OE references.

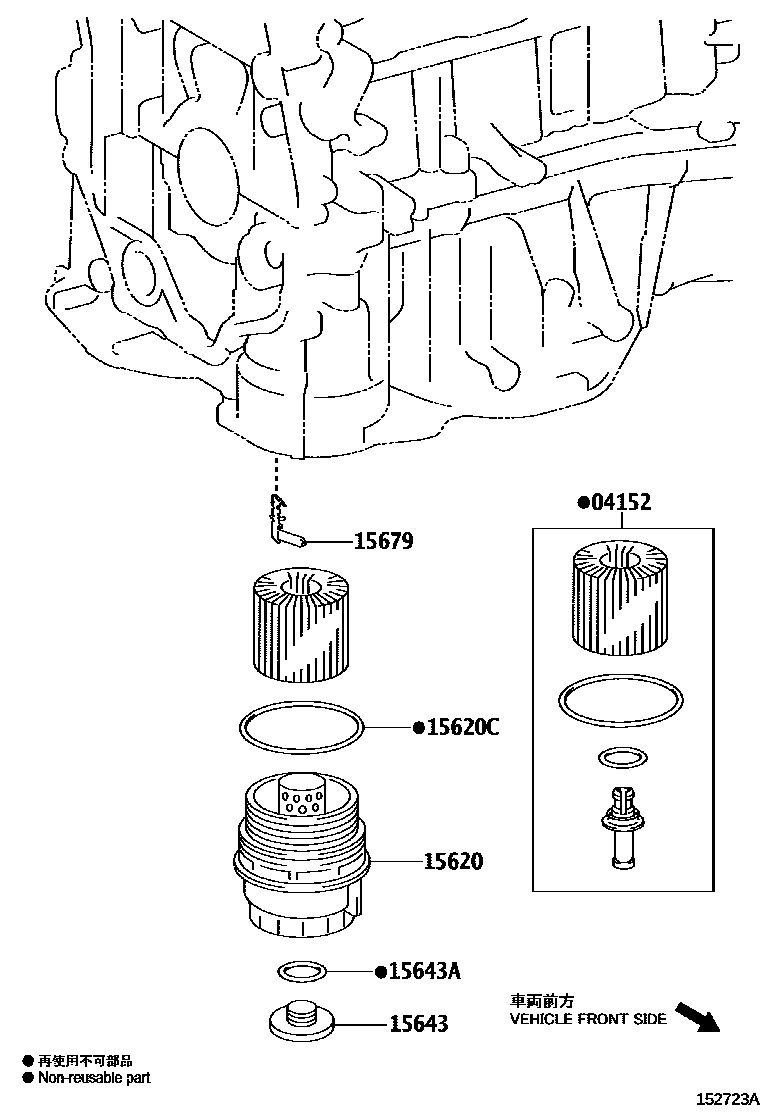

Toyota CAMRY Oil Filter EPC diagram — 152723A
Oil Filter — 152723A (201712 – 999999)

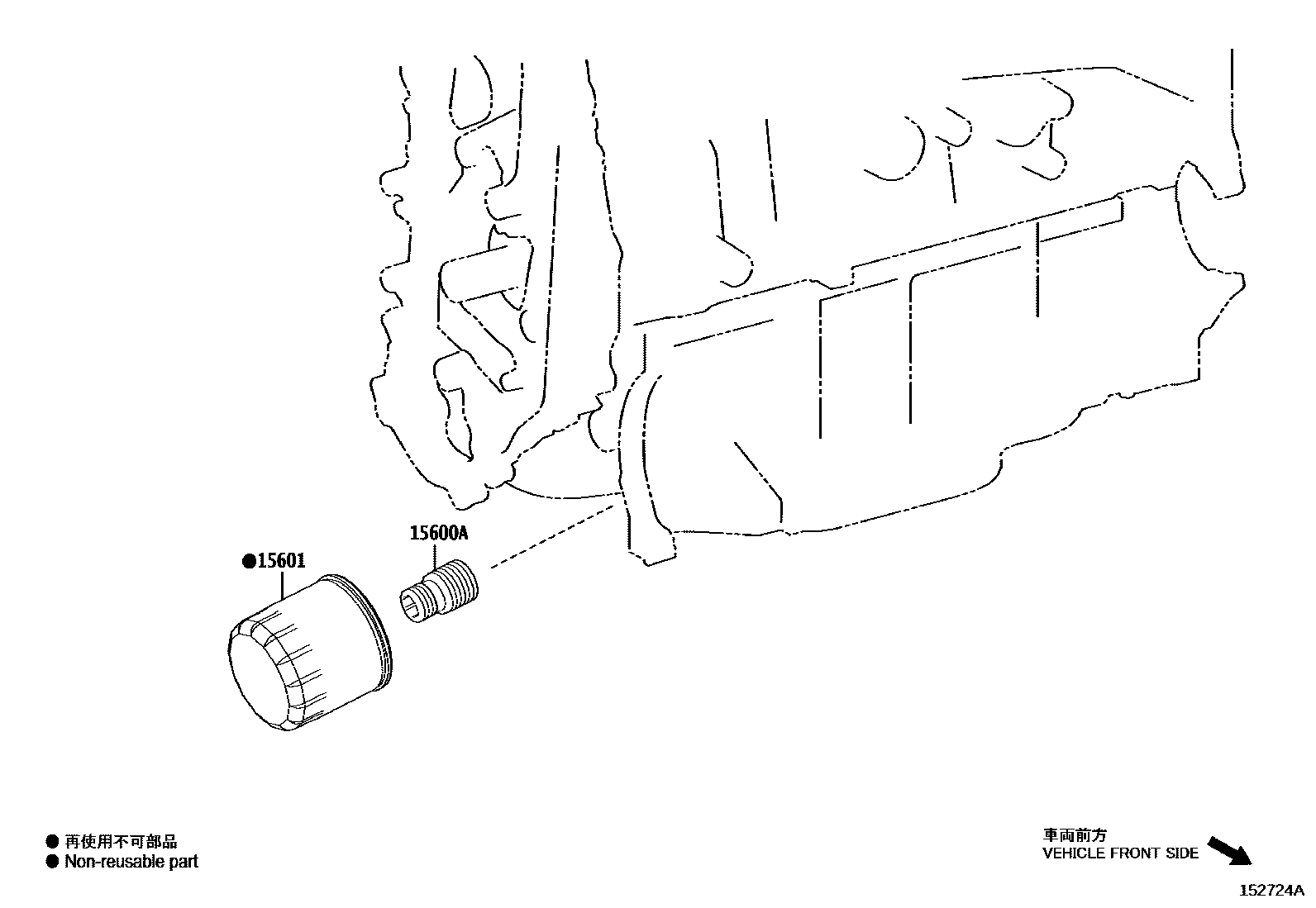

Toyota CAMRY Oil Filter EPC diagram — 152724A
Oil Filter — 152724A (201712 – 999999)

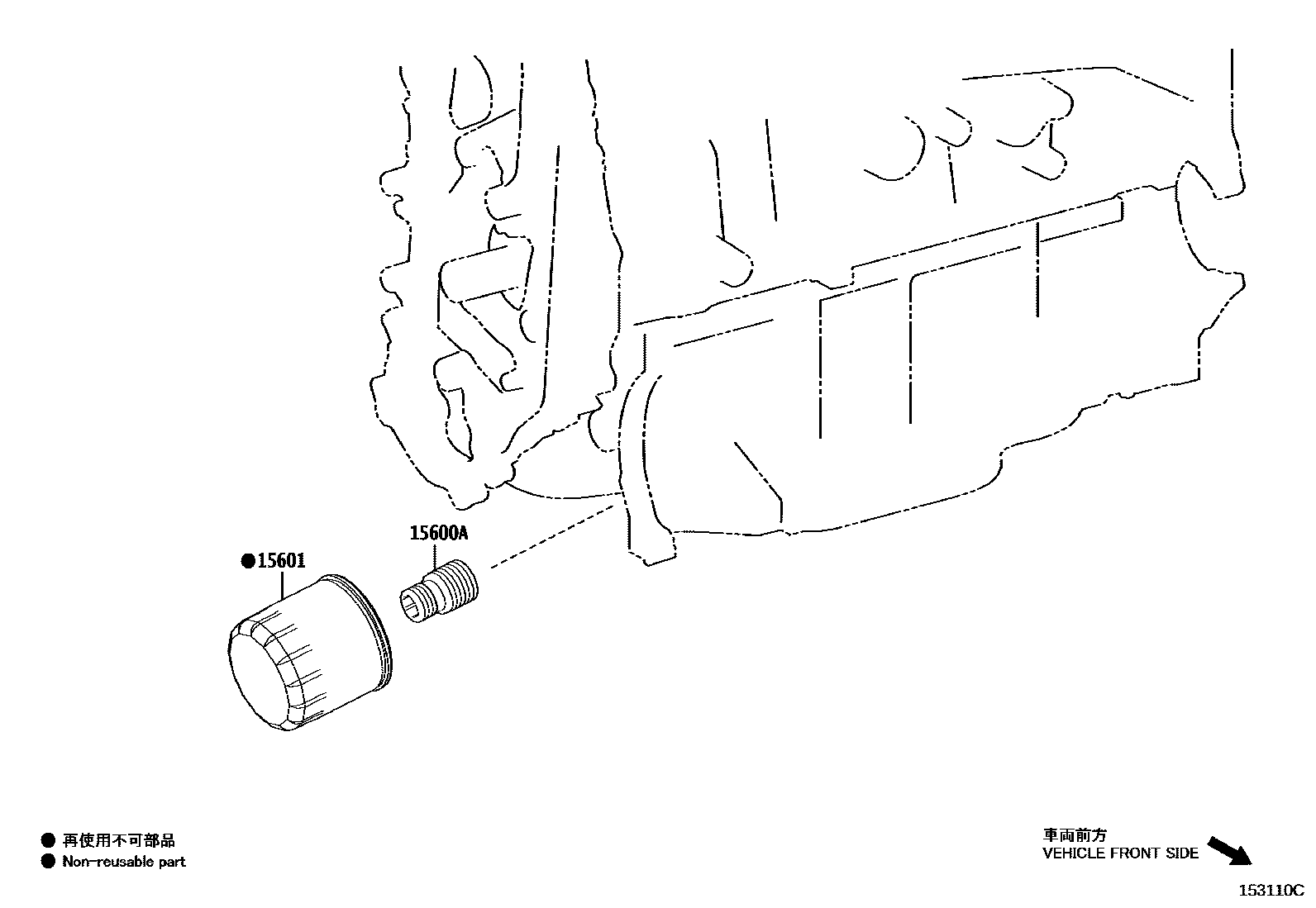

Toyota CAMRY Oil Filter EPC diagram — 153110C
Oil Filter — 153110C (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-0V010 · 04152-31090
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10009 · 90915-CA004
15620Oil filter cover assembly15620-36020
15620CGasket (for oil filter cover)90301-79006
15643Oil filter drain plug15643-31050
15643AO-ring (for oil filter drain plug)96723-35028
15679Oil filter bracket clip15679-37011
