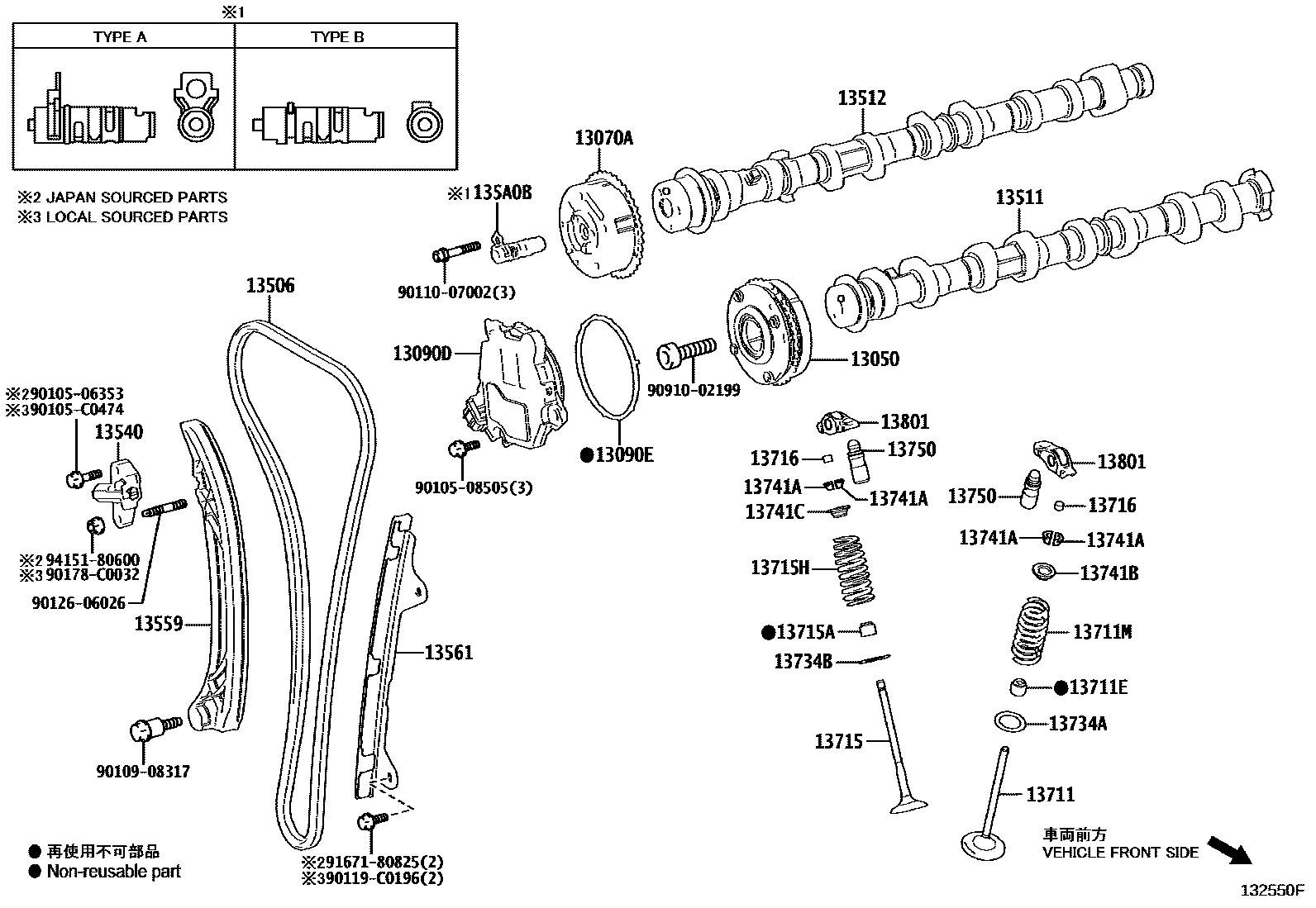

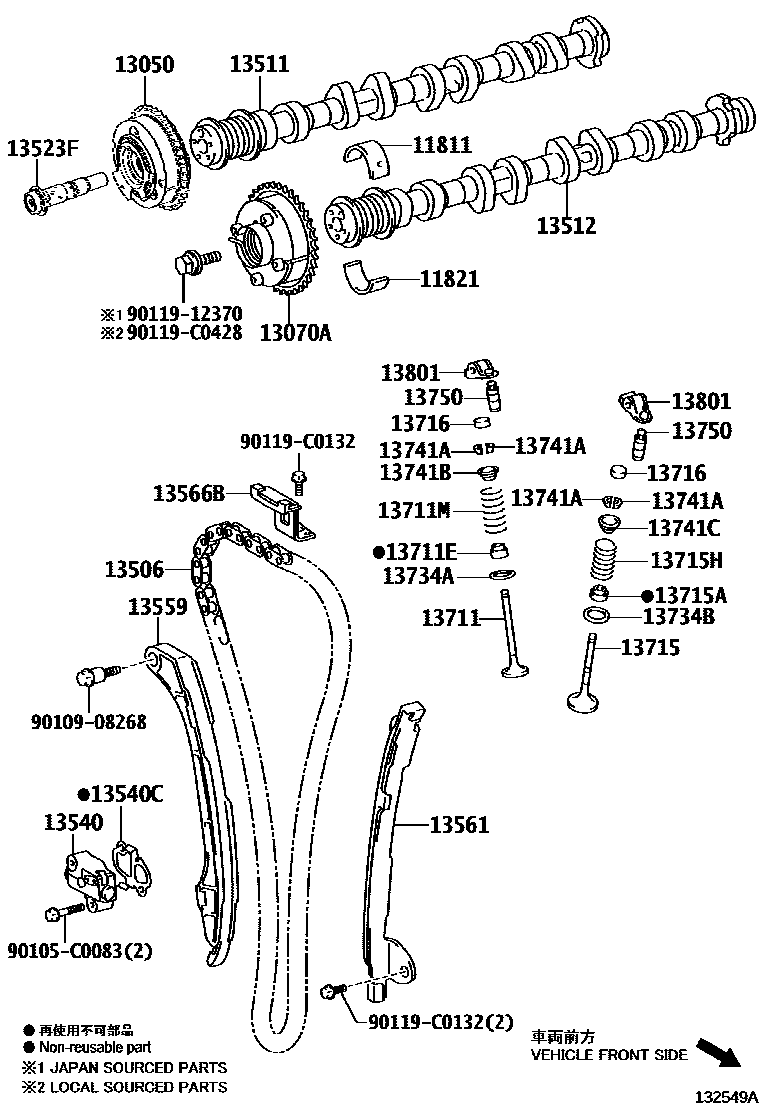

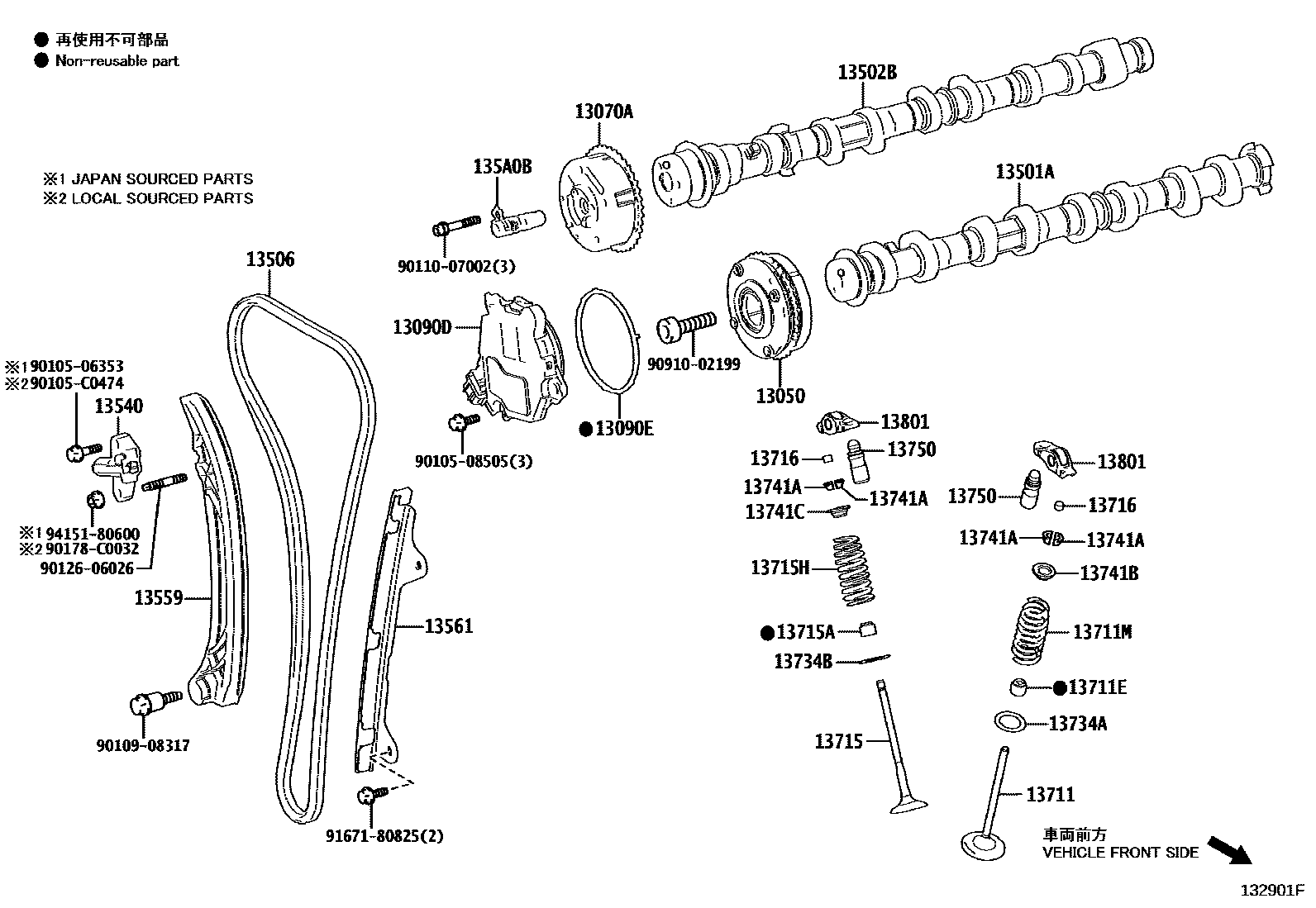

Toyota CAMRY Camshaft & Valve — Figure 1302
Toyota CAMRY EPC diagram 1302, Camshaft & Valve, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-0V010 |
| 11821 | No. 2 camshaft bearing | 11821-0V010 |
| 13050 | Camshaft timing gear assembly | 13050-0V090 · 13050-25010 · 13050-F2030 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0V050 · 13070-25020 · 13070-25030 · 13070-F2020 · 13070-F2030 |
| 13090D | Cam timing control motor assembly with EDU | 13090-25010 · 13090-F2010 |
| 13090E | O-ring (for cam timing control motor) | 90301-92005 · 90301-C0076 |
| 13501A | Intake camshaft sub-assembly | 13501-24020 · 13501-F2030 |
| 13502B | Exhaust camshaft sub-assembly | 13502-24010 · 13502-F2030 |
| 13506 | Chain sub-assembly | 13506-0V030 · 13506-24020 · 13506-25020 · 13506-F0020 · 13506-F2020 |
| 13511 | camshaft | 13501-0V060 · 13501-25010 · 13501-25020 · 13501-F0020 · 13501-F0070 |
| 13512 | Camshaft No. 2 | 13502-0V060 · 13502-25010 · 13502-25020 · 13502-F0050 · 13502-F0070 |
| 13523F | Bolt (for camshaft timing gear) | 135A0-0V020 |
| 13540 | No. 1 chain tensioner assembly | 13540-0V050 · 13540-25020 · 13540-F2010 |
| 13540C | Pad (for chain tensioner) | 13552-0V020 |
| 13559 | chain tensioner guide plate | 13559-0V050 · 13559-24010 · 13559-25010 · 13559-F0020 · 13559-F2020 |
| 13561 | No. 1 chain shock absorber | 13561-0V040 · 13561-15010 · 13561-24020 · 13561-25020 · 13561-25021 · 13561-F0020 · 13561-F2020 · 13561-F3010 |
| 13566B | Timing chain guide plate | 13566-0V021 |
| 135A0B | Camshaft timing valve assembly | 135A0-25010 · 135A0-25020 · 135A0-F2020 · 135A0-F2040 |
| 13711 | intake valve | 13711-0V030 · 13711-24040 · 13711-25020 · 13711-F0040 · 13711-F2030 |
| 13711E | Intake valve stem oil seal | 90913-02101 · 90913-T2001 |
| 13711M | Compression spring (for intake valve) | 90501-31031 · 90501-32074 · 90501-33034 · 90501-C0044 · 90501-C0061 · 90501-C0068 |
| 13715 | exhaust valve | 13715-0V040 · 13715-24040 · 13715-25020 · 13715-F0030 · 13715-F2030 |
| 13715A | Exhaust valve stem oil seal | 90913-02112 · 90913-T2003 |
| 13715H | Compression spring (for exhaust valve) | 90501-32073 · 90501-32075 · 90501-33035 · 90501-C0044 · 90501-C0064 · 90501-C0069 |
| 13716 | valve stem cover | 13716-0Y010 · 13716-25010 · 13716-F2010 |
| 13734A | Intake valve spring seat | 13734-0P020 · 13734-62020 |
| 13734B | Exhaust valve spring seat | 13734-0P020 · 13734-62020 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-C3001 · 90913-C3002 |
| 13741B | Intake valve spring seat ring | 13741-0V020 · 13741-36010 |
| 13741C | Exhaust valve spring seat ring | 13741-0V020 · 13741-36010 |
| 13750 | Valve lash adjuster assembly | 13750-0V030 · 13750-25010 · 13750-F2030 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0V020 · 13801-25010 · 13801-F2030 |
