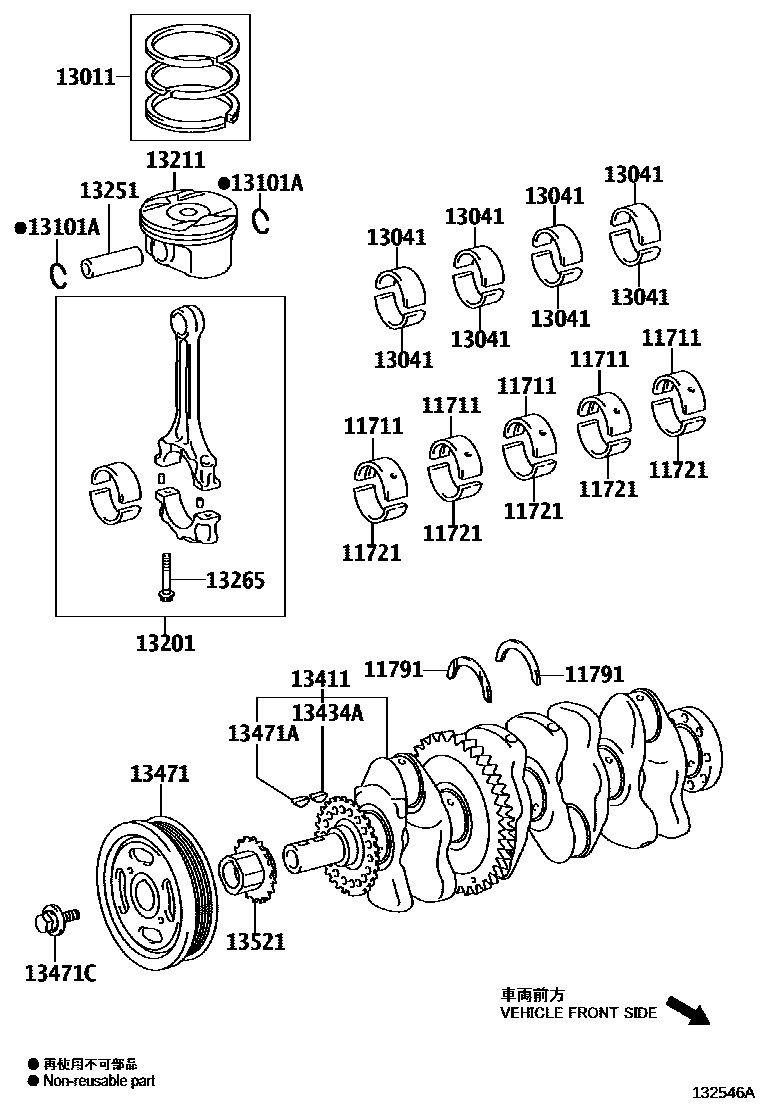

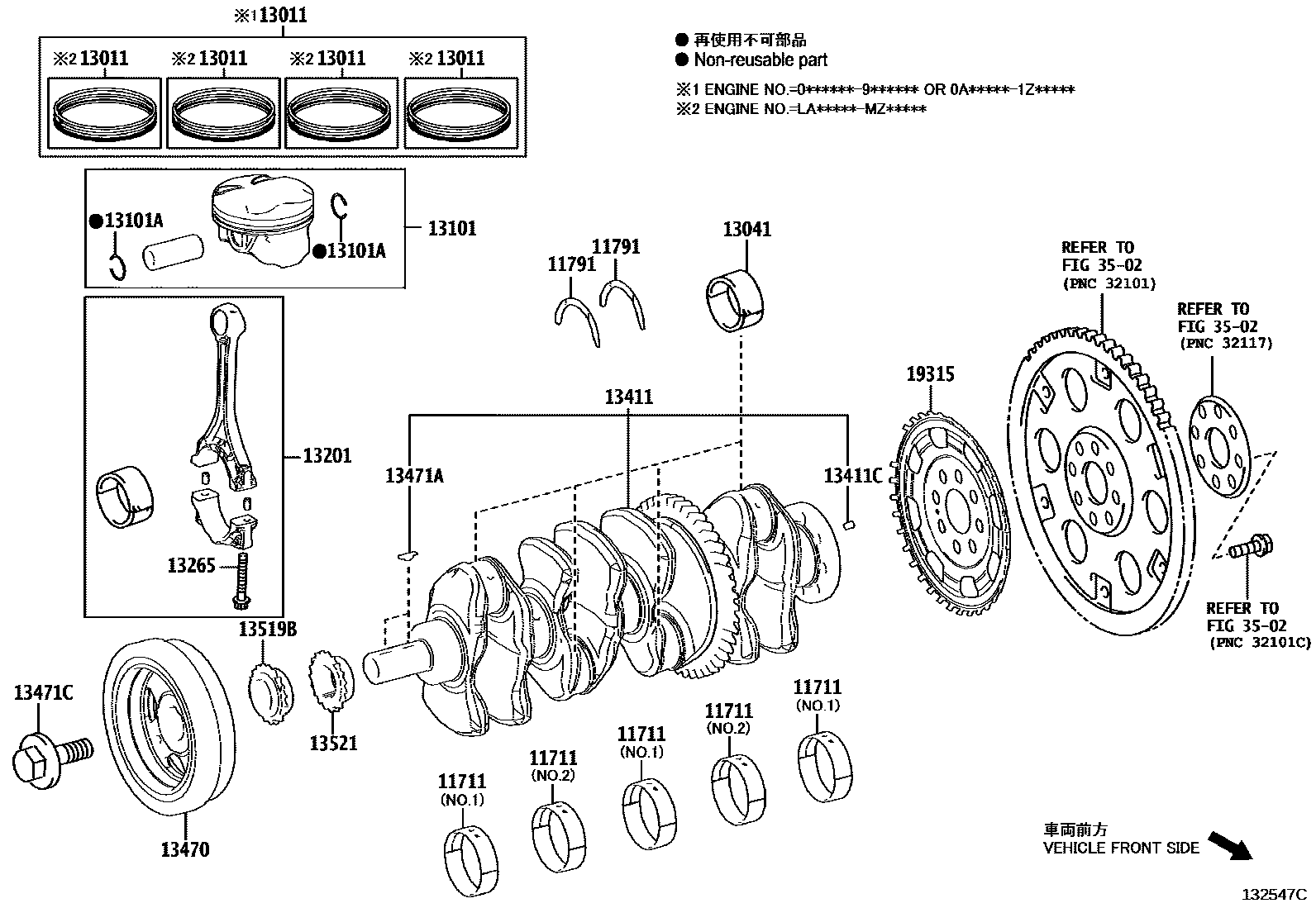

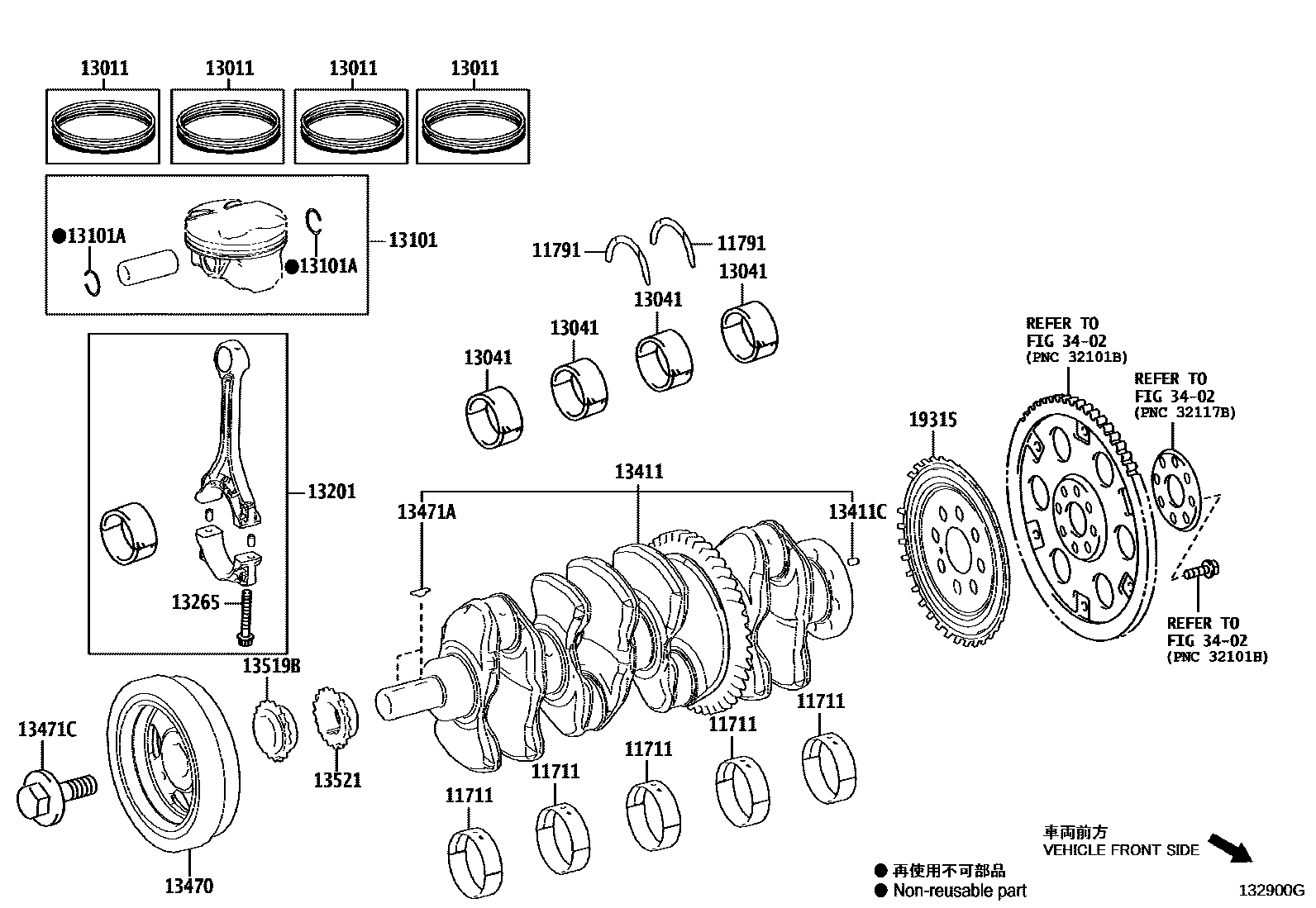

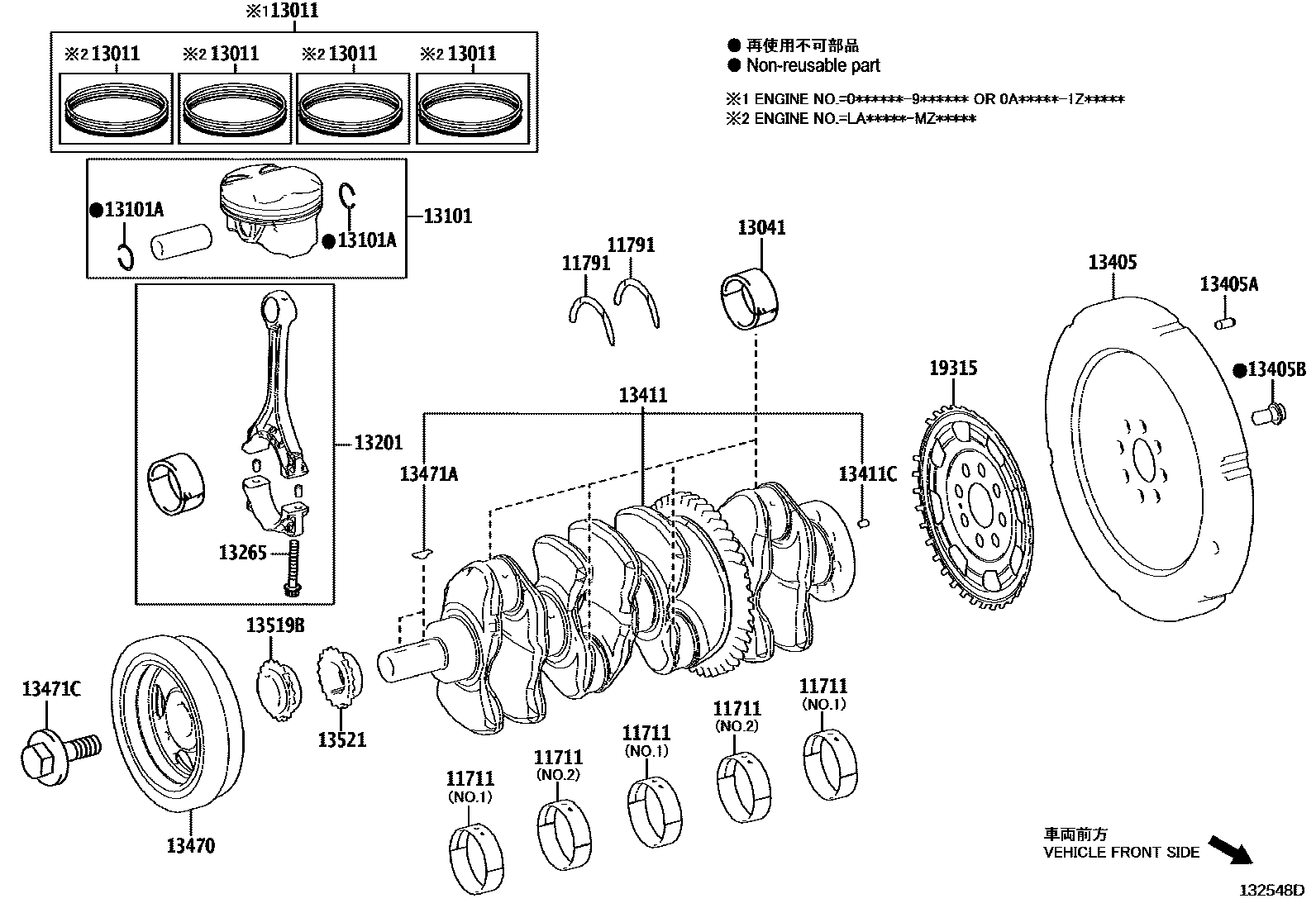

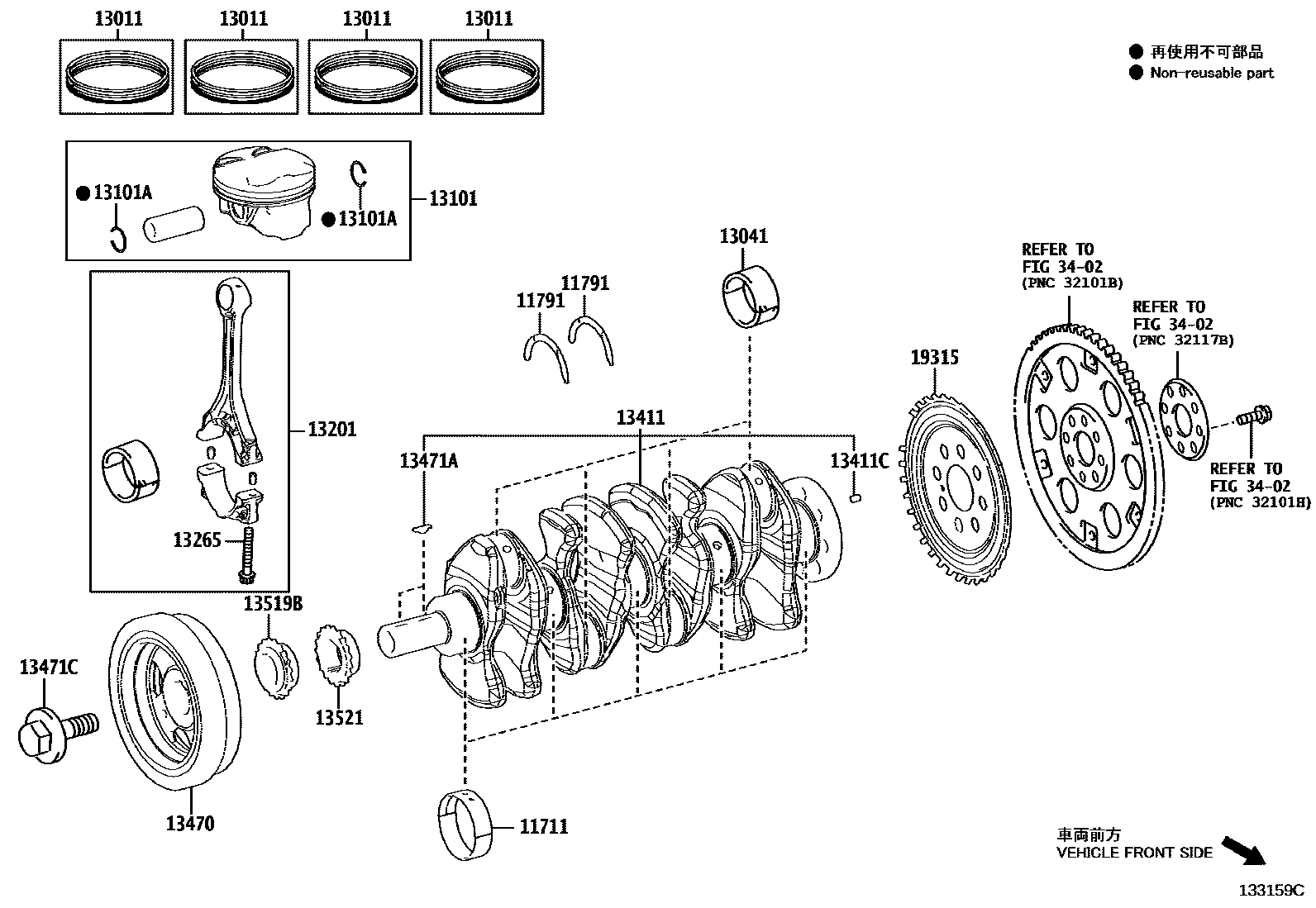

Toyota CAMRY Crankshaft & Piston — Figure 1301
Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 5 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0V030 · 11791-15030 · 11791-24030 · 11791-25030 · 11791-25040 · 11791-36020 · 11791-F0020 · 11791-F2030 |
| 13011 | Piston ring assembly | 13011-0V080 · 13011-25050 · 13011-25070 · 13011-25080 · 13011-F0060 · 13011-F2030 · 13011-F2040 |
| 13101 | Piston sub-assembly with pin | 13101-25030 · 13101-25040 · 13101-F0050 · 13101-F0070 · 13101-F2050 |
| 13101A | Bore snap ring (for piston pin) | 90520-19019 · 90520-21024 · 90520-22025 |
| 13265 | Connecting rod bolts | 13265-0V010 · 13265-25020 · 13265-31020 · 13265-F2010 |
| 13405 | Flywheel sub-assembly | 13451-25030 · 13451-F0020 |
| 13405A | Direct sales (for flywheel) | 90250-08120 · 90250-C0011 |
| 13405B | Flywheel fixing bolt | 90105-12404 · 90105-C0352 |
| 13411 | crankshaft | 13401-0V070 · 13401-24020 · 13401-25010 · 13401-F0030 · 13401-F2060 |
| 13411C | Direct sales (for crankshaft) | 90250-06035 · 90250-C0025 |
| 13434A | Key (for oil pump active spline) | 90280-C0001 · 95161-30516 |
| 13470 | Crankshaft wheel assembly | 13470-24010 · 13470-25010 · 13470-25020 · 13470-F0040 · 13470-F0060 · 13470-F2010 |
| 13471 | crankshaft pulley | 13470-0V050 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-04001 · 90280-C0001 · 90280-C0002 · 95161-30516 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-16020 · 90119-C0429 |
| 13519B | Oil pump sprocket | 13519-24010 · 13519-25010 · 13519-F0020 · 13519-F2030 · 13519-F2040 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0V020 · 13521-24010 · 13521-25010 · 13521-F0020 · 13521-F2030 · 13521-F2040 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-24010 · 19315-25010 · 19315-25011 · 19315-F0020 · 19315-F2020 |
