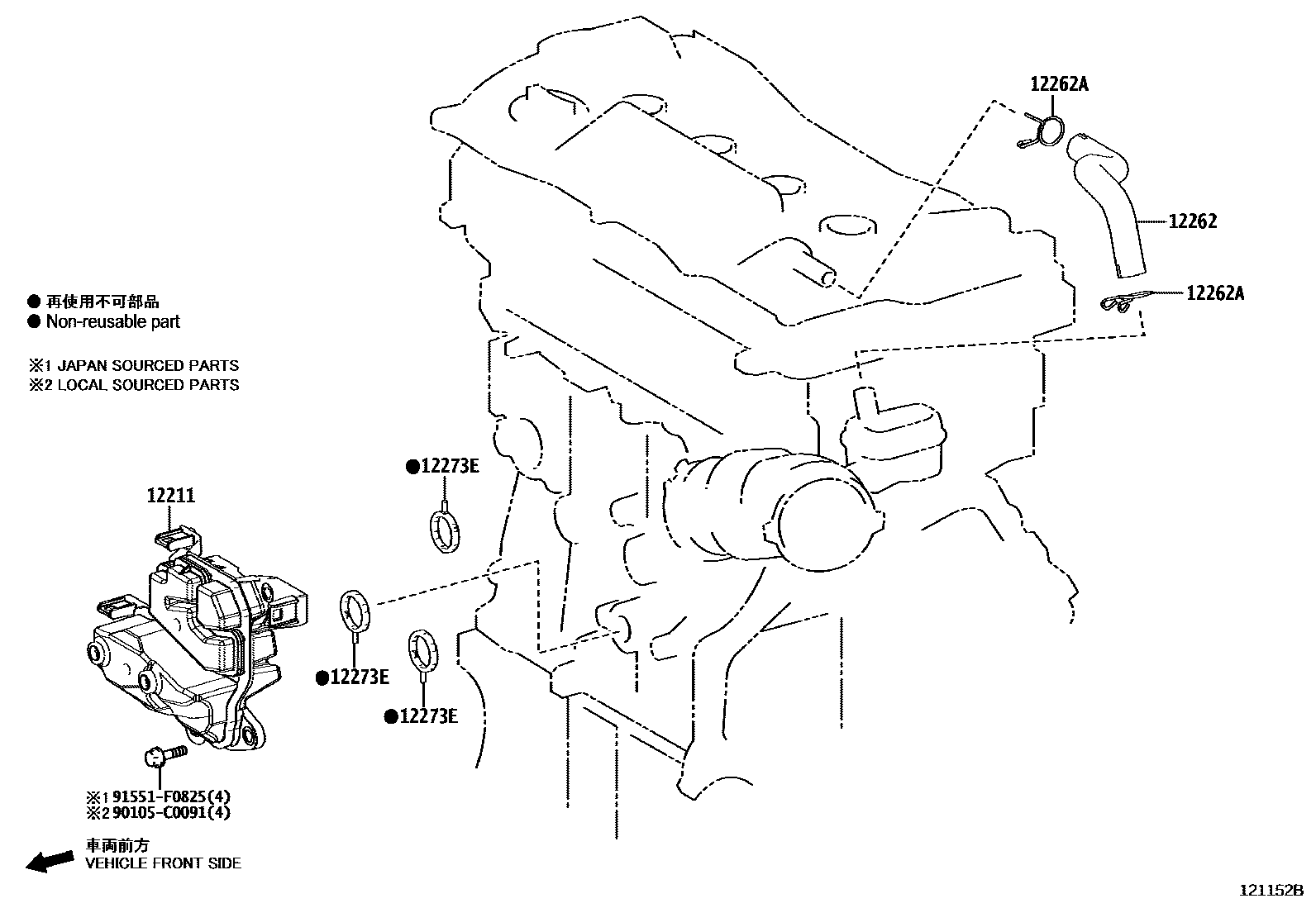

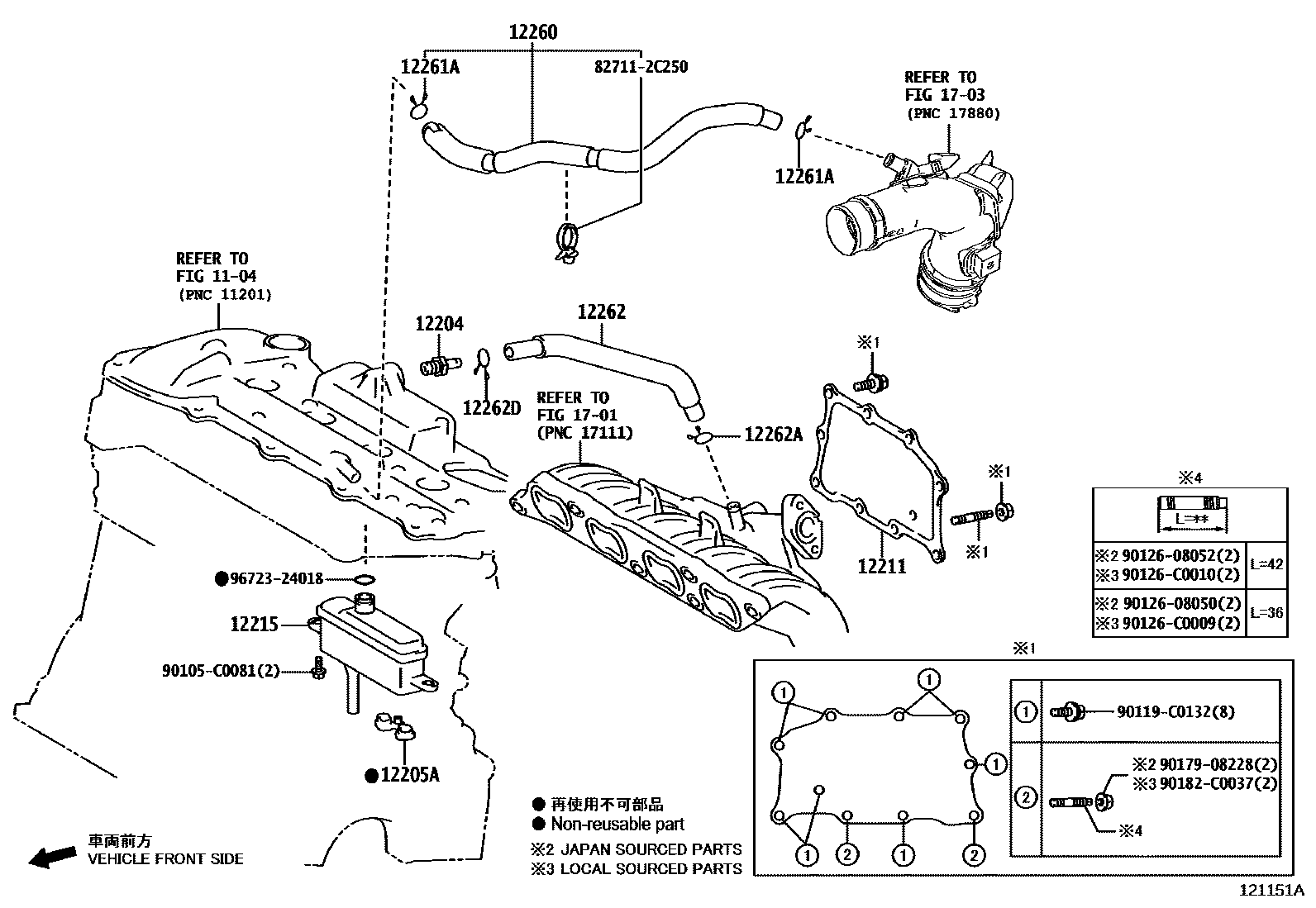

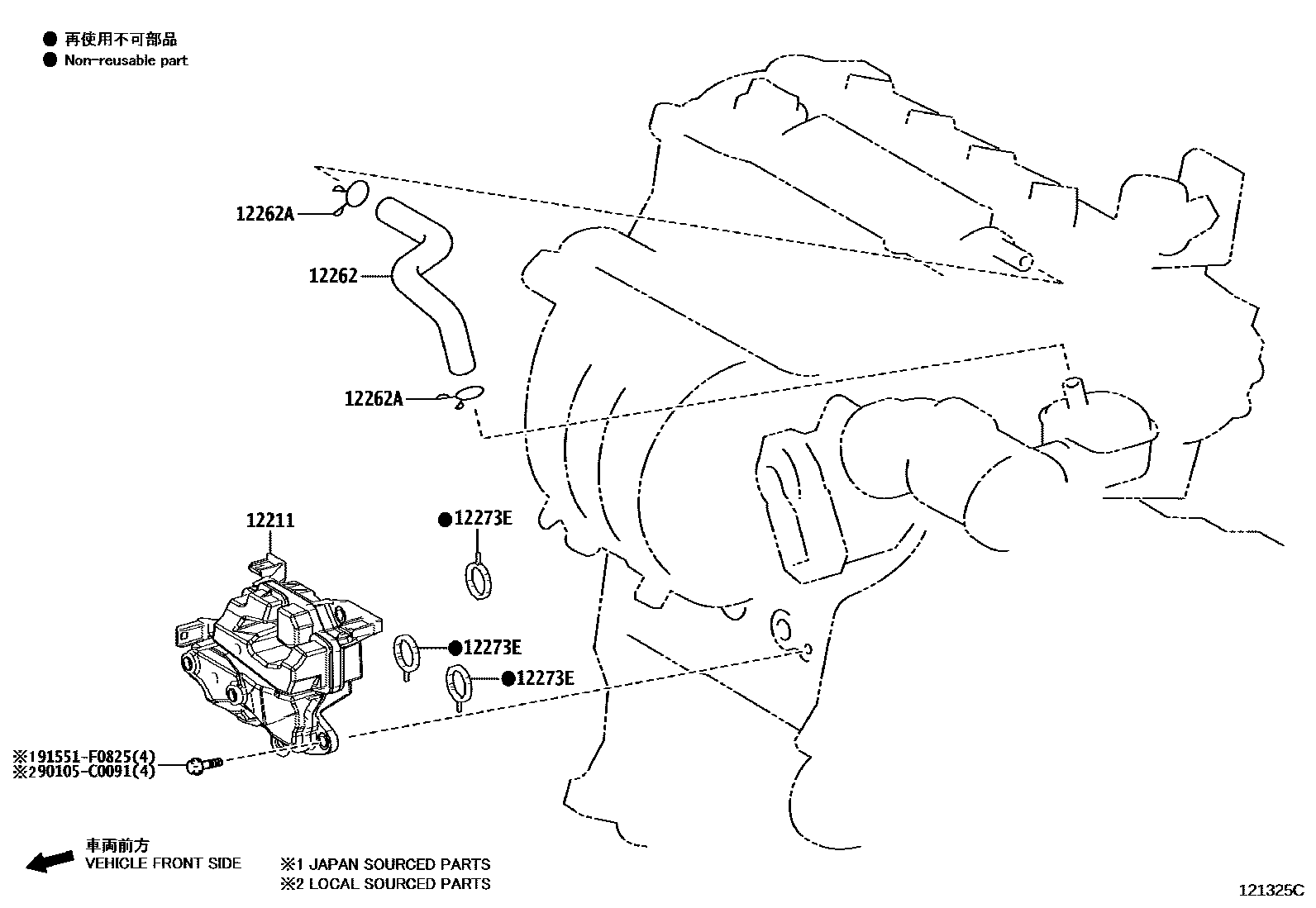

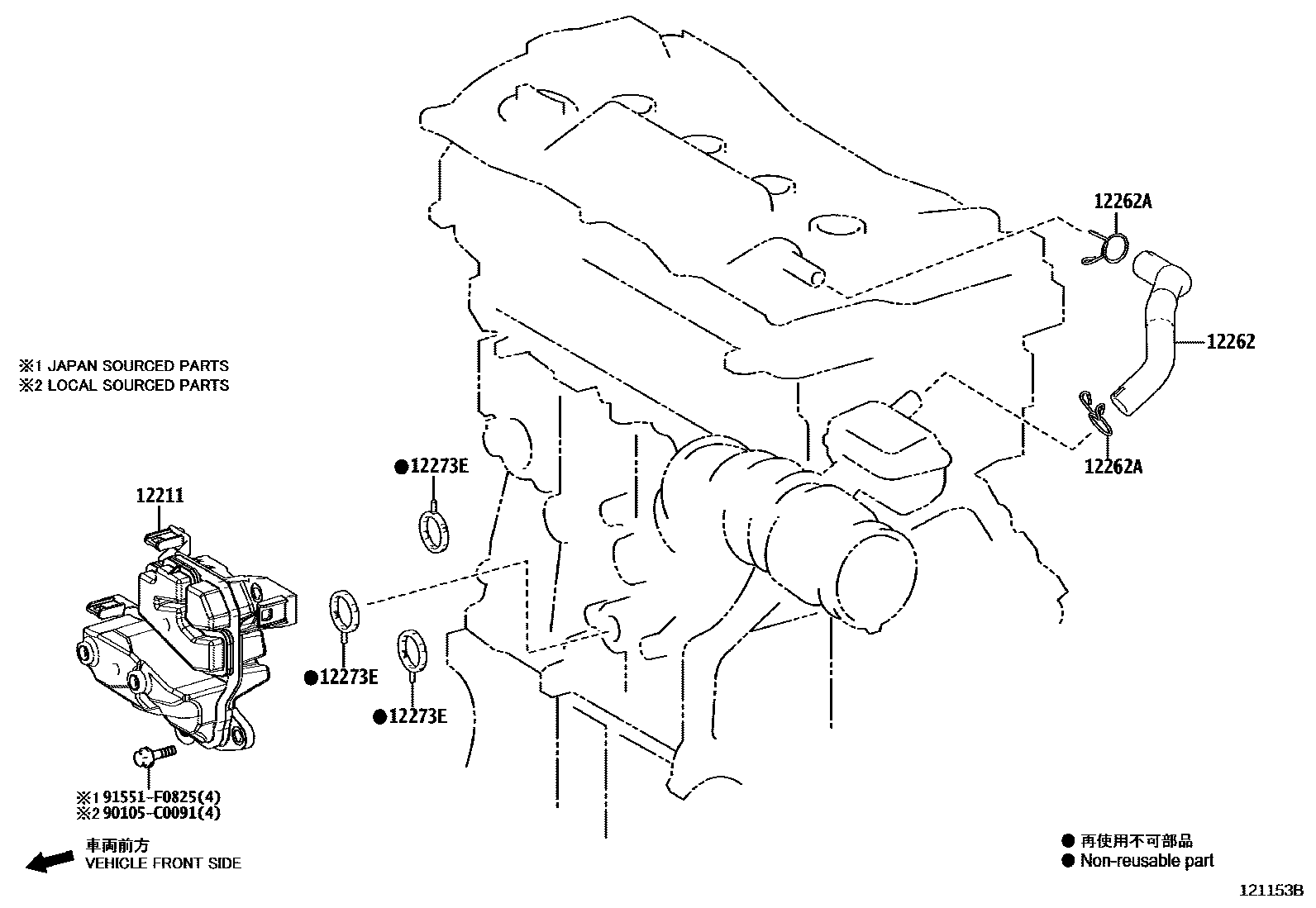

Toyota CAMRY Ventilation Hose — Figure 1201
Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-0V030 |
| 12205A | O-ring (for ventilation box) | 12273-0V030 |
| 12211 | Ventilation box No. 1 | 12211-0V030 · 12211-24010 · 12211-25010 · 12211-25011 · 12211-F0020 · 12211-F2030 |
| 12215 | Ventilation box isolation device | 12215-0V030 |
| 12260 | Ventilation hose assembly | 12260-0V220 |
| 12261A | Clip or clip (for vent hose) | 90467-21004 |
| 12262 | Ventilation hose No. 2 | 12262-24060 · 12262-25030 · 12262-25040 · 12262-36100 |
| 12262A | Clamp (for vent hose No. 2) | 90467-17126 · 90467-21004 |
| 12262D | Clamp (for vent hose No. 2) | 90467-15120 |
| 12273E | Pads (for ventilation boxes) | 12273-24010 · 12273-F2020 |
