Toyota CAMRY Engine Mounting — Figure 1107

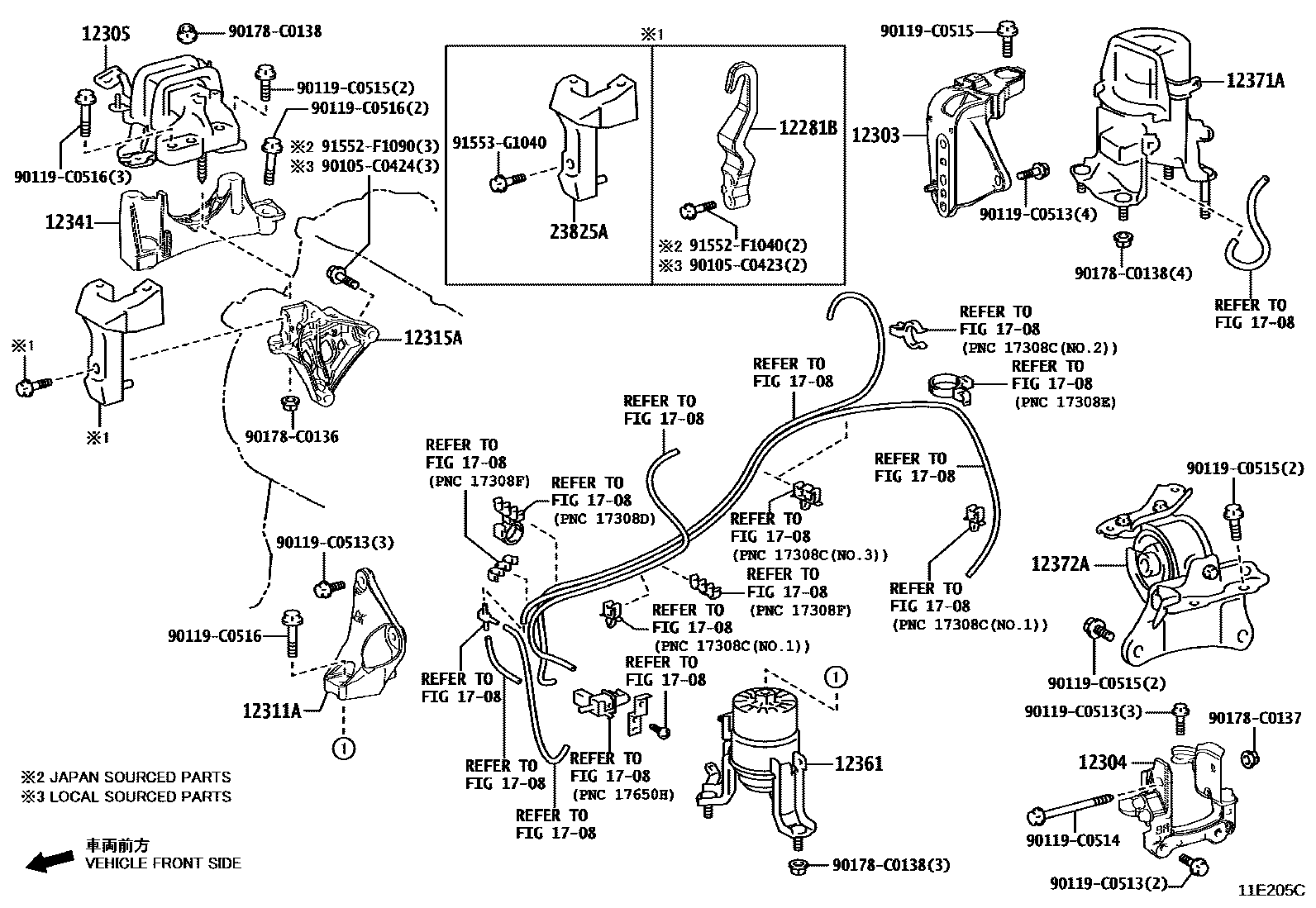

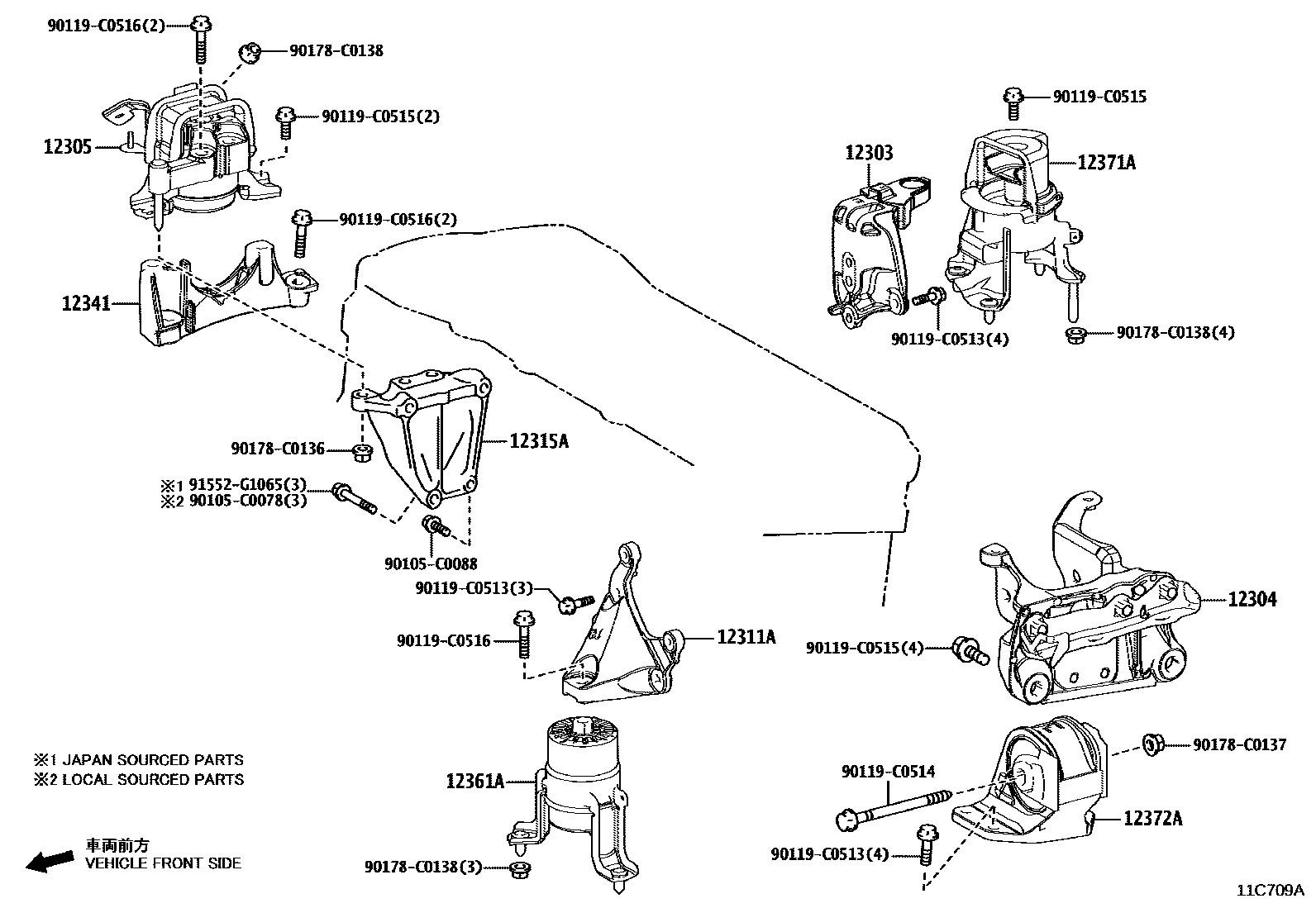

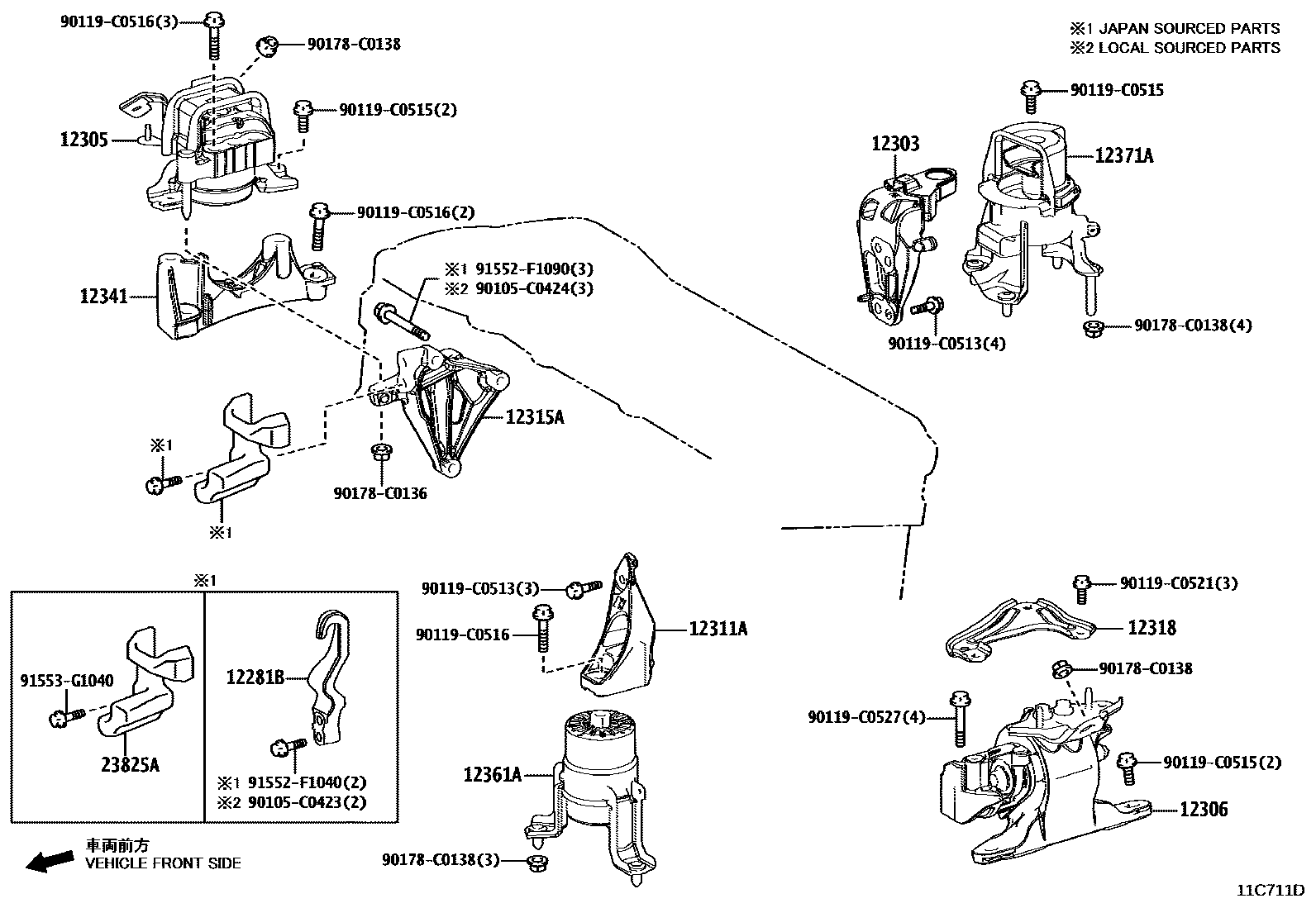

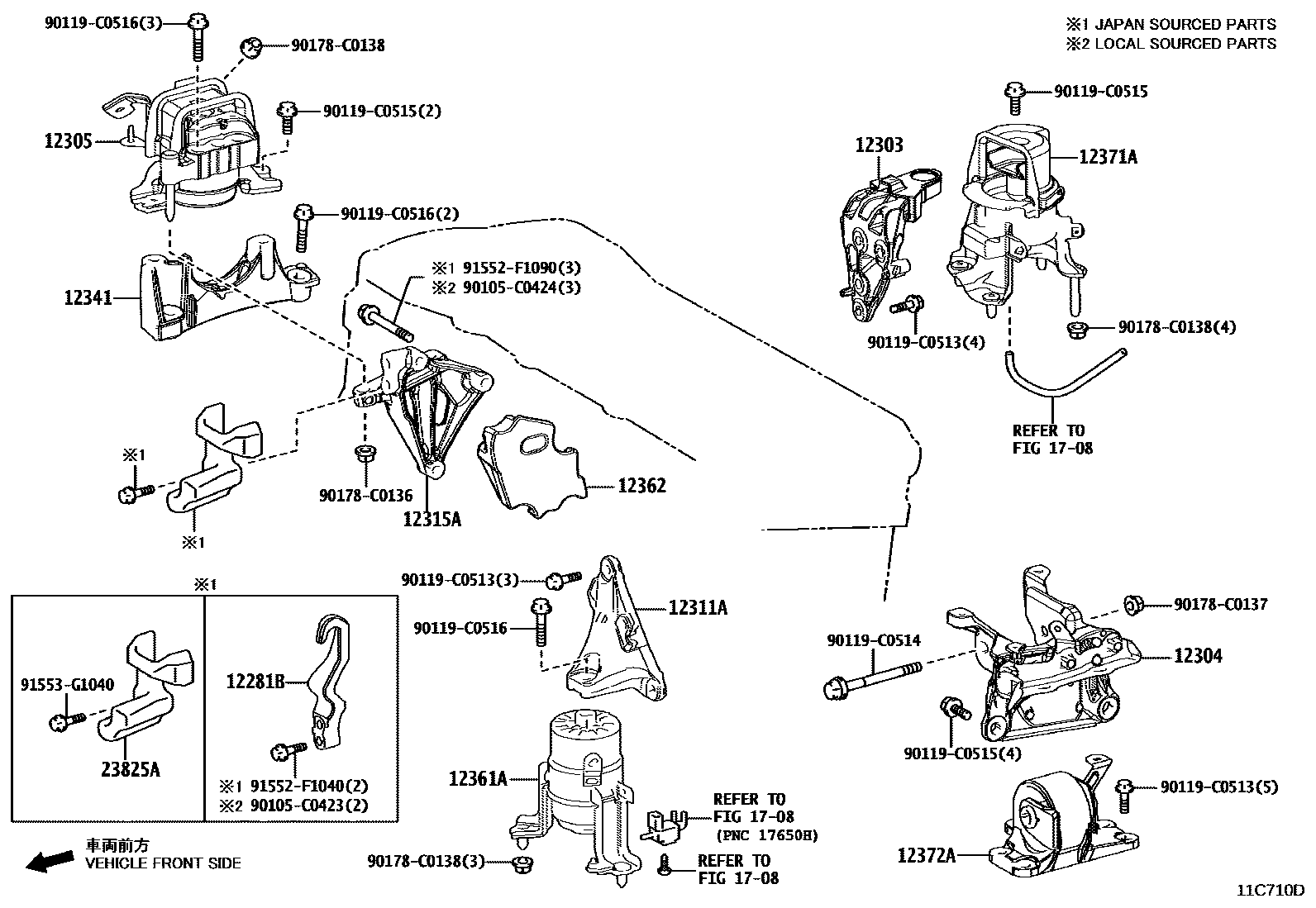

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | Engine No. 1 hanger | 12281-25030 · 12281-F2010 |
| 12303 | Engine rear mounting bracket sub-assembly | 12303-0V020 · 12303-F0050 · 12303-F0070 · 12303-F0170 |
| 12304 | Engine left mounting bracket sub-assembly | 12304-0V040 · 12304-F0030 · 12304-F0060 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0V060 · 12305-F0050 · 12305-F0070 · 12305-F0160 |
| 12306 | Engine left mounting vibration isolation pad sub-assembly | 12306-F0030 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0V190 · 12311-F0050 · 12311-F0070 · 12311-F0130 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0V031 · 12315-24020 · 12315-25030 · 12315-25031 · 12315-36011 · 12315-F0020 · 12315-F2050 |
| 12318 | Engine left mounting bracket | 12318-F0050 |
| 12341 | engine mounting spacer | 12341-F0040 |
| 12361 | Engine front mounting vibration isolation pad | 12361-F2010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-F0050 · 12361-F0070 · 12361-F0071 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-25010 · 12362-25011 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0V090 · 12371-F0050 · 12371-F0070 · 12371-F2010 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0V110 · 12372-F0070 · 12372-F0071 · 12372-F0180 |
| 23825A | Oil pipeline anti-collision parts | 23825-24010 · 23825-25010 · 23825-F0020 |
