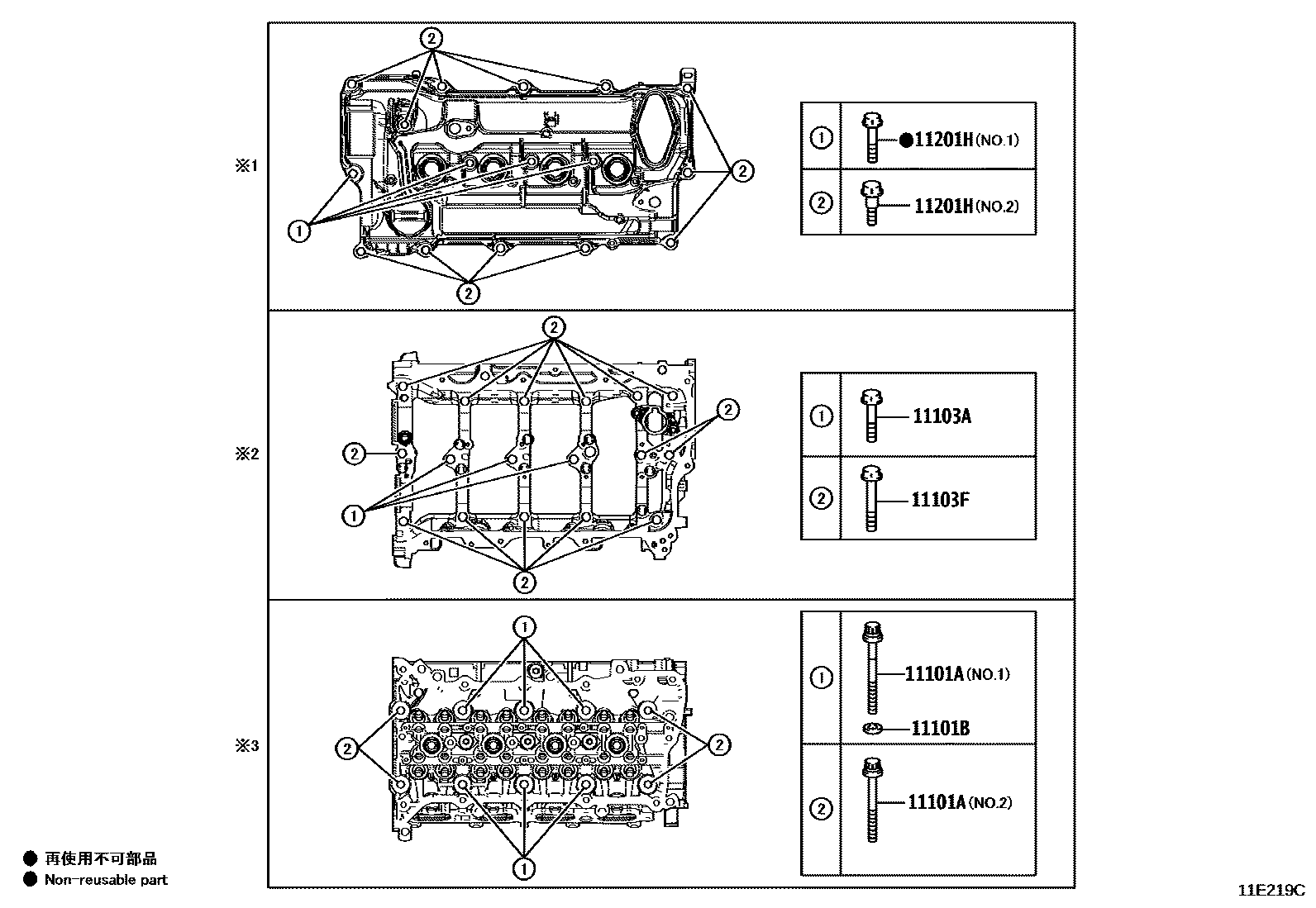

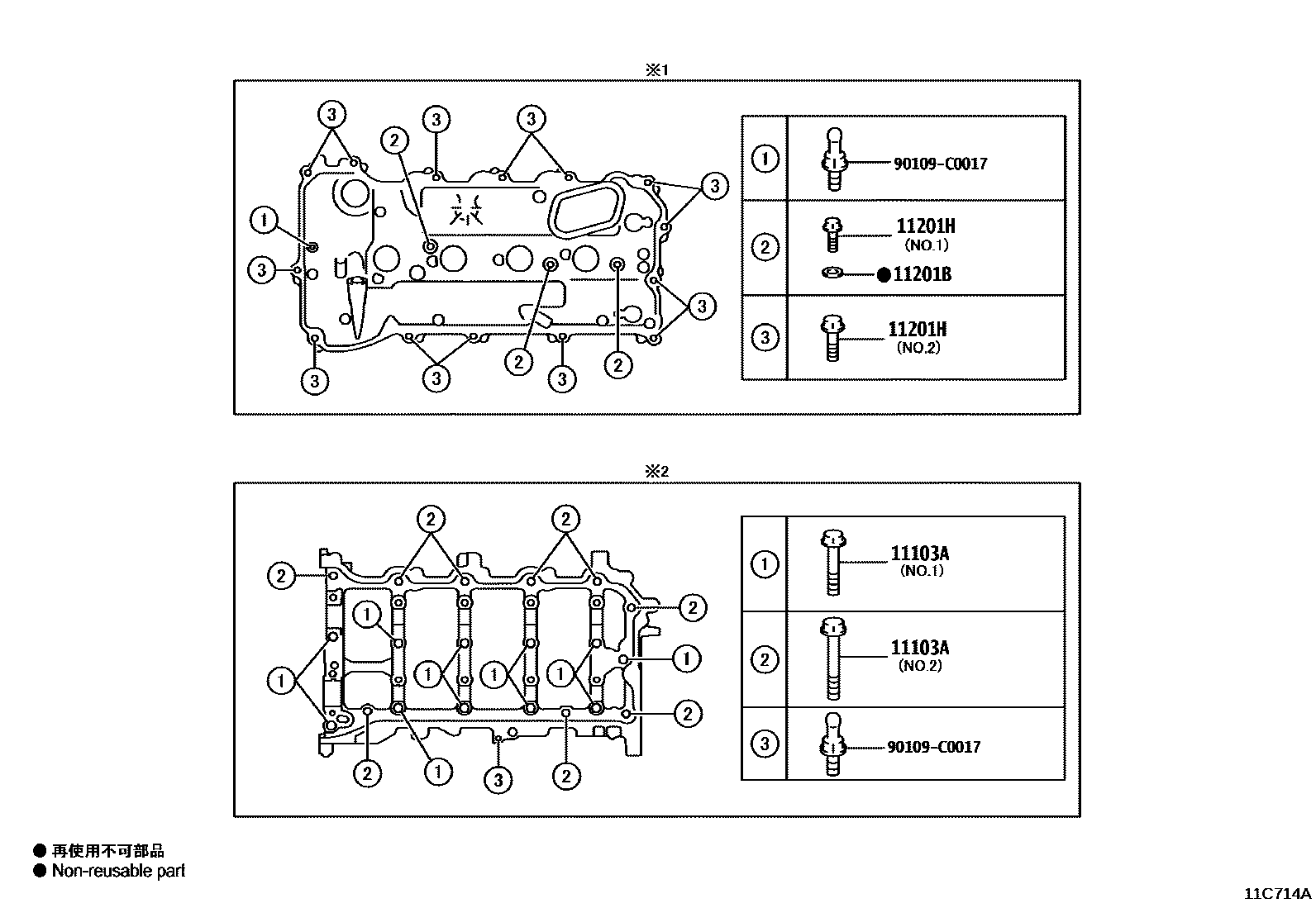

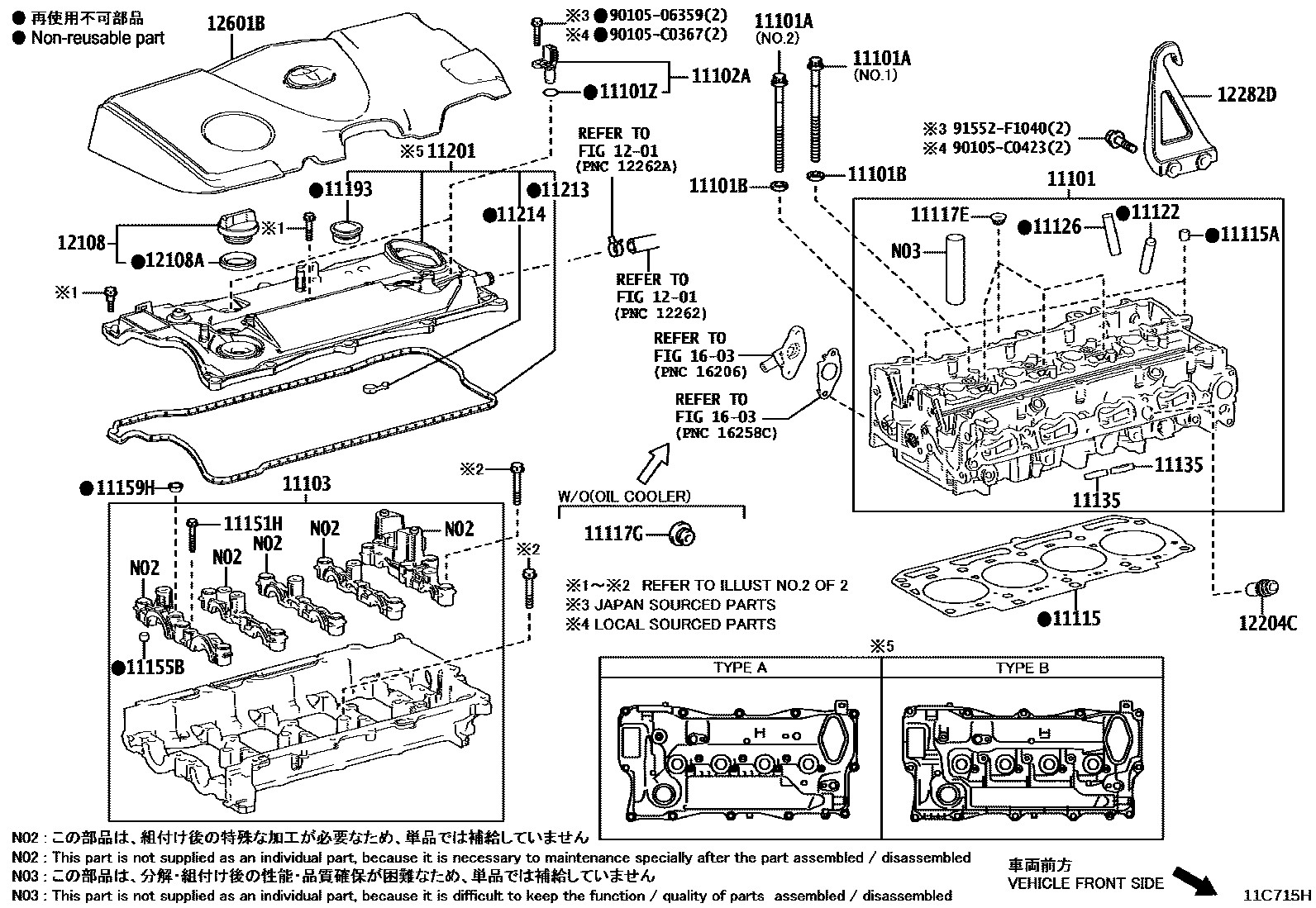

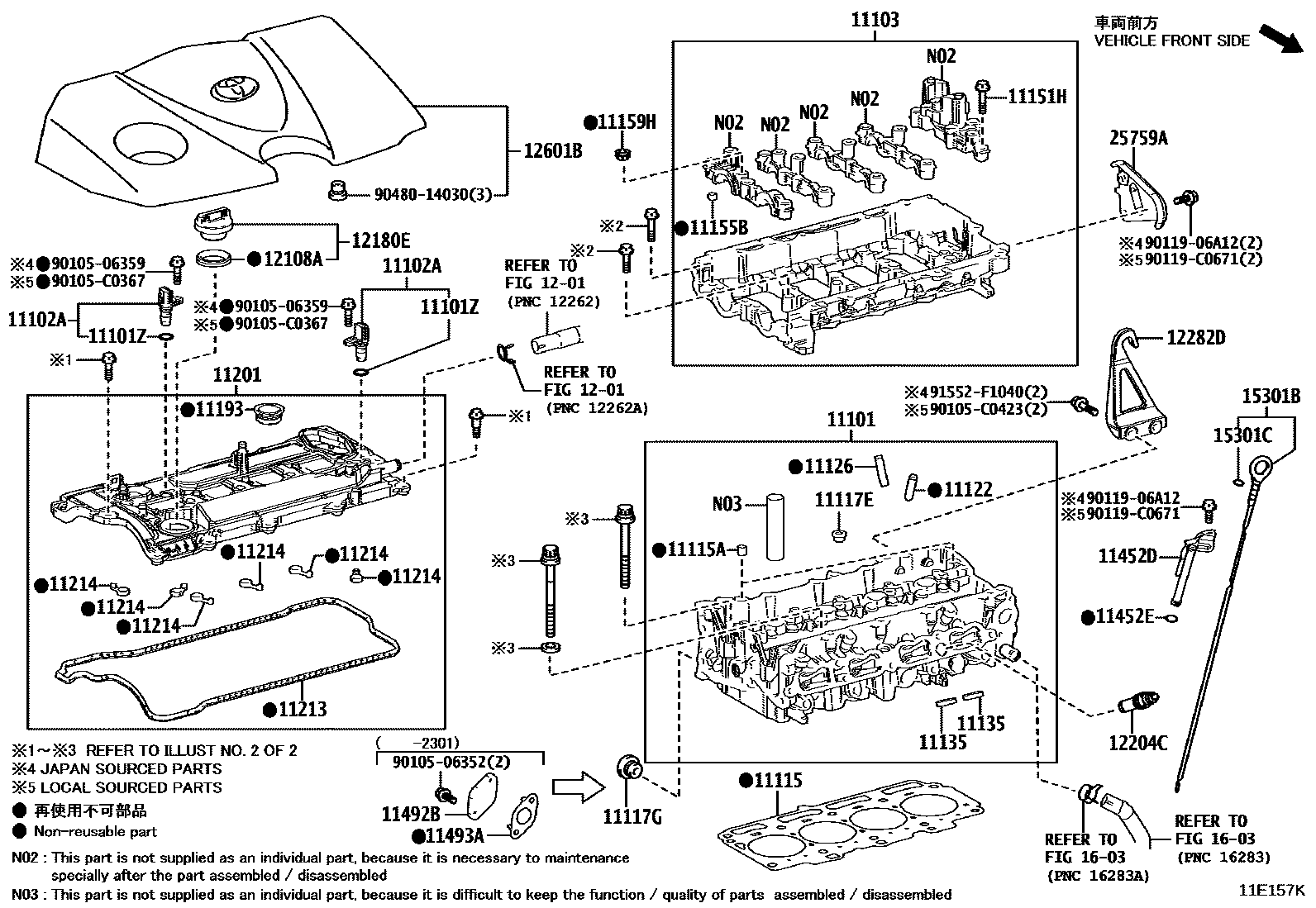

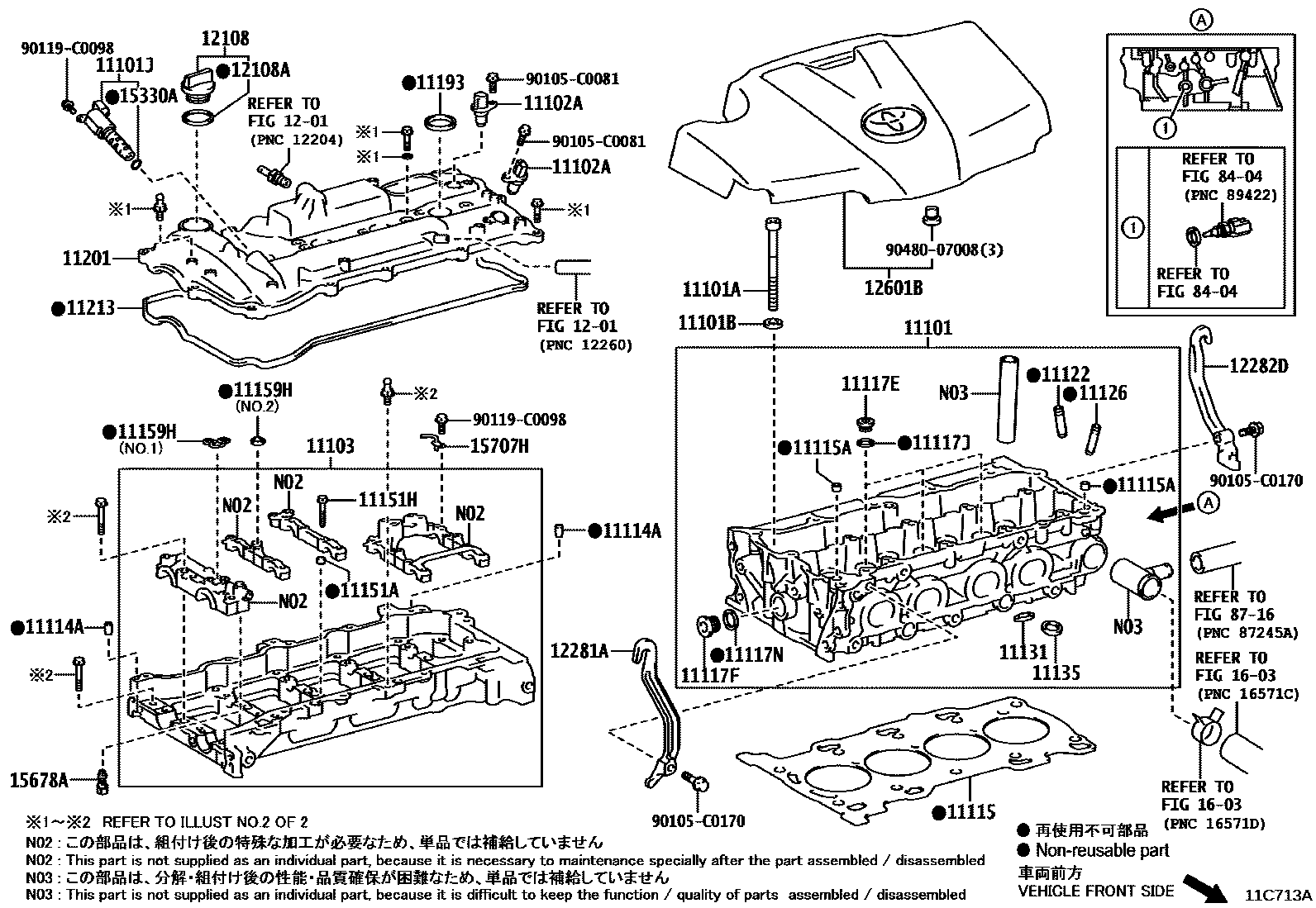

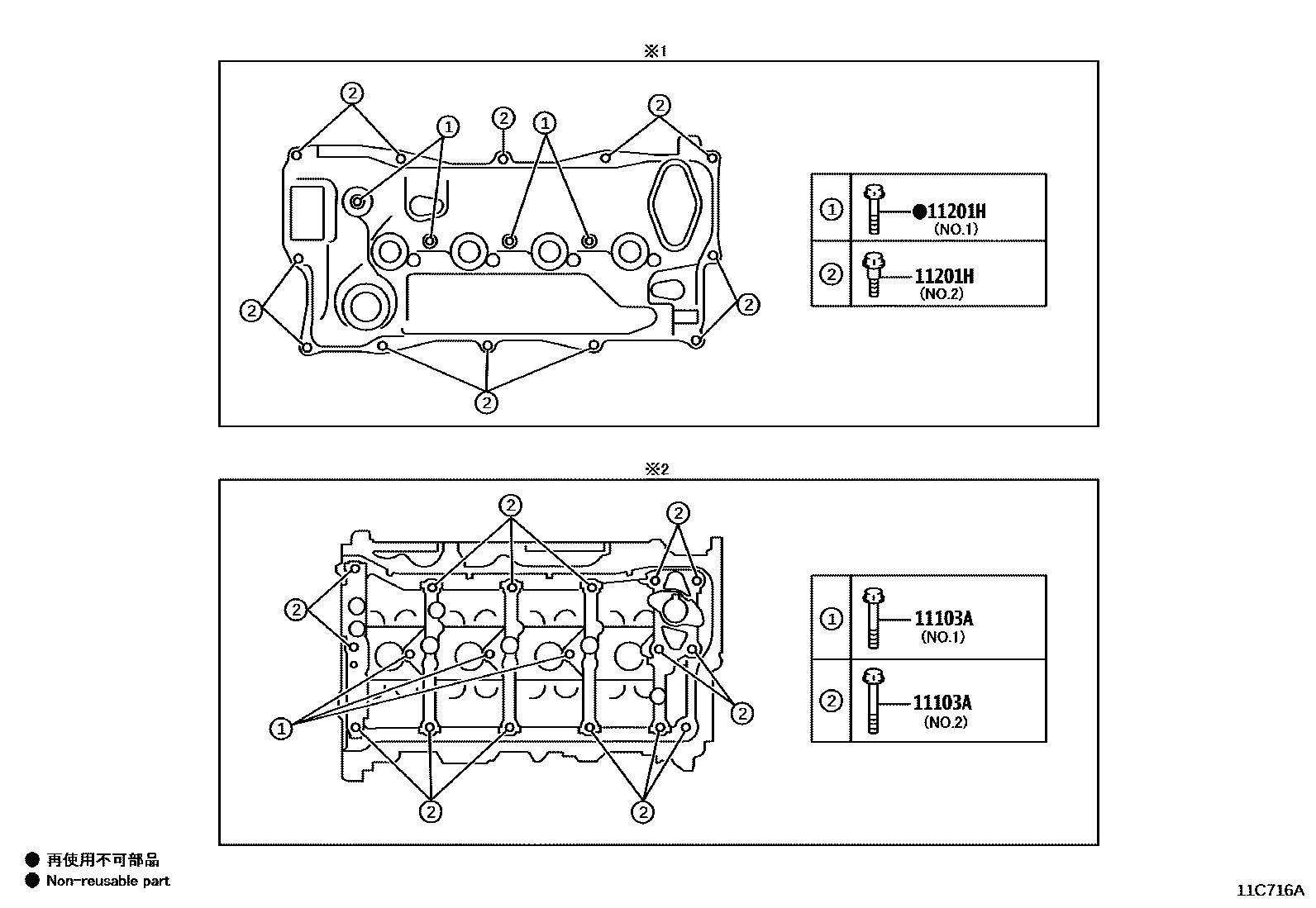

Toyota CAMRY Cylinder Head — Figure 1104
Toyota CAMRY EPC diagram 1104, Cylinder Head, with 6 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09540 · 11101-29625 · 11101-29626 · 11101-29627 · 11101-29635 · 11101-F9060 · 11101-F9061 · 11101-F9130 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02164 · 90910-02201 · 90910-02202 · 90910-02205 · 90910-C2004 · 90910-C2006 · 90910-C2009 · 90910-C2011 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11034 · 90201-12079 · 90201-C0005 · 90201-C0006 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0T030 |
| 11101Z | Cam position sensor O-ring | 90301-11038 |
| 11102A | Camshaft position sensor | 90919-05060 · 90919-05096 · 90919-C5001 |
| 11103 | Camshaft housing sub-assembly | 11103-0V070 · 11103-24011 · 11103-25010 · 11103-25011 · 11103-25020 · 11103-25021 · 11103-25080 · 11103-25090 · 11103-F0070 · 11103-F2051 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-C0074 · 90105-C0167 · 90105-C0421 · 91551-G0840 · 91551-G0865 |
| 11103F | Bolts (for camshaft housing assembly) | 90105-C0168 · 91551-G0865 |
| 11114A | direct selling | 90250-C0010 |
| 11115 | GASKET, CYLINDER HEAD | 11115-0V020 · 11115-24040 · 11115-25050 · 11115-F0020 · 11115-F2020 |
| 11115A | PIN, RING | 90253-12002 · 90253-C0002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 · 90341-20002 · 90341-C0012 |
| 11117F | No. 2 headed straight thread plug | 90341-24011 |
| 11117G | No. 3 headed straight thread plug | 90341-20012 · 90341-24006 · 90341-C0019 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-20004 · 90430-C0001 |
| 11117N | Gasket (for No. 2 cylinder head threaded plug) | 90430-24246 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31070 · 11122-31090 · 11123-31070 · 11123-31090 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-31041 · 11122-47010 · 11123-31041 · 11123-47010 · 11126-31040 · 11127-31040 |
| 11131 | intake valve seat | 11131-0V040 · 11132-0V040 |
| 11135 | Exhaust valve seat | 11135-0V040 · 11135-24020 · 11135-25020 · 11135-F0040 · 11135-F2030 · 11136-0V040 · 11136-25020 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-13005 · 90253-C0004 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 · 90119-C0469 |
| 11155B | PIN, RING | 90253-13005 · 90253-C0004 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-0V020 · 11159-31040 · 11159-F2010 · 90430-C0006 |
| 11193 | spark plug bushing gasket | 11193-0V020 · 11193-37030 · 11193-F2020 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0V060 · 11201-24031 · 11201-25031 · 11201-25032 · 11201-25033 · 11201-25090 · 11201-F0020 · 11201-F2040 · 11201-F2041 |
| 11201B | Gasket (for cylinder head cover) | 90210-05008 · 90210-C0003 |
| 11201H | Bolts (for cylinder head cover) | 90105-06359 · 90105-C0072 · 90105-C0084 · 90105-C0367 · 90109-06384 · 90109-C0027 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0V020 · 11213-24020 · 11213-25020 · 11213-F0010 · 11213-F2020 |
| 11214 | No. 2 cylinder head cover gasket | 11213-31080 |
| 11452D | Engine oil level gauge guide | 11452-24020 · 11452-F2040 |
| 11452E | O-ring (for oil level gauge guide) | 90301-C0037 · 96741-19010 |
| 11492B | coolant sealing plate | 11492-24010 · 11492-F2040 |
| 11493A | Coolant sealing plate gasket | 16258-24010 · 16258-F2030 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0V010 · 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12180E | Oil filler cap assembly | 12180-0V010 · 12180-38010 |
| 12204C | Ventilation valve sub-assembly | 12204-25010 · 12204-F2010 |
| 12281A | Engine No. 1 hanger | 12281-0V010 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0V010 · 12282-25010 · 12282-F2010 |
| 12601B | No. 1 engine hood sub-assembly | 12601-0V220 · 12601-25060 · 12601-F0130 · 12601-F2040 |
| 15301B | Engine oil level scoring assembly | 15301-24030 · 15301-F2070 |
| 15301C | O-ring (for engine oil level gauge) | 90301-C0083 · 96741-19005 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90068-14032 |
| 15678A | Oil control valve filter | 15678-0T020 · 15678-37010 |
| 15707H | Oil pipe sub-assembly | 15707-0V010 |
| 25759A | Vacuum pressure tank bracket | 25759-24010 · 25759-F2010 |
