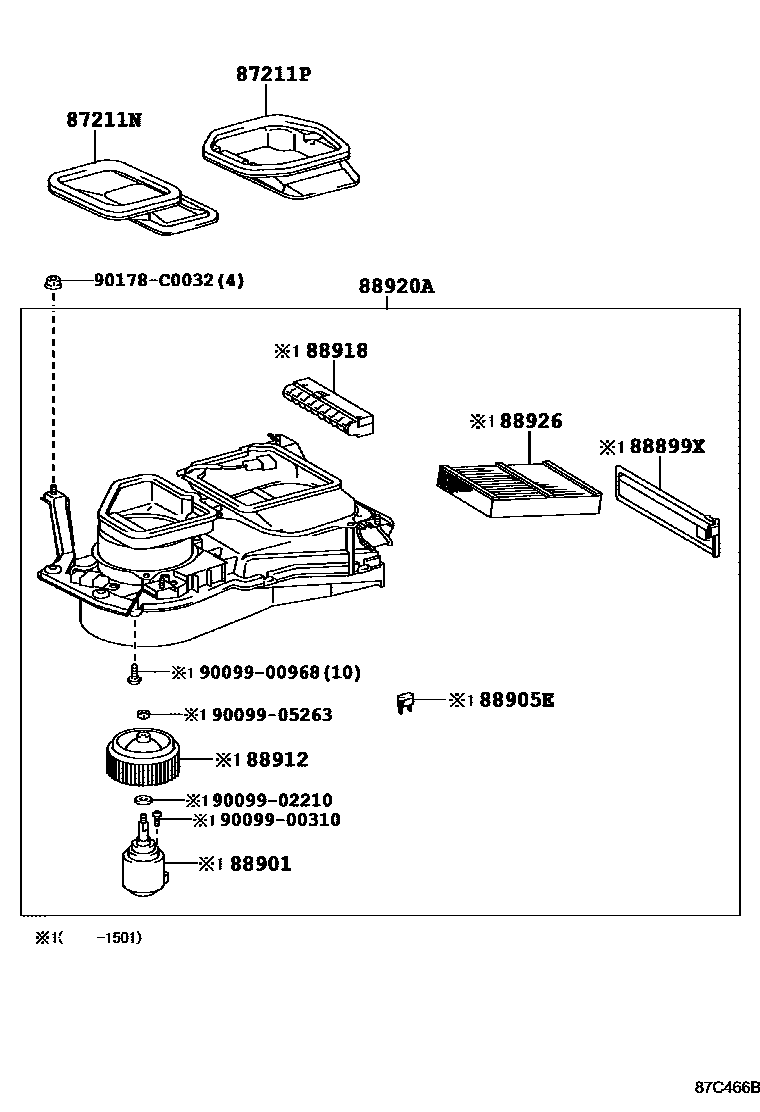

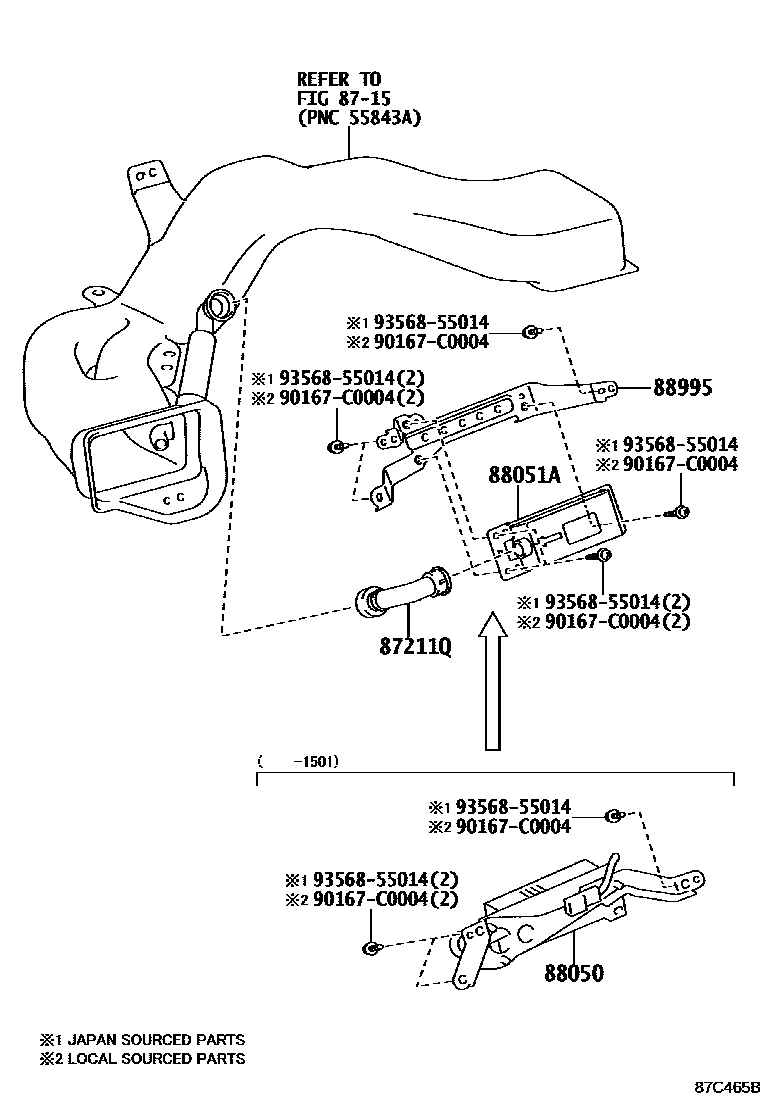

Toyota CAMRY 空气净化器或离子发生器 — Figure 8724
Toyota CAMRY EPC diagram 8724, 空气净化器或离子发生器, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87211N | Air purifier duct No. 1 | 88968-06060 |
| 87211P | Air purifier duct No. 2 | 88968-06070 |
| 87211Q | Air purifier No. 3 duct | 87211-33040 |
| 88050 | Ion generator assembly | 88050-33040 |
| 88051A | Ion generator sub-assembly | 88051-28060 |
| 88899X | Air purifier cover | 88899-22370 |
| 88901 | Air purifier motor sub-assembly | 88901-22340 |
| 88905E | Air purifier wire fuse | 90096-80012 |
| 88912 | air purifier fan | 88912-22390 |
| 88918 | Air purifier indicator light | 88918-22391 |
| 88920A | Air purifier assembly | 88920-06030 · 88920-06040 |
| 88926 | air purifier filter | 88926-06020 |
| 88995 | No. 1 ion generator bracket | 88995-33070 |
