Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719

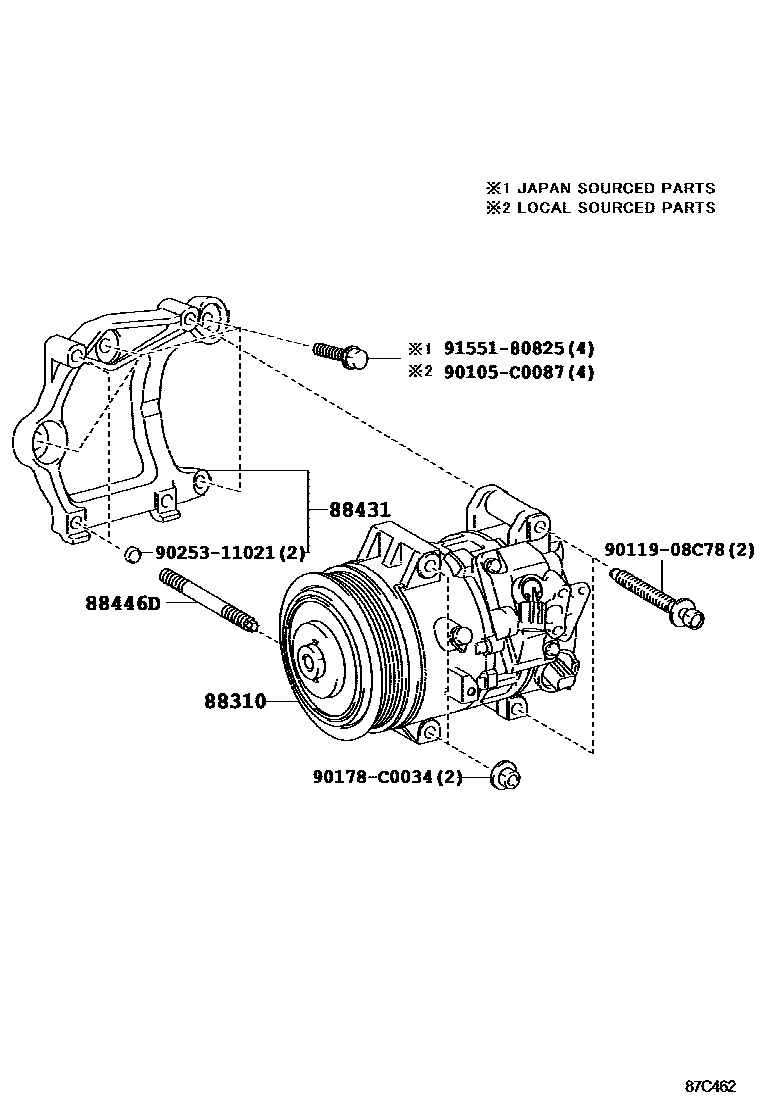

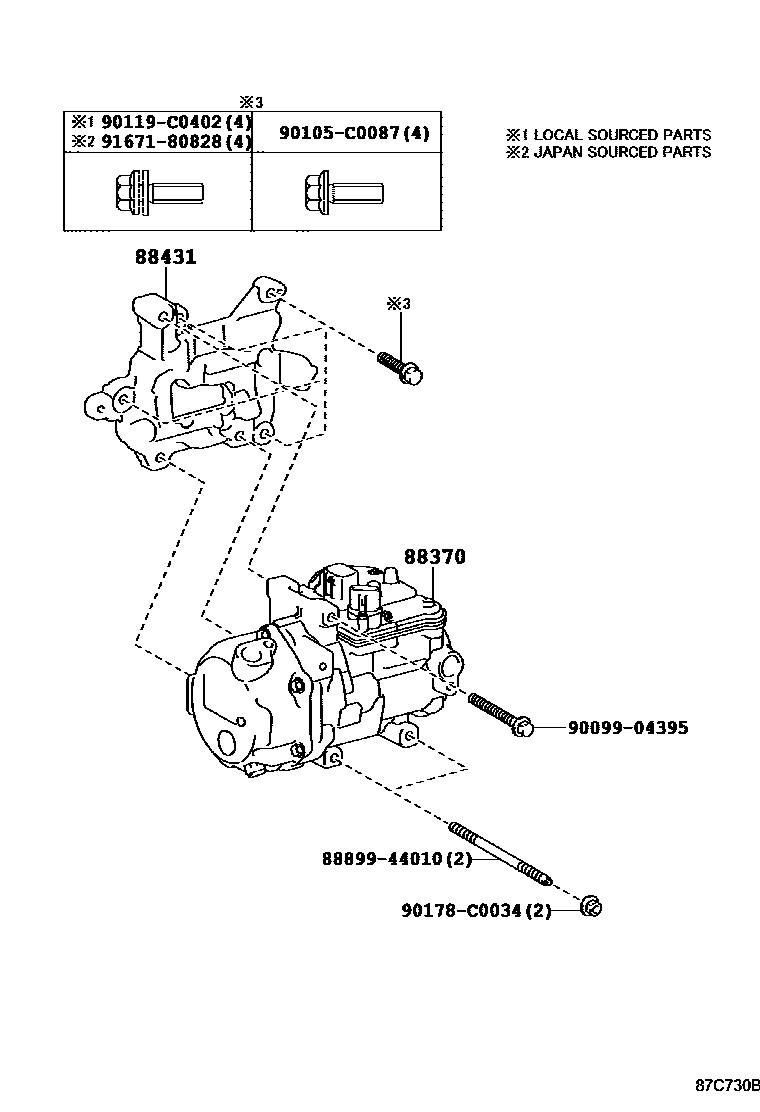

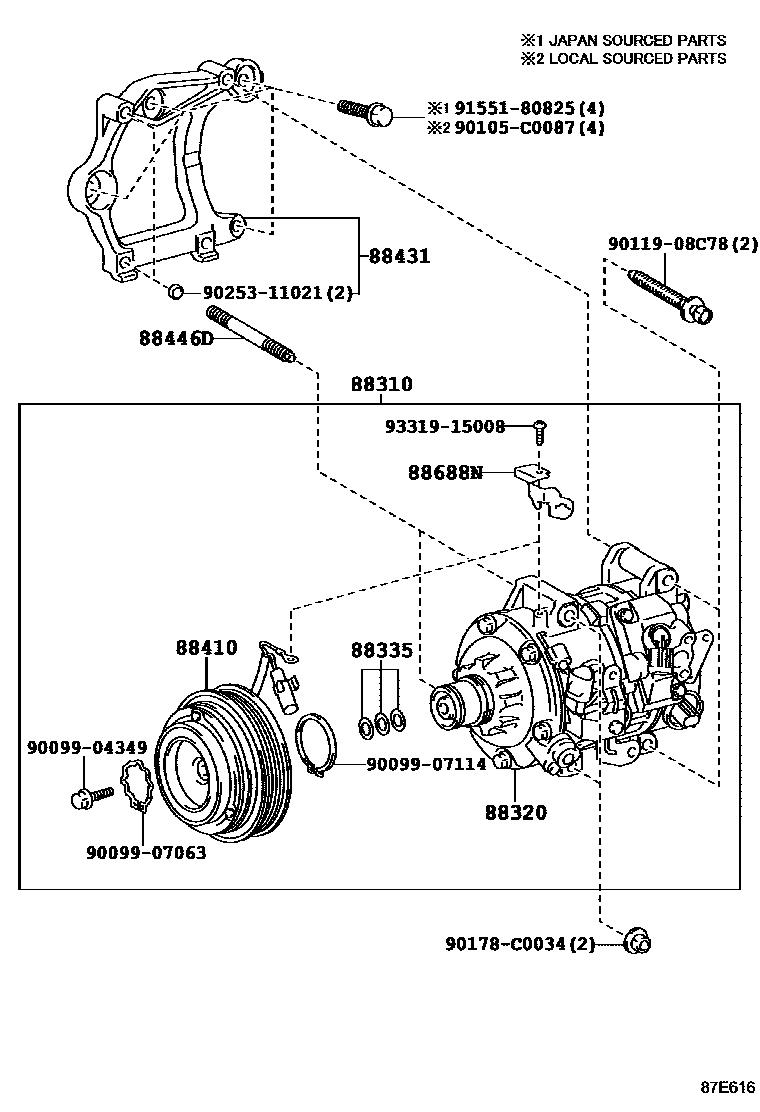

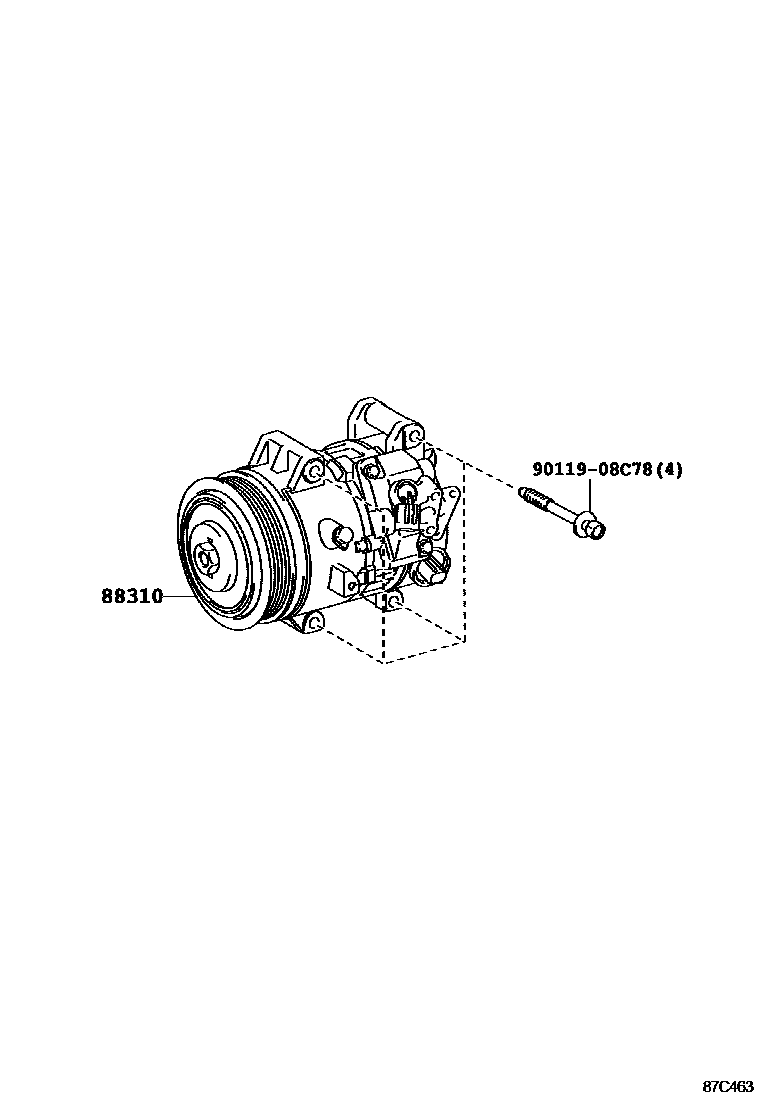

Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-06400 · 88310-06460 · 88310-06461 · 88310-06470 · 88310-06471 |
| 88320 | Cooler Compressor Assembly | 88320-06200 |
| 88335 | Overhaul gasket assembly | 88335-14020 |
| 88370 | Compressor assembly with motor | 88370-33020 |
| 88410 | Magnetic Clutch Assembly | 88410-0R010 |
| 88431 | Compressor No. 1 mounting bracket | 12502-0V020 · 88431-06040 |
| 88446D | cooler bolt | 88446-42030 |
| 88688N | cooler bracket | 88688-33570 |
