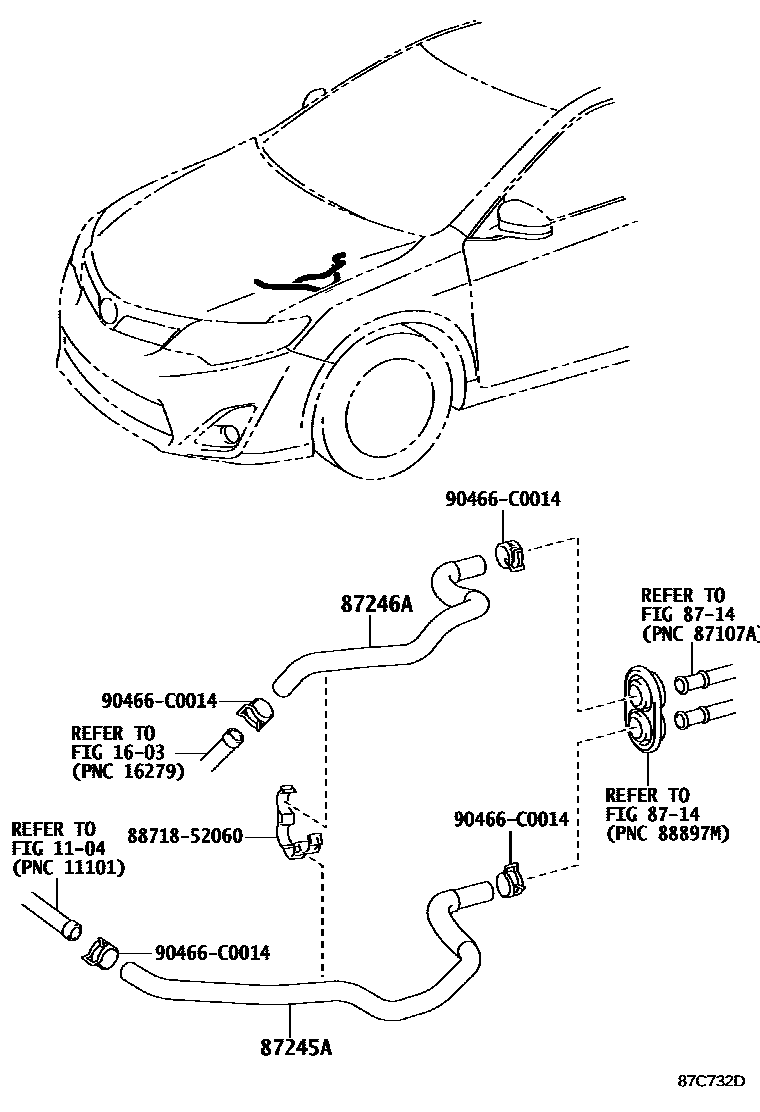

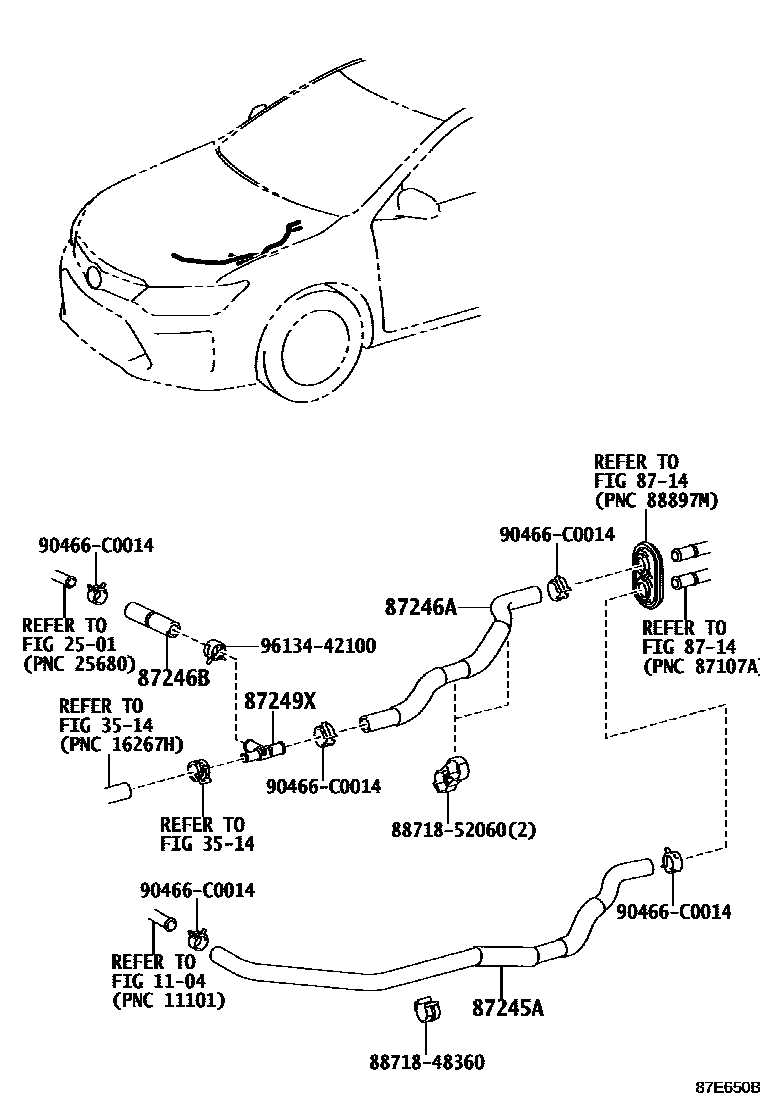

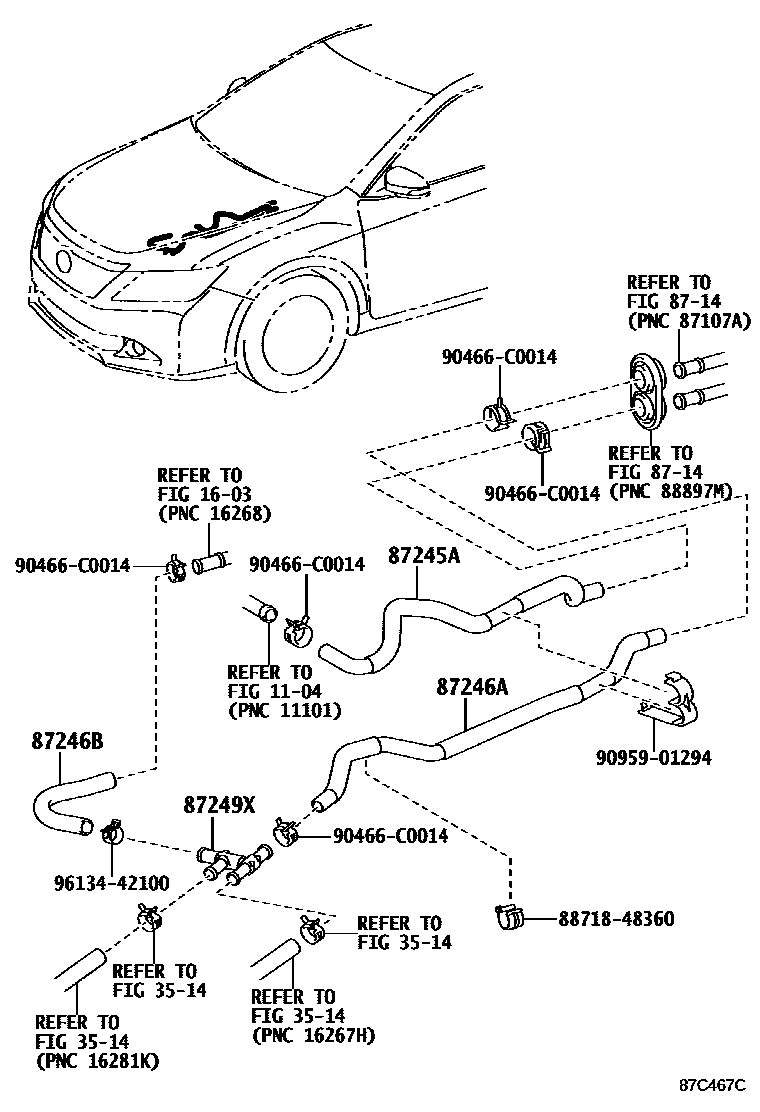

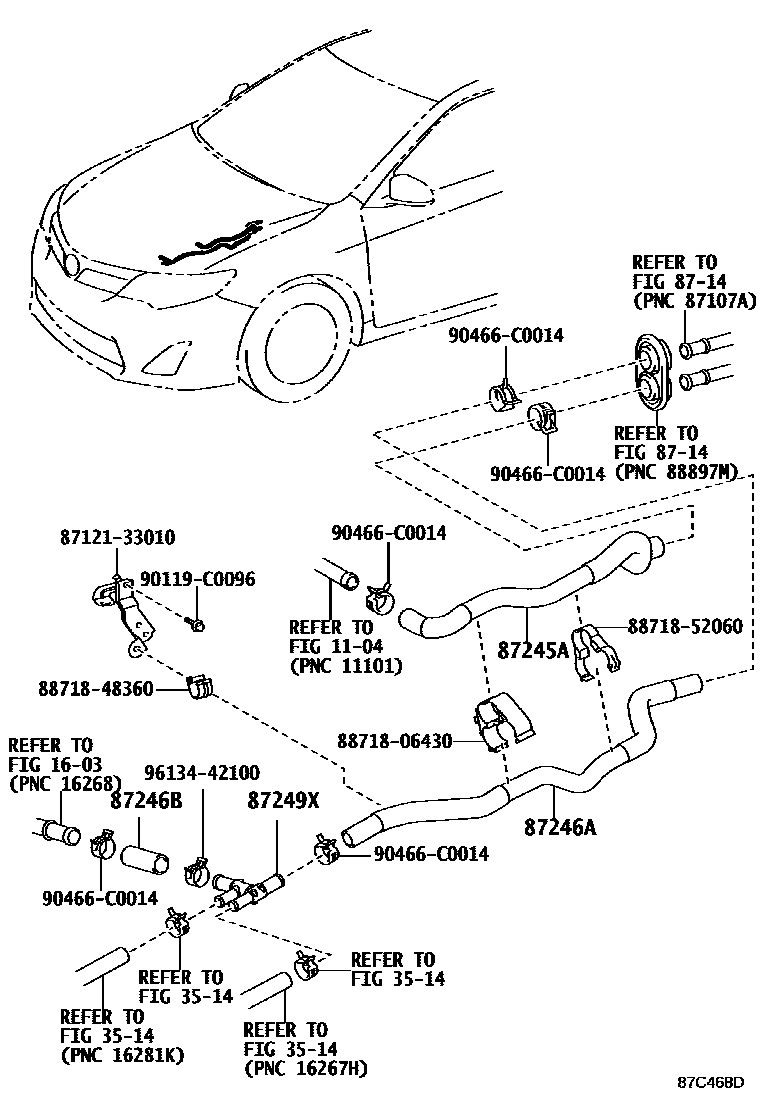

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245A | Heater water inlet hose A | 87245-06870 · 87245-06A40 · 87245-06A60 · 87245-06A80 |
| 87246A | Heater outlet hose A | 87245-06A30 · 87245-06A50 · 87245-06A70 · 87245-06C80 |
| 87246B | Heater outlet hose B | 87245-06D70 · 87245-33620 · 87245-33690 |
| 87249X | water pipe | 87248-33020 · 87248-33030 |
