Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

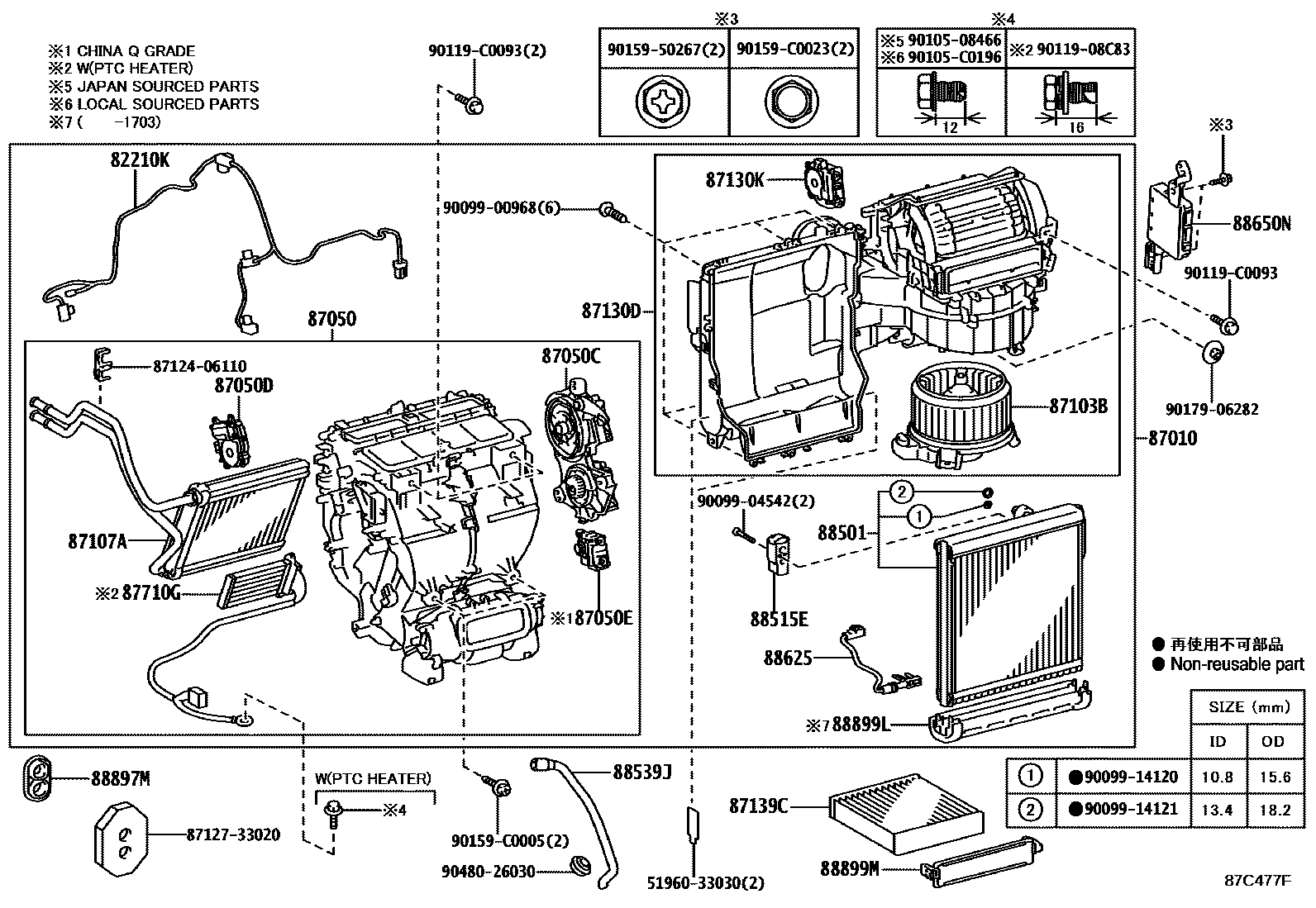

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06040 · 82212-06041 · 82212-06150 |
| 87010 | Air conditioning unit assembly | 87010-06730 · 87010-06731 · 87010-06740 · 87010-06741 · 87010-06742 · 87010-06750 · 87010-06751 · 87010-06760 · 87010-06761 · 87010-06D50 · 87010-06D51 · 87010-06D60 · 87010-06D61 |
| 87050 | Air conditioning radiator assembly | 87050-06502 · 87050-06503 · 87050-06550 · 87050-06551 · 87050-06660 · 87050-06661 · 87050-06670 · 87050-06671 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-06221 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-06230 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-06310 |
| 87103B | Blower motor sub-assembly with fan | 87103-0E070 |
| 87107A | Heater radiator device sub-assembly | 87107-06080 |
| 87130D | Blower assembly | 87130-06360 · 87130-06361 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-06240 |
| 87139C | air purification filter | 87139-06060 · 87139-06140 · 87139-50100 |
| 87710G | Rapid heater assembly | 87710-06020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06350 · 88501-06360 · 88501-06440 · 88501-06450 · 88501-0E070 |
| 88515E | Cooler expansion valve with seal | 88515-06100 |
| 88539J | Cooler drain hose | 88539-06110 |
| 88625 | Cooler No. 1 Thermistor | 88620-0E020 · 88620-0E030 |
| 88650N | Air conditioning amplifier assembly | 88650-06570 · 88650-06571 · 88650-06580 · 88650-06581 · 88650-06590 · 88650-06591 · 88650-06600 · 88650-06601 · 88650-06730 · 88650-06740 · 88650-06750 · 88650-06760 · 88650-06800 · 88650-06A80 · 88650-06D10 · 88650-06D20 · 88650-06D30 · 88650-06D40 · 88650-06D50 · 88650-06D60 |
| 88897M | Seals (for heater tubes) | 90480-01696 |
| 88899L | Cooling unit parts | 88899-06130 |
| 88899M | cover (for air cleaner) | 88899-06070 |
