Toyota CAMRY 后视镜 — Figure 8701

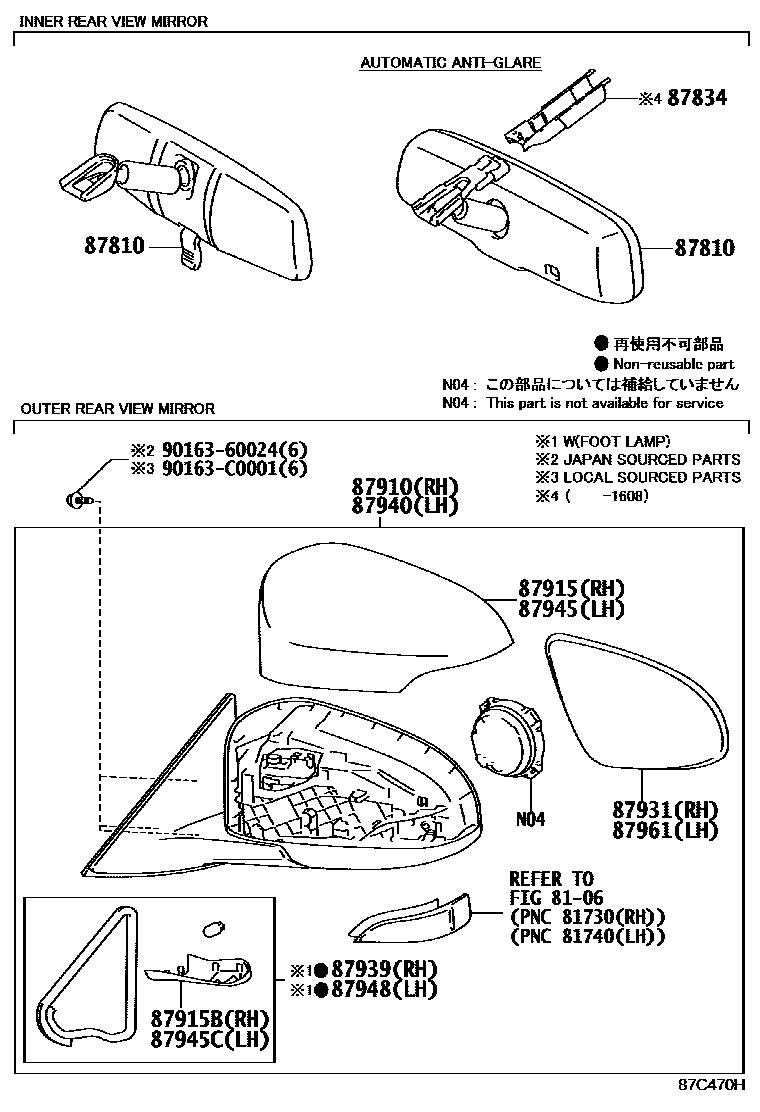

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06062 · 87810-0D070 · 87810-0W260 · 87810-0WK20 · 87810-0WK21 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-33010 |
| 87915 | Right exterior rearview mirror cover | 87915-0R901 |
| 87915B | Right exterior rearview mirror lower cover | 87915-06360 · 87915-06370 |
| 87931 | Right exterior rearview mirror | 87931-06490 · 87931-06500 · 87931-06610 |
| 87939 | Right exterior rearview mirror hole cover | 87939-06500 |
| 87945 | Left exterior rearview mirror cap | 87945-0R902 |
| 87945C | Left exterior rearview mirror lower cover | 87945-06350 · 87945-06360 |
| 87948 | Left exterior rearview mirror hole cover | 87948-06500 |
| 87961 | Left exterior rearview mirror | 87961-06490 · 87961-06500 · 87961-06610 |
