Toyota CAMRY 倒车影像和摄像头 — Figure 8606

Toyota CAMRY EPC diagram 8606, 倒车影像和摄像头, with 2 images and 2 PNC and OE references.

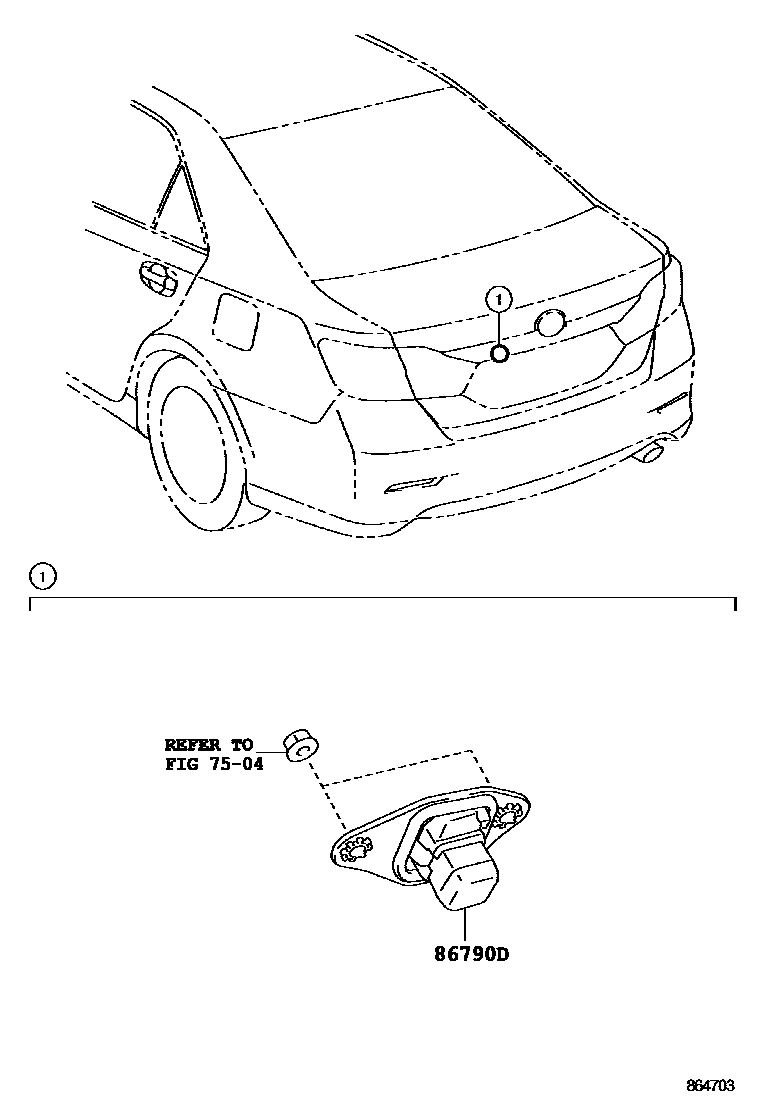

Toyota CAMRY 倒车影像和摄像头 EPC diagram — 864703
倒车影像和摄像头 — 864703 (201112 – 201501)

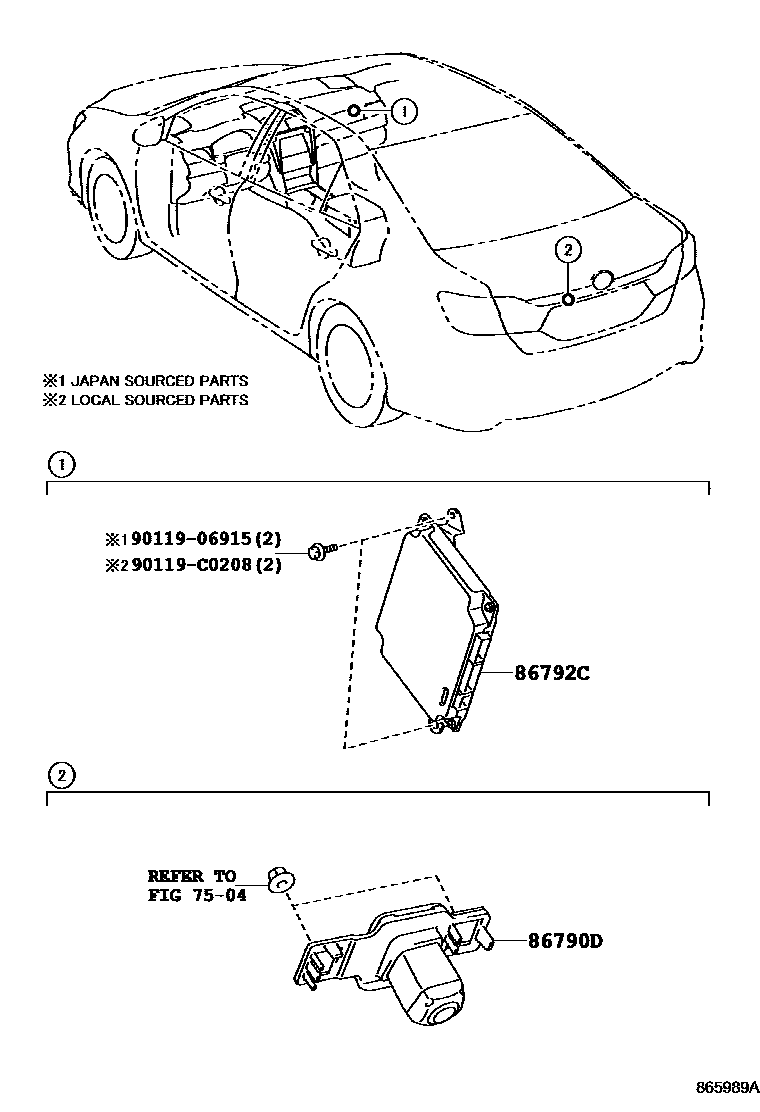

Toyota CAMRY 倒车影像和摄像头 EPC diagram — 865989A
倒车影像和摄像头 — 865989A (201501 – 999999)

PNC and OE references

PNCPart nameOE numbers
86790DRear reversing image camera assembly86790-06020 · 86790-06050
86792CParking assist ECU86792-06010 · 86792-06030
