Toyota CAMRY 扬声器 — Figure 8602

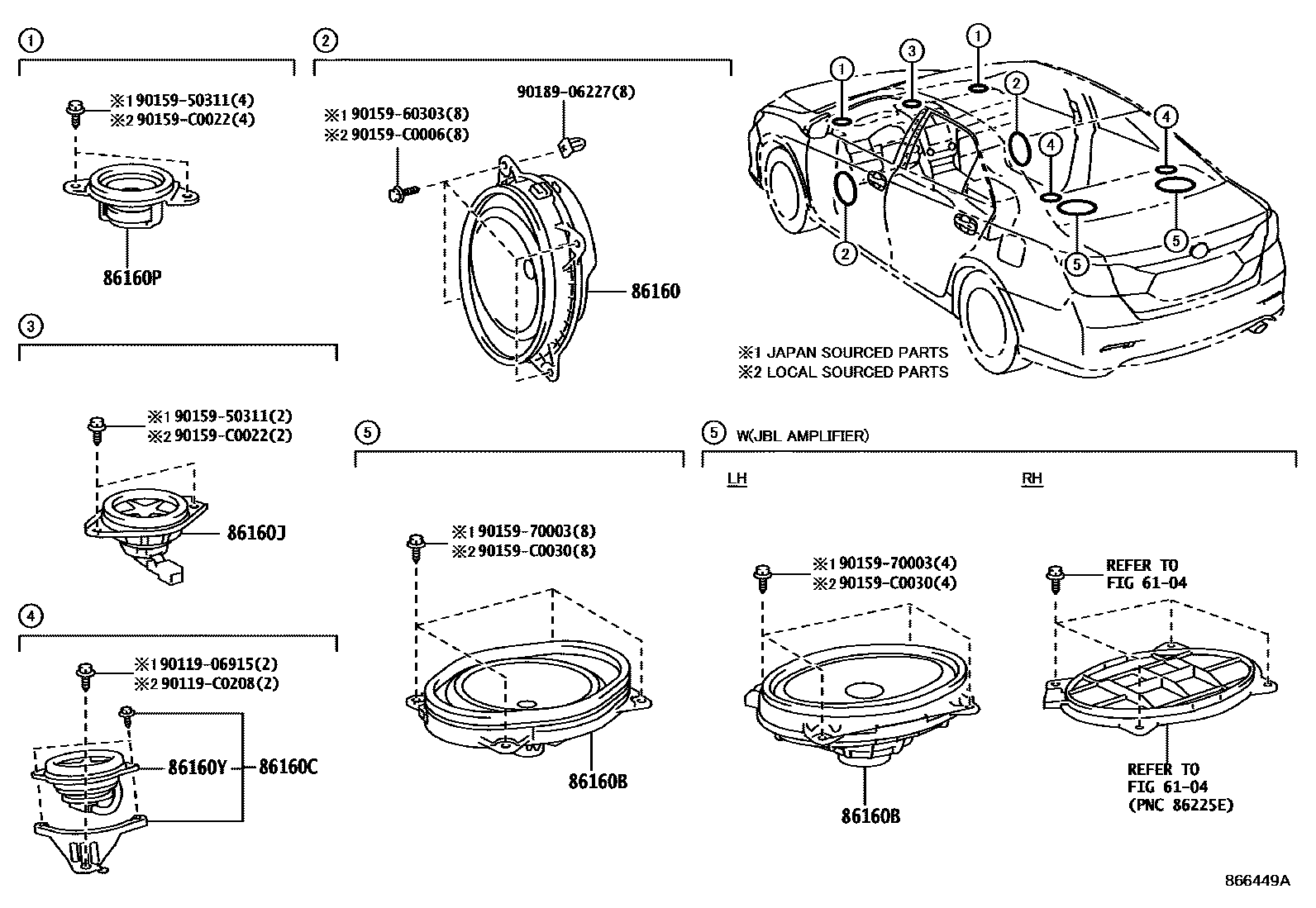

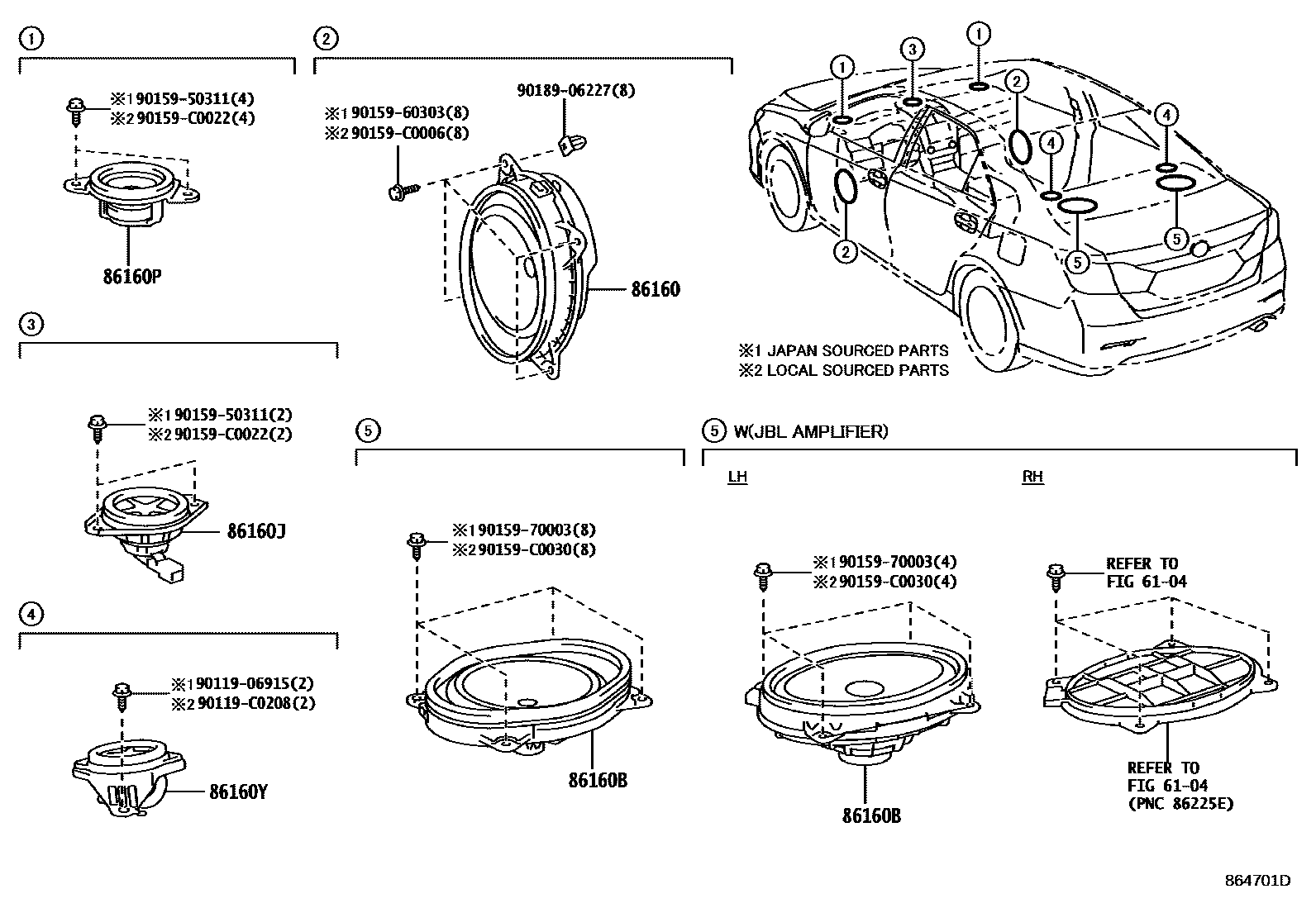

Toyota CAMRY EPC diagram 8602, 扬声器, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-06700 · 86160-06790 · 86160-0WU60 |
| 86160B | Rear speaker assembly | 86160-06710 · 86160-06800 · 86160-0WU70 |
| 86160C | rear speaker assembly | 86150-06030 · 86150-06040 |
| 86160J | No. 3 front speaker assembly | 86160-06810 · 86160-0WU80 |
| 86160P | No. 2 front speaker assembly | 86160-06690 · 86160-06780 · 86160-0WU50 |
| 86160Y | No. 2 rear speaker assembly | 86160-06820 · 86160-0WU90 · 86160-0WW70 |
