Toyota CAMRY 前大灯清洗器 — Figure 8505

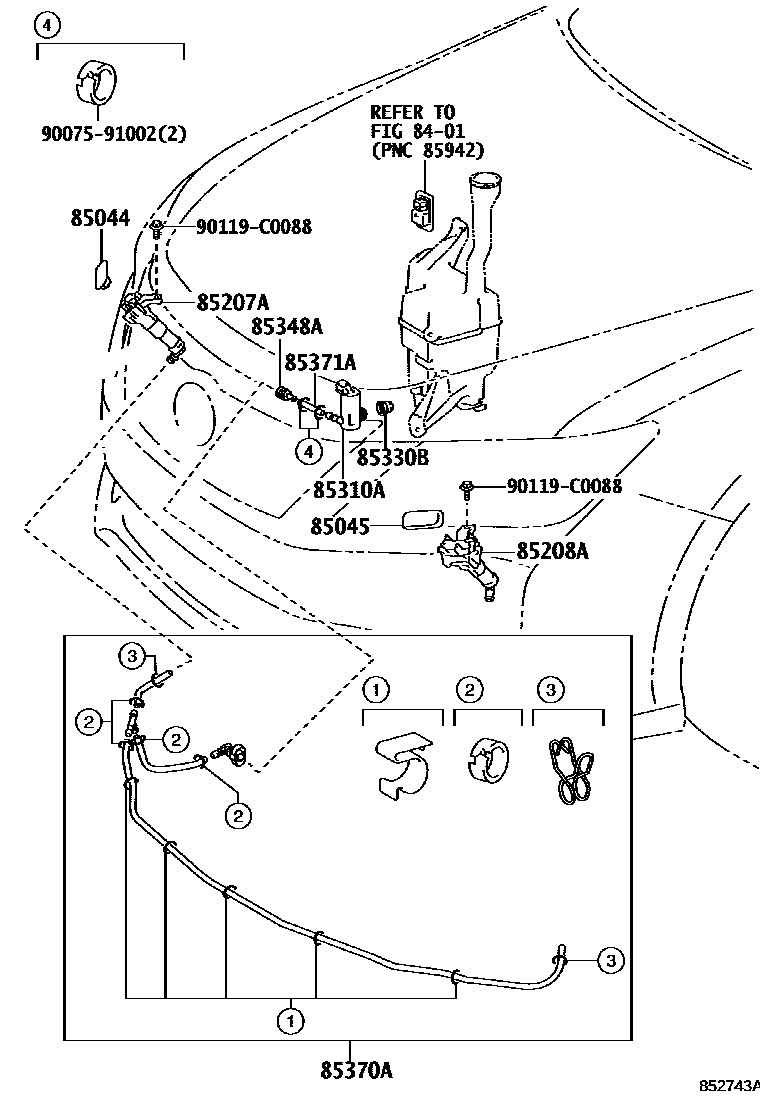

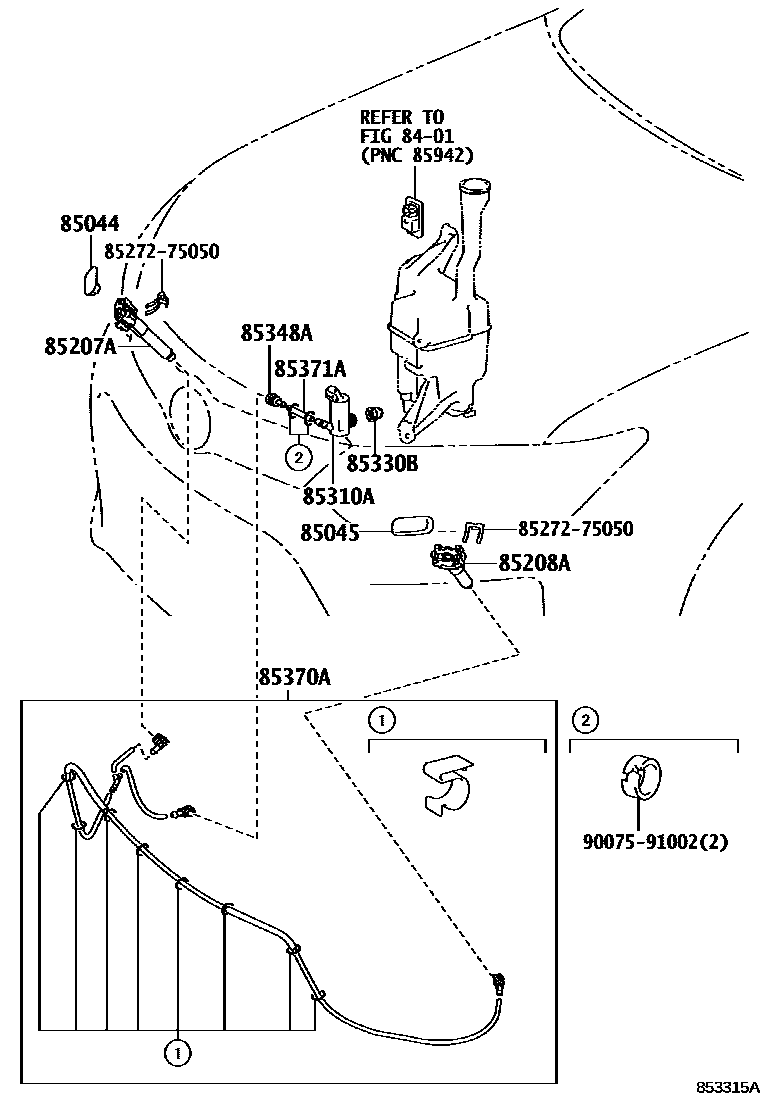

Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-06050 · 85207-06080 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-06050 · 85208-06080 |
| 85310A | Headlight washer motor and pump assembly | 85280-33030 |
| 85330B | Headlight washer washer fluid tank bushing | 90099-32089 |
| 85348A | Headlight washer hose connector No. 1 | 90075-17002 · 90075-17012 |
| 85370A | No. 1 headlight washer hose assembly | 85271-06050 · 85271-06080 |
| 85371A | Headlight washer hose (from motor to connector) | 90075-15053 |
