Toyota CAMRY 挡风玻璃清洗器 — Figure 8503

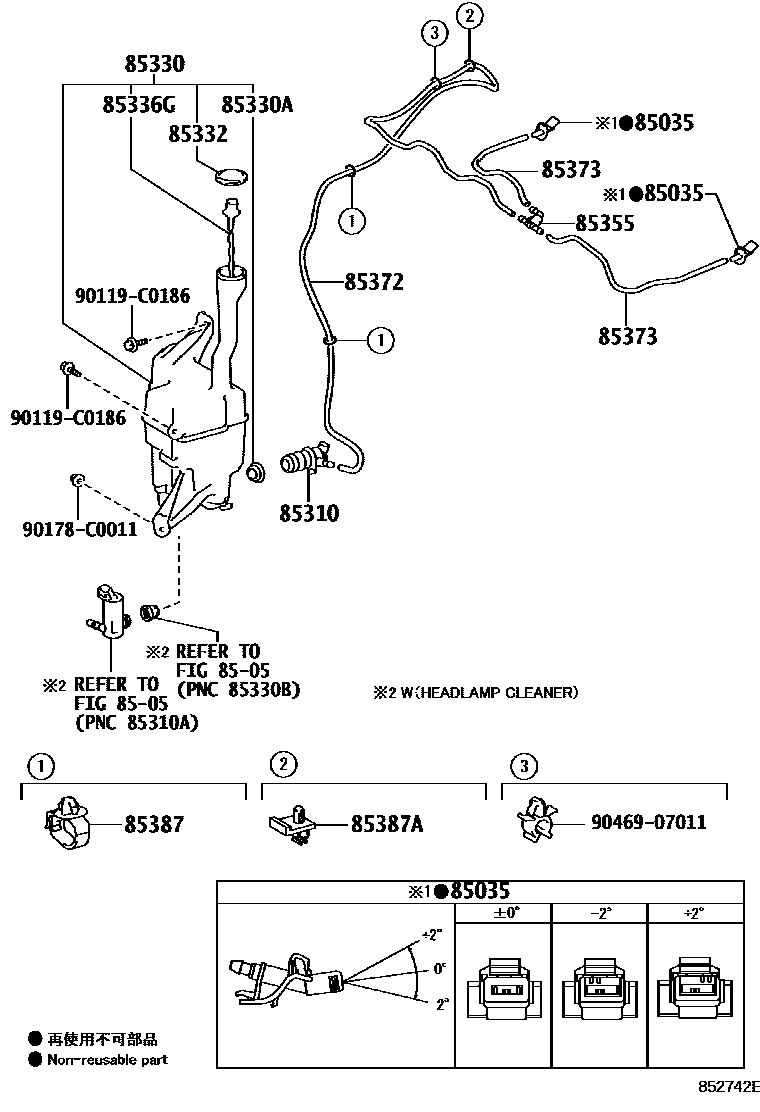

Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30150 · 85381-30160 · 85381-33080 |
| 85310 | Windshield washer motor and pump assembly | 85330-06060 |
| 85330 | Windshield washer fluid tank assembly | 85315-06250 · 85315-06260 · 85355-06040 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 |
| 85332 | Windshield washer fluid tank cap | 85316-06120 |
| 85336G | water level gauge | 85312-06030 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33114 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33162 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-06130 · 82711-1E340 |
| 85387A | Cleaner clip No. 2 | 85371-33010 |
