Toyota CAMRY HEV 逆变器 — Figure 8431

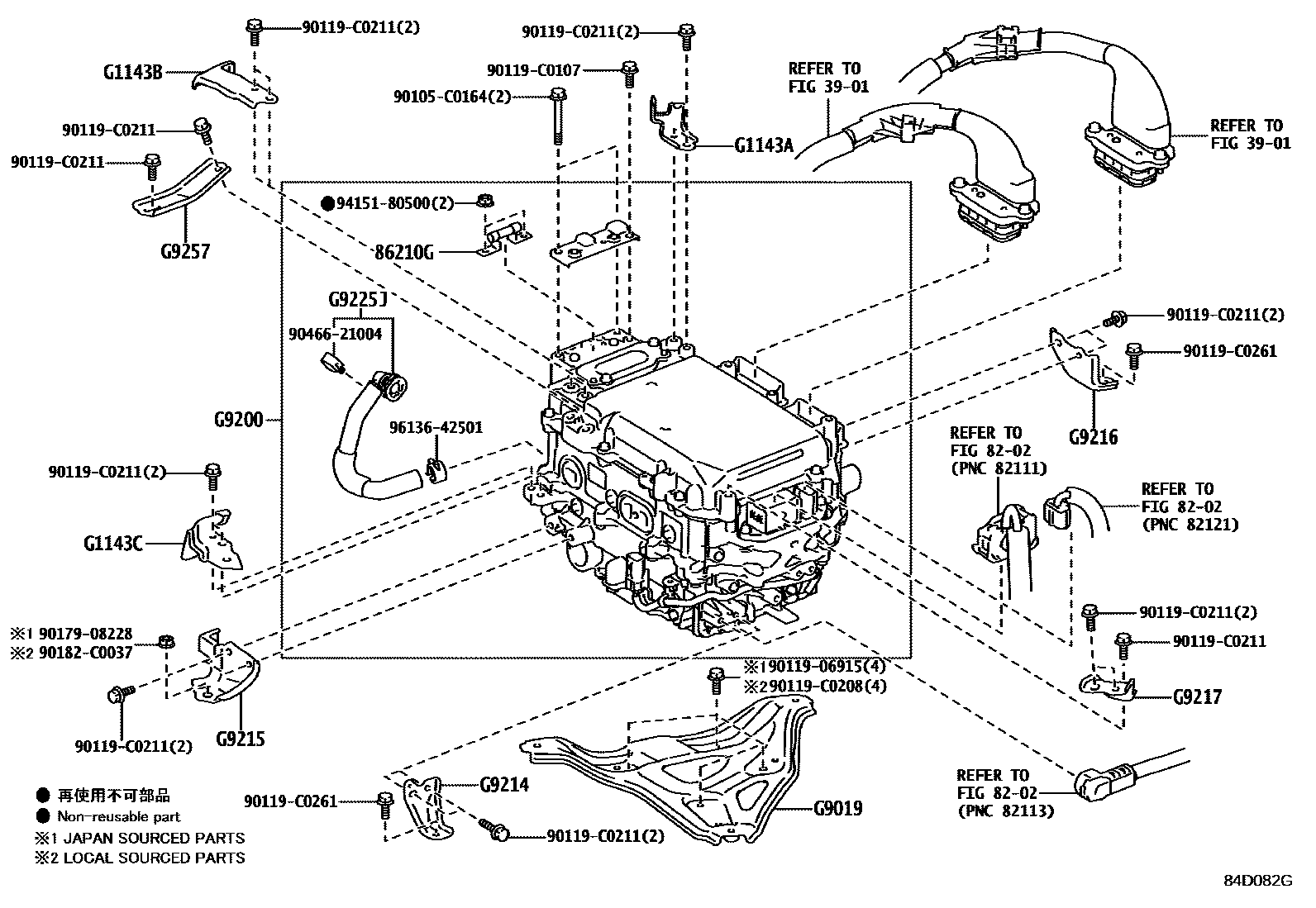

Toyota CAMRY EPC diagram 8431, HEV 逆变器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86210G | High voltage fuse | 90982-11050 |
| G1143A | No. 1 motor cable bracket | G1143-06060 |
| G1143B | No. 2 motor cable bracket | G1143-06070 |
| G1143C | No. 3 motor cable bracket | G1143-06080 |
| G9019 | Inverter tray bracket sub-assembly | G9019-33010 |
| G9200 | Inverter assembly with converter | G92A0-33020 · G92A0-33021 |
| G9214 | No. 1 inverter bracket | G9214-33020 |
| G9215 | No. 2 inverter bracket | G9015-33010 · G9015-33011 |
| G9216 | No. 3 inverter bracket | G9216-33020 |
| G9217 | No. 4 inverter bracket | G9017-33010 |
| G9225J | No. 1 inverter cooling hose | G9225-33060 |
| G9257 | No. 5 inverter bracket | G9257-33020 |
