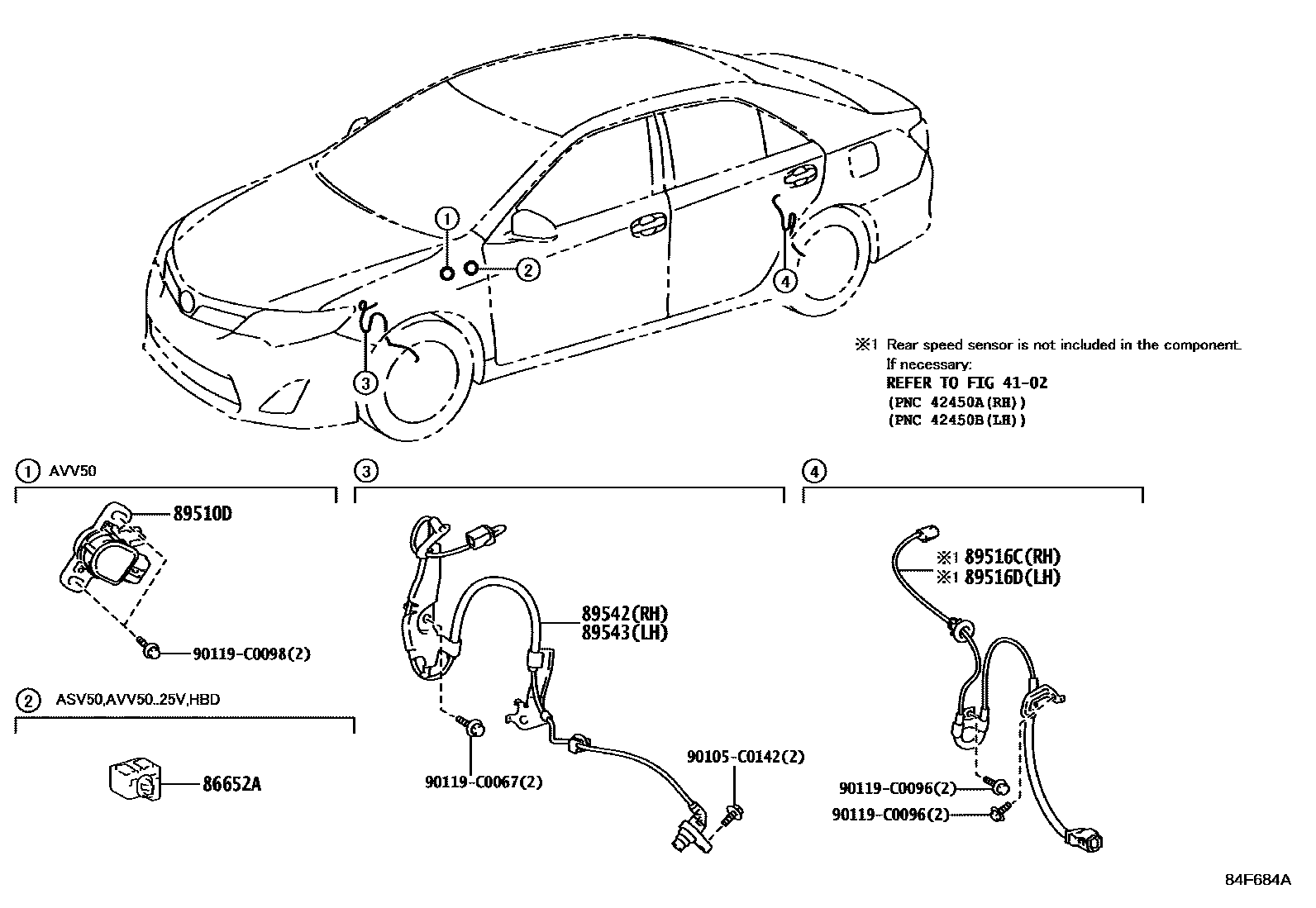

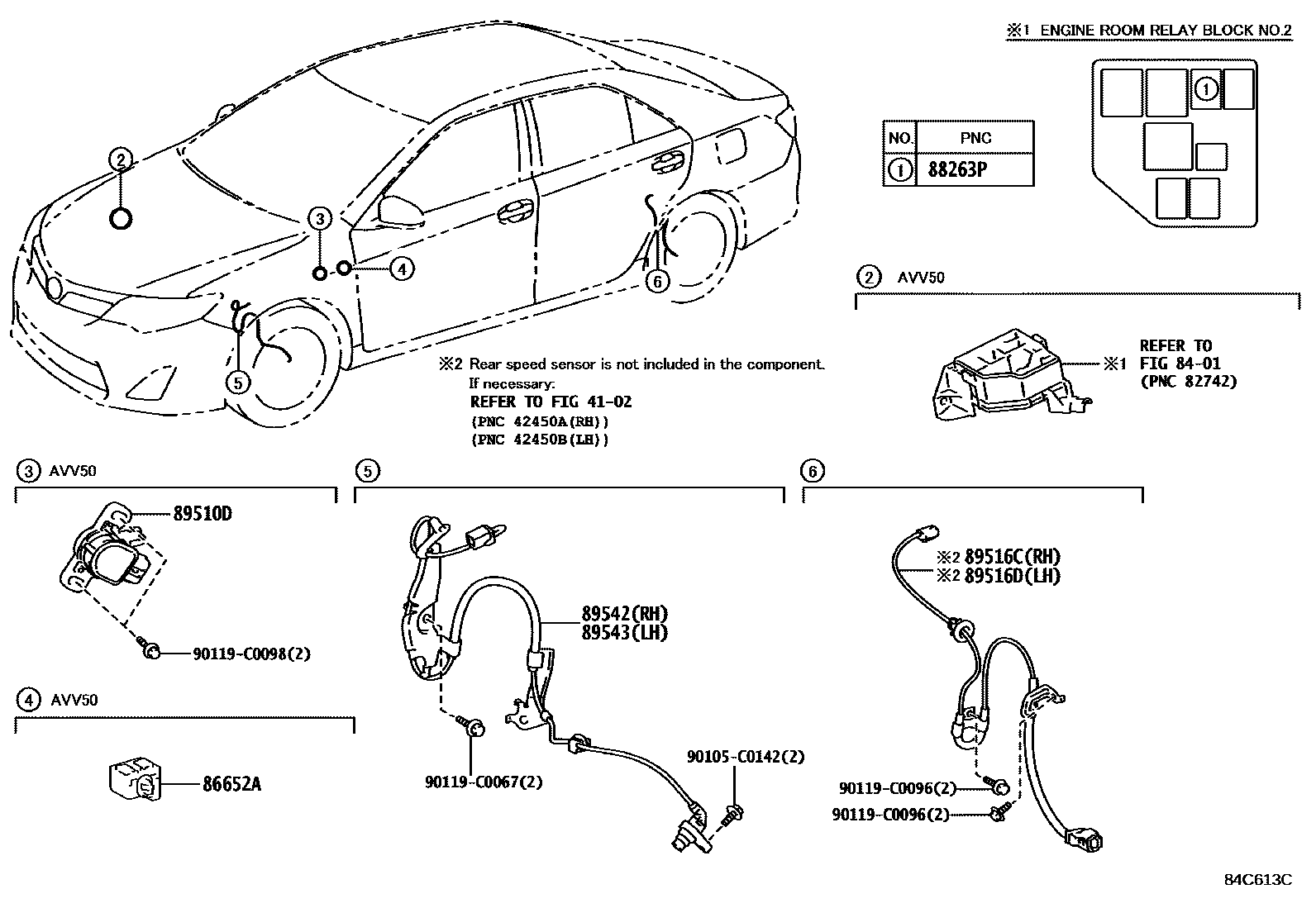

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86652A | Anti-skid control buzzer assembly | 86652-50010 |
| 88263P | brake light control relay | 90987-T4001 |
| 89510D | Brake pedal stroke sensor assembly | 89510-33030 |
| 89516C | Right anti-skid control sensor harness | 89516-06190 |
| 89516D | Left anti-skid control sensor wiring harness | 89516-06200 |
| 89542 | Right front wheel speed sensor | 89542-06050 · 89542-06060 |
| 89543 | Left front wheel speed sensor | 89543-06050 · 89543-06060 |
