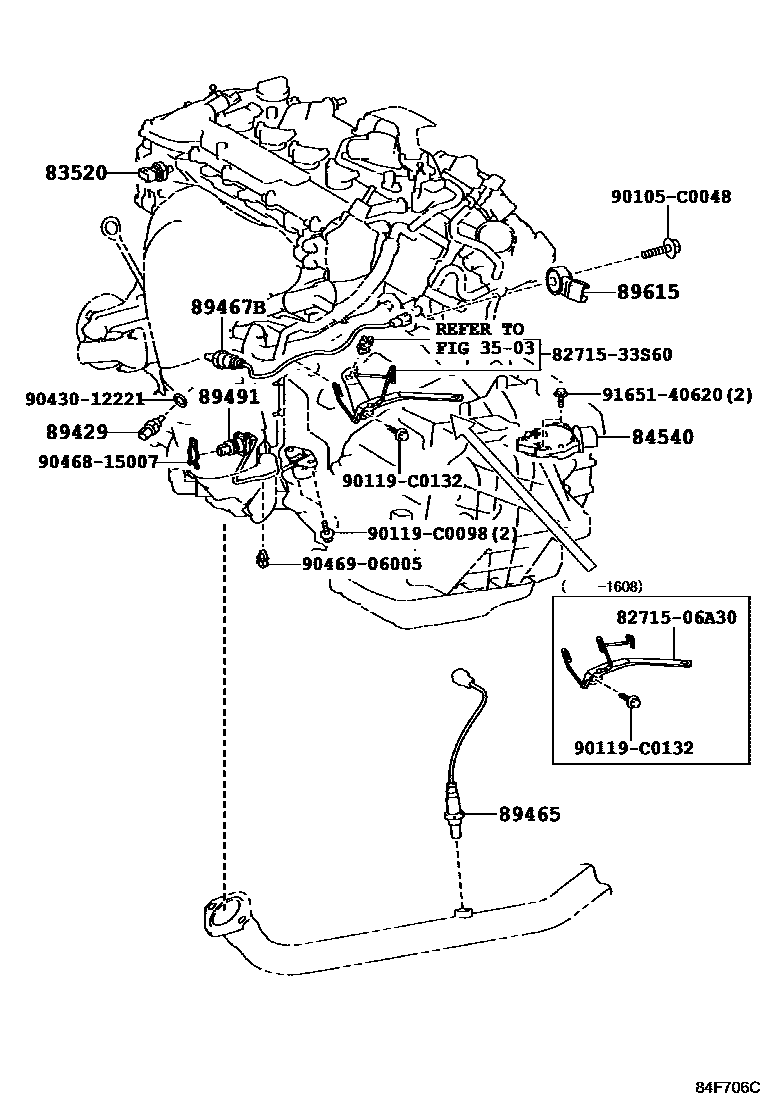

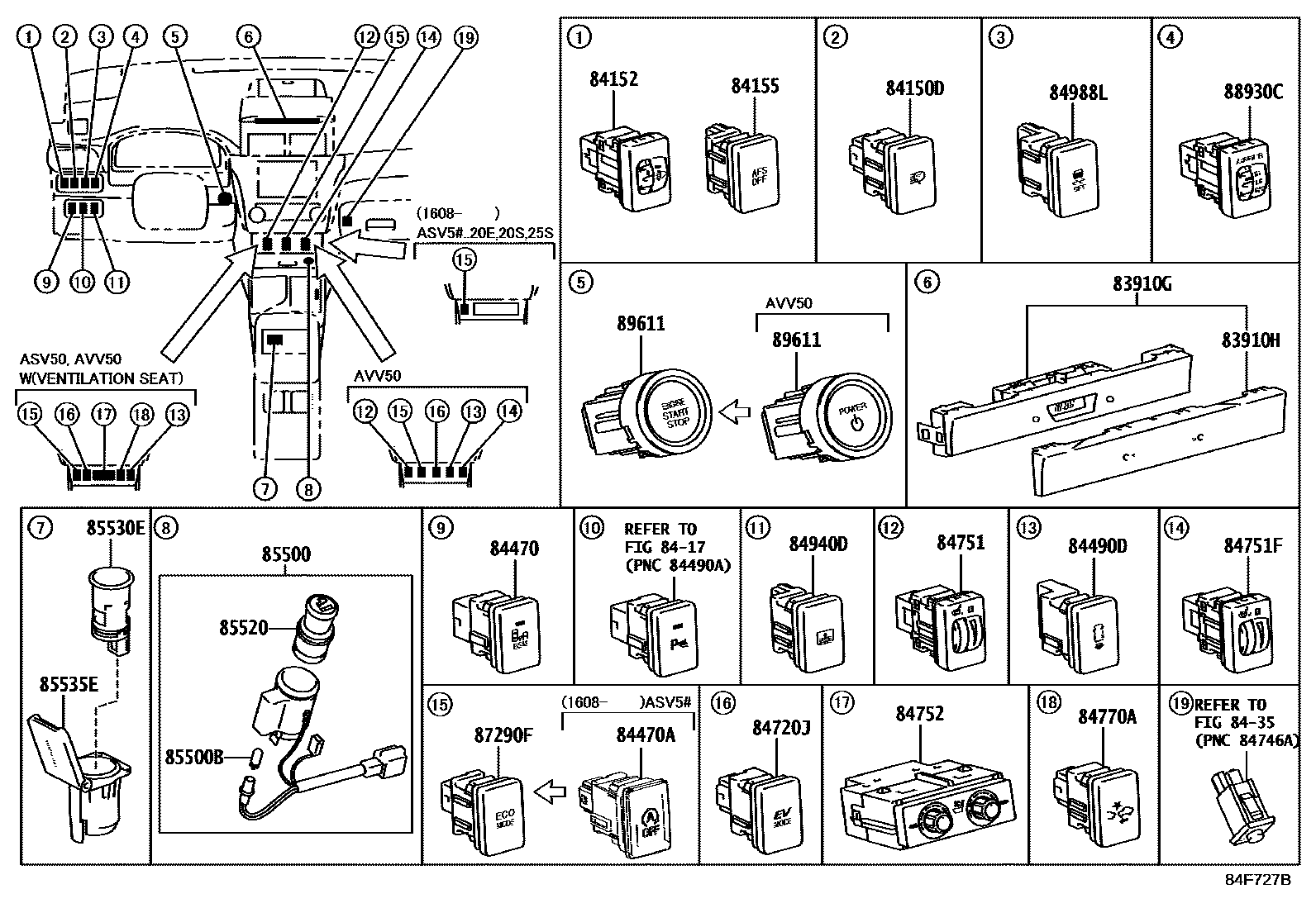

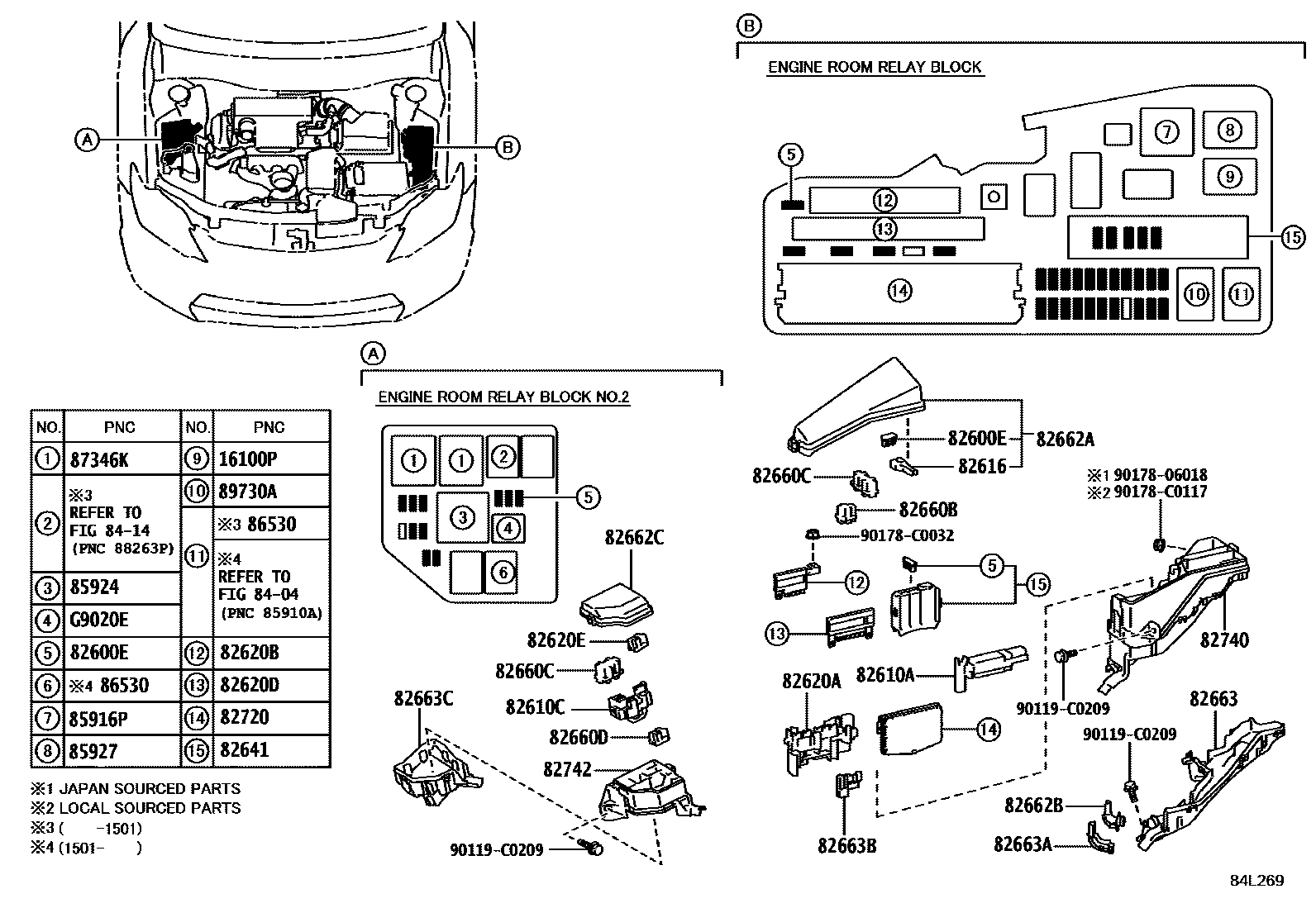

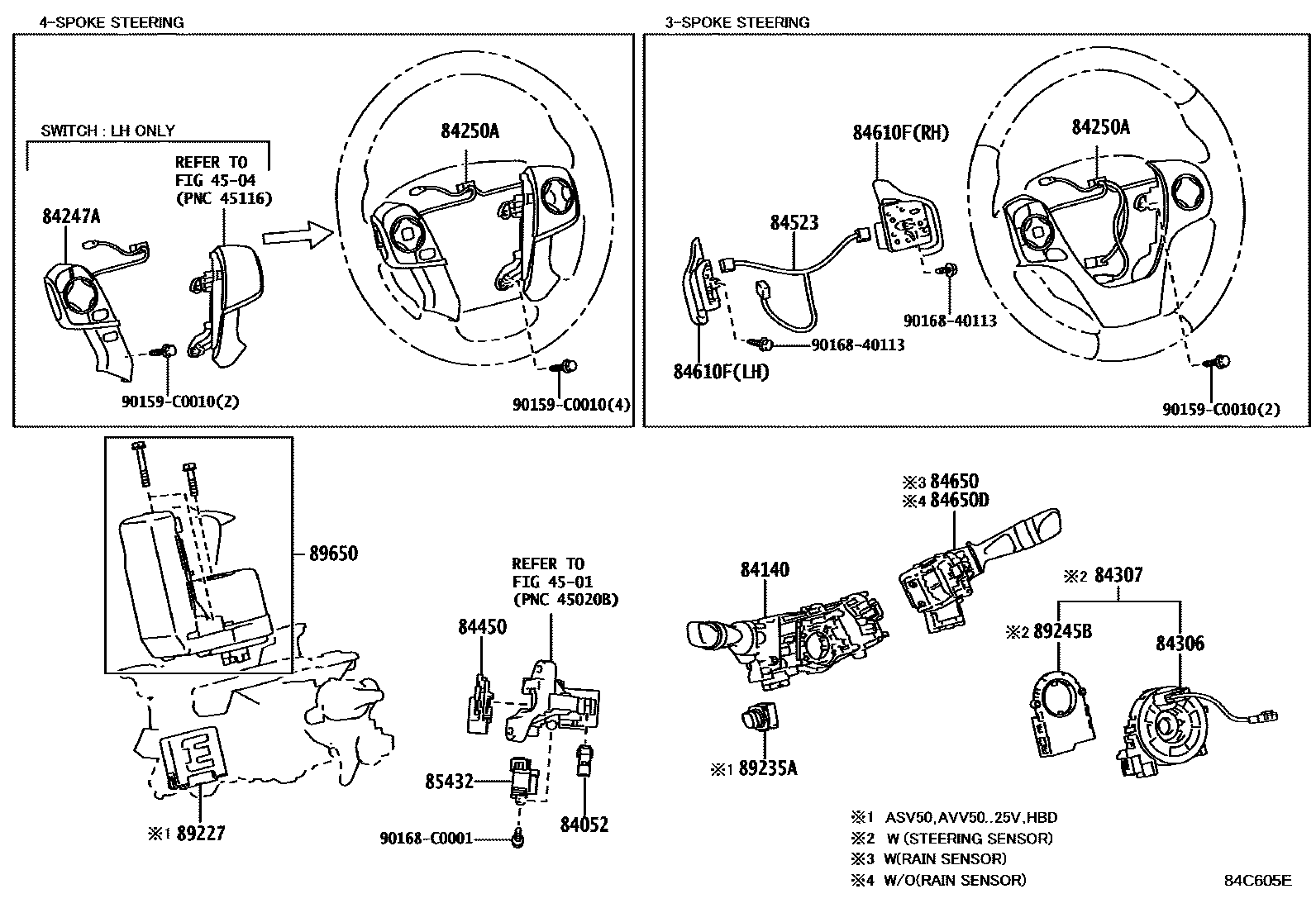

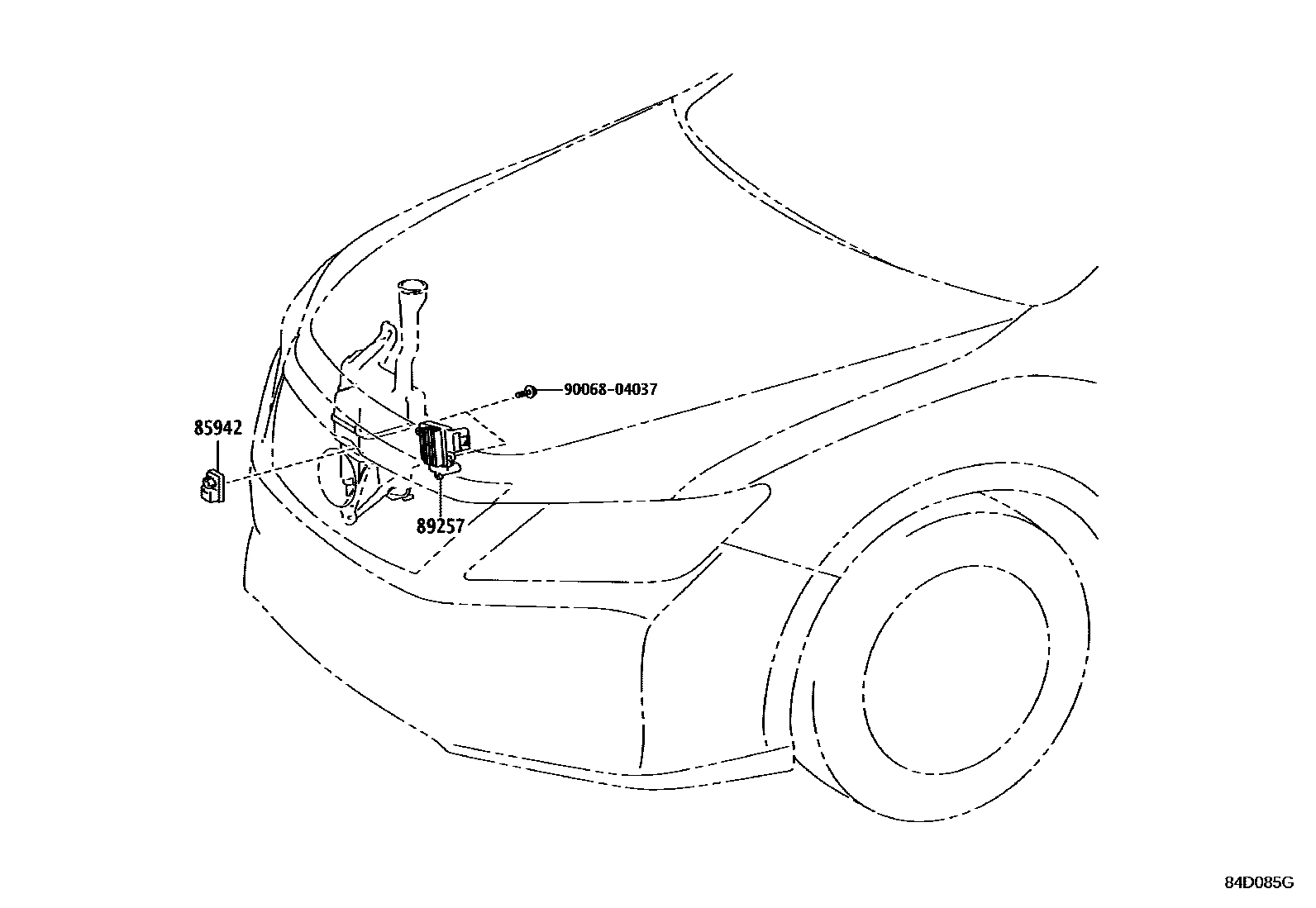

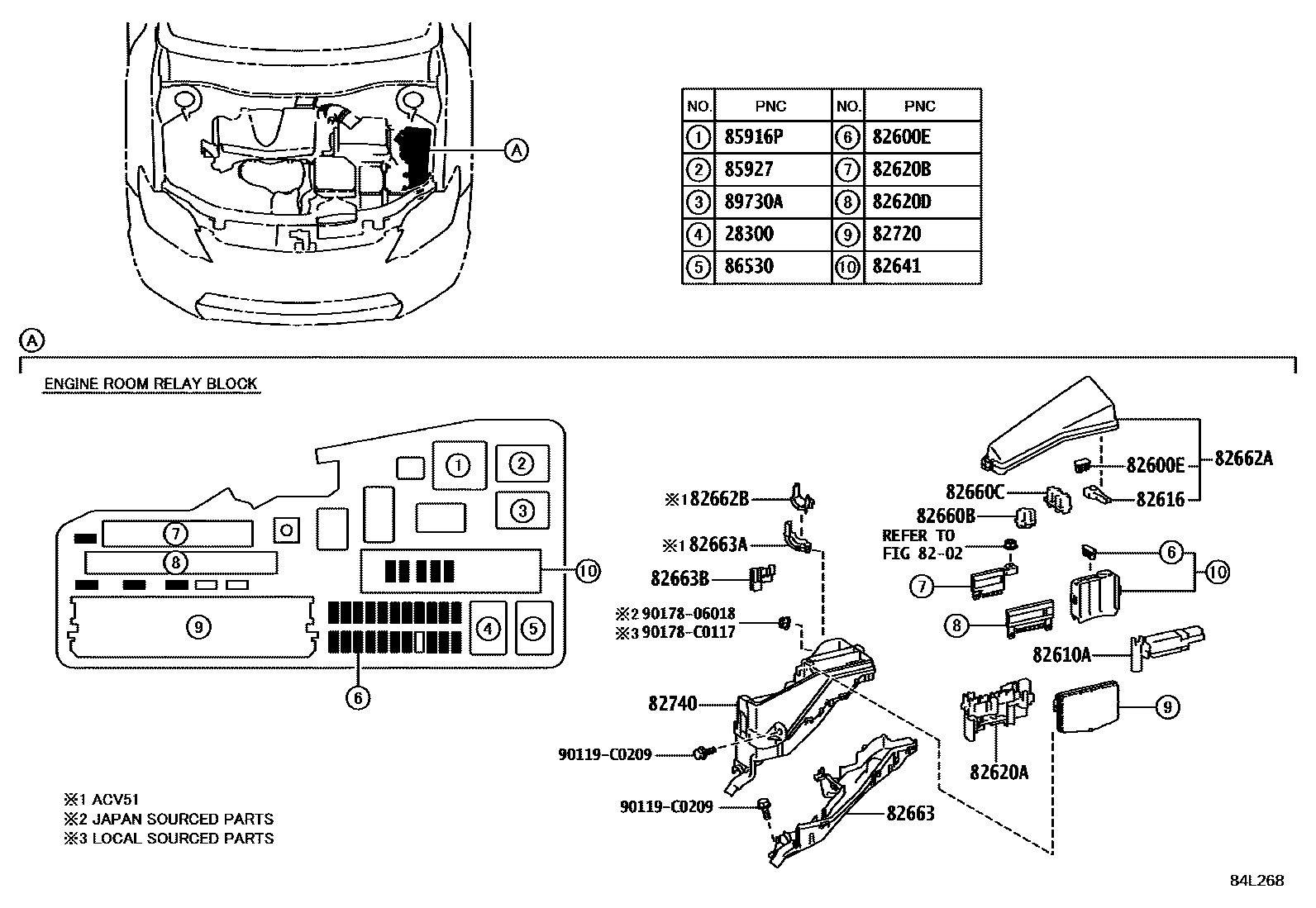

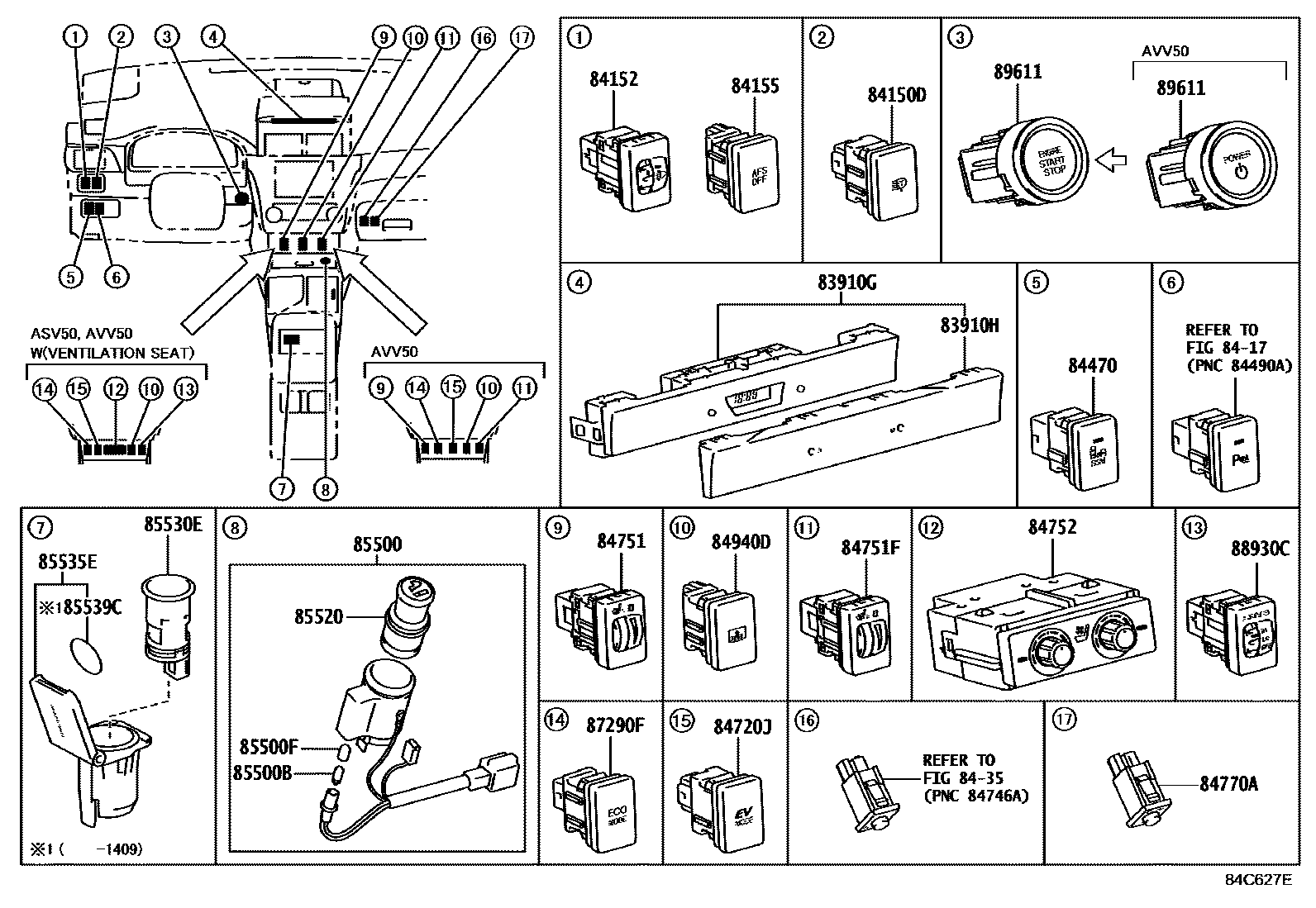

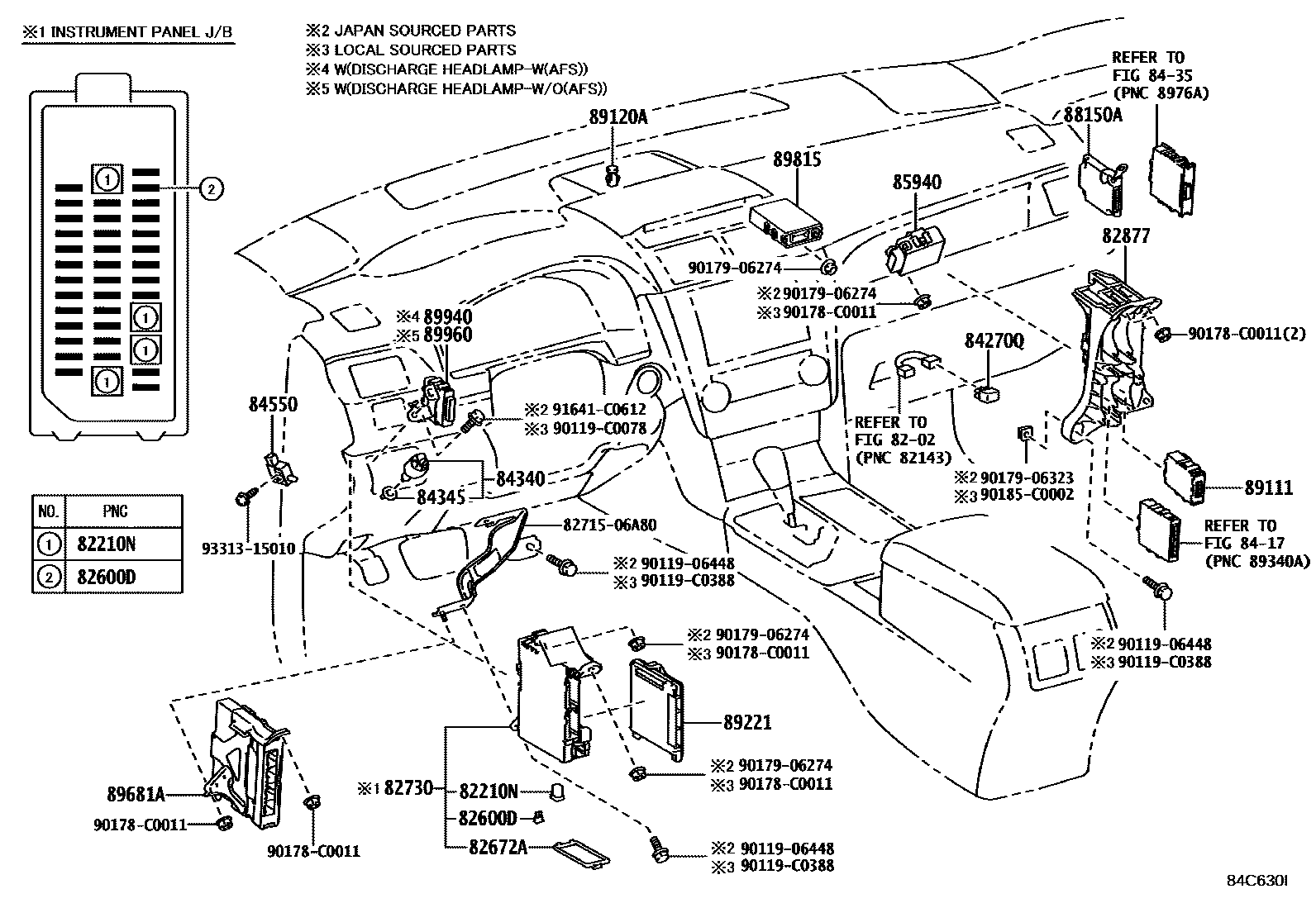

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 16 images and 128 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-T2004 |
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |

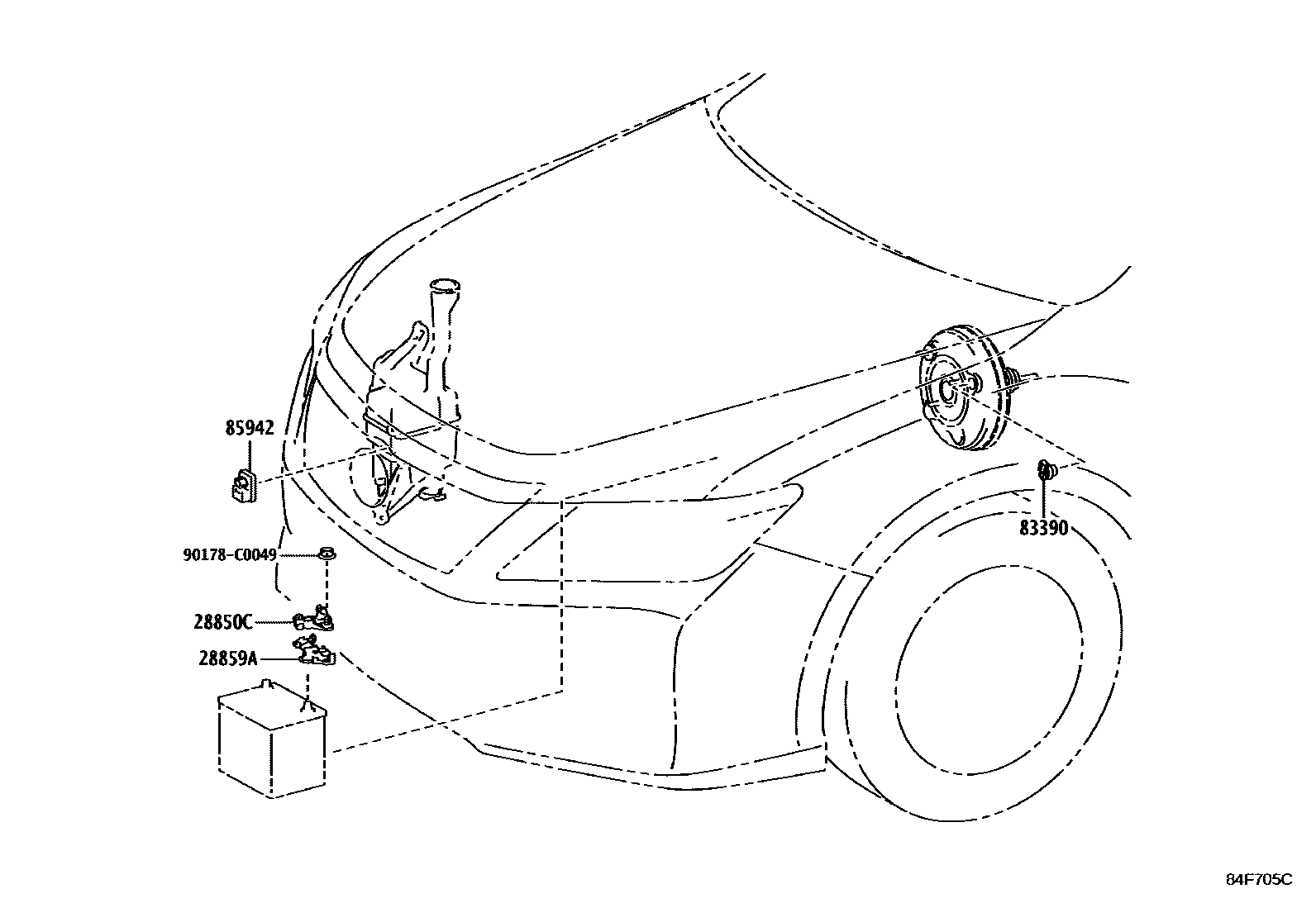

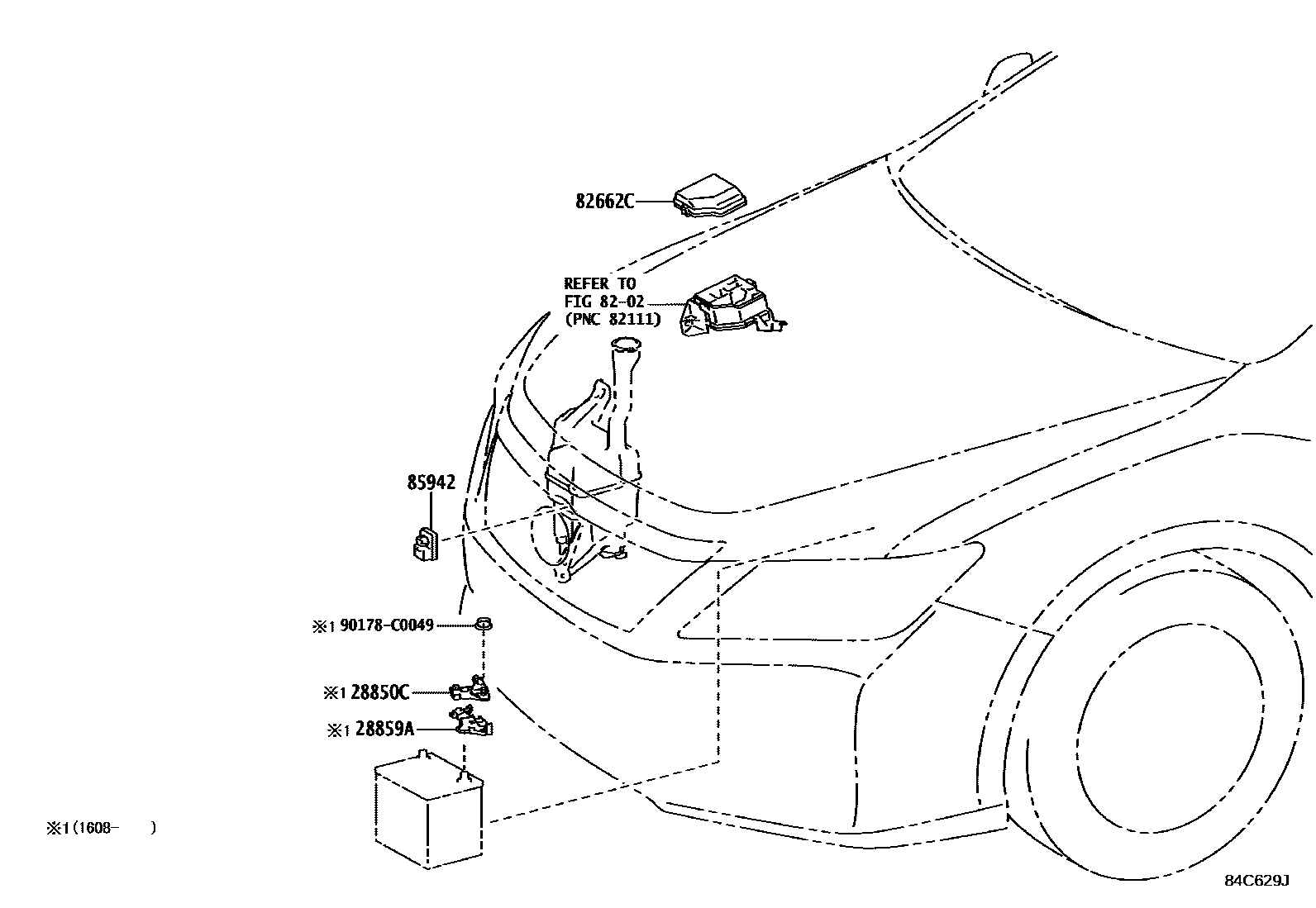

| 28850C | Battery status sensor assembly | 28850-0V020 |
| 28859A | Battery current sensor mount | 28859-0V010 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |

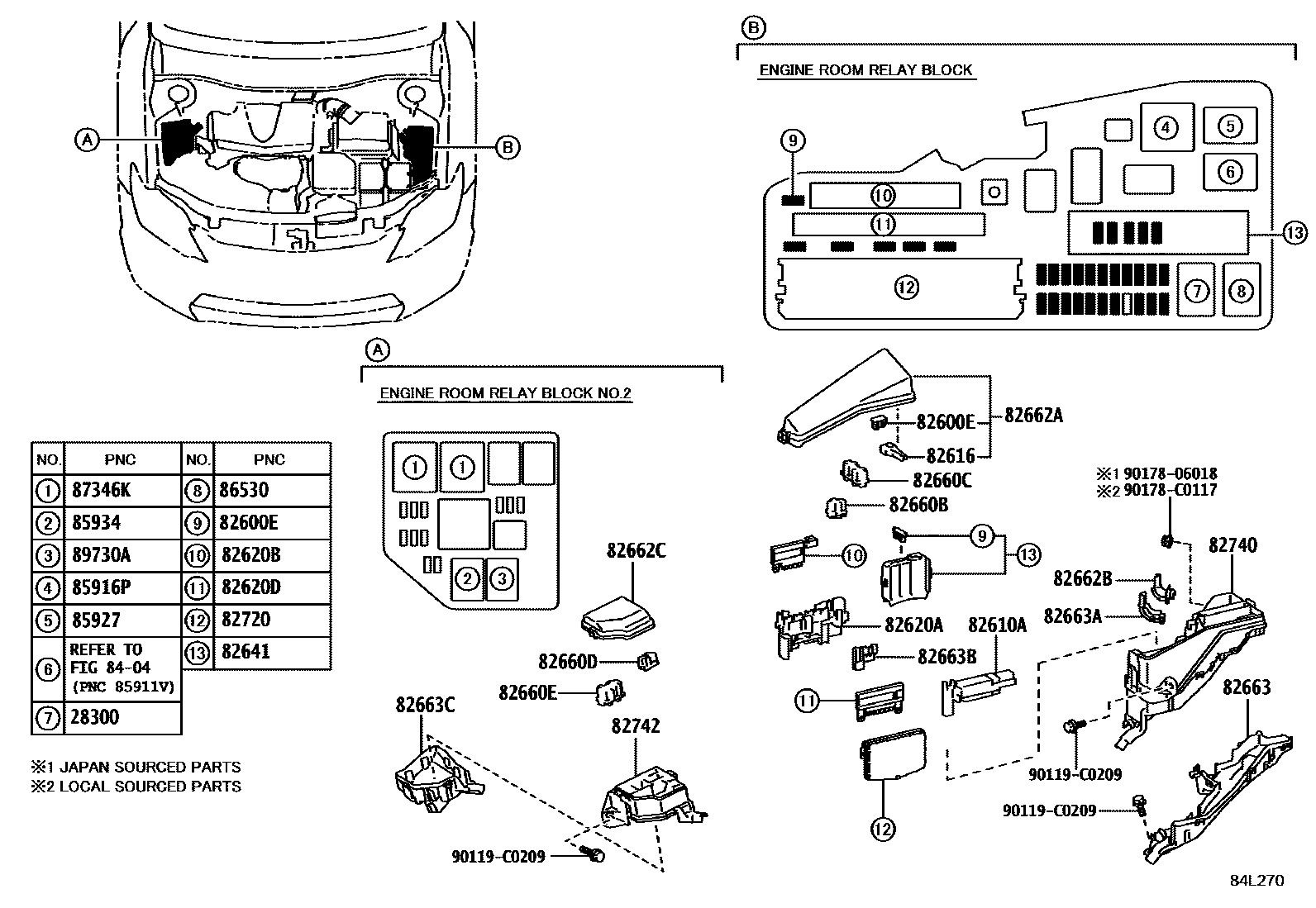

| 82610A | Fuse box assembly | 82610-33090 · 82610-33120 |
| 82610C | Fuse box assembly | 82610-33100 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33050 |
| 82620B | Fuse box assembly | 82620-33070 |
| 82620D | Fuse box assembly | 82620-33060 |
| 82620E | Fuse box assembly | 82620-44040 |
| 82641 | Integrated relay No. 1 | 82641-33150 · 82641-33170 · 82641-33180 |
| 82660B | Relay assembly | 82660-48030 |
| 82660C | Relay assembly | 82660-33030 · 82660-33040 |
| 82660D | Relay assembly | 82660-48020 |
| 82660E | Relay assembly | 82660-33040 |
| 82662A | No. 1 relay box upper cover | 82662-33310 · 82662-33330 · 82662-33340 · 82662-33350 · 82662-33370 · 82662-33390 · 82662-33500 · 82662-33510 · 82662-33520 · 82662-33730 · 82662-33740 · 82662-33B80 · 82662-33B90 · 82662-33C00 · 82662-33C10 |
| 82662B | No. 2 relay box upper cover | 82662-33420 · 82662-33450 |
| 82662C | No. 3 relay box upper cover | 82662-33290 · 82662-33300 · 82662-33320 · 82662-33B70 |
| 82663 | Relay box lower cover | 82663-33110 · 82663-33120 · 82663-33130 · 82663-33140 |
| 82663A | No. 2 relay box lower cover | 82663-33160 · 82663-33190 |
| 82663B | No. 3 relay box lower cover | 82663-33170 |
| 82663C | No. 4 relay box lower cover | 82663-33100 · 82663-33200 |
| 82672A | Junction box cover | 82672-33371 · 82672-33372 · 82672-33421 · 82672-33422 |
| 82720 | Engine room junction box assembly | 82720-33230 · 82720-33290 · 82720-33291 · 82720-33310 · 82720-33370 · 82720-33420 · 82720-33450 · 82720-33460 |
| 82730 | Instrument panel junction box assembly | 82730-33F52 · 82730-33F53 · 82730-33G72 · 82730-33G73 |
| 82740 | Engine room relay box assembly | 82740-33030 · 82740-33040 · 82740-33050 · 82740-33070 |
| 82742 | Engine room No. 2 relay box | 82742-33030 |
| 82877 | Right ECU integrated box | 82877-06020 |
| 83320 | Fuel gauge sensor assembly | 83320-06080 · 83320-33130 |
| 83390 | Vacuum warning switch assembly | 83390-28120 |
| 83520 | Oil pressure gauge sensor assembly | 83520-60060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83910G | clock assembly | 83910-06250 |
| 83910H | clock cover | 8391B-06070 |
| 84052 | Unlock warning switch assembly | 84052-06010 |
| 84140 | Headlight dimmer switch assembly | 84140-06590 · 84140-06591 |
| 84150D | Headlight washer switch assembly | 84150-06020 · 84150-06040 · 84150-06041 |
| 84152 | Headlight beam height adjustment switch | 84152-06010 · 84152-06030 · 84152-06031 |
| 84155 | Headlight rotary main switch | 84155-06040 · 84155-06050 · 84155-06051 |
| 84233 | Door control light switch assembly (for front door) | 84231-06020 · 84231-0R010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-06020 · 84231-0R010 |
| 84247A | Steering wheel decorative cover left switch | 84247-06170 · 84247-06270 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06370 · 84250-06380 · 84250-06450 · 84250-06520 · 84250-06530 · 84250-06540 · 84250-06680 · 84250-06690 · 84250-06700 · 84250-06710 · 84250-06720 |
| 84270Q | headlight relay | 90987-02027 |
| 84306 | Spiral cable sub-assembly | 84306-06180 · 84306-09020 · 84308-02020 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-06140 · 84307-0R060 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-49065 · 84340-69115 |
| 84345 | Brake light switch base adjuster | 84345-0R010 · 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-06040 |
| 84470 | Warning release switch assembly | 84470-06020 · 84470-06050 · 84470-06051 |
| 84470A | Economic operation cancel switch assembly | 84470-06090 |
| 84490D | IPA main switch assembly | 84490-06090 · 84490-06091 |
| 84523 | No. 1 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-33010 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-47010 |
| 84610F | Transmission shift switch assembly | 84610-22010 · 84610-22020 |
| 84650 | Windshield wiper switch assembly | 84652-06300 · 84652-06301 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-06290 · 84652-06291 |
| 84661C | Cooler control switch button | 84661-06020 · 84661-06030 · 84661-33030 · 84661-33040 · 84661-33060 |
| 84662 | Cooler control switch board | 84662-06010 · 84662-06020 · 84662-33030 · 84662-33040 |
| 84720J | Mode selection switch assembly | 84720-06050 · 84720-06080 · 84720-06081 |
| 84751 | Seat heater switch | 84751-06060 · 84751-06070 · 84751-06071 |
| 84751F | Seat heater switch | 84751-06080 · 84751-06081 · 84751-0G030 |
| 84752 | Relax seat switch | 84752-06010 · 84752-33010 |
| 84770A | Collision prediction system cancel switch assembly | 84770-06030 · 84770-06031 · 84770-50010 |

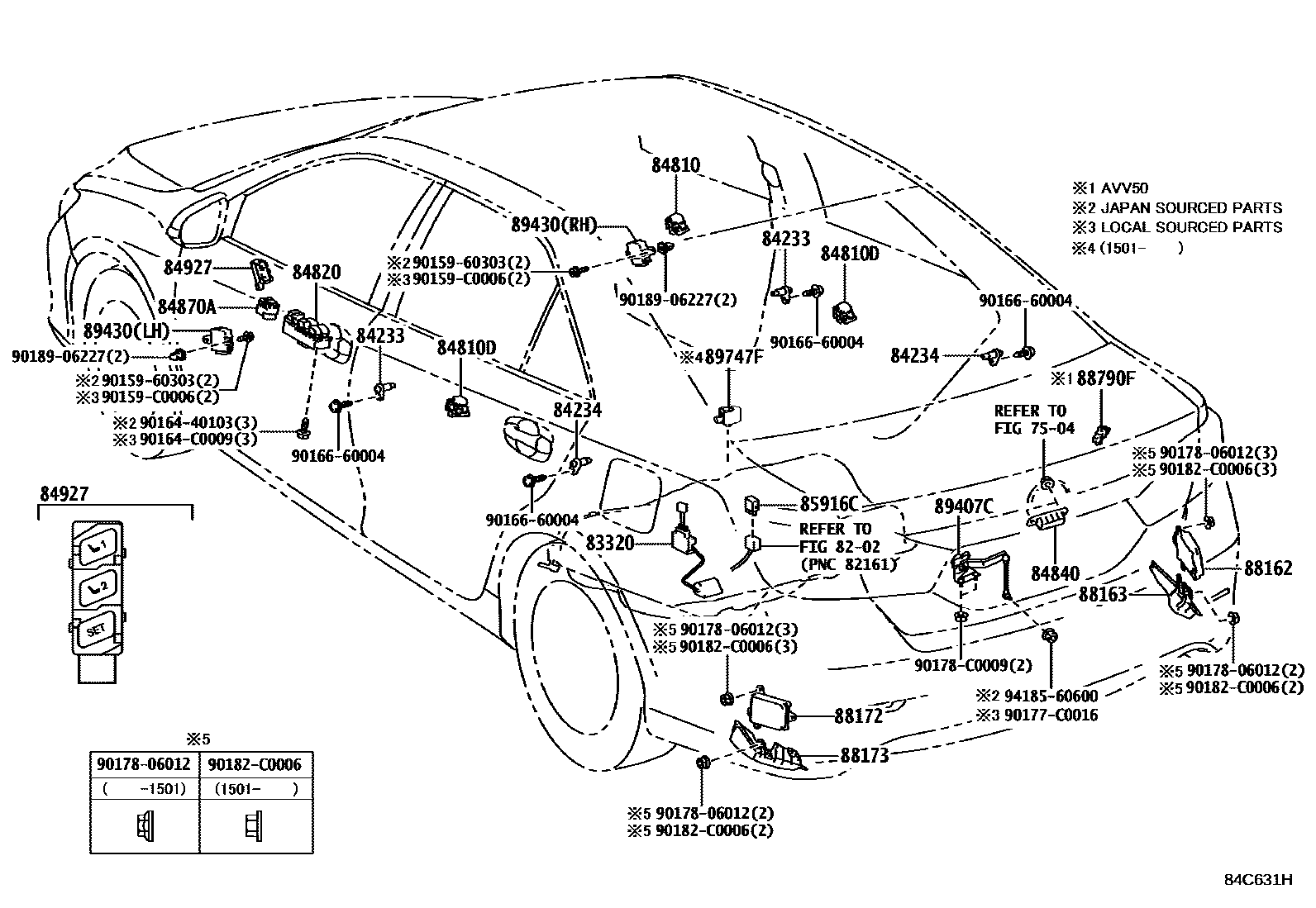

| 84810 | Electric window lift switch assembly | 84810-06060 |
| 84810D | Rear electric window lift switch assembly | 84810-06060 |
| 84820 | Electric window lift main switch assembly | 84820-02390 · 84820-06130 |
| 84840 | Trunk door opening switch assembly | 84840-06030 |
| 84870A | Exterior rearview mirror switch assembly | 84872-06030 · 84872-06060 |

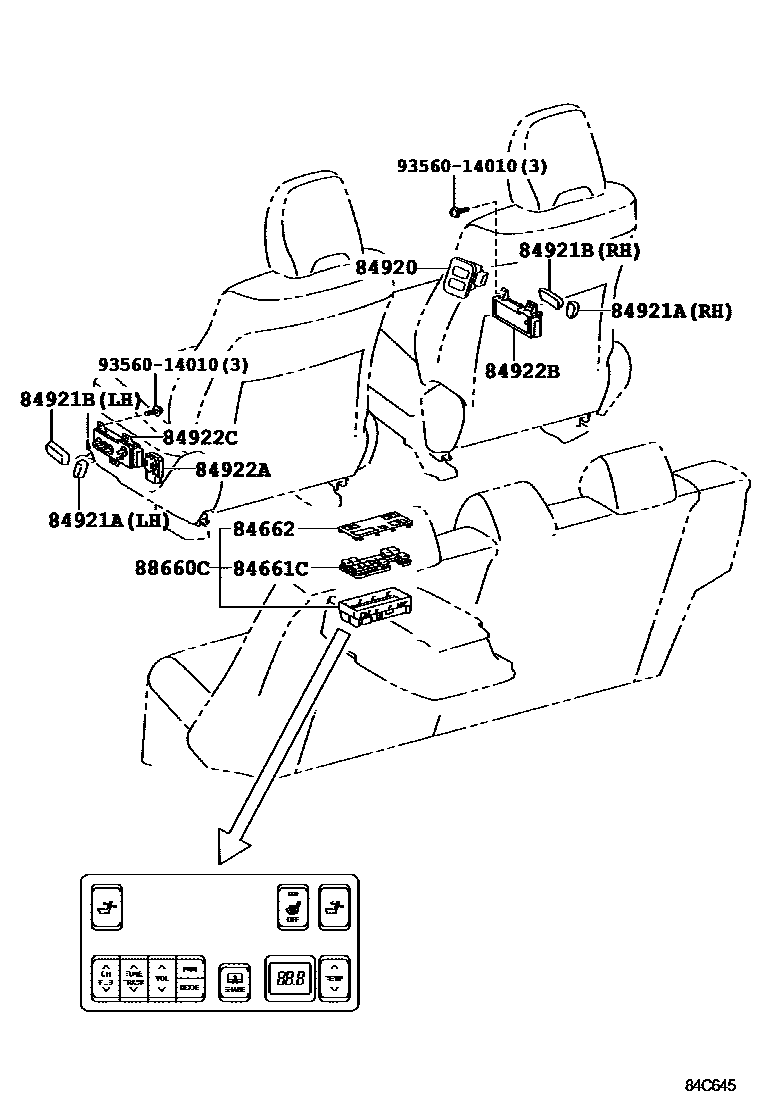

| 84922B | Front right electric seat switch | 84922-0P020 |
| 84922C | Front left electric seat switch | 84070-33120 · 84922-0P030 |
| 84927 | Seat memory switch | 84927-06010 |
| 84940D | Rear sunshade switch assembly | 84940-06040 · 84940-06050 · 84940-06051 |
| 84988L | VSC off switch | 84988-02060 · 84988-02061 |
| 85432 | Key interlock solenoid valve | 85432-06020 |
| 85500 | Cigarette lighter assembly | 85500-06030 · 85500-33060 |
| 85500B | Cigarette lighter bulb | 90011-01072 · 90981-11018 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530E | No. 3 power socket assembly | 85530-06040 |
| 85535E | No. 2 power outlet cover | 85535-06030 · 85535-06050 |
| 85539C | Power socket attention labels | 85539-48030 |
| 85916C | Reversing light relay | 90987-T2005 |
| 85916P | headlight relay | 90987-T2004 |
| 85924 | Ignition control relay | 90987-T2004 |
| 85927 | cooling fan relay | 90987-02025 · 90987-04004 · 90987-T2004 · 90987-T4001 |
| 85934 | Electromagnetic clutch relay | 90987-02027 · 90987-T2005 |
| 85940 | Windshield wiper relay assembly | 85940-33160 |
| 85942 | Headlight washer control relay | 85942-30040 · 85942-58010 |
| 86530 | Speaker relay assembly | 90987-02027 · 90987-T2005 |
| 87290F | ECO switch assembly | 87290-06050 · 87290-06070 · 87290-06071 |
| 87346K | PTC heater relay | 90987-02025 · 90987-T2004 |
| 88150A | Driving assistance ECU assembly | 88150-33020 · 88150-33080 · 88150-33140 |
| 88162 | Blind spot monitor right sensor | 88162-0W060 · 88162-0W220 · 88162-33060 |
| 88163 | Blind spot monitor right side cover | 88163-06010 |
| 88172 | Blind spot monitor left sensor | 88162-0W060 · 88162-0W220 · 88162-33060 |
| 88173 | Blind spot monitor left cover | 88173-06010 |
| 88660C | Cooler control switch assembly | 84660-06050 · 84660-06060 · 84660-33060 · 84660-33070 · 84660-33100 |
| 88790F | Thermistor assembly | 88790-22131 |
| 88930C | Air purifier switch assembly | 88930-06020 · 88930-06030 |
| 89111 | Network gateway ECU | 89111-33060 · 89111-33120 · 89111-33130 |
| 89120A | Automatic light control sensor | 89121-0E030 · 89121-50020 |
| 89221 | Multi-channel network body ECU | 89221-06180 · 89221-06200 · 89221-06240 · 89221-06250 · 89221-06330 |
| 89227 | Multi-channel network steering column tilt and telescopic control ECU | 89227-33020 |
| 89235A | Tilt-telescoping steering column switch | 89235-33010 |
| 89245B | steering sensor | 89245-09020 · 8924B-06020 · 8924B-0R010 |
| 89257 | Cooling fan ECU | 89257-30080 |
| 89407C | Rear height control sensor sub-assembly | 89407-06020 · 89407-41010 |
| 89429 | oil temperature sensor | 89429-12010 |
| 89430 | Exterior rearview mirror control ECU assembly | 89430-33130 · 89430-33140 |

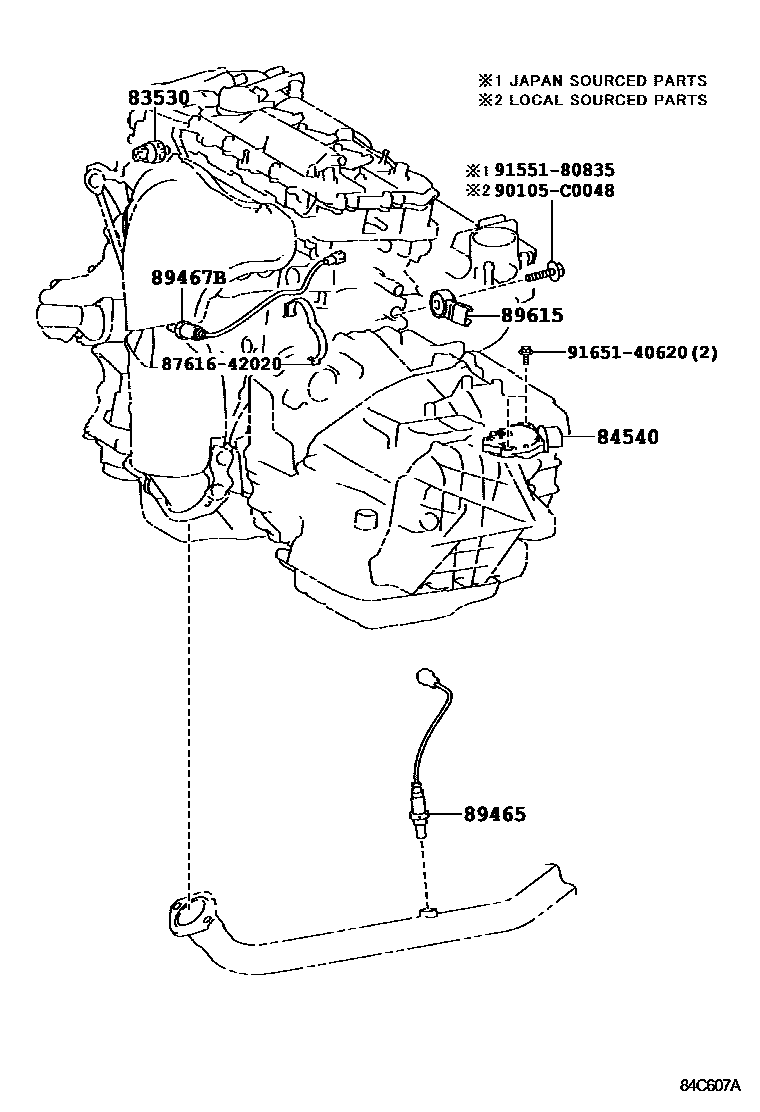

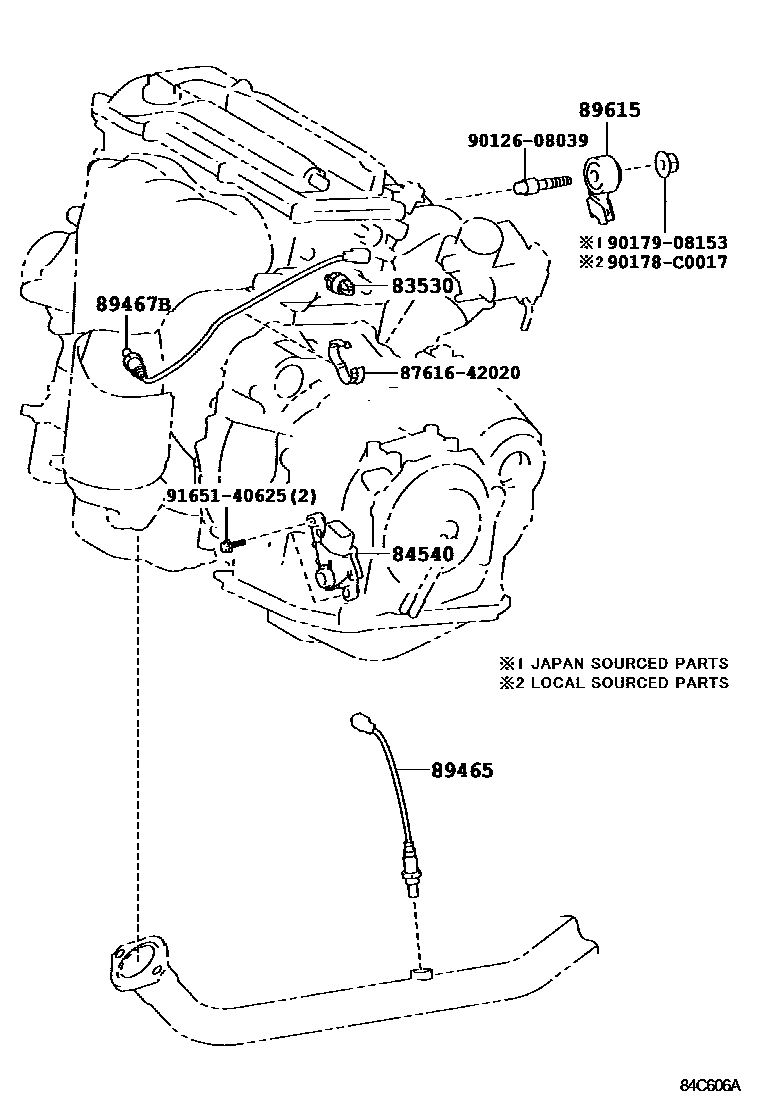

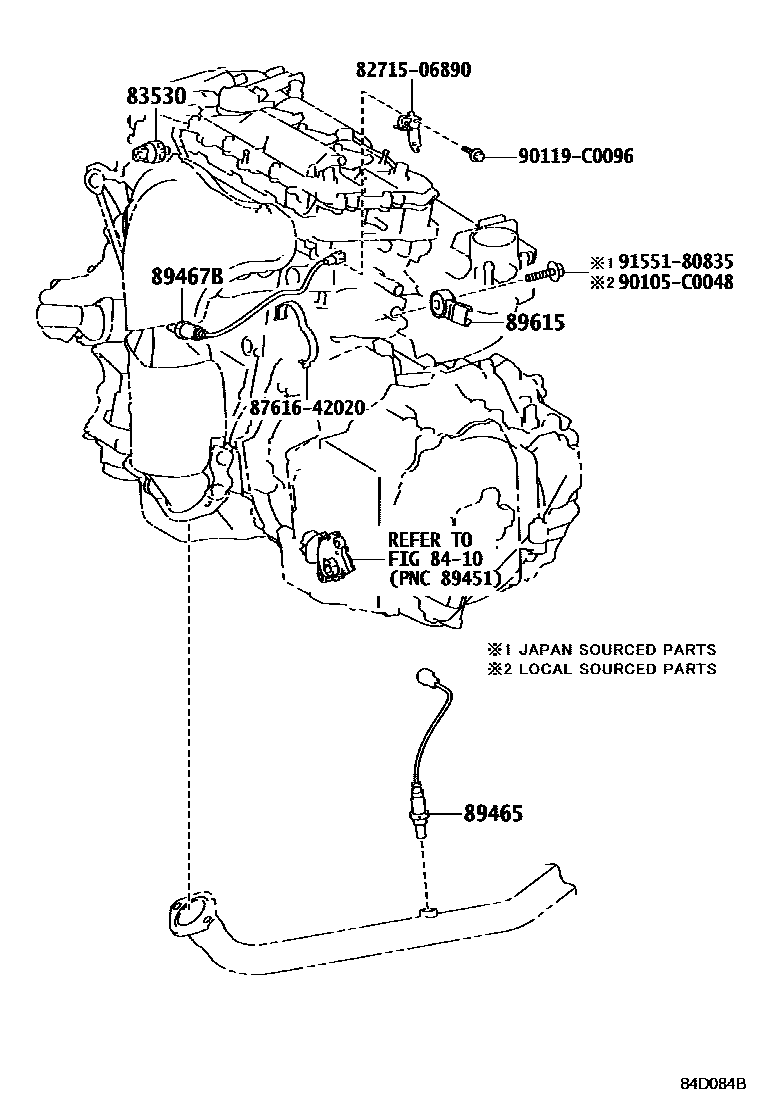

| 89465 | oxygen sensor | 89465-06240 · 89465-06270 · 89465-06300 · 89465-06310 · 89465-06340 · 89465-33470 |
| 89467B | air fuel ratio sensor | 89467-06150 · 89467-06170 · 89467-06220 |
| 89491 | Engine oil level sensor | 89491-33040 |
| 89611 | One-button start switch | 89611-02140 · 89611-02141 · 89611-02142 · 89611-02160 · 89611-02161 · 89611-02162 · 89611-06080 · 89611-06081 · 89611-06090 · 89611-06091 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-33380 · 89650-33381 · 89650-33391 · 89650-33560 · 89650-33561 · 89650-33570 |
| 89681A | Power management control ECU | 89690-33100 · 89690-33180 · 89690-33270 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89815 | Seat belt control ECU | 89810-33050 |
| 89940 | Headlight rotating ECU assembly | 89940-33270 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-33440 · 89960-33580 |
| G9020E | Hybrid water pump relay | 90987-02027 · 90987-T2005 |
