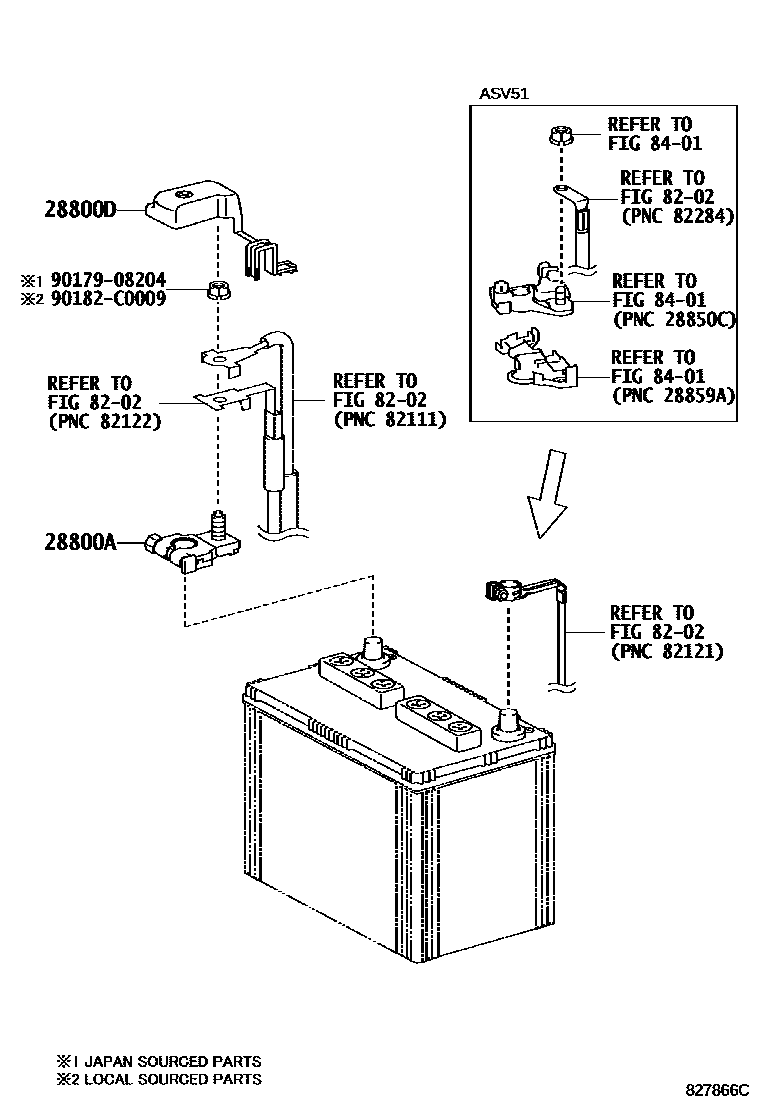

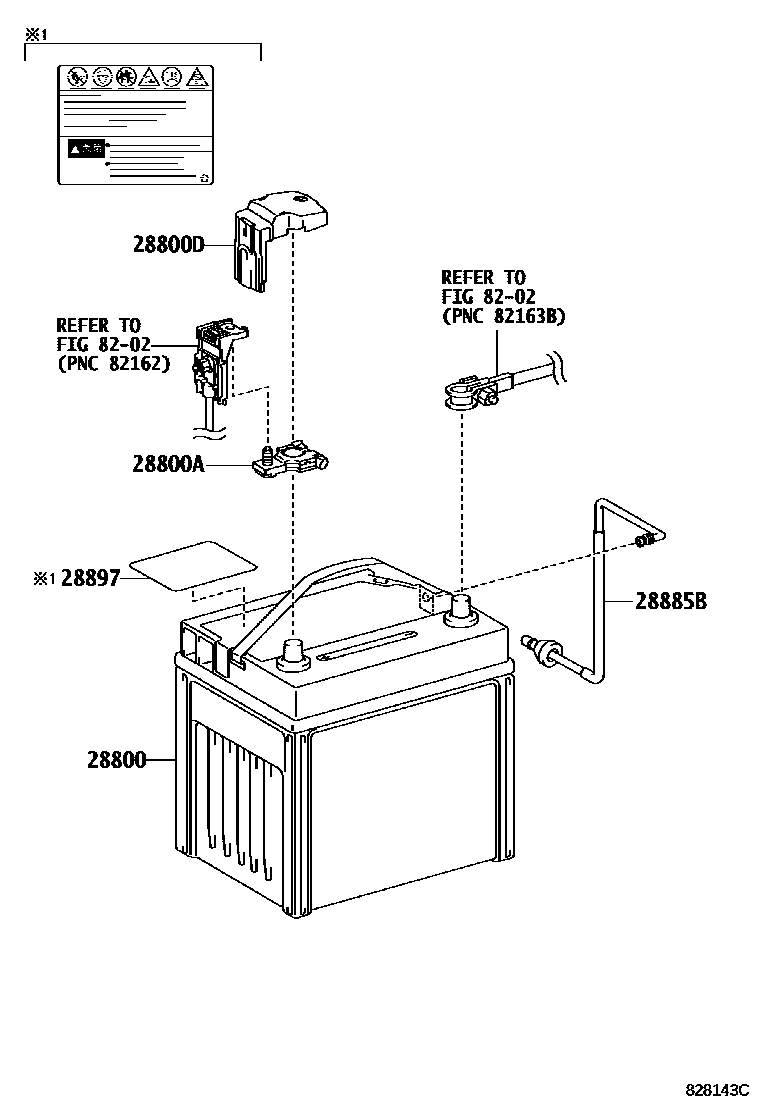

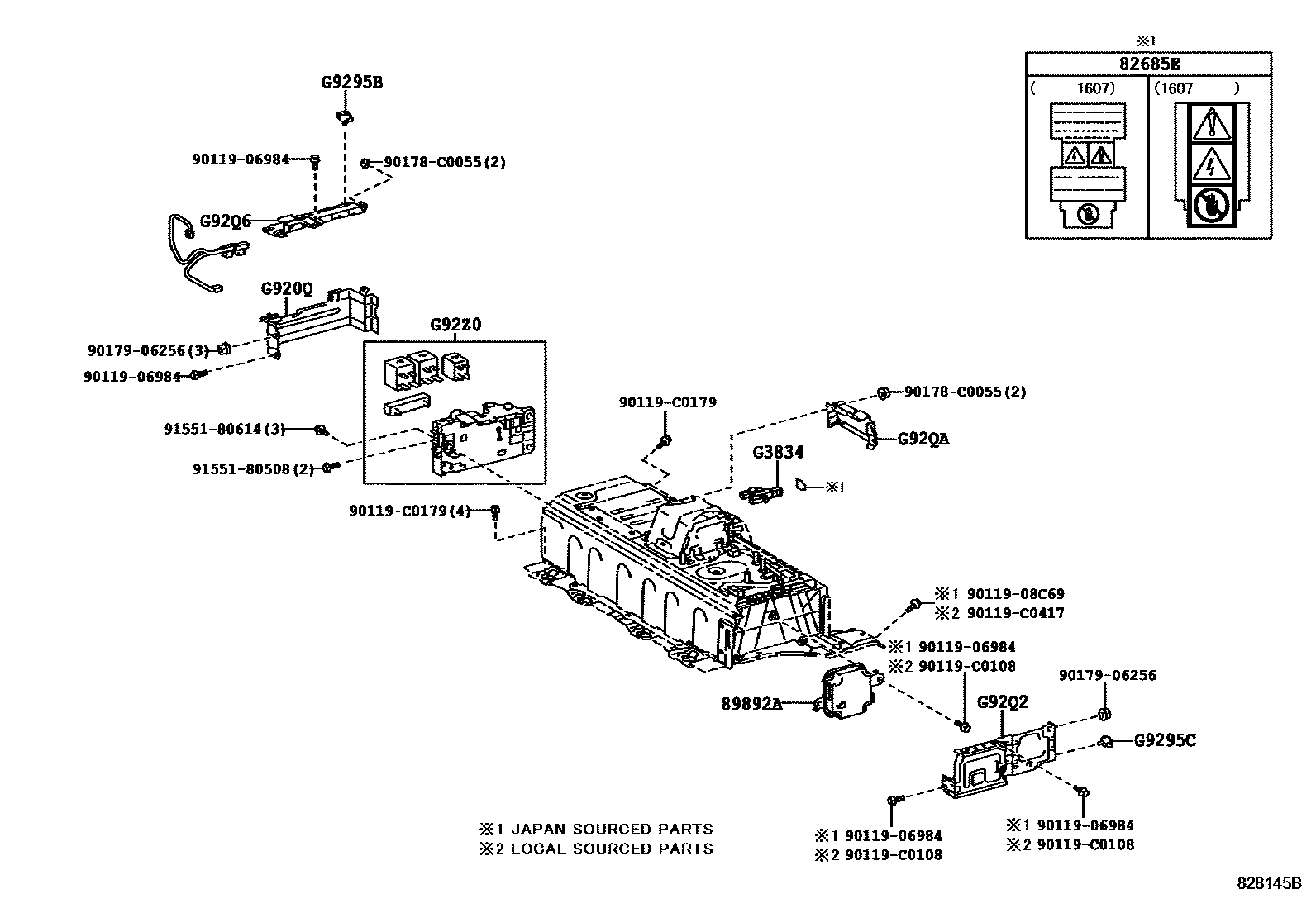

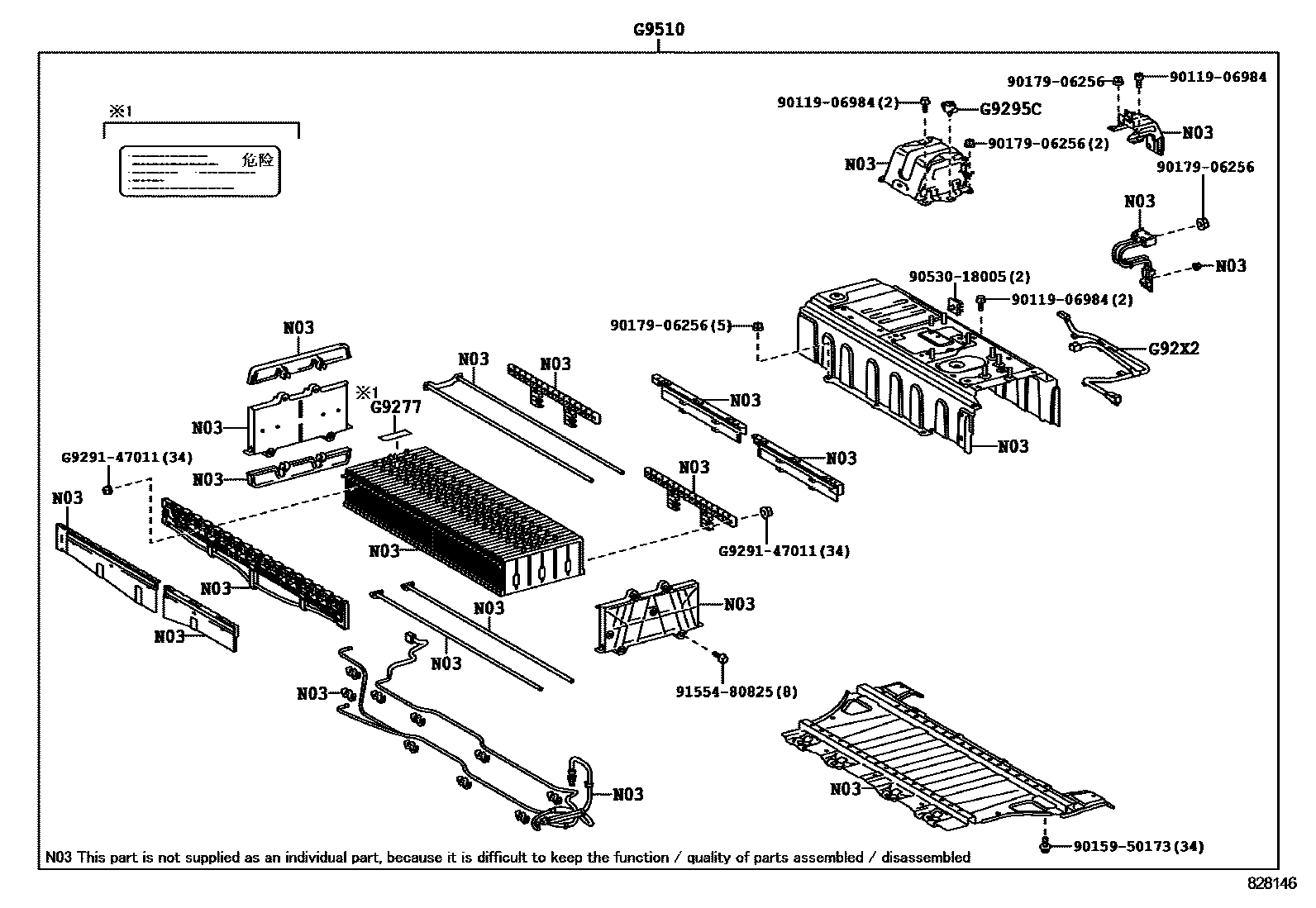

Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-28100 |
| 28800A | battery positive terminal | 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-33350 · 82821-47110 |
| 28885B | battery hose | 28885-0V030 · 28885-36011 |
| 28897 | Battery warning nameplate | 28897-21010 |
| 82685E | Maintenance plug warning nameplate | 82685-50050 · 82685-76020 |
| 89892A | battery voltage sensor | 89892-33020 |
| G3834 | Service plug handle | G3834-48010 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-33010 |
| G9230 | Battery cooling blower assembly | G9230-33040 |
| G9277 | AA battery warning label | G9277-47020 |
| G9295B | Battery cover lock | G9295-30020 |
| G9295C | Battery cover No. 2 lock | G9295-30020 |
| G92D1 | No. 1 HV battery air inlet | G92D1-06080 · G92D1-06081 |
| G92D2 | No. 2 HV battery air inlet | G92D2-06080 |
| G92DH | No. 1 HV battery air intake filter | G92DH-33040 |
| G92M8 | HV battery No. 2 upper bracket bracket | G92M8-33010 |
| G92M9 | HV battery No. 3 upper bracket bracket | G92M9-33010 |
| G92N4 | HV battery cover No. 2 bracket | G92N4-33010 |
| G92Q2 | HV battery No. 2 shielding plate | G92Q2-33010 |
| G92Q6 | HV battery No. 4 shielding plate | G92Q6-33010 |
| G92QA | HV battery No. 8 shielding plate | G92QA-33010 |
| G92X2 | HV battery pack wiring harness No. 2 | G92X2-33010 |
| G92Z0 | HV battery junction box assembly | G92Z0-33020 · G92Z0-33030 |
| G9510 | HV power supply battery assembly | G9510-33060 |
