Toyota CAMRY 车内灯 — Figure 8121

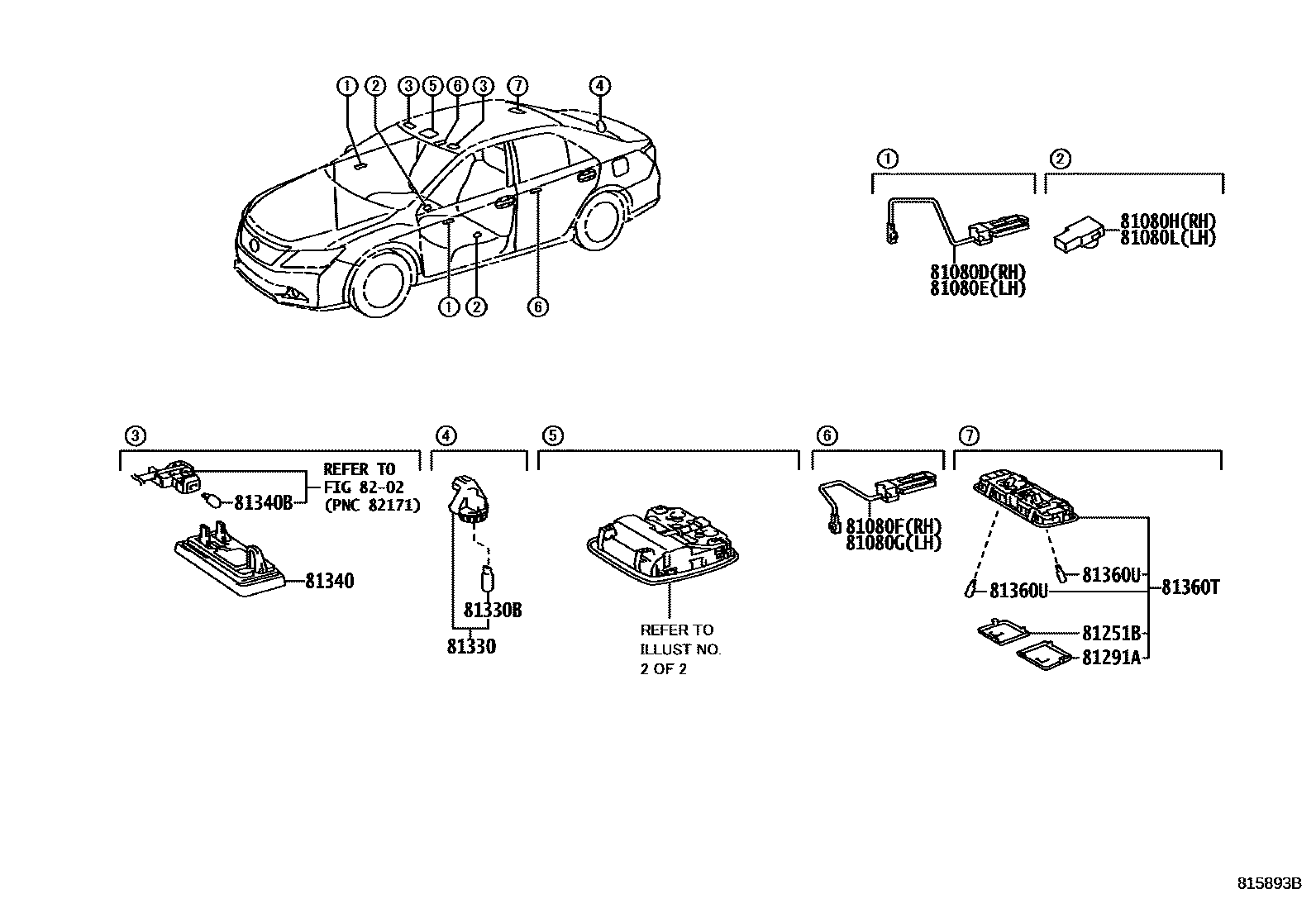

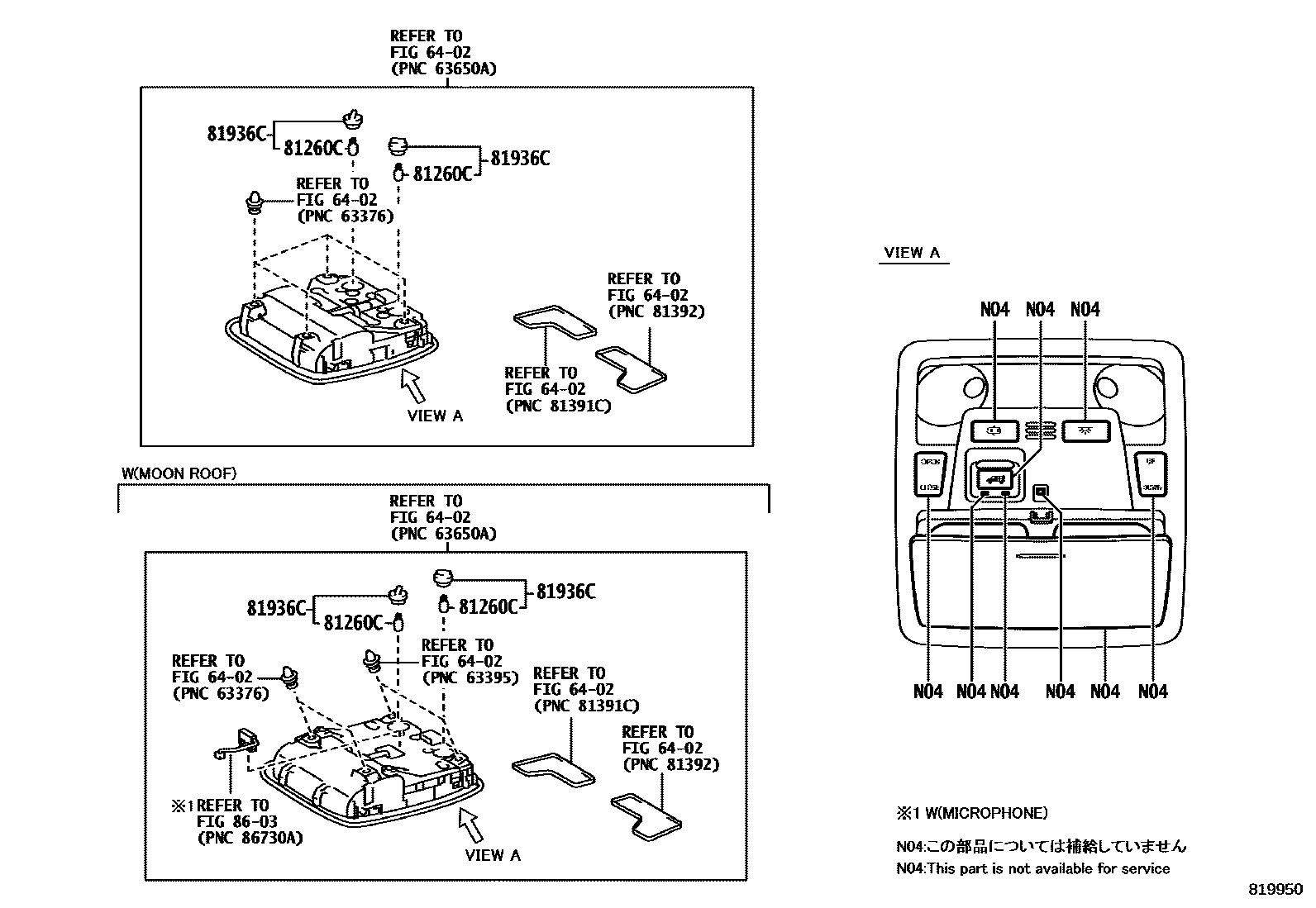

Toyota CAMRY EPC diagram 8121, 车内灯, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080D | Right front door inner handle lighting assembly | 81080-06160 |
| 81080E | Left front door inner handle lighting assembly | 81080-06170 |
| 81080F | Right rear door inner handle lighting assembly | 81080-06190 |
| 81080G | Left rear door inner handle lighting assembly | 81080-06200 |
| 81080H | Right No. 1 interior lighting assembly | 81080-42010 |
| 81080L | No. 1 interior lighting assembly on the left | 81080-42010 |
| 81251B | Right rear interior light cover | 81393-06030 |
| 81260C | Light bulb (for reading lamp) | 99132-12050 |
| 81291A | Left rear interior light cover | 81394-06030 |
| 81330 | No. 1 trunk light assembly | 81330-0D010 · 81330-12020 |
| 81330B | trunk light bulb | 90981-11020 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
| 81360U | spotlight light bulb | 90981-11062 |
| 81936C | Bulb assembly | 81936-28010 |
