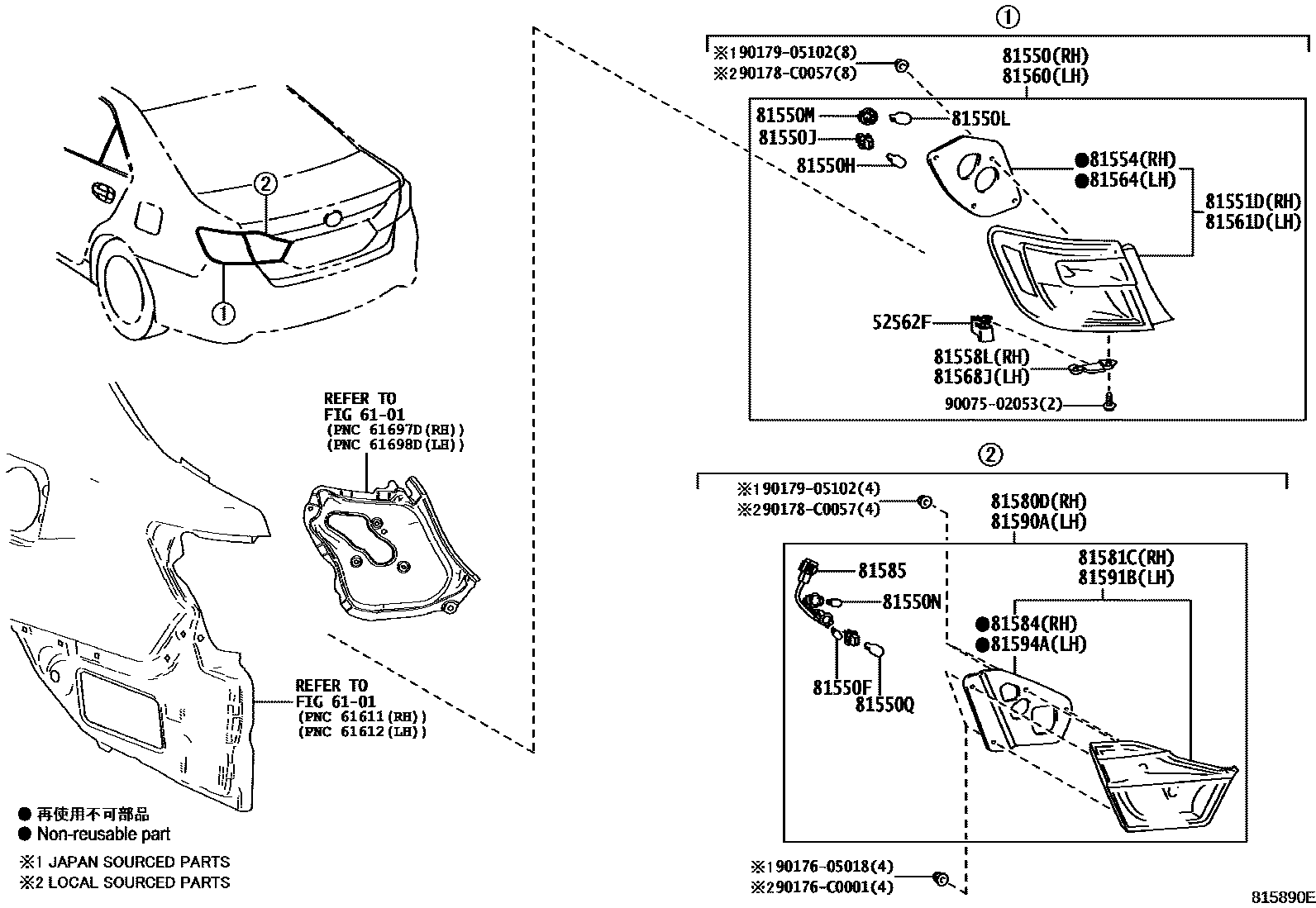

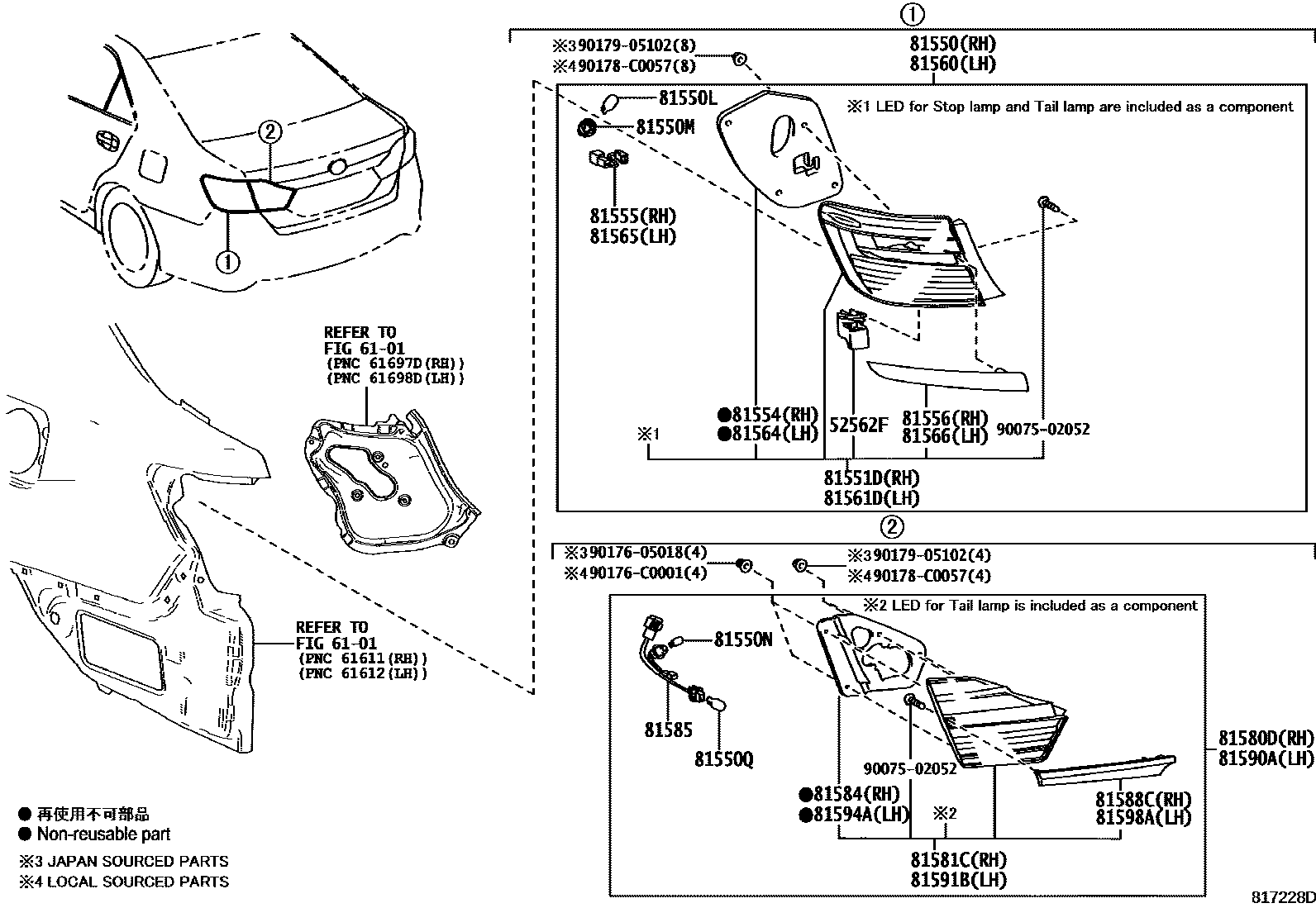

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562F | Rear bumper upper side fixing bracket | 52562-06060 |
| 81550 | Right rear combination light assembly | 81550-06500 · 81550-06660 |
| 81550F | tail light bulb | 99132-12050 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550J | Tail and brake light holders | 90075-60002 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60026 · 90075-60088 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13043 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-06500 · 81551-06660 |
| 81554 | Right rear combination lamp body gasket | 81554-06500 · 81554-06660 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-06660 |
| 81556 | Right rear combination light frame | 81556-06661 |
| 81558L | Right rear combination lamp protective cover | 81558-06500 |
| 81560 | Left rear combination light assembly | 81560-06500 · 81560-06660 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-06500 · 81561-06660 |
| 81564 | Left rear combination lamp body gasket | 81554-06500 · 81564-06500 · 81564-06660 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-06660 |
| 81566 | Left rear combination light frame | 81566-06661 |
| 81568J | Left rear combination lamp protective cover | 81568-06500 |
| 81580D | Right rear light assembly | 81580-06420 · 81580-06550 |
| 81581C | Right rear light lampshade and lamp body | 81581-06420 · 81581-06550 |
| 81584 | Right rear light seal | 81584-06420 · 81584-06550 |
| 81585 | Rear lamp holder and wiring harness | 81585-06420 · 81585-06550 |
| 81588C | Right rear light frame | 81588-06550 |
| 81590A | Left rear light assembly | 81590-06420 · 81590-06550 |
| 81591B | Left rear light shade and body | 81591-06420 · 81591-06550 |
| 81594A | Left rear light gasket | 81584-06420 · 81594-06420 · 81594-06550 |
| 81598A | Left rear light frame | 81598-06550 |
