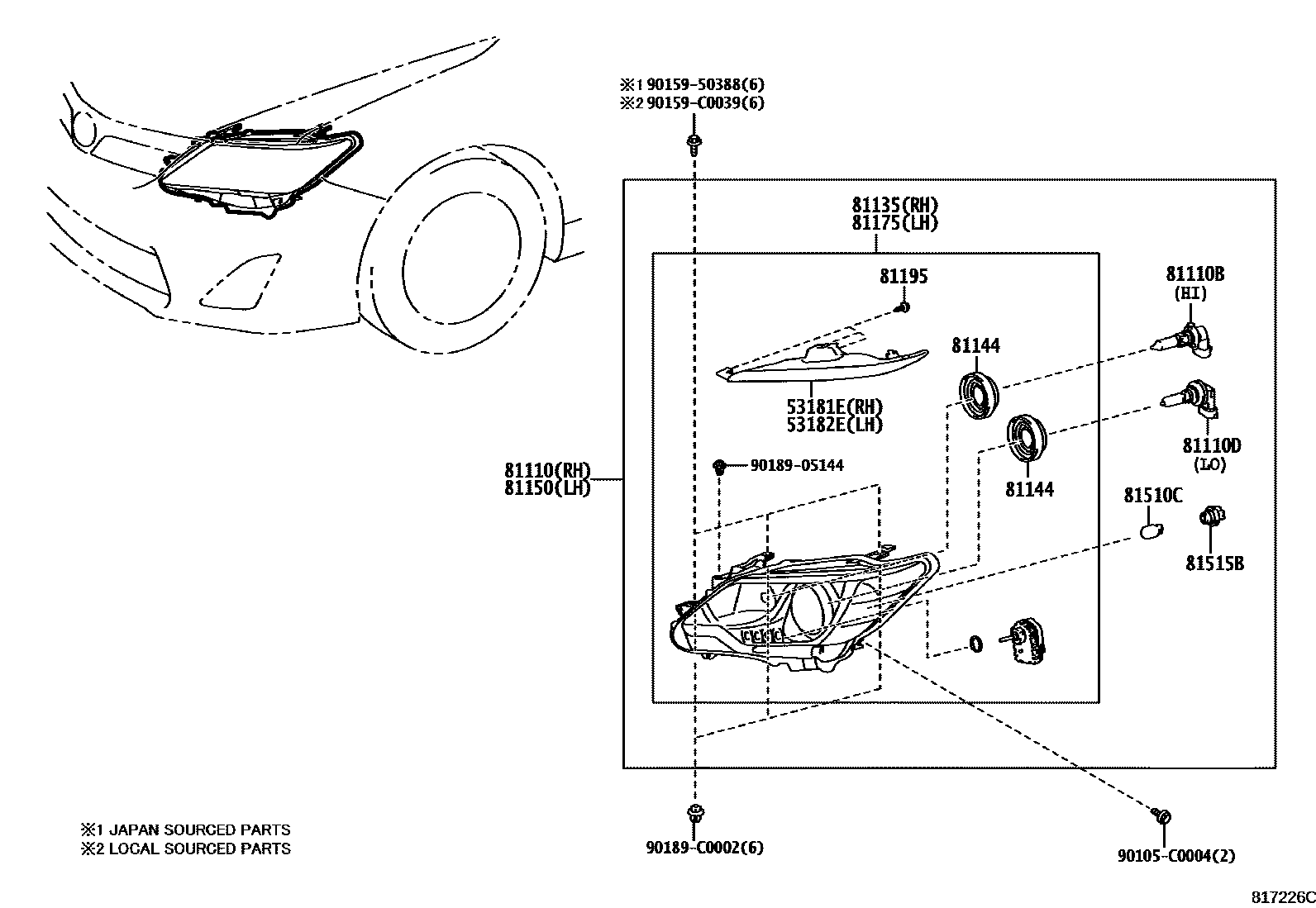

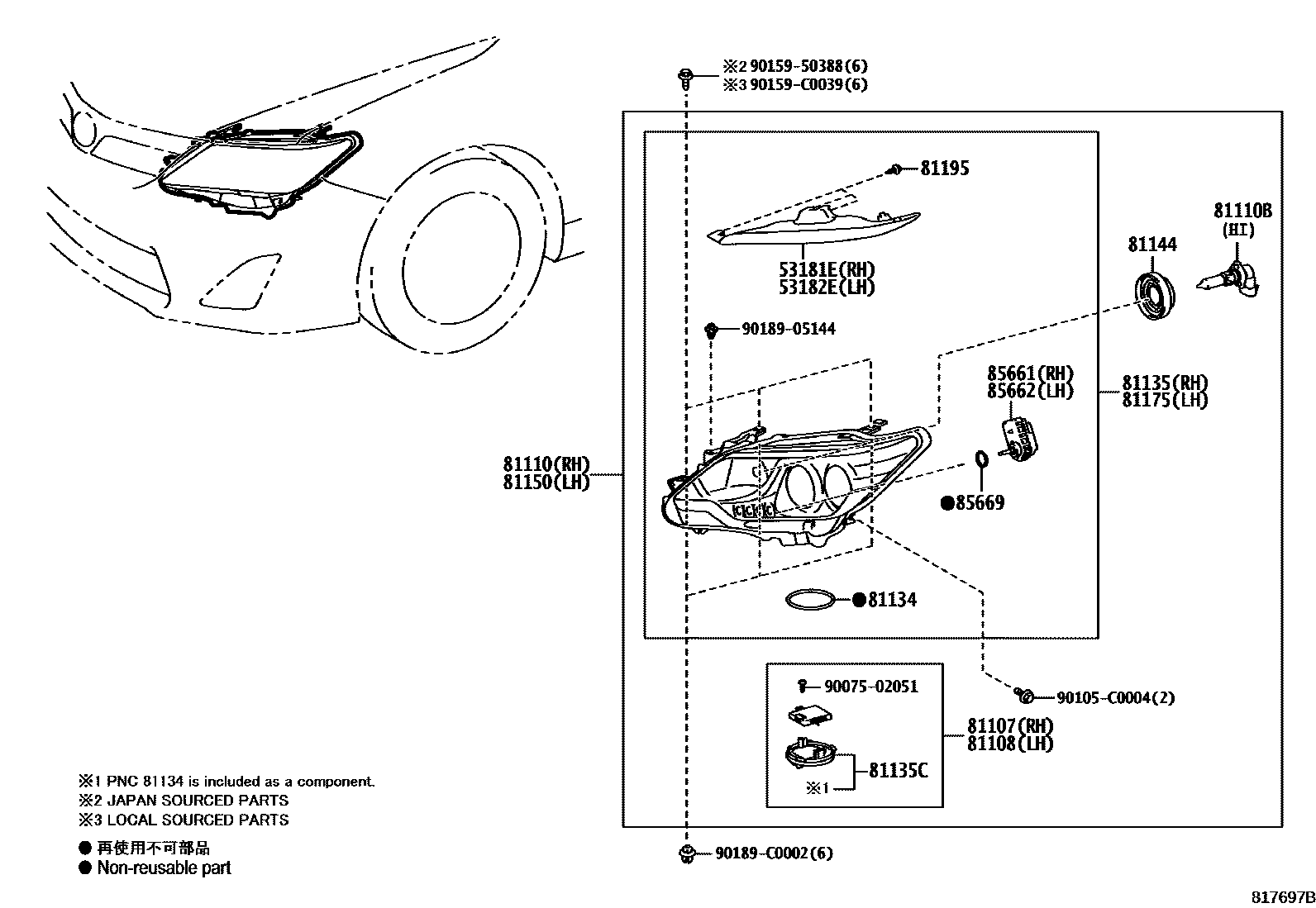

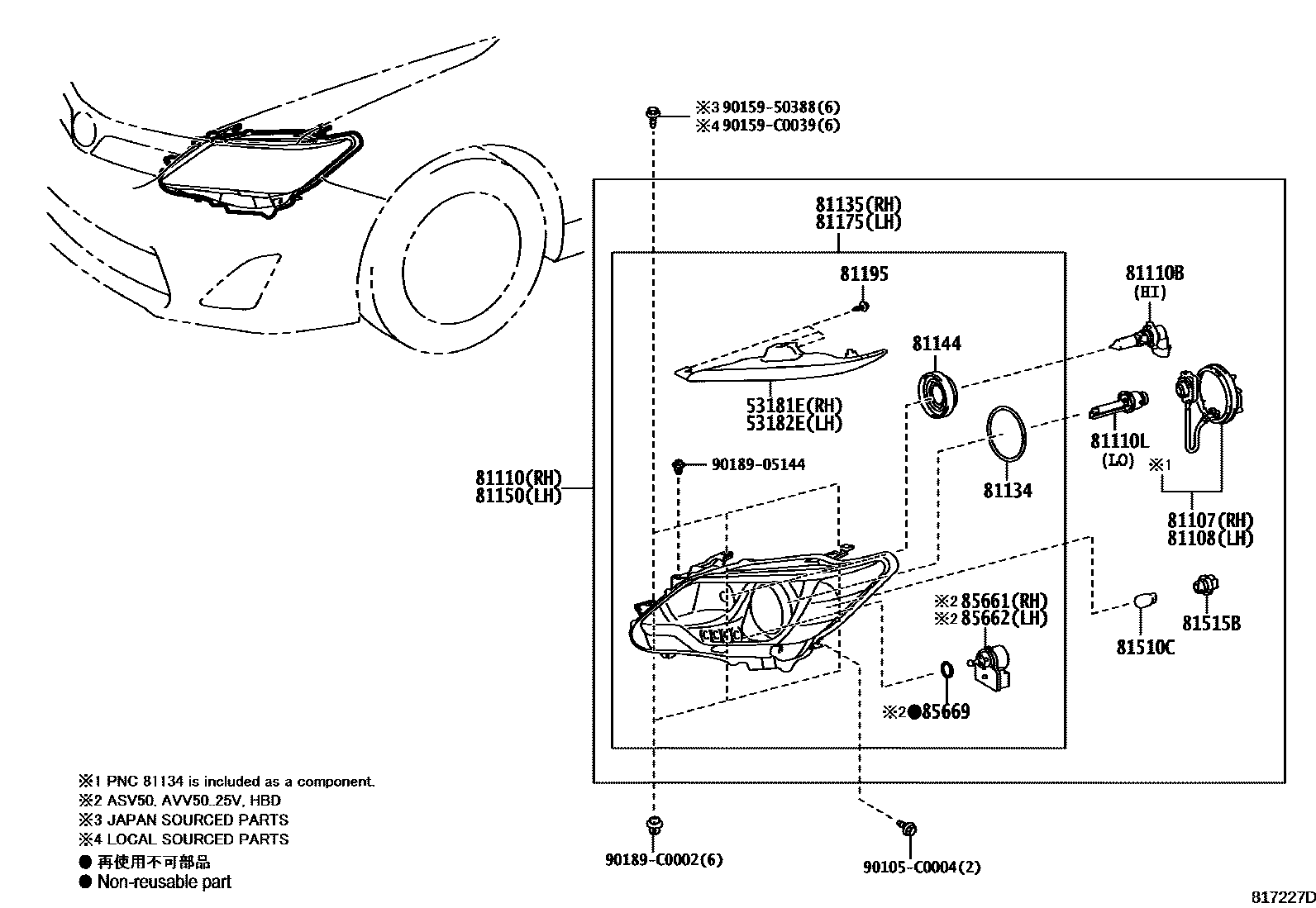

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53181E | Right headlight cover | 53181-06010 · 53181-33010 |
| 53182E | Left headlight cover | 53182-06010 · 53182-33010 |
| 81107 | Right headlight control ECU sub-assembly | 81107-06A10 · 81107-60G20 |
| 81108 | Left headlight control ECU sub-assembly | 81107-06A10 · 81107-60G20 |
| 81110 | Right headlight assembly | 81110-06A00 · 81110-06A01 · 81110-06A10 · 81110-06A20 · 81110-06D10 · 81110-06D20 · 81110-06D30 · 81110-33F00 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 |
| 81110L | Discharge headlight bulb | 90981-20024 |
| 81134 | headlight gasket | 90075-23002 |
| 81135 | Right headlight assembly assembly | 81130-06A00 · 81130-06D10 · 81145-06A10 · 81145-06A20 · 81145-06D20 · 81145-06D30 · 81145-33F00 |
| 81135C | No. 1 headlight rear cover | 81135-60G20 |
| 81144 | No. 1 headlight cover | 90075-65006 |
| 81150 | Left headlight assembly | 81150-06A00 · 81150-06A10 · 81150-06A20 · 81150-06D10 · 81150-06D20 · 81150-06D30 · 81150-33F00 |
| 81175 | Left headlight assembly assembly | 81170-06A00 · 81170-06D10 · 81185-06A10 · 81185-06A20 · 81185-06D20 · 81185-06D30 · 81185-33F00 |
| 81195 | headlight screw | 90075-02063 · 90075-02418 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90069-81069 · 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90069-81081 · 90075-60077 |
| 85661 | Right headlight beam height adjustment motor | 85661-12020 · 85661-28011 |
| 85662 | Left headlight beam height adjustment motor | 85661-12020 · 85691-28011 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
