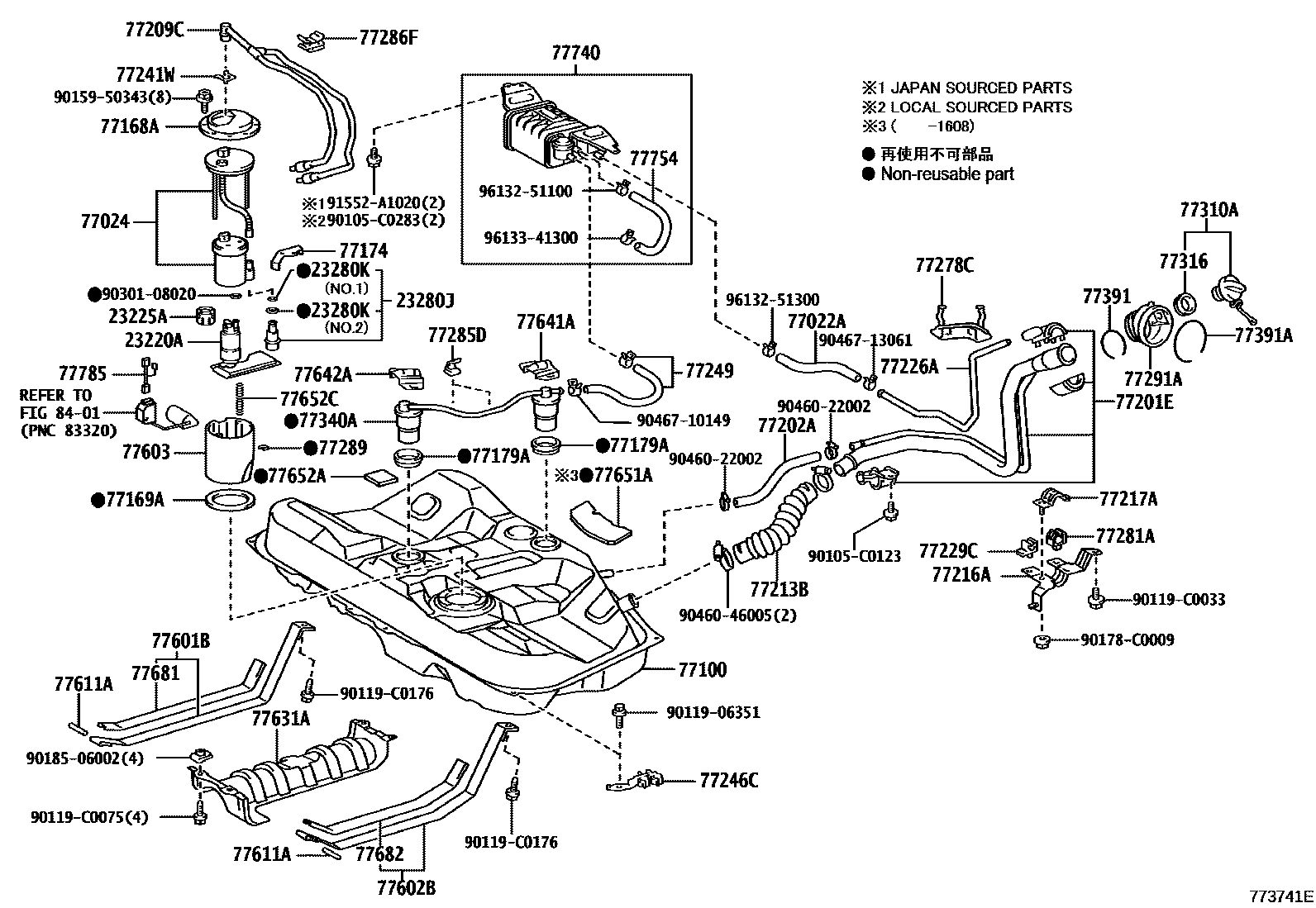

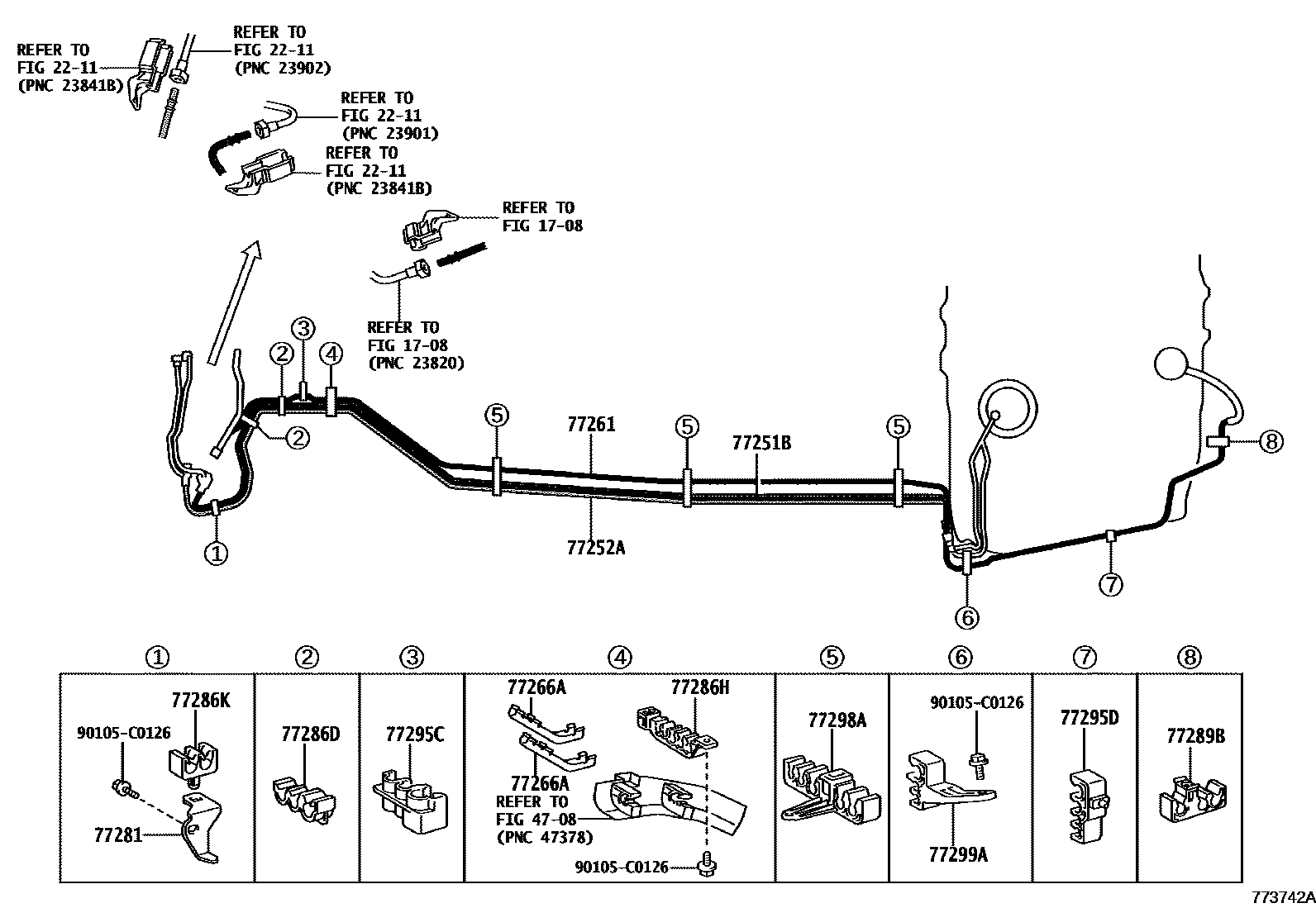

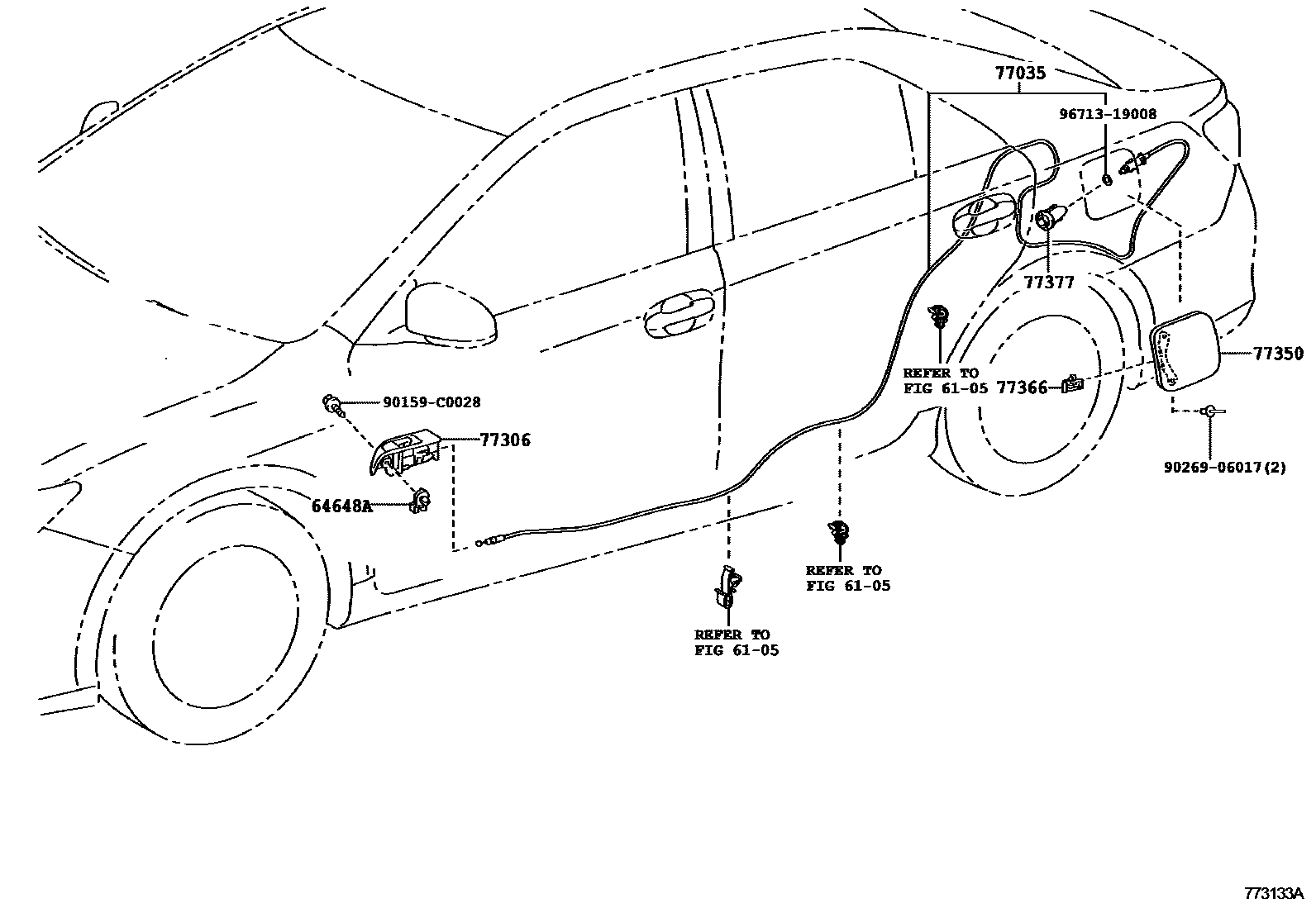

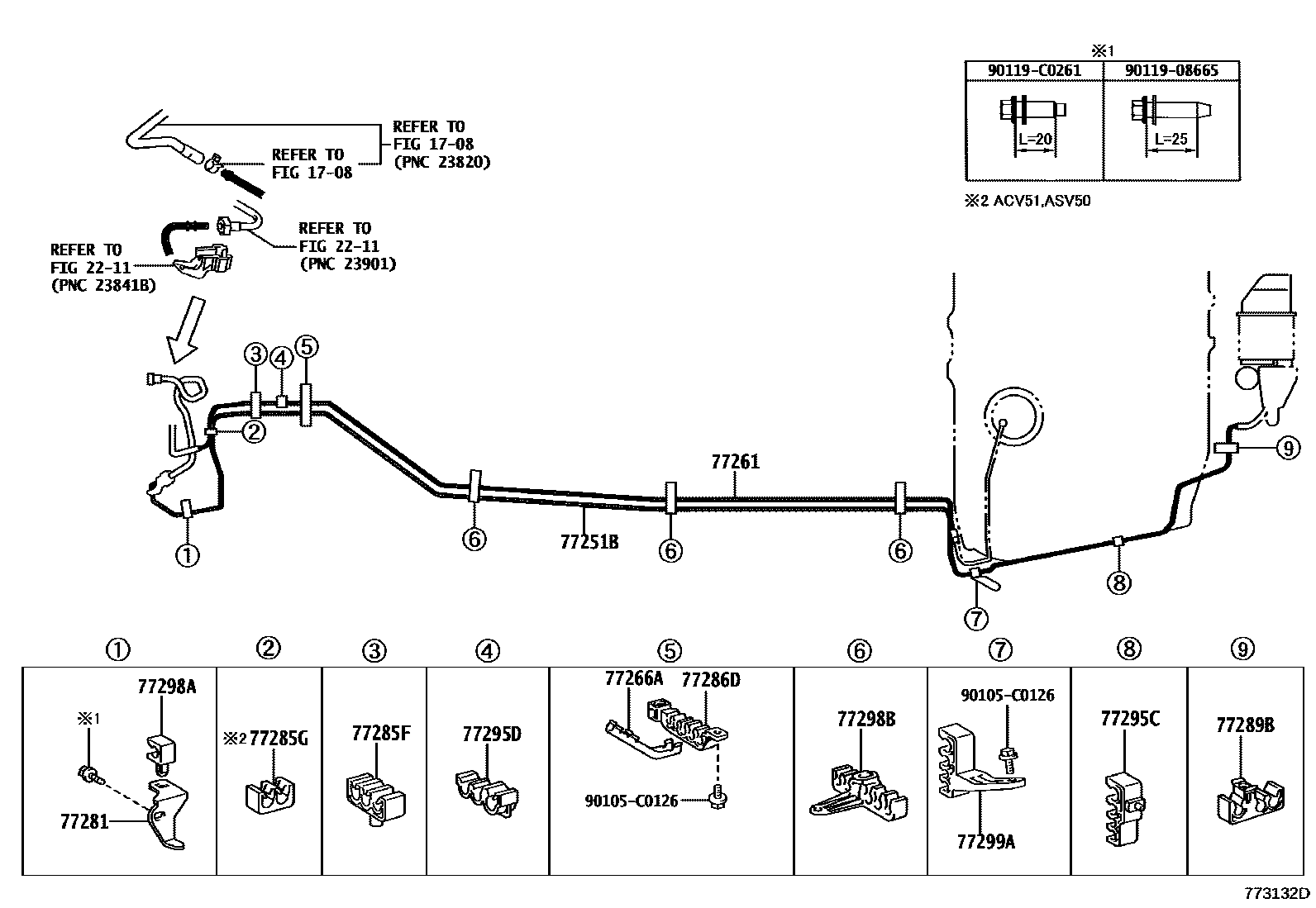

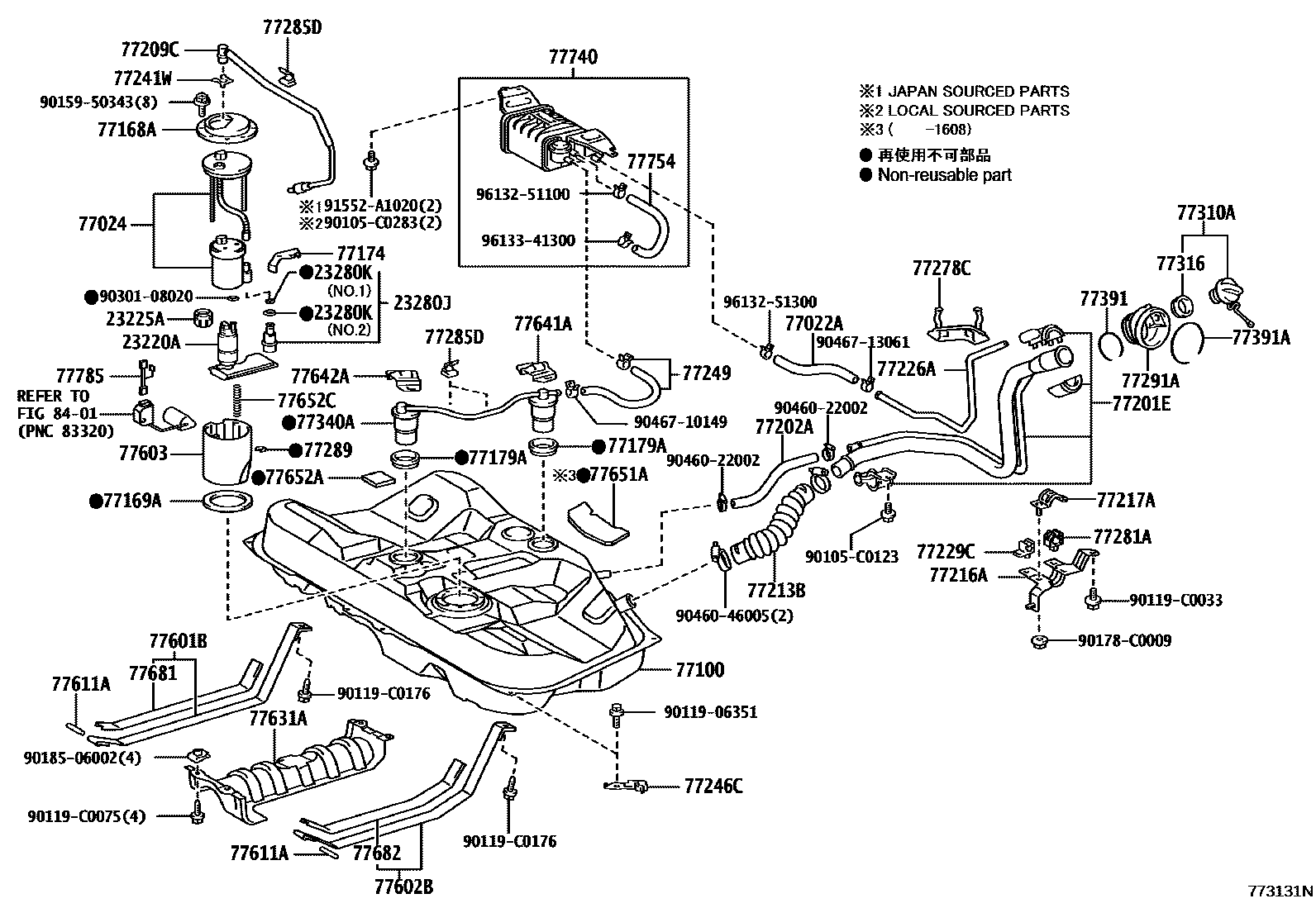

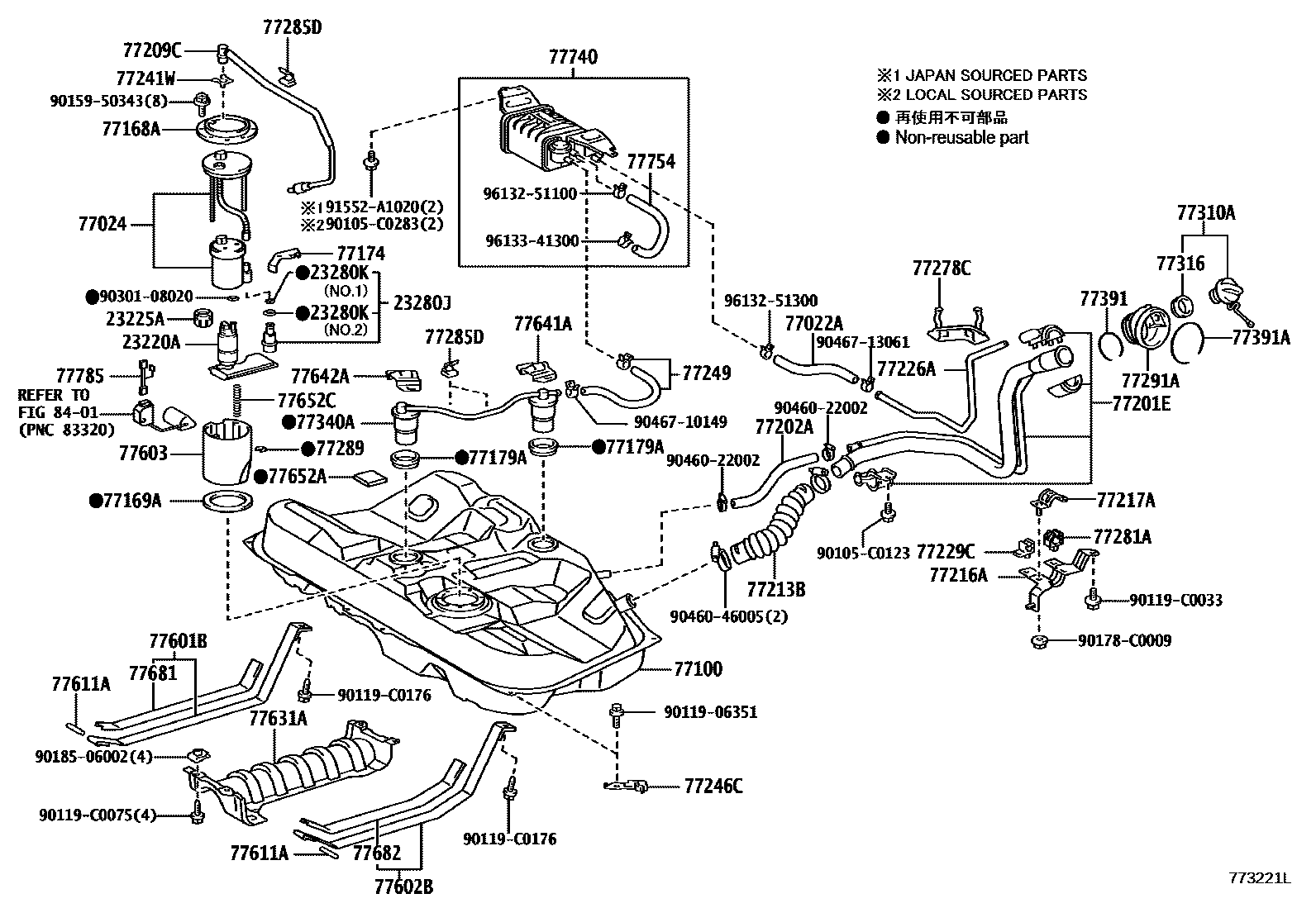

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 6 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23220A | Fuel pump assembly with filter | 23220-0H050 · 23220-0V110 · 23220-0V180 |
| 23225A | fuel pump septum | 23225-0H020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-36020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-02020 · 64648-0F010 · 64648-12020 |
| 77024 | Front main fuel pipe and fuel return pipe sub-assembly | 77024-06170 · 77024-06260 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-06210 |
| 77100 | fuel tank assembly | 77001-06100 · 77001-06170 · 77001-06171 · 77001-06221 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-06010 · 77168-52010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 |
| 77174 | No. 1 oil suction pipe bracket | 77174-06040 |
| 77179A | fuel tank breather gasket | 77179-33010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-06140 · 77201-06141 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95312-13024 · 95313-13024 |
| 77209C | Fuel tank main pipe sub-assembly | 77209-06041 · 77209-06060 |
| 77213B | Fuel tank to filler pipe hose | 77213-06050 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-06060 · 77216-06061 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-06050 · 77217-06051 |
| 77226A | No. 6 fuel tank breather pipe | 77226-06060 · 77226-06061 |
| 77229C | Snorkel clamp | 77229-06060 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77246C | Main fuel pipe bracket | 77246-06020 · 77246-06030 |
| 77249 | fuel drain hose | 77249-06060 |
| 77251B | main fuel pipe | 77251-06170 · 77251-06180 · 77251-06280 |
| 77252A | No. 2 main fuel pipe | 77252-06040 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-06190 · 77261-06240 · 77261-06340 |
| 77266A | No. 1 fuel line protection device | 77266-33050 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-06020 |
| 77281 | No. 1 main fuel pipe bracket | 77281-06030 · 77281-33030 |
| 77281A | Fuel filler pipe clamp | 77281-06070 |
| 77285D | No. 1 fuel pipe clamp | 77285-06070 |
| 77285F | No. 1 fuel pipe clamp | 77285-33060 |
| 77285G | No. 1 fuel pipe clamp | 77285-06050 |
| 77286D | No. 2 fuel pipe clamp | 77286-06040 · 77286-20170 |
| 77286F | No. 2 fuel pipe clamp | 77286-06090 |
| 77286H | No. 3 fuel pipe clamp | 77286-33040 |
| 77286K | No. 2 fuel pipe clamp | 77286-33100 |
| 77289 | Fuel tank pipe holder | 77289-52090 |
| 77289B | No. 3 fuel pipe clamp | 77289-06080 · 77289-33050 |
| 77291A | Fuel tank filler pipe cover | 77291-06130 |
| 77295C | Fuel pipe retaining ring | 77295-06040 · 77295-42030 |
| 77295D | Fuel pipe retaining ring | 77295-0E020 · 77295-33020 |
| 77298A | No. 4 fuel pipe clamp | 77298-06060 · 77298-33070 |
| 77298B | No. 4 fuel pipe clamp | 77298-33060 |
| 77299A | No. 5 fuel pipe clamp | 77299-06050 · 77299-33050 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-06100 |
| 77310A | Fuel tank cap assembly | 77300-02030 · 77300-0F010 · 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-0F020 · 77316-52040 |
| 77340A | Fuel shut-off valve assembly with fuel pipe | 77340-33020 |
| 77350 | Fuel filler cap assembly | 77350-06100 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-06080 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-33040 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-06100 · 77601-06270 · 77601-33111 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-06100 · 77602-06270 · 77602-33111 |
| 77603 | Fuel tank lower shell sub-assembly | 77613-06030 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77631A | Fuel tank center lower protective shell | 77631-06040 · 77631-33060 · 77631-33090 |
| 77641A | No. 1 fuel tank protective shell | 77642-33040 |
| 77642A | No. 2 fuel tank protective shell | 77643-33030 |
| 77651A | No. 1 fuel tank liner | 77651-06020 |
| 77652A | No. 2 fuel tank liner | 77651-12070 · 77652-06060 · 77652-06061 |
| 77652C | fuel pump spring | 77652-06050 |
| 77681 | Fuel tank right side strap seat | 77681-06020 · 77681-06280 · 77681-32060 |
| 77682 | Fuel tank left side strap seat | 77681-06030 · 77681-06280 · 77681-32060 |
| 77740 | Carbon canister assembly | 77740-06201 |
| 77754 | No. 1 carbon canister outlet hose | 77754-06030 |
| 77785 | fuel pump wiring harness | 77785-33060 |
