Toyota CAMRY 挡泥板和扰流板 — Figure 7601

Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 1 images and 8 PNC and OE references.

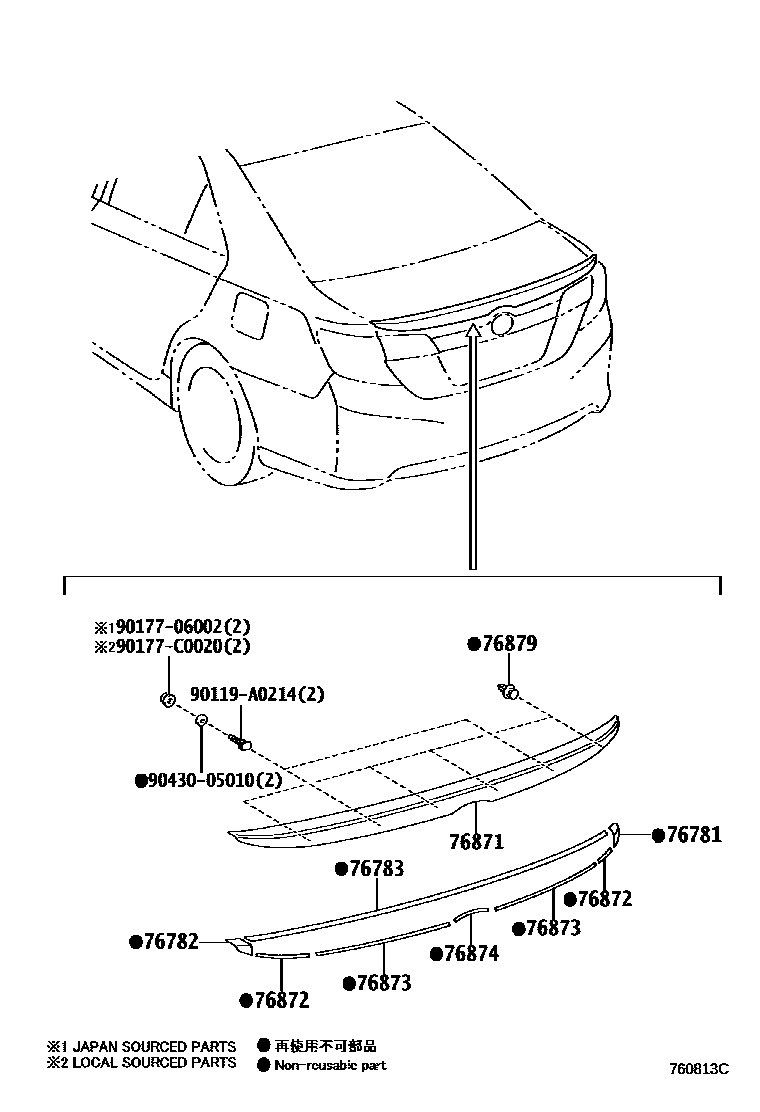

Toyota CAMRY 挡泥板和扰流板 EPC diagram — 760813C
挡泥板和扰流板 — 760813C (201112 – 999999)

PNC and OE references

PNCPart nameOE numbers
76781Right rear upper spoiler tape76781-06020
76782Left rear upper spoiler tape76782-06020
76783Right rear lower spoiler tape76783-06010
76871rear spoiler76871-06911
76872No. 1 rear spoiler protective strip76872-06060
76873No. 2 rear spoiler protective strip76873-06040
76874No. 3 rear spoiler protective strip76874-06040
76879No. 1 rear spoiler clip90467-09203
