Toyota CAMRY 后防护条 — Figure 7504

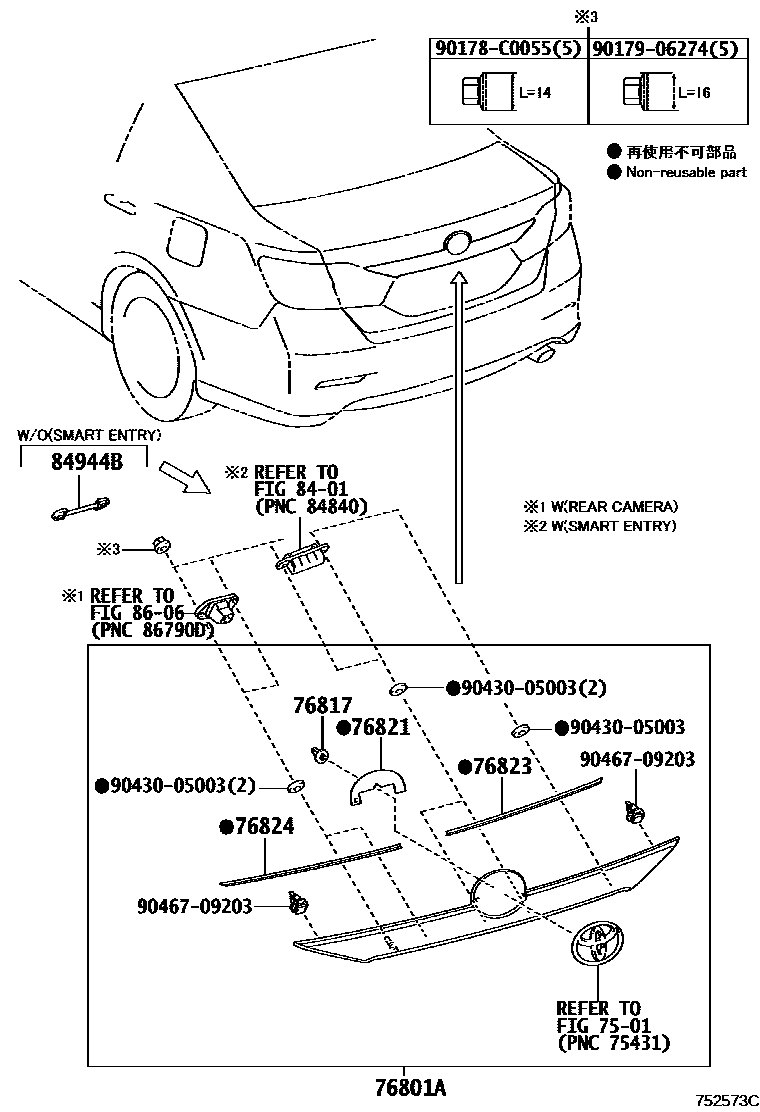

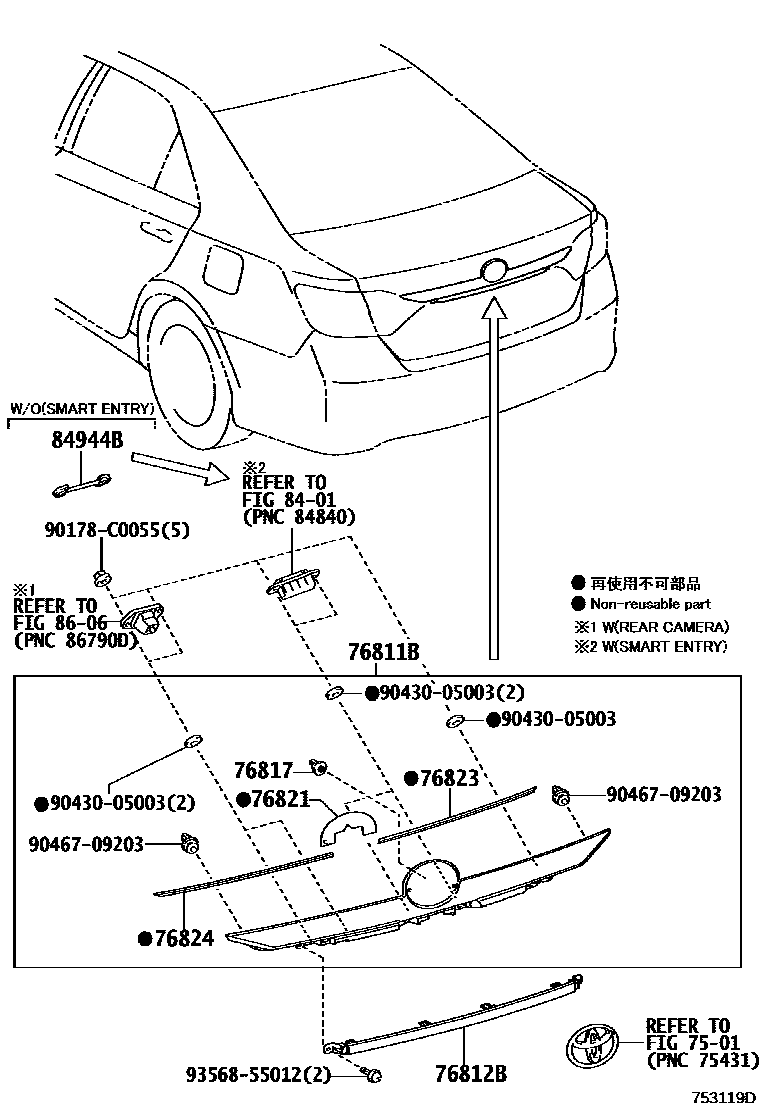

Toyota CAMRY EPC diagram 7504, 后防护条, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-06760 · 76801-06770 · 76801-06780 · 76801-06A10 |
| 76811B | Trunk door exterior trim strip | 76811-06926 |
| 76812B | No. 2 suitcase door outer decorative strip | 76812-06020 · 76812-06030 · 76812-06040 · 76812-06170 |
| 76817 | Rear door exterior decorative strip clip | 76817-12060 |
| 76821 | Protective cover for rear door trim strip | 76821-06040 · 76821-06080 |
| 76823 | Rear door right side decorative strip protective cover | 76824-06030 · 76824-06050 |
| 76824 | Rear door left side decorative strip protective cover | 76825-06210 · 76825-06300 |
| 84944B | Trunk electronic key switch cover | 84944-06030 |
