Toyota CAMRY 侧防护条 — Figure 7503

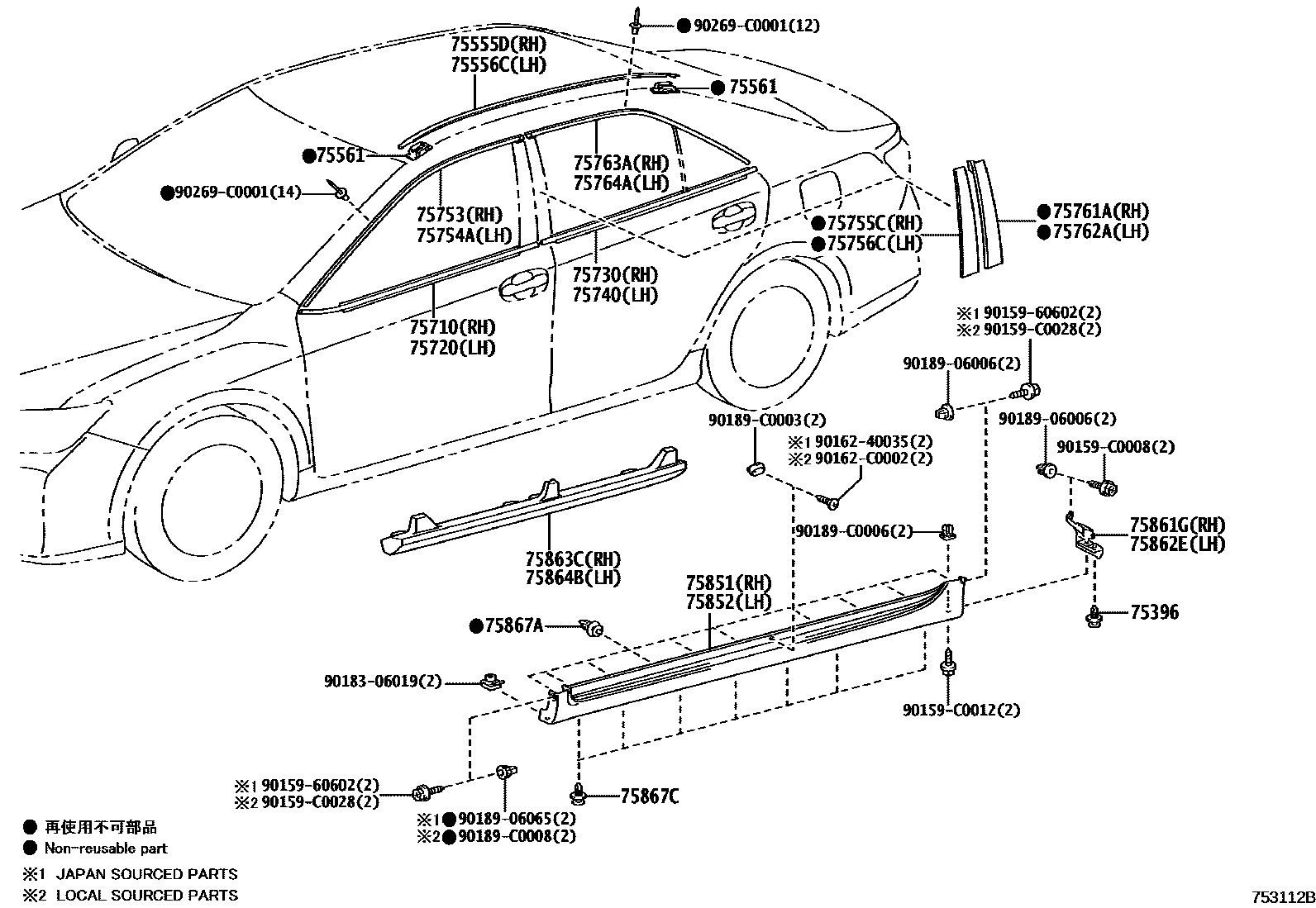

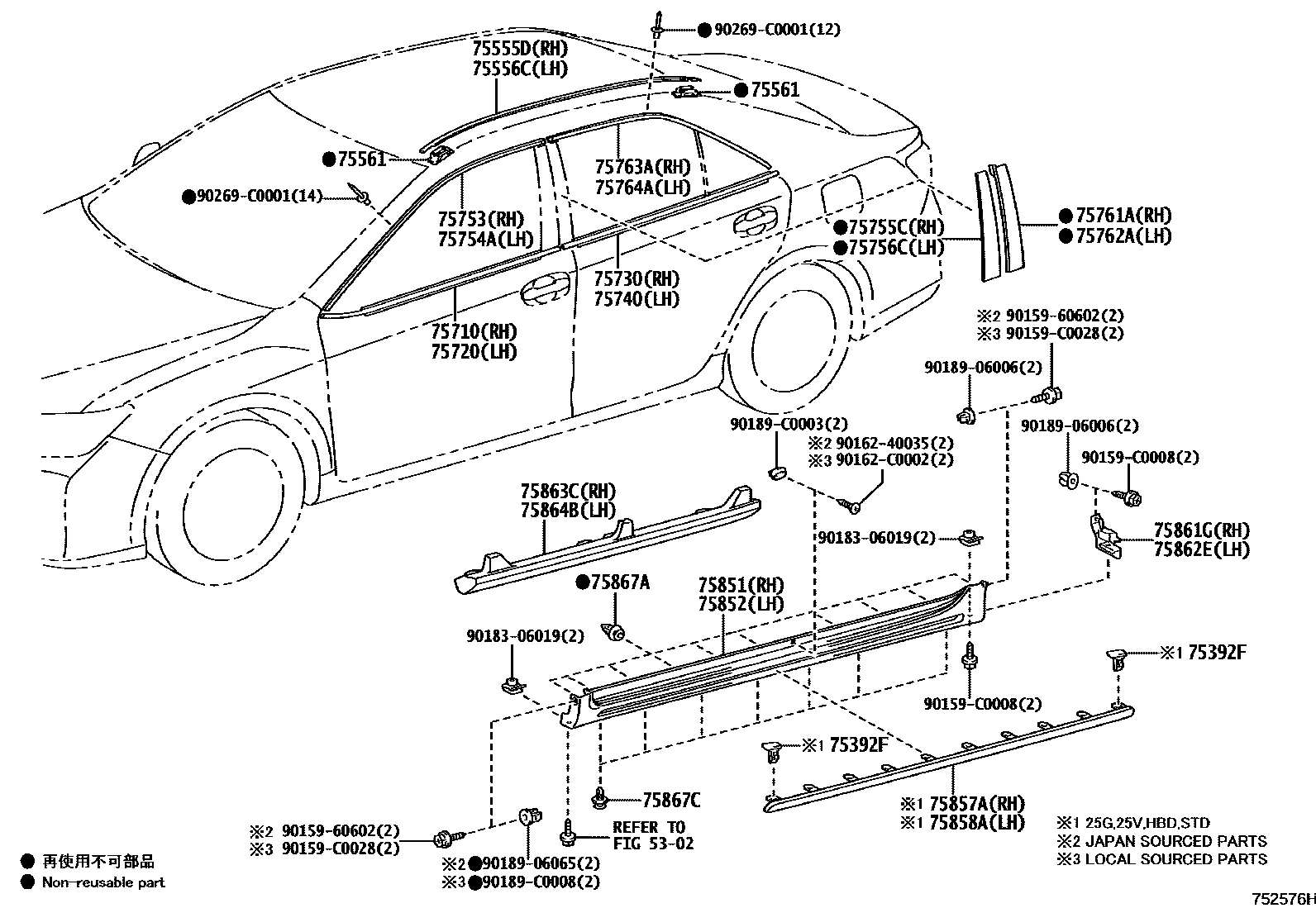

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75392F | External protective strip fixings | 75392-35220 |
| 75396 | No. 2 outer protective strip clip | 90467-C0037 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-06100 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-06100 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 75710-06150 |
| 75720 | Left front door waistline protection strip assembly | 75720-06150 |
| 75730 | Right rear door waistline protection strip assembly | 75730-06130 |
| 75740 | Left rear door waistline protection strip assembly | 75740-06130 |
| 75753 | Protective strip on right front door window frame | 75753-06100 |
| 75754A | Protective strip on left front door window frame | 75754-06100 |
| 75755C | Right front door window frame rear protective strip | 75755-06100 |
| 75756C | Left front door window frame rear protective strip | 75756-06100 |
| 75761A | Right rear door window frame front protective strip | 75761-06100 |
| 75762A | Left rear door window frame front protective strip | 75762-06100 |
| 75763A | Protective strip on right rear door window frame | 75763-06110 |
| 75764A | Protective strip on left rear door window frame | 75764-06110 |
| 75851 | Right side door sill panel protective strip | 75851-06921 · 75851-06922 · 75851-06928 |
| 75852 | Left side door sill panel protective strip | 75852-06922 · 75852-06923 · 75852-06929 |
| 75857A | Right side door sill panel protective strip cover | 75857-06010 |
| 75858A | Left side door sill panel protective strip cover | 75858-06010 |
| 75861G | Right front door sill panel protective strip end cap | 75861-06080 · 75861-06160 |
| 75862E | Left front door sill panel protective strip end cap | 75862-06090 · 75862-06160 |
| 75863C | No. 3 rocker panel protective strip protective cover | 75863-06120 · 75863-06130 · 75863-06220 |
| 75864B | No. 4 door sill panel protective strip protective cover | 75864-06120 · 75864-06130 · 75864-06200 |
| 75867A | Door sill panel protective strip clip | 75867-06080 · 75867-33030 |
| 75867C | Door sill panel protective strip clip | 75867-0E020 · 75867-33050 |
