Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 11 PNC and OE references.

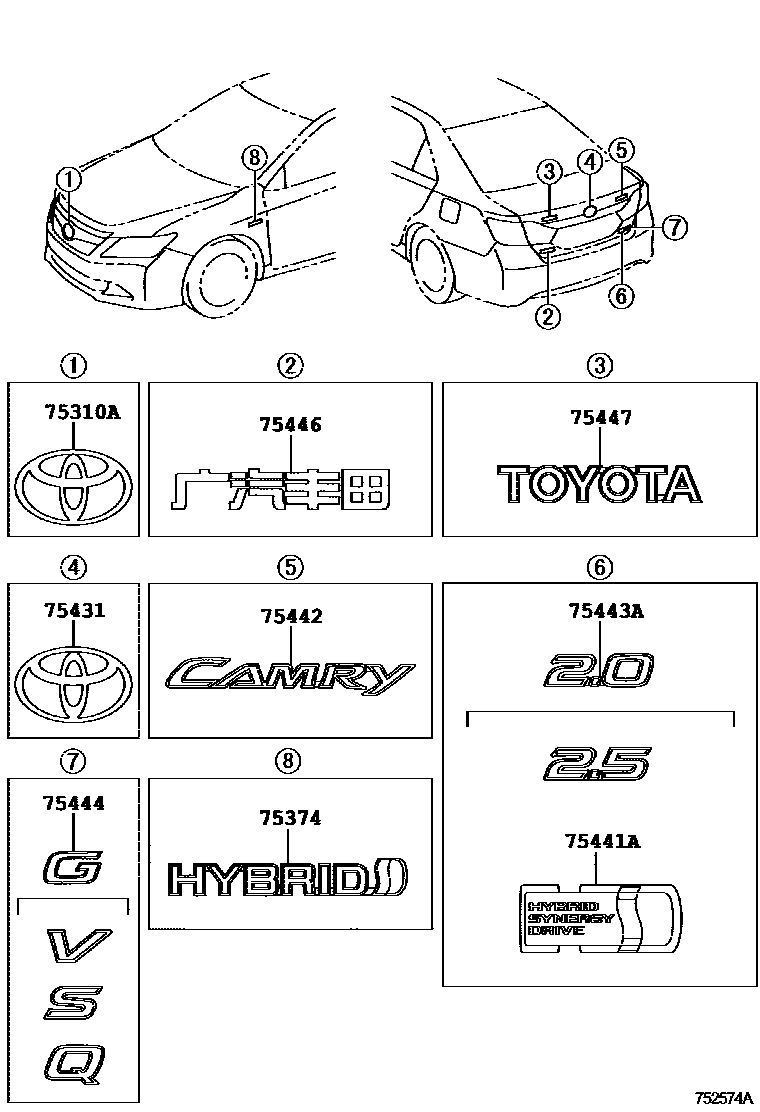

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 752574A
丰田徽标和铭牌(车外和车内) — 752574A (201112 – 201501)

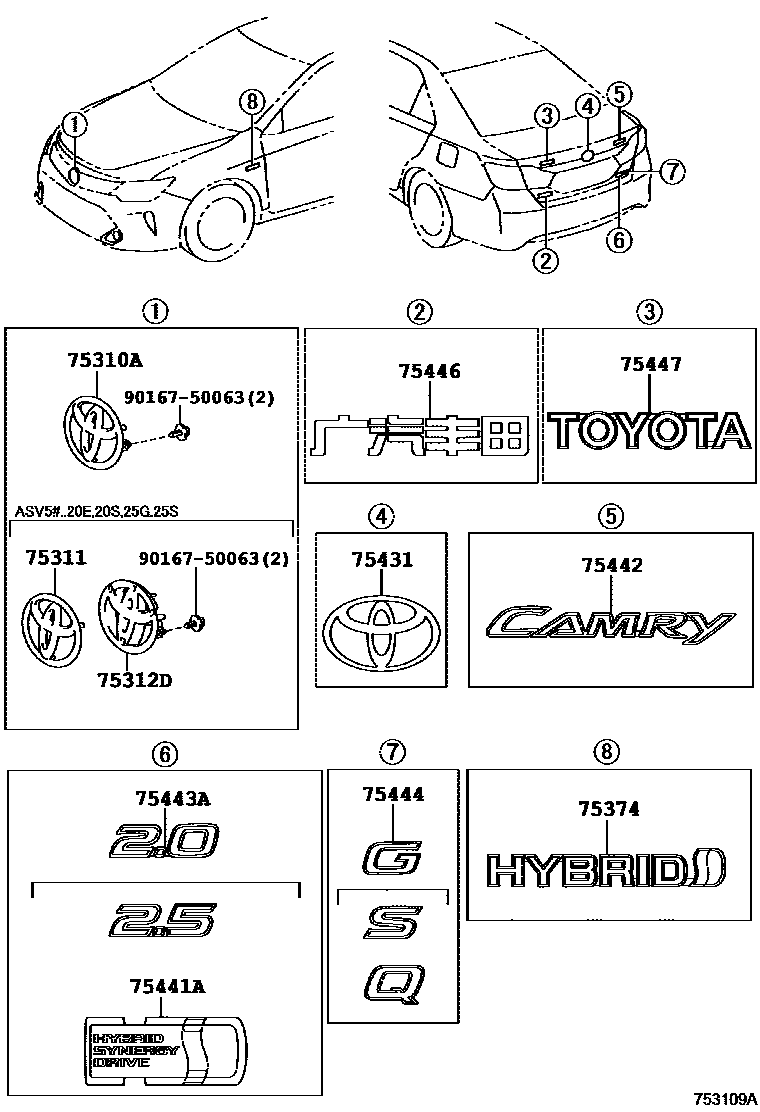

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 753109A
丰田徽标和铭牌(车外和车内) — 753109A (201501 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly53141-07010 · 53141-47011 · 53141-47012 · 75310-47010 · 90975-02189 · 90975-C2009
75311Radiator grille (or front panel) plate90975-C2009
75312DRadiator grille plate base75311-06230
75374side panel sign75374-06110 · 75374-06120 · 75374-52050 · 75374-52060
75431luggage compartment door sign75403-06040 · 75403-33050 · 75403-75010 · 90975-C2010
75441ATrunk door No. 1 name plate75441-33151
75442Trunk door number plate No. 275442-06210
75443ATrunk door No. 3 nameplate75443-06751 · 75443-06761
75444Trunk door No. 4 nameplate75444-06250 · 75444-06260 · 75444-06270 · 75444-06280
75446Trunk door No. 6 nameplate75446-06030
75447Trunk door No. 7 nameplate75447-06080
