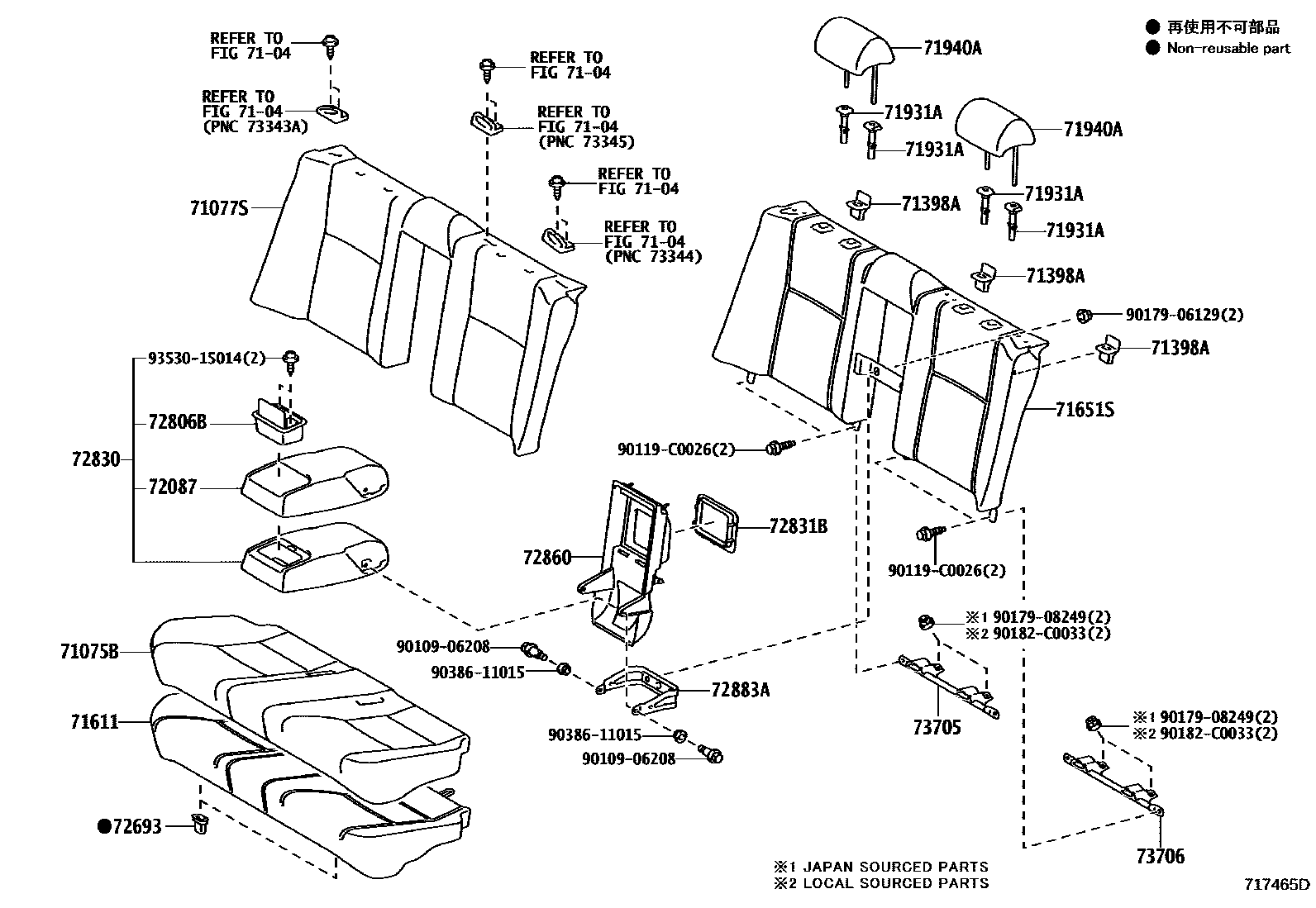

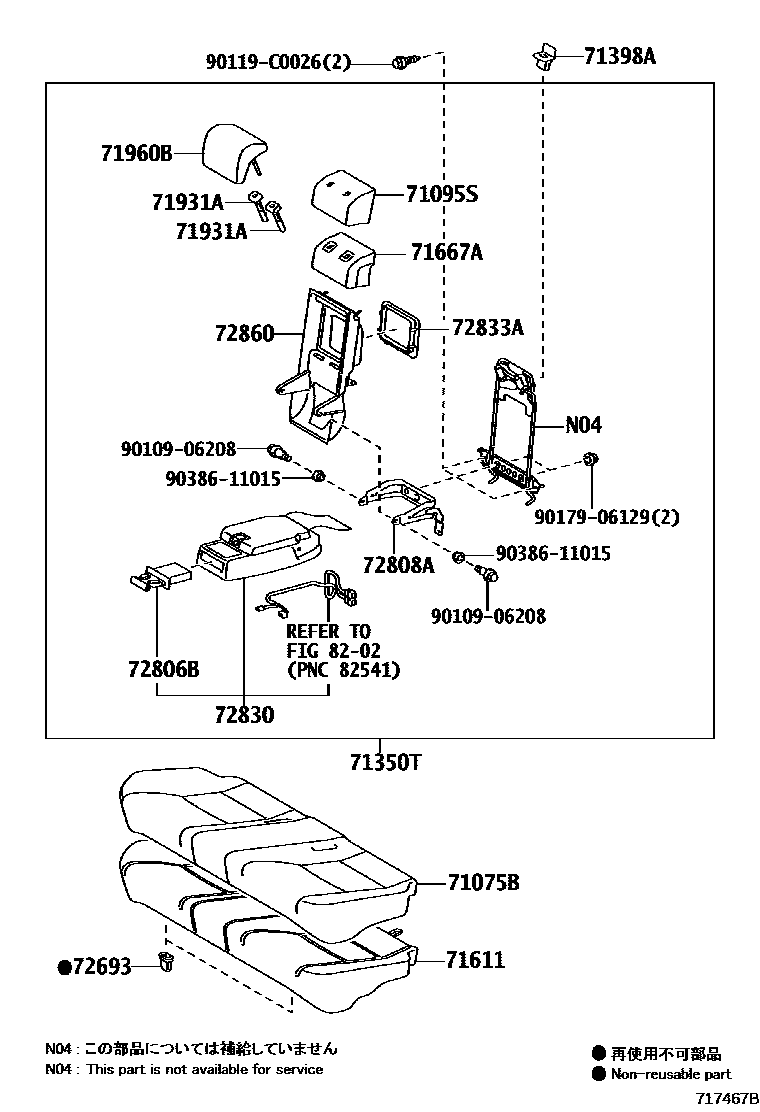

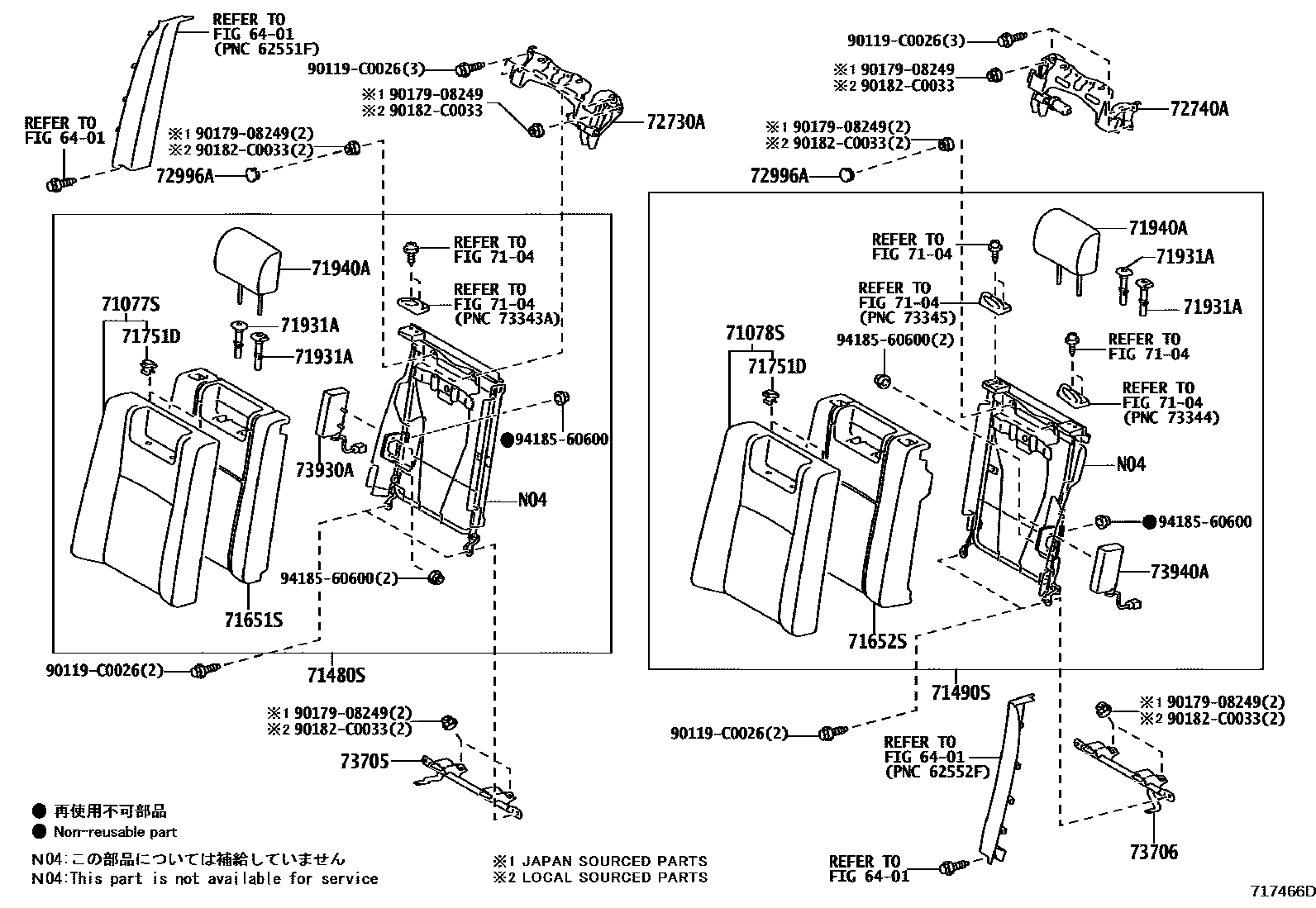

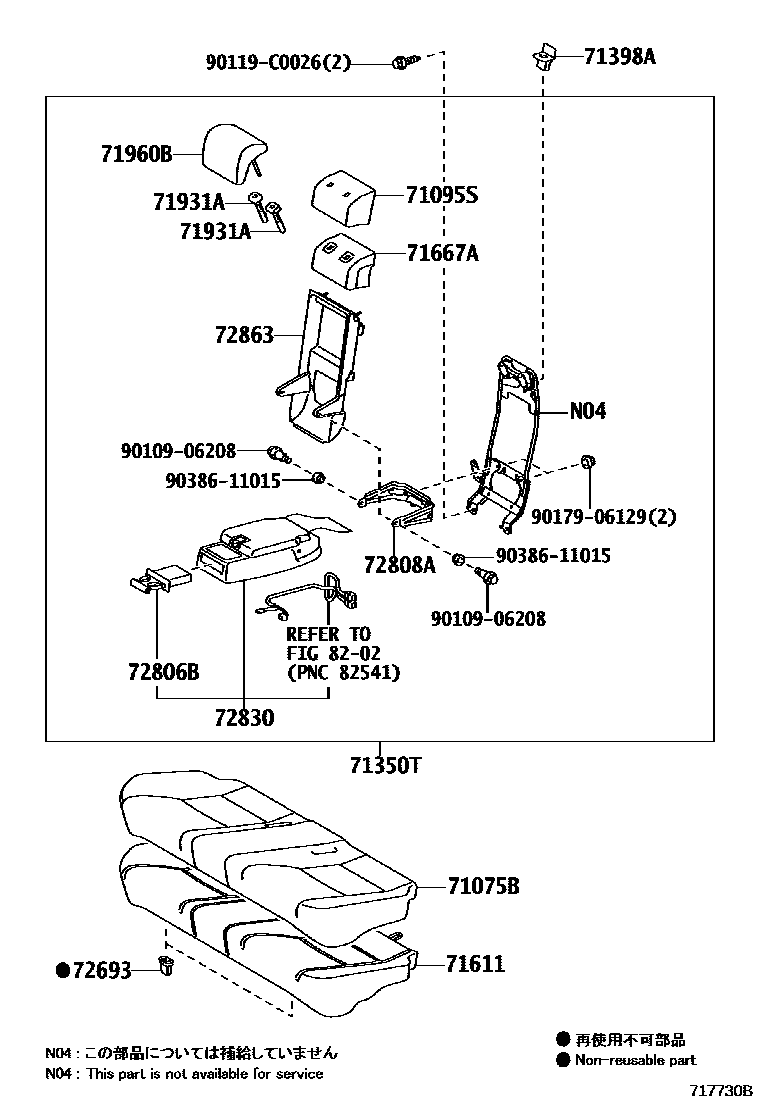

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71611 | Rear seat cushion cushion | 71503-06290 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06430 · 71651-06450 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06220 |
| 71667A | Rear center A seat back cushion | 71507-06110 |
| 71751D | Rear seat cover hanger | 71751-06030 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-06070 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-06070 |
| 72808A | Seat center armrest bracket sub-assembly | 72883-06110 · 72883-06190 |
| 72831B | No. 1 rear seat center armrest panel | 72831-06050 |
| 72833A | Seat center armrest inner panel | 72831-06050 |
| 72883A | Center armrest bracket for rear seat No. 1 | 72883-06050 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-06040 · 73705-06070 · 73705-06080 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-06040 · 73706-06070 · 73706-06080 |
| 73930A | Rear right seat airbag assembly | 73930-06020 |
| 73940A | Rear left seat air bag assembly | 73940-06020 |
