Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

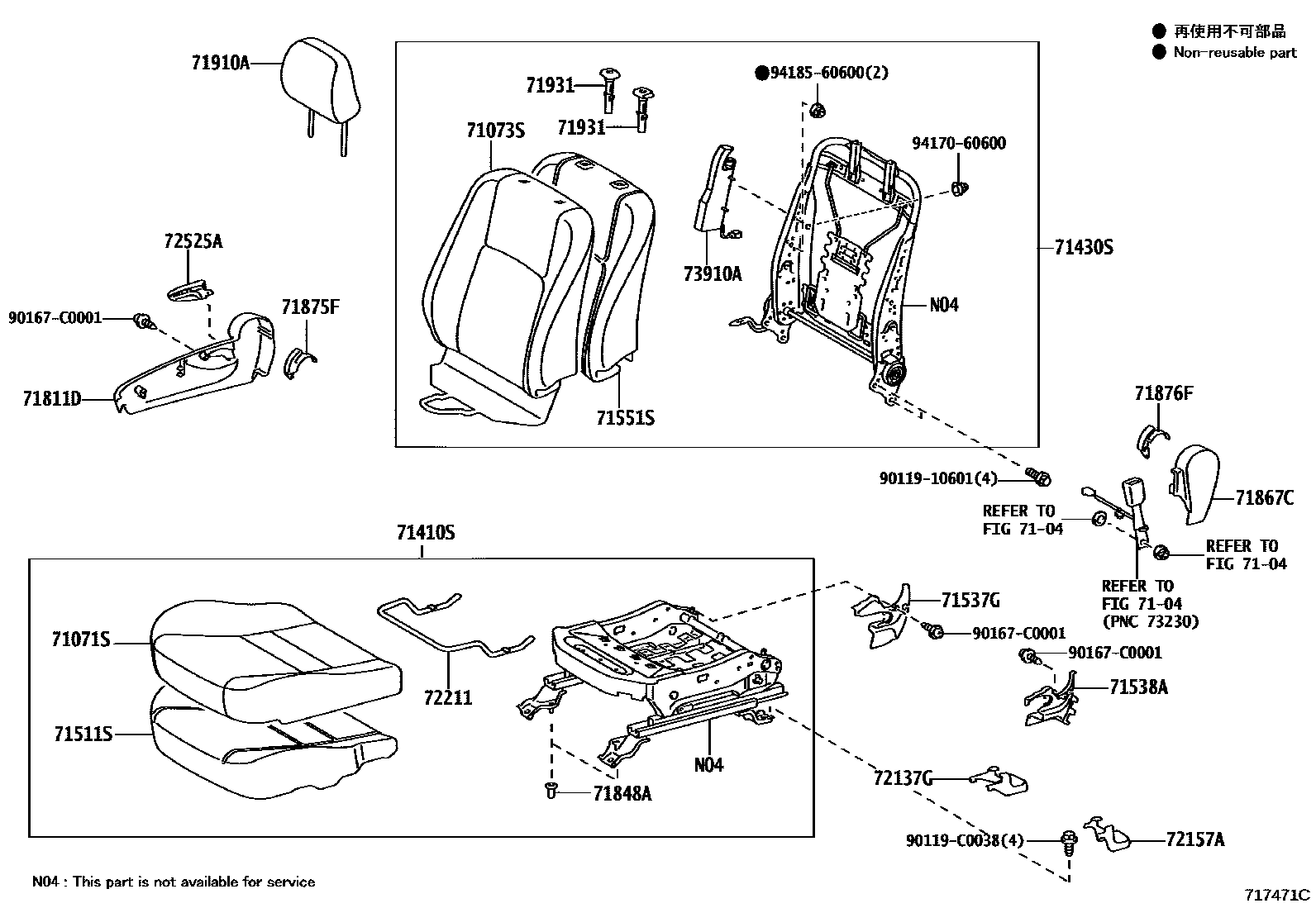

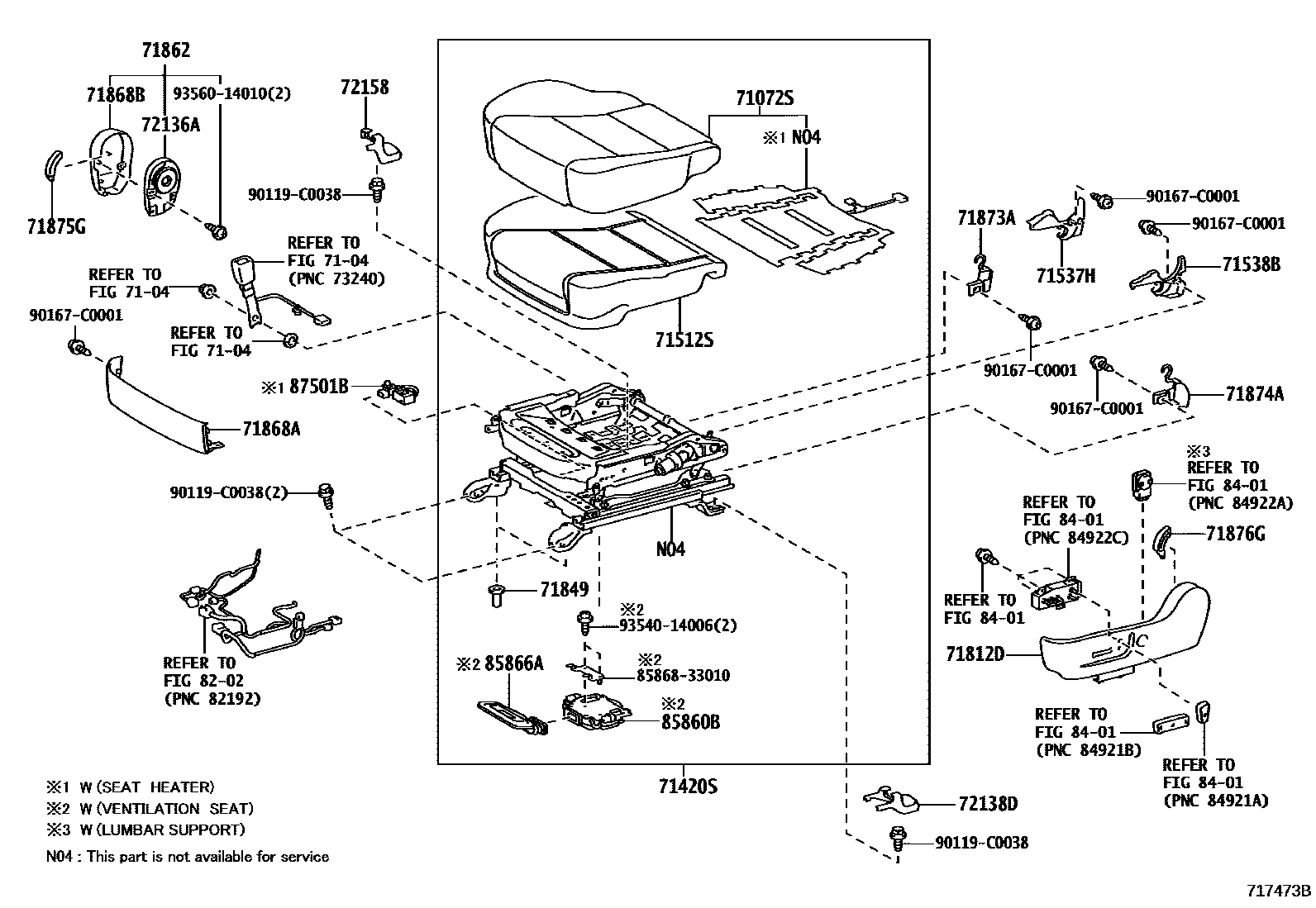

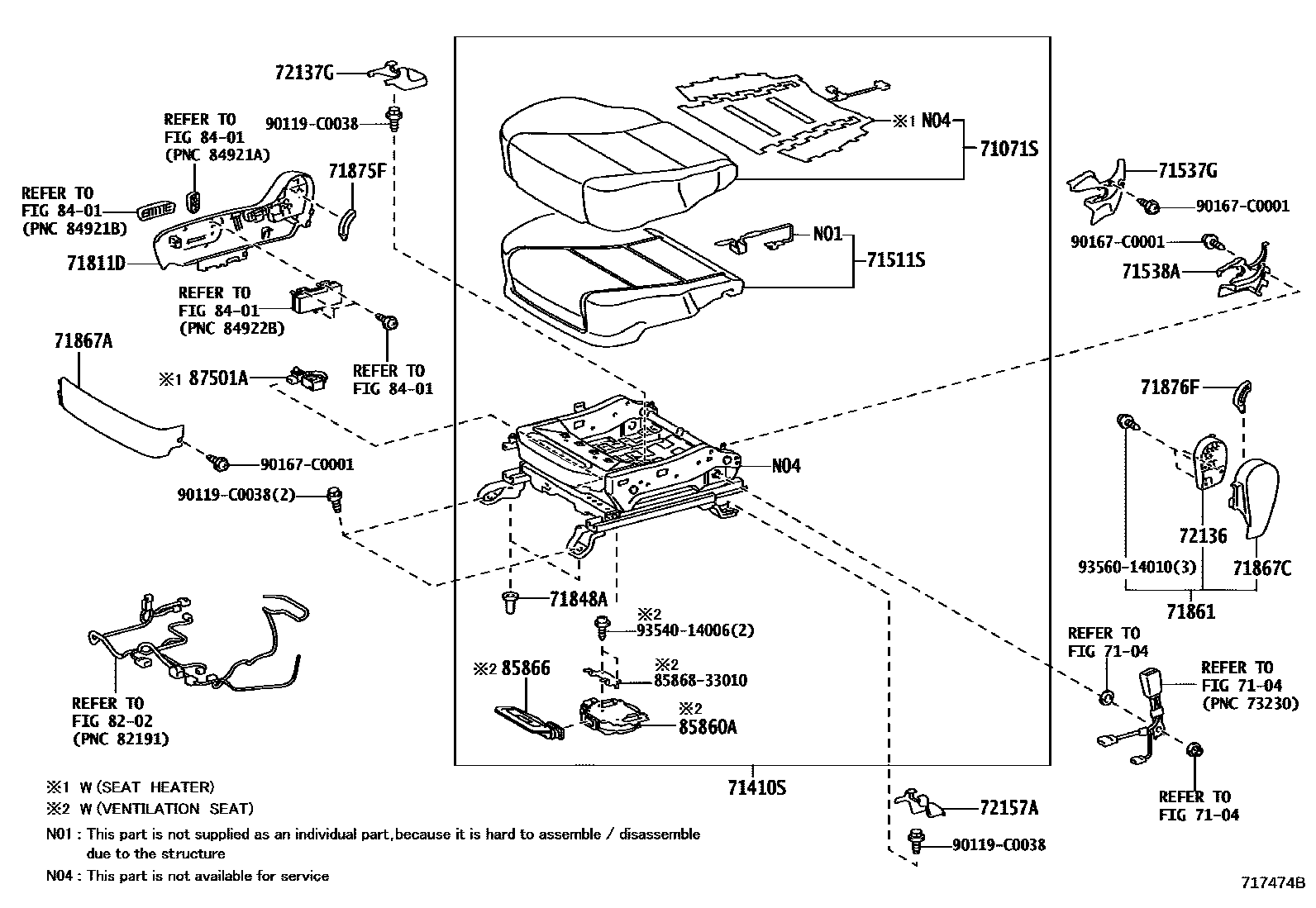

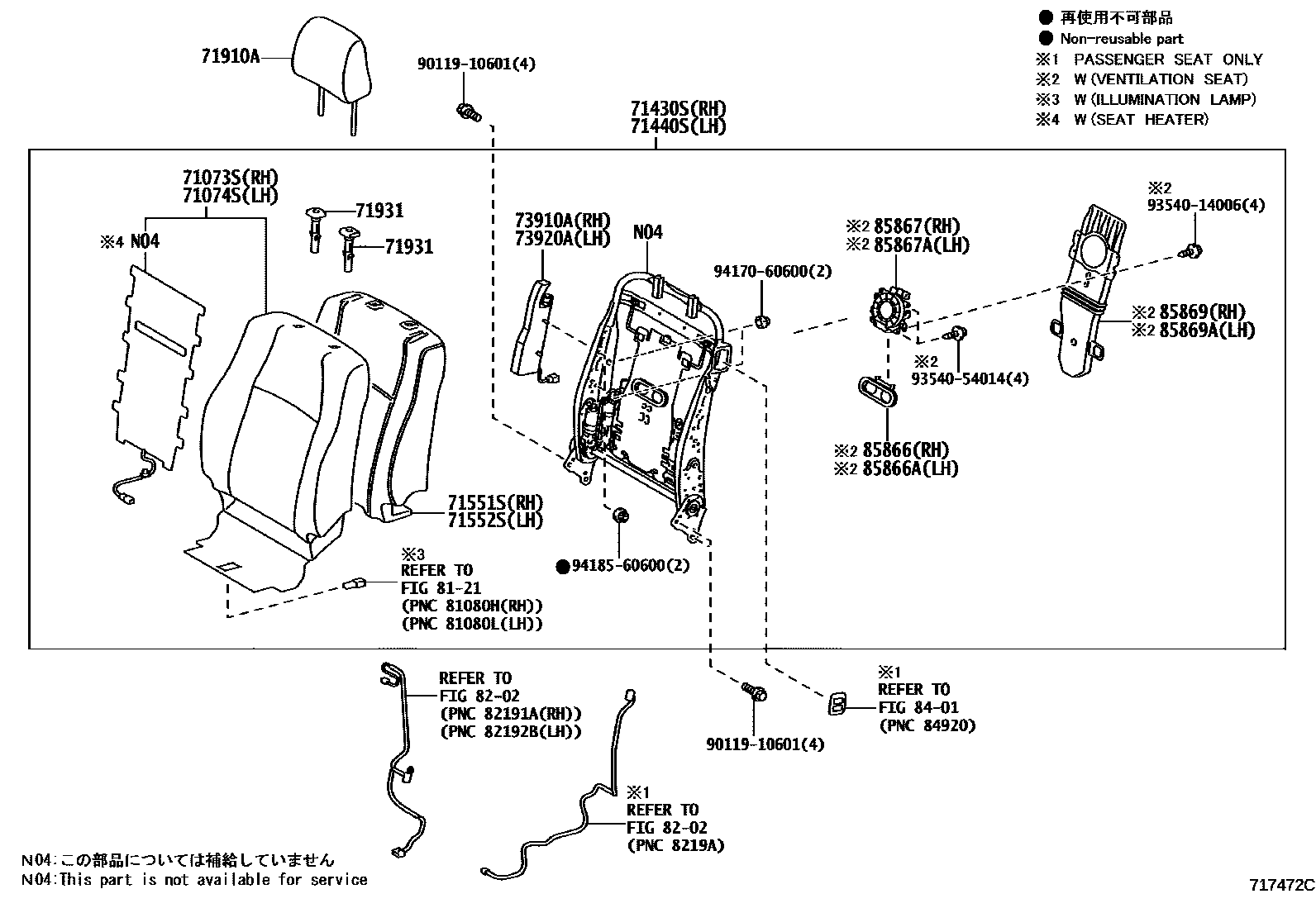

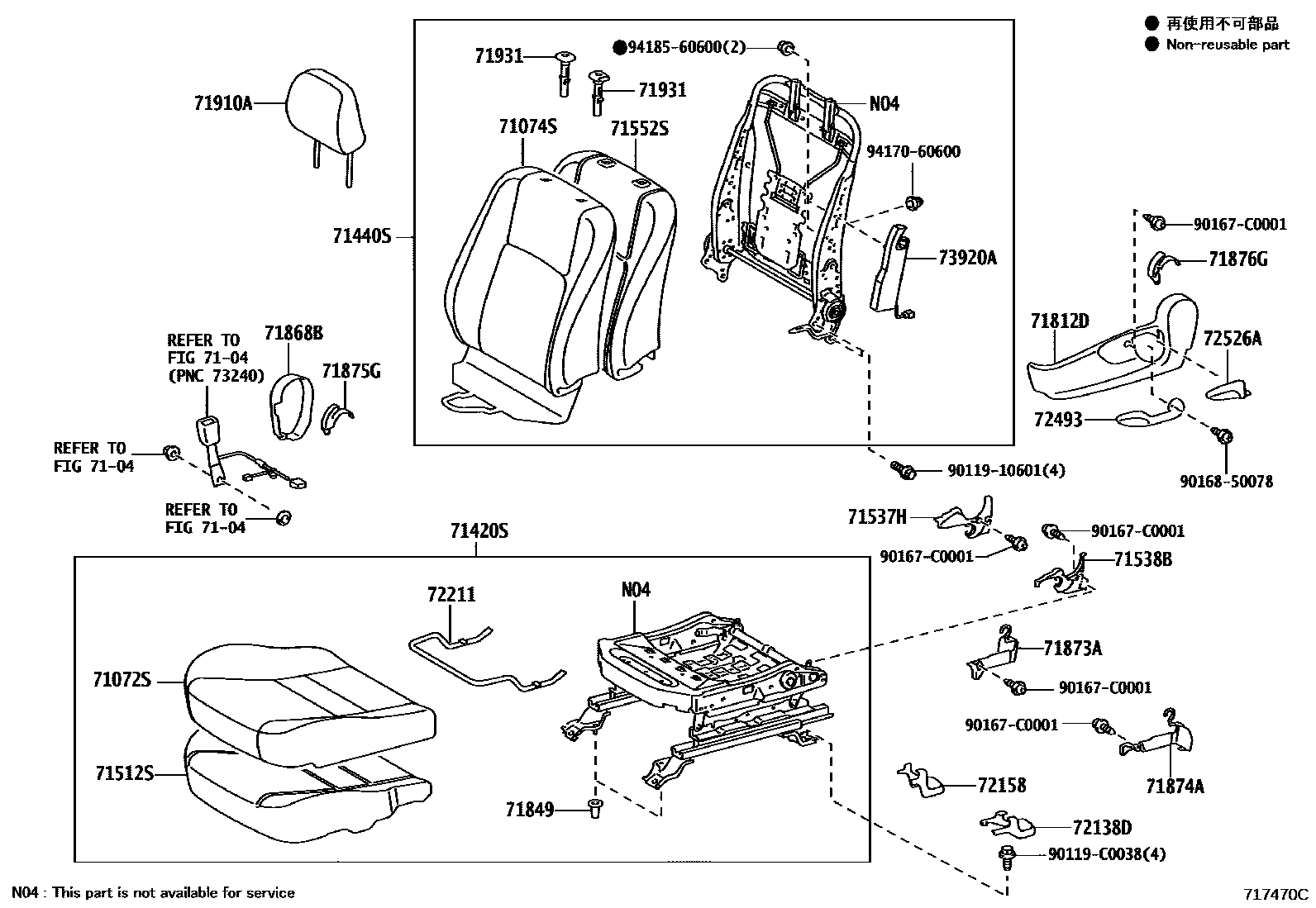

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71074S | Front left seat back cover (for split seats) | 71074-06J51 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-06170 · 71501-06171 · 71501-06180 · 71501-06181 · 71501-06190 · 71501-06191 · 71501-06200 · 71501-06201 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-06470 · 71512-06480 · 71512-06490 · 71512-06500 · 71512-06510 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06440 · 71551-06450 · 71551-06460 · 71551-06470 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06360 · 71552-06370 · 71552-06380 |
| 71848A | Right seat adjuster cover | 71848-47010 |
| 71849 | left seat adjuster cover | 71848-47010 |
| 71873A | Front seat cushion lower guard | 71873-06440 · 71873-06450 |
| 71874A | Front left seat cushion lower guard | 71874-06430 · 71874-06520 |
| 72136 | No. 1 seat slide rail lower rail | 72136-06340 |
| 72136A | No. 2 seat slide rail lower rail | 72136-06350 |
| 72211 | Seat slide adjustment handle | 72211-06120 |
| 73910A | Front right seat airbag assembly | 73910-06120 |
| 73920A | Front left seat airbag assembly | 73920-06130 |
| 85860A | Right seat cushion temperature control blower assembly | 85860-33020 |
| 85860B | Left seat cushion temperature control blower assembly | 85860-33040 |
| 85866 | Right seat cushion temperature control air duct | 85866-33010 · 85866-33020 |
| 85866A | Left seat cushion temperature control duct | 85866-33010 · 85866-33020 |
| 85867 | Right seat back temperature control blower | 85867-33020 |
| 85867A | Left-hand seat back temperature control blower | 85867-33020 |
| 85869 | Right seat back temperature control cover | 85869-33010 |
| 85869A | Left seat back temperature control cover | 85869-33010 |
| 87501A | Right seat heater control sub-assembly | 87501-0G010 · 87501-0G011 · 87501-0G030 |
| 87501B | Left side seat heater control sub-assembly | 87501-0G010 · 87501-0G011 · 87501-0G030 |
