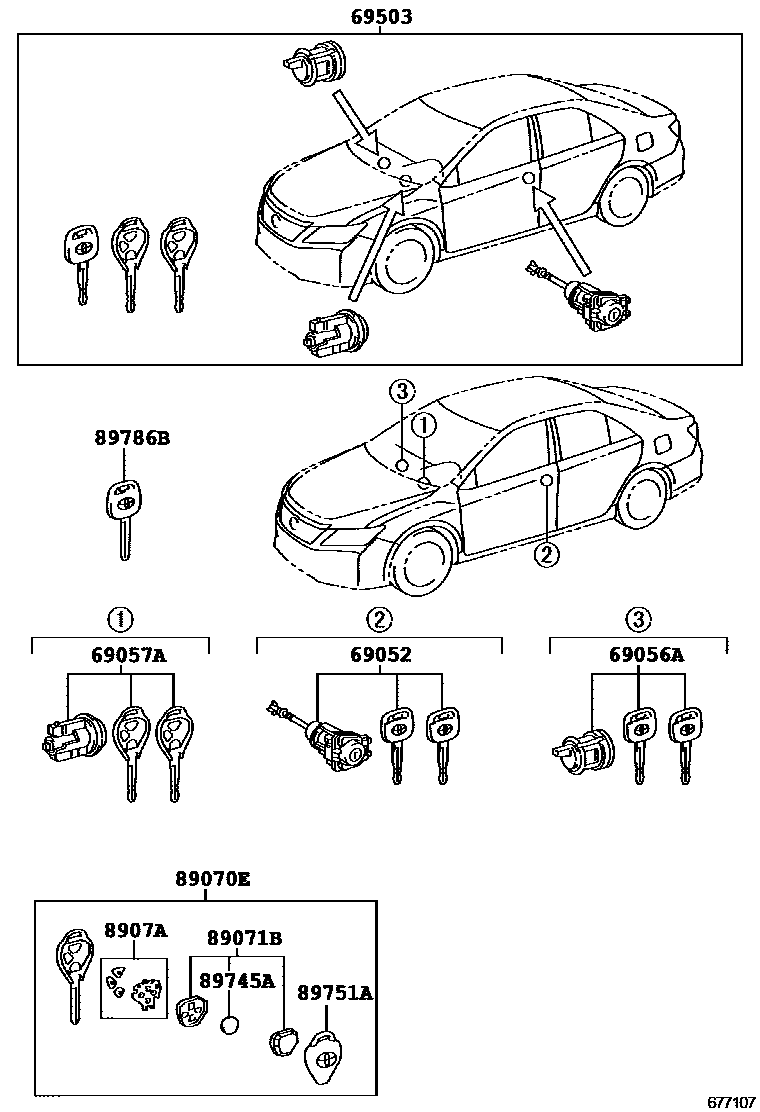

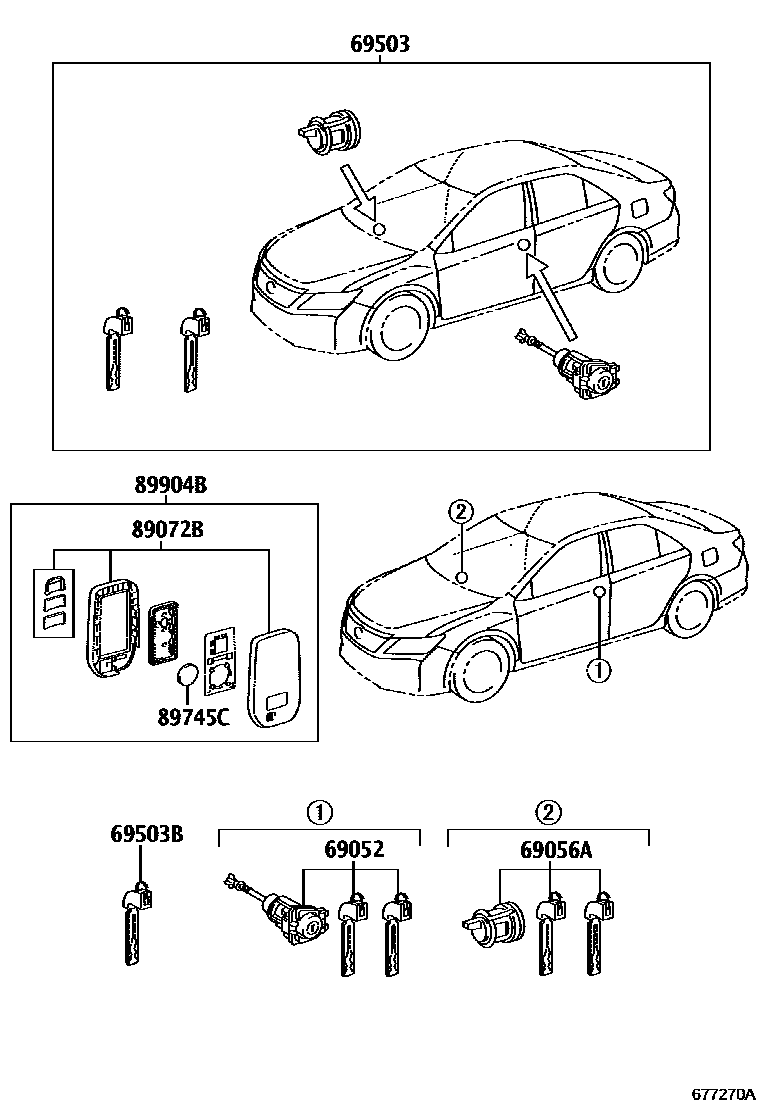

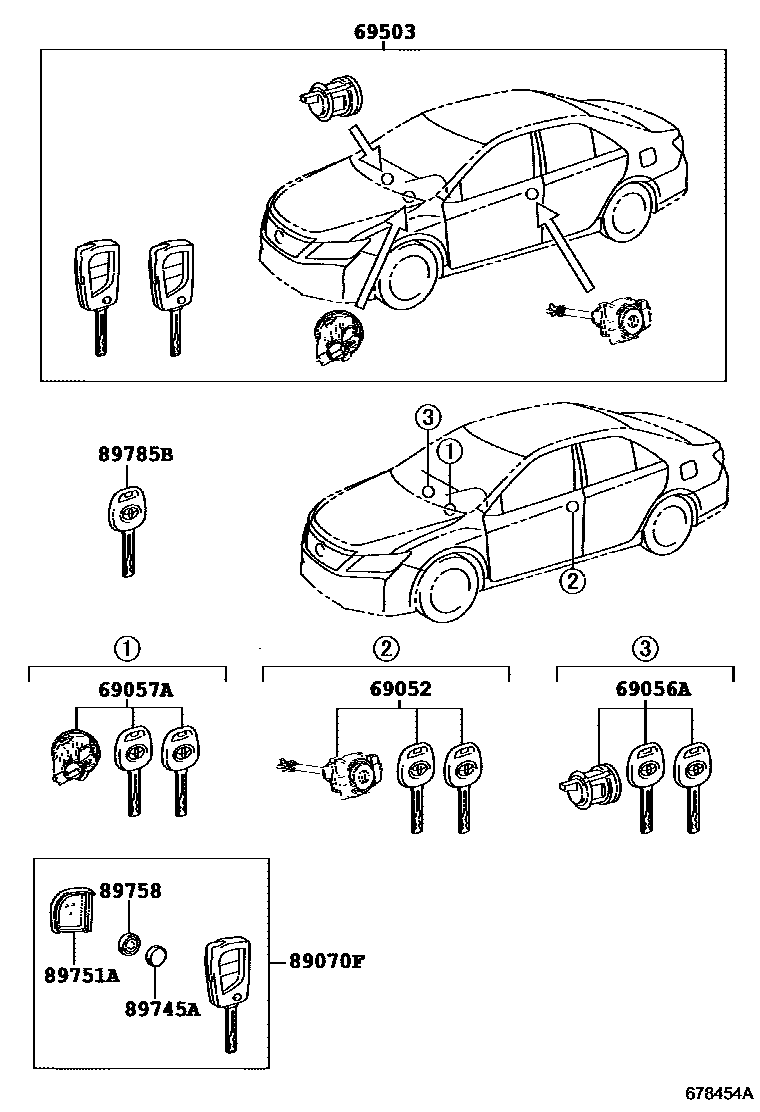

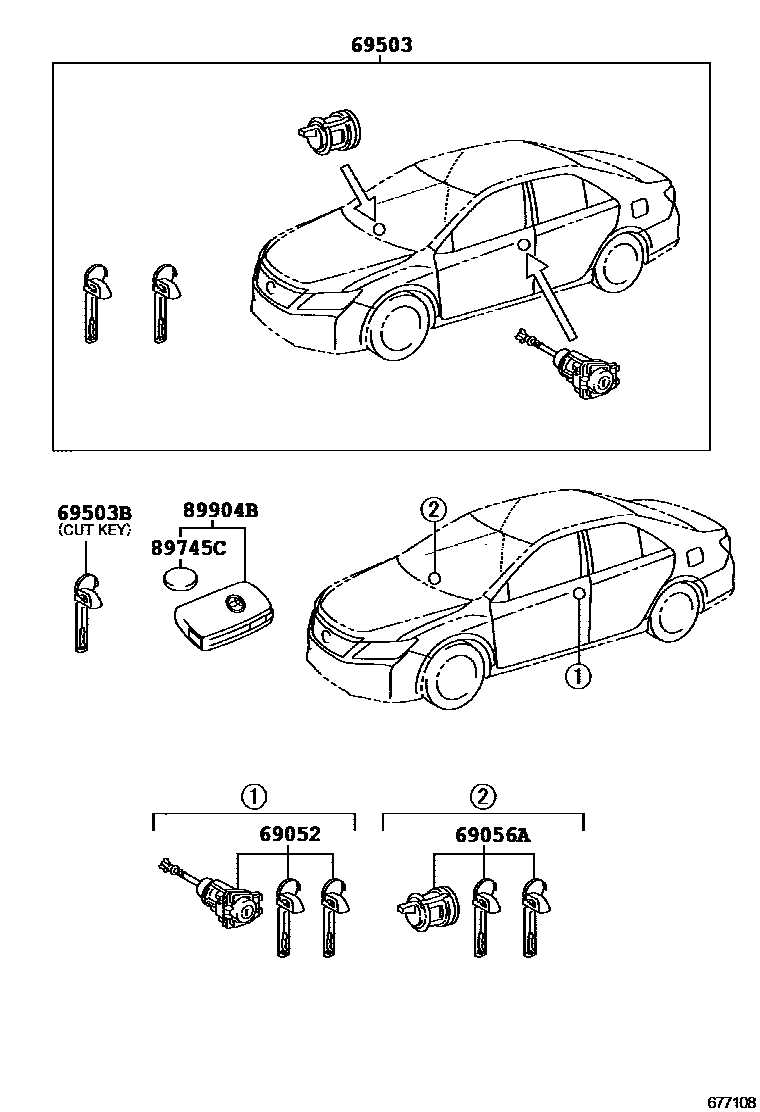

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-06150 · 69052-06161 · 69052-06171 · 69052-06220 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06070 · 69056-06090 · 69056-06120 · 69056-06130 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02A60 · 69057-06280 |
| 69503 | Door lock cylinder components | 69005-06230 · 69005-06551 · 69005-06561 · 89704-06540 |
| 69503B | internal tooth key | 69515-33090 · 69515-33110 |
| 89070E | Remote key assembly | 89070-06521 · 89070-06522 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0P090 |
| 89071B | Remote key sub-assembly module assembly | 89071-0P010 |
| 89072A | Remote key shell assembly | 89072-06450 |
| 89072B | Remote key shell assembly (for smart key) | 89072-06450 |
| 8907A | Transmitter switch assembly | 8907A-33020 |
| 89745A | Transmitter battery | 89745-0R020 · 89745-20010 · 89745-48030 |
| 89745C | Transmitter battery | 89745-45010 |
| 89751A | Transmitter housing cover | 89751-06120 · 89751-06121 · 89751-0P060 |
| 89758 | Remote key seal | 89758-0R010 |
| 89785B | transceiver key master transmitter | 89785-06060 |
| 89786B | transceiver key secondary transmitter | 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-06150 · 89904-06190 |
