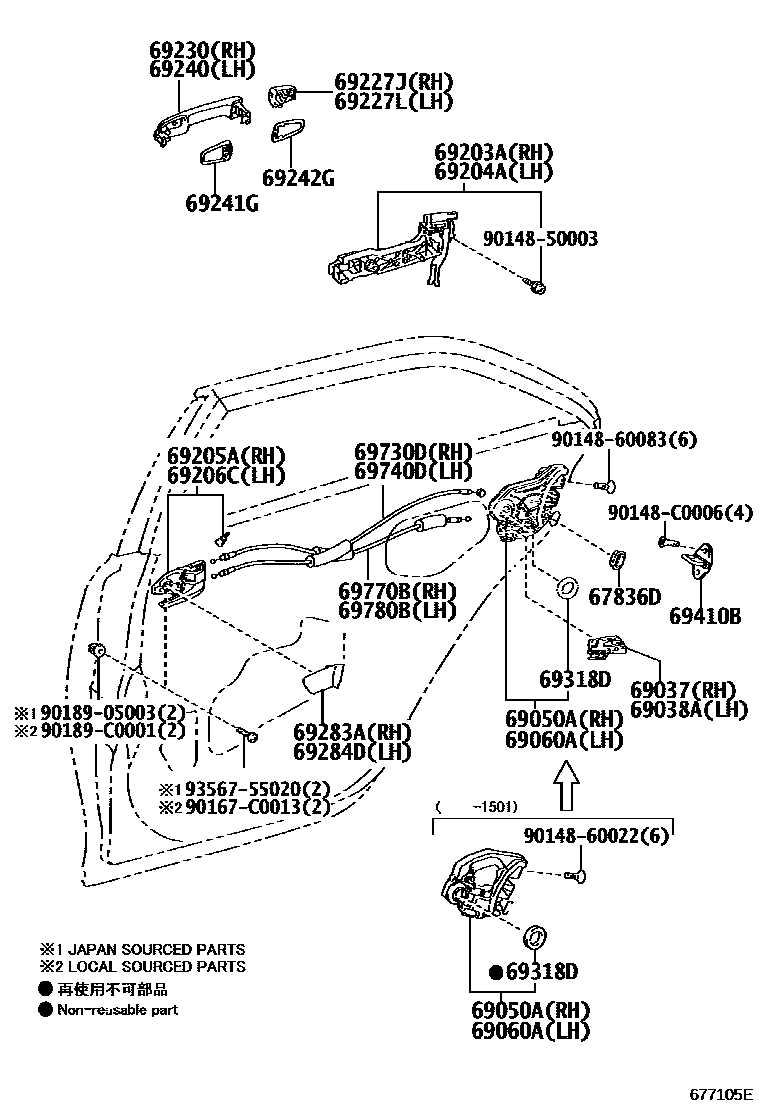

Toyota CAMRY 后门锁和后门把手 — Figure 6706
Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836D | Rear door lock child restraint cover | 67836-06020 |
| 69037 | Right rear door door lock cover sub-assembly | 69037-02070 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-02070 |
| 69050A | Right rear door lock assembly with motor | 69050-02470 · 69050-06111 |
| 69060A | Left rear door lock assembly with motor | 69060-02470 · 69060-06111 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-06090 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-06090 |
| 69241G | Rear door front exterior handle pad | 69241-06070 · 69241-06090 |
| 69242G | Rear door rear outer handle pad | 69242-06070 · 69242-06090 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-0D020 |
| 69730D | Right rear door lock remote control cable assembly | 69730-06110 · 69730-06170 |
| 69740D | Left rear door lock remote control cable assembly | 69730-06110 · 69730-06170 |
| 69770B | Right rear door inner lock cable assembly | 69770-06100 · 69770-06160 |
| 69780B | Left rear door inner lock cable assembly | 69770-06100 · 69770-06160 |
